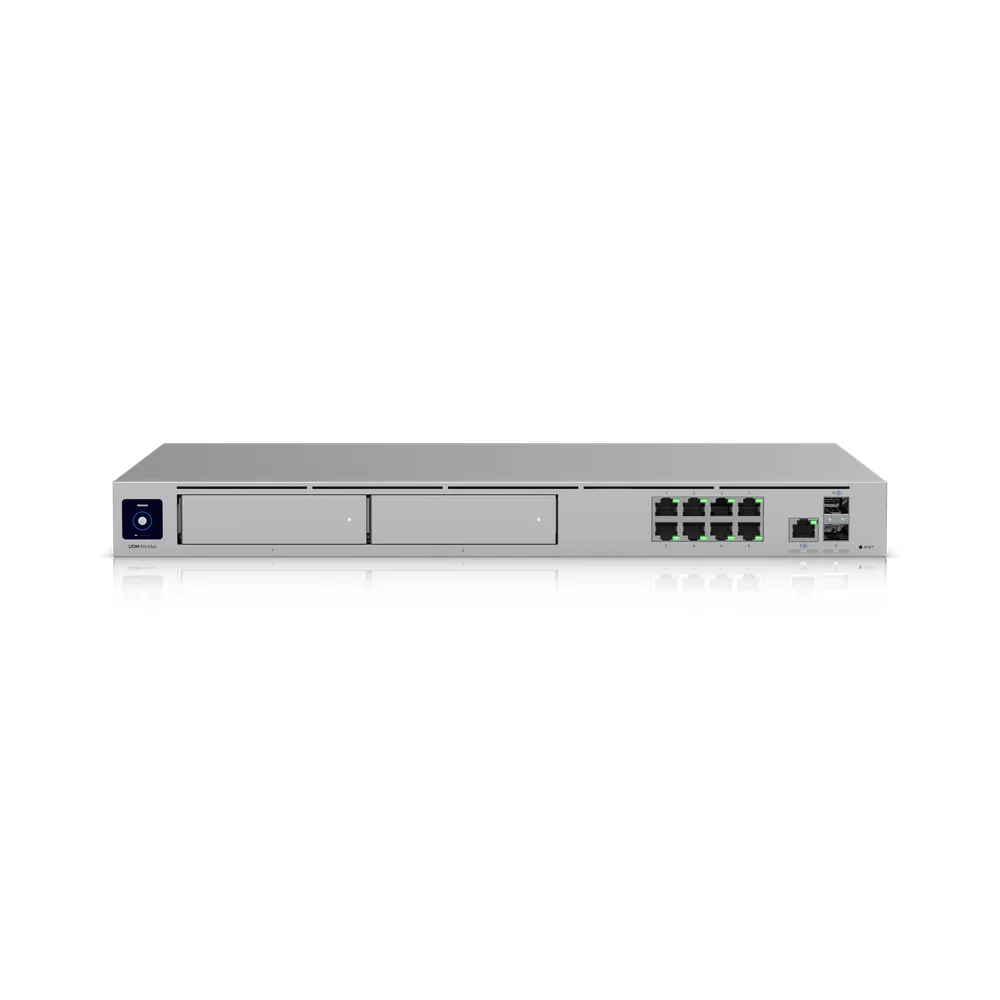

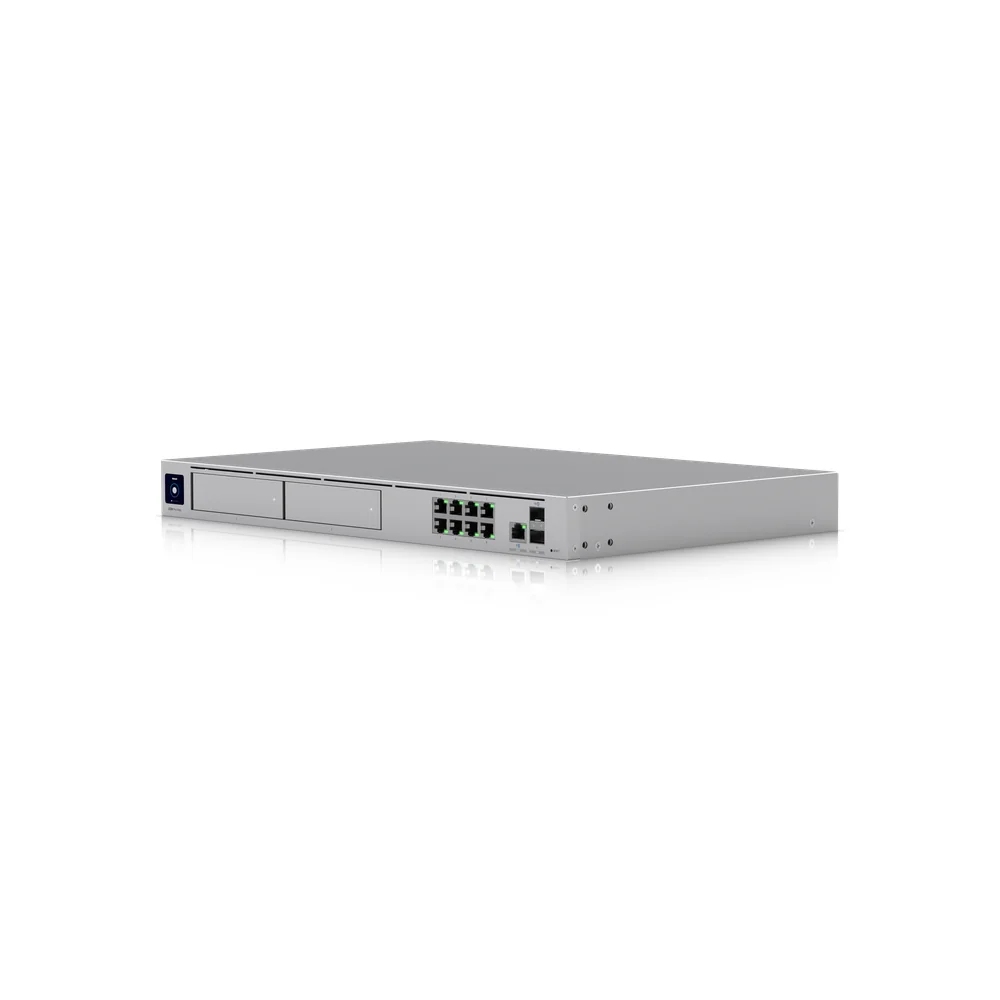

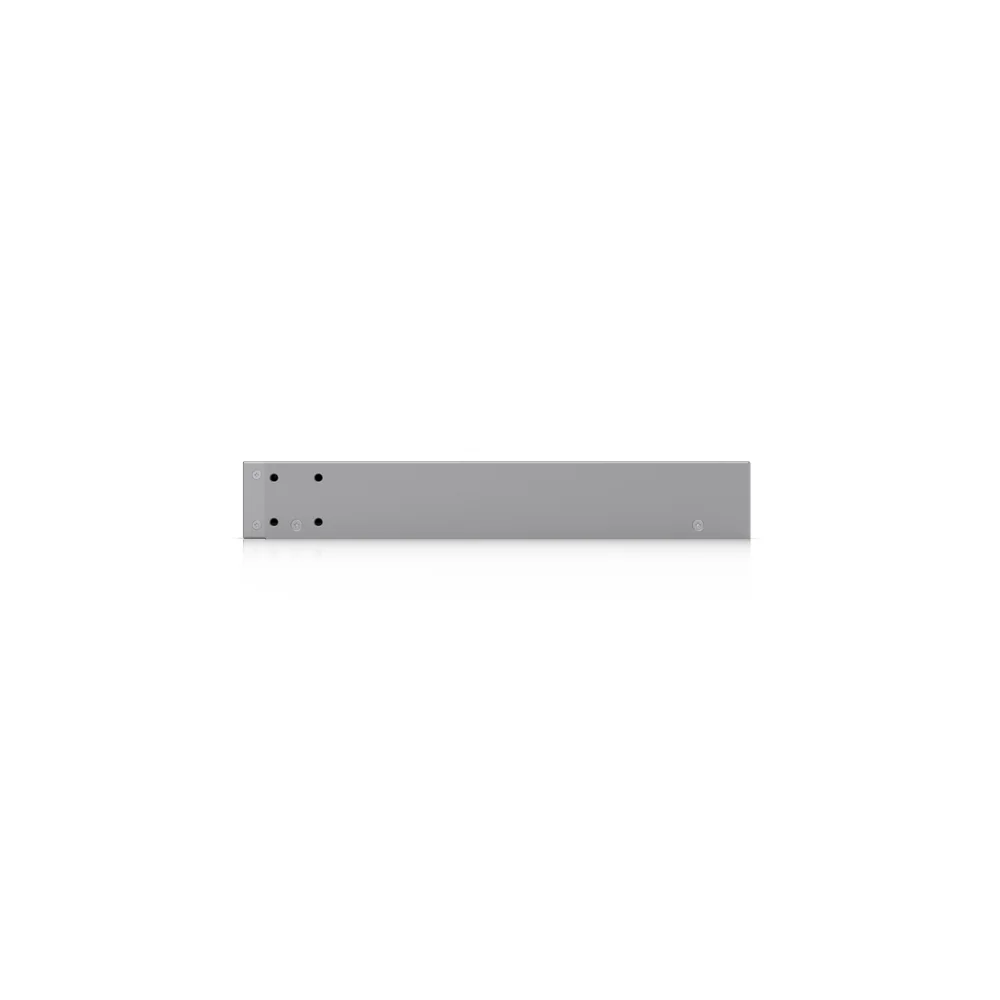

Ubiquiti UniFi Dream Machine Pro Max UDM-Pro-Max

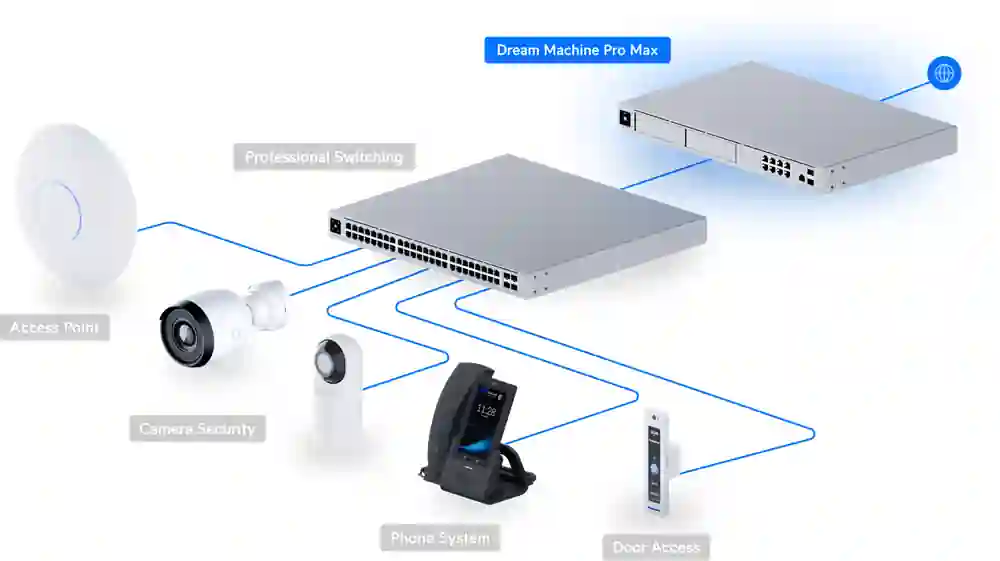

網絡拓撲

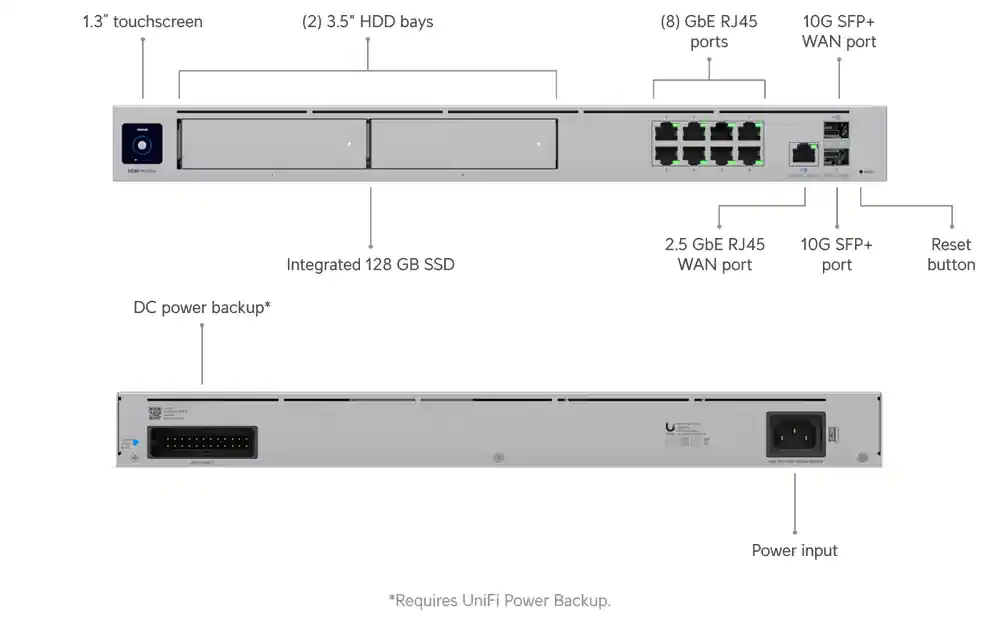

UDM-Pro-Max 技術規格
Grid overview
| IDS/IPS |
5 Gbps |
| Max. Client Count |
2,000 |
| RADIUS over TLS (RadSec) |
Yes |
| IDS/IPS Throughput |
5 Gbps |
總覽
| Dimensions |
442.4 x 43.7 x 285.6 mm (17.4 x 1.7 x 11.2″) |
| Network |
Yes |
| Protect |
Yes |
| Access |
Yes |
| Talk |
Yes |
| Connect |
Yes |
| Managed UniFi Devices |
200+ |
| Managed Cameras |
(50) HD (25) 2K (15) 4K |
| Managed Access Hubs |
150 |
| Simultaneous Users Connected |
2,000+ |
| Max. WAN Port Count |
8 |
| Default WAN Ports |
(1) 10G SFP+ (1) 2.5 GbE RJ45 |
| 1 GbE RJ45 |
8 (1G/100M/10M) |
| 2.5 GbE RJ45 |
1 (2.5G/1G/100M/10M) |
| 10G SFP+ |
2 (10G/1G) |
| IDS/IPS Throughput |
5 Gbps |
| Form Factor |
Rack mount (1U) |
| Redundancy |
Shadow Mode (VRRP) Gateway Failover DC Power Backup |
安全功能
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
Yes |
| Content Filtering |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes |
| Ad Blocking |
Yes |
| IDS/IPS Signatures |
55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation |
Yes |
VPN & SD-WAN
| License-Free SD-WAN |
Yes |
| Site Magic |
Yes |
| IPsec |
Yes |
| OpenVPN |
Yes |
| Identity Endpoint One-Click VPN |
Yes |
| Teleport Zero-Configuration VPN |
Yes |
| WireGuard |
Yes |
| OpenVPN |
Yes |
| L2TP |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
Networking
| Multi-WAN Load Balancing |
Yes |
| Shadow Mode (VRRP) High Availability |
Yes |
| LACP Port Aggregation |
Yes |
| OSPF |
Yes |
| BGP |
Yes |
| Advanced QoS |
Yes |
| Multicast DNS (mDNS) |
Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
| Integrated RADIUS Server |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Additional Internet Failover with UniFi LTE Backup |
Yes |
| Internet Quality and Outage Reporting |
Yes |
| MAC Address Table Size |
4,000 |
| Policy-based WAN and VPN Routing |
Yes |
| Customizable DHCP Server |
Yes |
| IPv6 ISP Support |
Yes |
| IGMP Proxy |
Yes |
| Virtual Network Override |
Yes |
| All Traffic Flows |
Yes |
硬件規格
| NVR Storage |
(2) 3.5″ NVR HDD bays Built-in 128 GB SSD for Faster Experience |
| Max. Power Consumption |
60W |
| Power Method |
(1) Universal AC input, 100–240V AC, 2A Max., 50/60 Hz (1) USP-RPS DC input, 11.5V DC, 8.7A |
| Power Supply |
AC/DC, internal, 100W |
| Supported Voltage Range |
100–240V AC |
| Heat Dissipation |
205 BTU/hr |
| Processor |
Quad-core ARM® Cortex®-A57 at 2.0 GHz |
| System Memory |
8 GB |
| On-board Storage |
32 GB eMMC 128 GB SSD (Integrated) |
| Weight |
4.7 kg (10.4 lb) |
| Enclosure Material |
Aluminium CNC, SGCC steel |
| Mount Material |
SGCC steel |
| LCM Display |
1.3″ touchscreen |
| Management |
Ethernet Bluetooth |
| Ethernet |
Yes |
| SFP+ |
Yes |
| RPS |
Yes |
| PSU |
Yes |
| HDD |
Yes |
| Button |
(1) Factory reset |
| ESD/EMP Protection |
Air: ± 15kV, contact: ± 8kV |
| Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 06369-24-08356, SRRC |

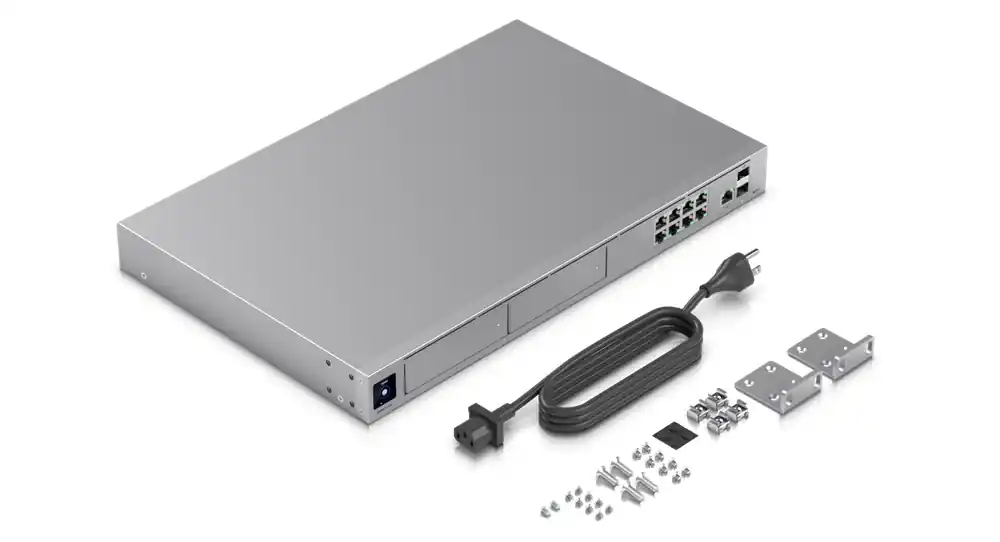

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
