Ubiquiti UniFi Dream Router 5G Max UDR-5G-Max (15W)

Ubiquiti UniFi Dream Router 5G Max UDR-5G-Max (15W)

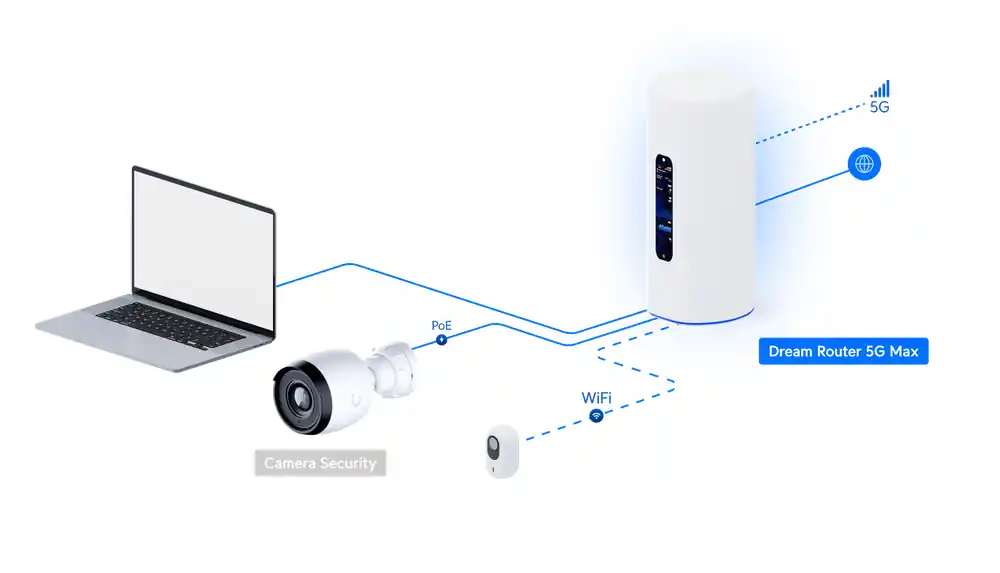

網絡拓撲

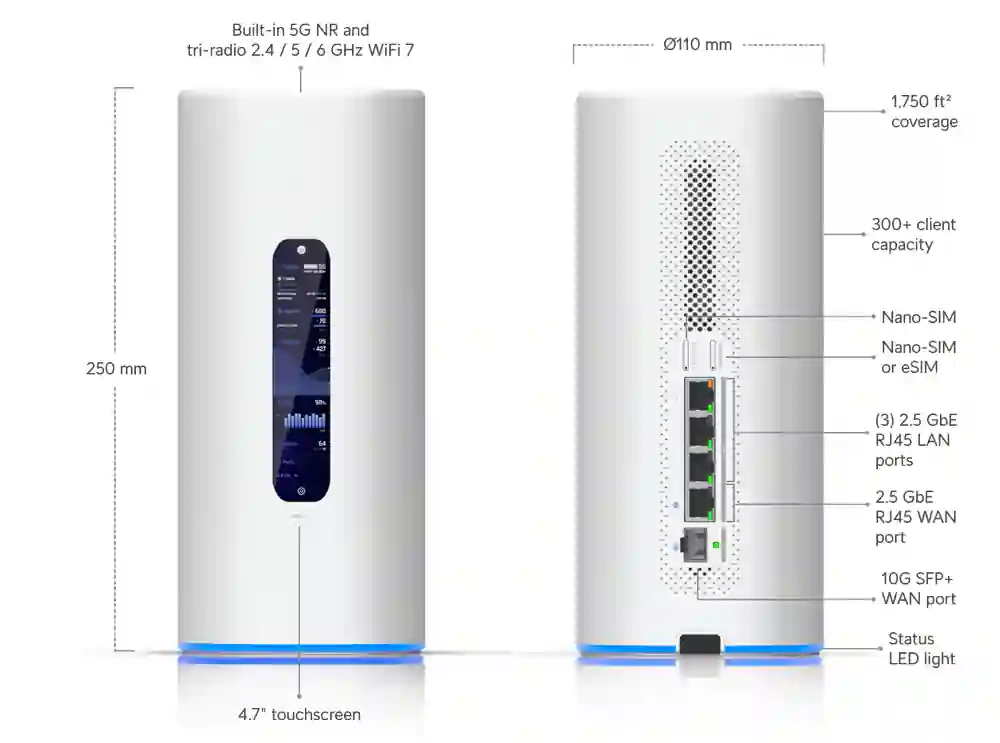

UDR-5G-Max (15W) 技術規格

Grid overview

IDS/IPS	2.3 Gbps
Max. Client Count	300

總覽

Dimensions	110 x 110 x 250 mm (4.3 x 4.3 x 9.8″)
Network	Yes
Protect	Yes
Access	Yes
Talk	Yes
Connect	Yes
Managed UniFi Devices	30+
Managed Cameras	(5) HD (2) 2K (1) 4K
Simultaneous Users Connected	300+
Max. WAN Port Count	4
Default WAN Ports	(1) 10G SFP+ (1) 2.5 GbE RJ45
2.5 GbE RJ45	4 (1 PoE) (2.5G/1G/100M)
10G SFP+	1 (10G/1G)
IDS/IPS Throughput	2.3 Gbps
Form Factor	Desktop
Coverage Area	160 m² (1,750 ft²)

安全功能

Stateful Firewall	Yes
Application-Aware Layer 7 Firewall	Yes
DPI & Traffic Identification	Yes
Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)	Yes
Content Filtering	Yes
Intrusion Prevention (IPS/IDS)	Yes
Ad Blocking	Yes
IDS/IPS Signatures	20,000+ with CyberSecure

VPN & SD-WAN

License-Free SD-WAN	Yes
Site Magic	Yes
IPsec	Yes
OpenVPN	Yes
Identity Endpoint One-Click VPN	Yes
Teleport Zero-Configuration VPN	Yes
WireGuard	Yes
OpenVPN	Yes
L2TP	Yes
OpenVPN	Yes
WireGuard	Yes
Site Magic	20
WireGuard	8
OpenVPN	8

Networking

Multi-WAN Load Balancing	Yes
OSPF	Yes
Advanced QoS	Yes
Multicast DNS (mDNS)	Yes
Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)	Yes
Integrated RADIUS Server	Yes
RADIUS over TLS (RadSec)	Yes
Additional Internet Failover with UniFi LTE Backup	Yes
Internet Quality and Outage Reporting	Yes
MAC Address Table Size	2,000
Virtual Network Override	Yes
All Traffic Flows	No

Integrated WiFi

WiFi Standard	802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
6 GHz	5.7 Gbps
5 GHz	4.3 Gbps
2.4 GHz	688 Mbps
6 GHz	2 x 2 (DL/UL MU-MIMO)
5 GHz	2 x 2 (DL/UL MU-MIMO)
2.4 GHz	2 x 2 (DL/UL MU-MIMO)
6 GHz	8 dBi
5 GHz	5 dBi
2.4 GHz	4 dBi
6 GHz	22 dBm
5 GHz	26 dBm
2.4 GHz	23 dBm
Wireless Security	WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs	4 per Radio
802.11be (WiFi 7)	7.3 Mbps to 5.7 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)	7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)	6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11n	6.5 Mbps to 300 Mbps (MCS0 – MCS15 , HT 20/40)
802.11g	6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b	1, 2, 5.5, 11 Mbps
802.11a	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Cellular

Category	5G NR Sub-6
Frequency Bands	n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX Power	HPUE power class 2: 26 dBm
Frequency Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX Power	HPUE power class 2: 25 dBm
Frequency Bands	B1, B2, B4, B5, B8, B19
5G NSA	Downlink 3.4 Gbps Uplink 560 Mbps
5G SA	Downlink 1.8 Gbps Uplink 650 Mbps
4G LTE	Downlink 1.6 Gbps Uplink 210 Mbps
Antenna Gain	617-960 MHz: 3 dBi 1710-2700 MHz: 7 dBi 3300-5000 MHz: 8 dBi 5150~5925 MHz: 8 dBi
SIM	(2) Nano SIM (1) Nano-SIM or eSIM

硬件規格

NVR Storage	Pre-installed 64 GB microSD for NVR
Expansion Slot	MicroSD Card
PoE Budget	15.4W
PoE	15.4W
Voltage Range PoE Mode	44-57V
Max. Power Consumption	34.5W (Excluding PoE output)
Power Method	DC jack (54V DC/1.1A)
Power Supply	54V DC/1.1A (Adapter included)
Supported Voltage Range	100–240V AC
Heat Dissipation	115 BTU/hr (Excluding PoE output)
Processor	Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory	3 GB
Weight	1.4 kg (3.1 lb)
Enclosure Material	Polycarbonate
LCM Display	4.7″ touchscreen
Management	Ethernet Bluetooth
Ethernet	Yes
SFP+	Yes
System	Yes
Button	(1) Factory reset
ESD/EMP Protection	Air: ± 8kV, contact: ± 4kV
Ambient Operating Temperature	0 to 40° C (22 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing
NDAA Compliant	Yes
Certifications	FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Verizon, Wi-Fi Alliance®

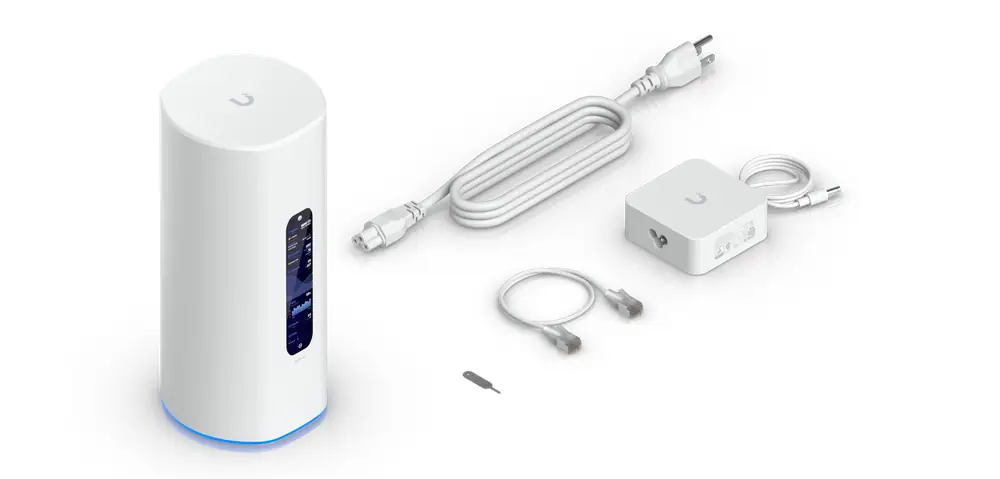

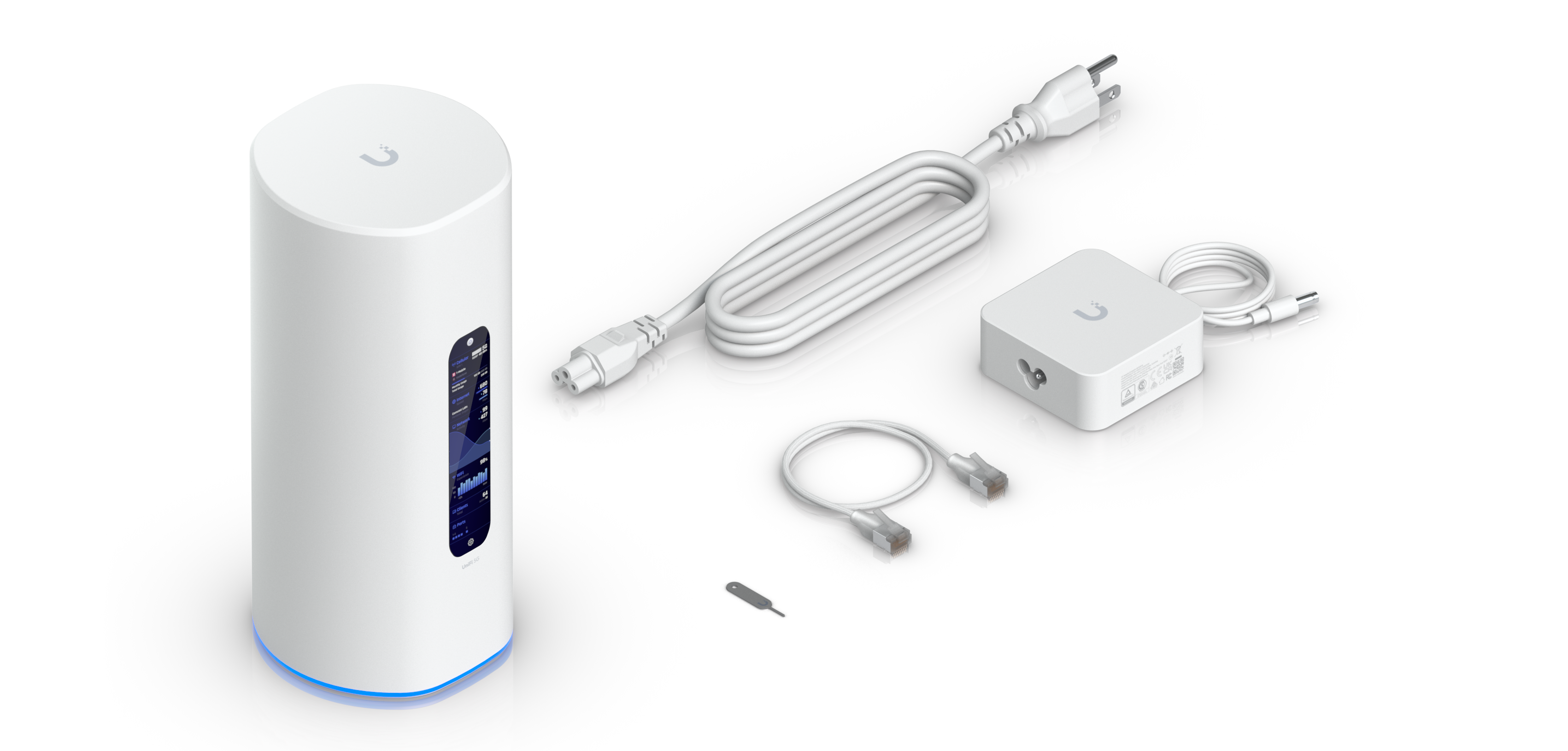

包裝內容
