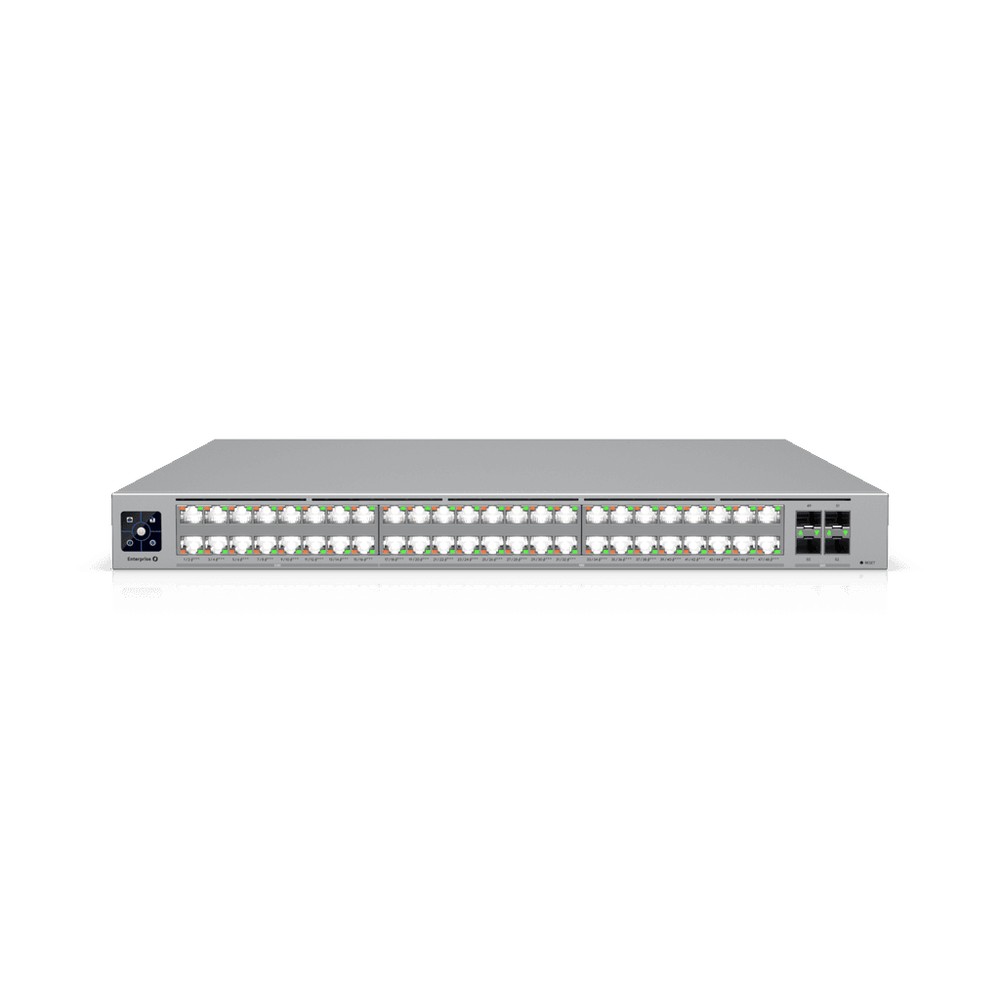

Ubiquiti Unifi Enterprise Campus 48 PoE ECS-48-PoE

Ubiquiti Unifi Enterprise Campus 48 PoE ECS-48-PoE

Member優惠價：$33,000

💳 付款方式

  • 信用卡支付, 將收取 3.5% 額外行政費
  • 現金以 FPS 轉數快 / 銀行轉帳支付
安全付款
  • Stripe
  • Visa Card
  • MasterCard
  • PayPal
  • Apple Pay
  • Visa Card

🚚 配送方式：

  • • 香港本地訂單：購物滿HK$2,000, 免費送貨!
  • • 澳門地區訂單：順豐到付 (運費由買家承擔)

🎧 如有技術或貨存查詢

WhatsApp 查詢

描述

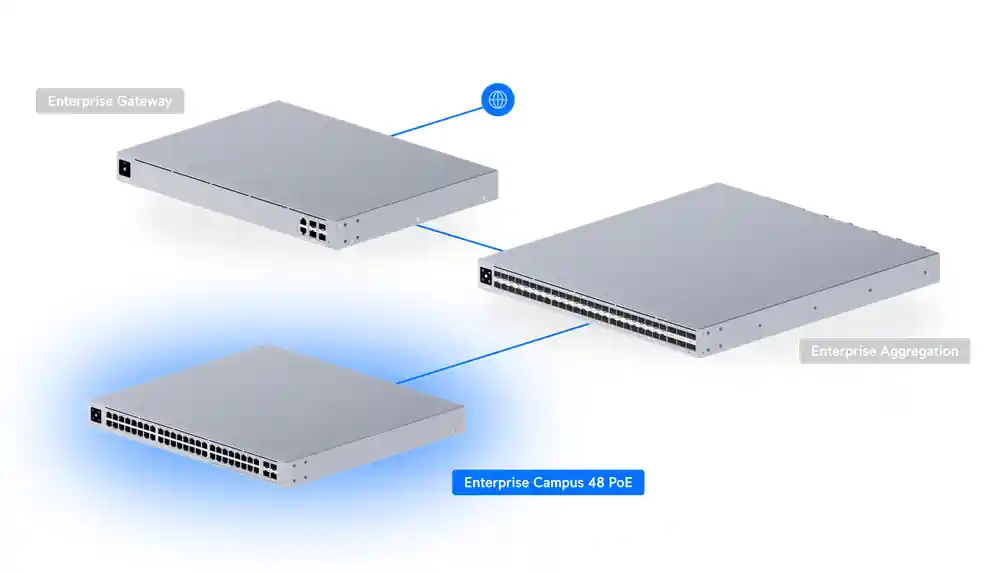

Ubiquiti Unifi Enterprise Campus 48 PoE ECS-48-PoE 產品介紹

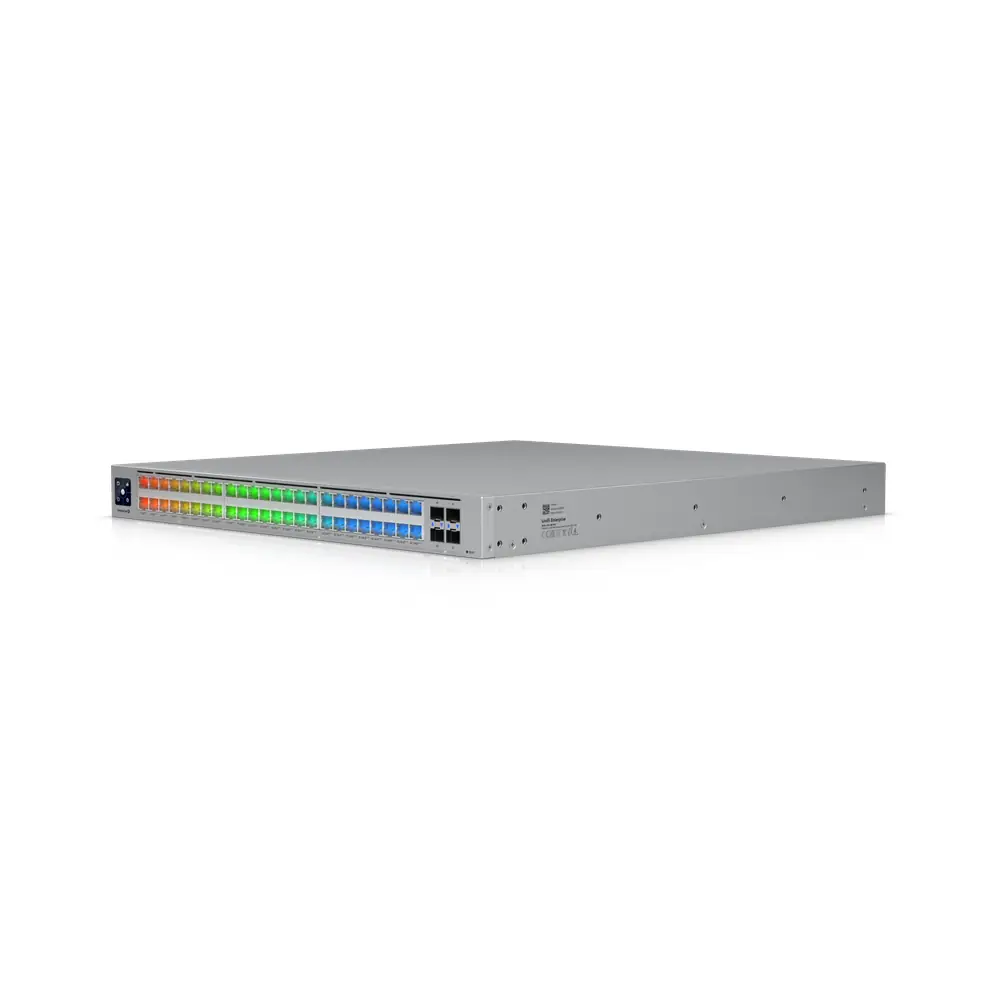

Ubiquiti Unifi Enterprise Campus 48 PoE ECS-48-PoE 係 Ubiquiti 最新推出嘅旗艦級交換機，旨在為大型校園或企業提供無與倫比嘅效能同可靠性。呢款 Switch 融合咗最新嘅 Etherlighting™ 技術，讓網管人員可以直接透過燈光顏色辨識連接狀態同 VLAN 設定。

主要特點：

  • 超強 PoE 輸出：全部 48 個連接埠均支援 PoE+++，單埠最高 90W。在 Shared Mode 下提供高達 2,150W 總電力。
  • 極速連接：配備 16 個 2.5 GbE RJ45、32 個 10 GbE RJ45 以及 4 個 25G SFP28 上聯。
  • 高可用性設計：具備 2 個熱插拔電源模組 (Hot-Swappable PSUs) 及 4 個熱插拔風扇。

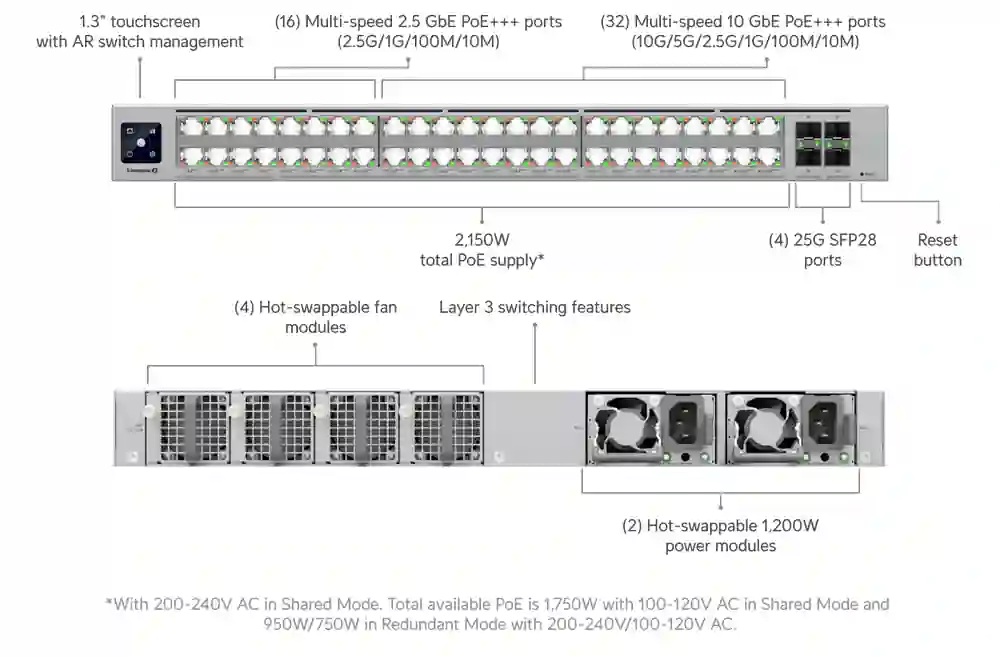

技術規格 (Technical Specifications)：

Dimensions 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″)
Weight Without mounting brackets: 9.46 kg (20.9 lb)
With mounting brackets: 9.56 kg (21.1 lb)
Enclosure Material SGCC steel
Mount Material SGCC steel
2.5 GbE RJ45 ports 16 (All PoE+++) (2.5G/1G/100M/10M)
10 GbE RJ45 ports 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
25G SFP28 ports 4 (25G/10G/1G)
PoE Interface (48) PoE+++
Management Interface Ethernet / AR
Total PoE Availability 200-240V AC Shared Mode: 2,150W
100-120V AC Shared Mode: 1,750W
200-240V AC Redundant Mode: 950W
100-120V AC Redundant Mode: 750W
Max. PoE Output Up to PoE+++
Max. PoE Wattage per Port by PSE PoE: 15.4W / PoE+: 30W / PoE++: 60W / PoE+++: 90W

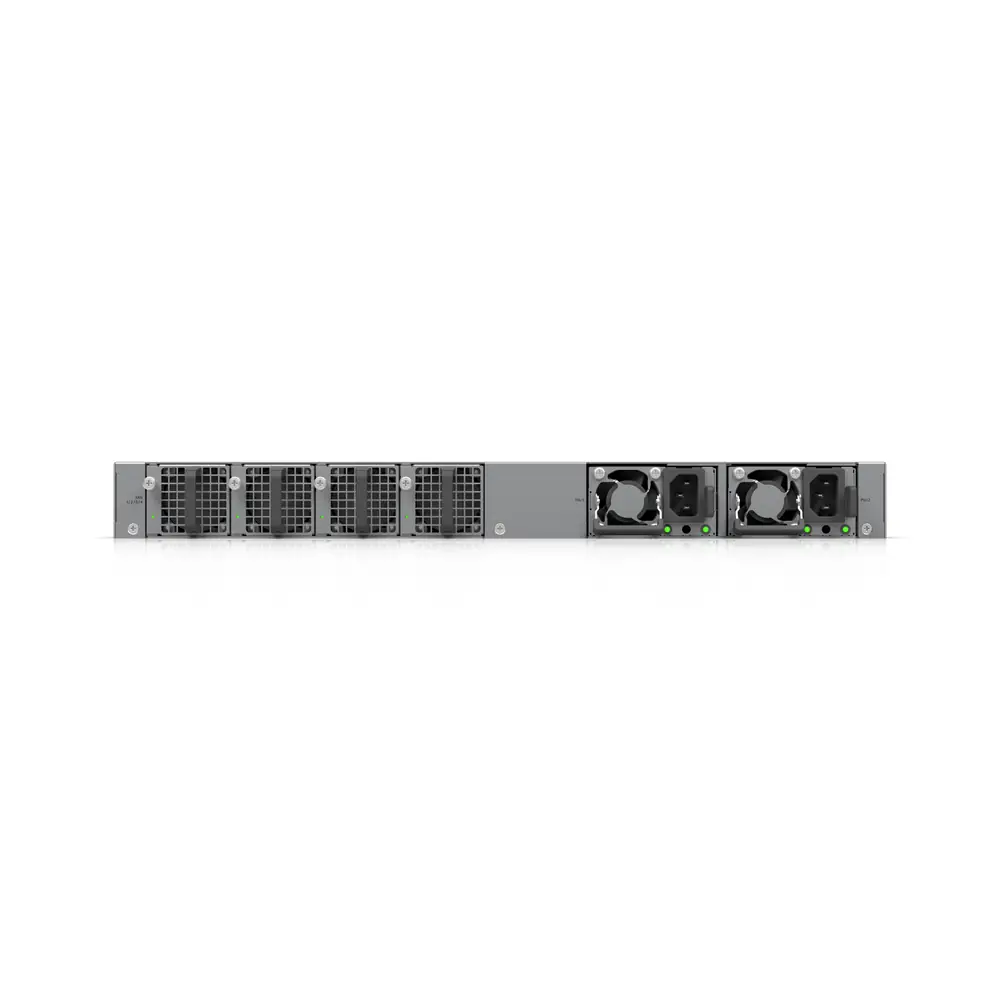

Redundancy (2) Hot-Swappable PSUs, (4) Hot-Swappable Fans
Layer 3 ✓

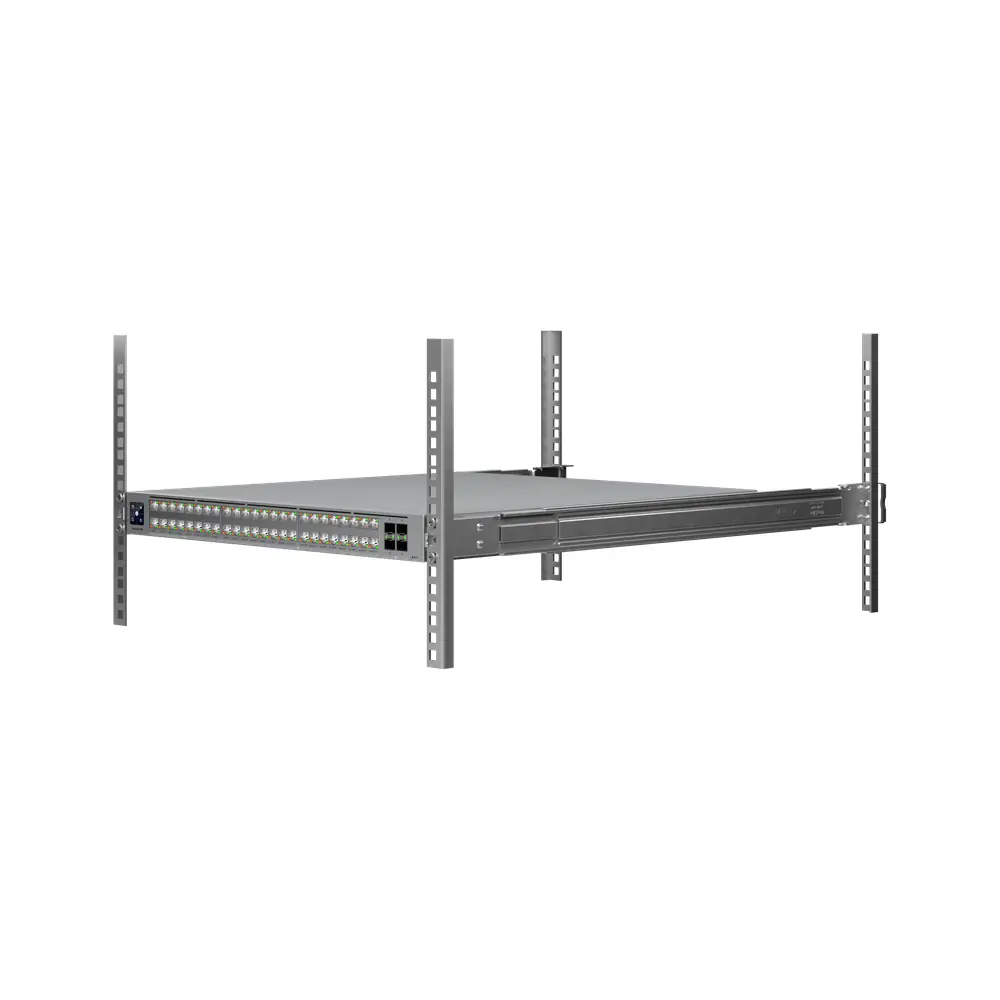

Form Factor Rack Mount (1U, Full-Depth)
Etherlighting™ ✓
Switching Capacity 920 Gbps
Total Non-Blocking Throughput 460 Gbps
Forwarding Rate 684 Mpps
Supported VLANs 1,000
MAC Address Table Size 128,000
Packet Buffer Size 8 MB
ARP Entries 128,000
IPv4 Routes 256,000
Access Lists (IPv4 / MAC) 256 / 256
DHCP Server / Relay ✓ / ✓
Inter-VLAN / Static Routing ✓ / ✓
LACP / STP & RSTP / QoS ✓ / ✓ / ✓
Pro AV Profiles ✓ (Dante, Q-SYS, NDI, etc.)
IGMP Snooping / Querier ✓ / ✓
802.1X / DHCP Snooping ✓ / ✓
Max. Power Consumption 250W (Excluding PoE Output) / 2,400W (Including PoE Output)
Power Supply (2) Hot-swappable AC/DC 1,200W power modules
LCM Display 1.3″ touchscreen
ESD Protection Air: ± 30kV, contact: ± 19kV
Operating Temp / Humidity -5 to 40° C / 10 to 90% noncondensing
NDAA Compliant / Certifications ✓ / CE, FCC, IC
UniFi Network Requirement Version 9.0.114 and later
