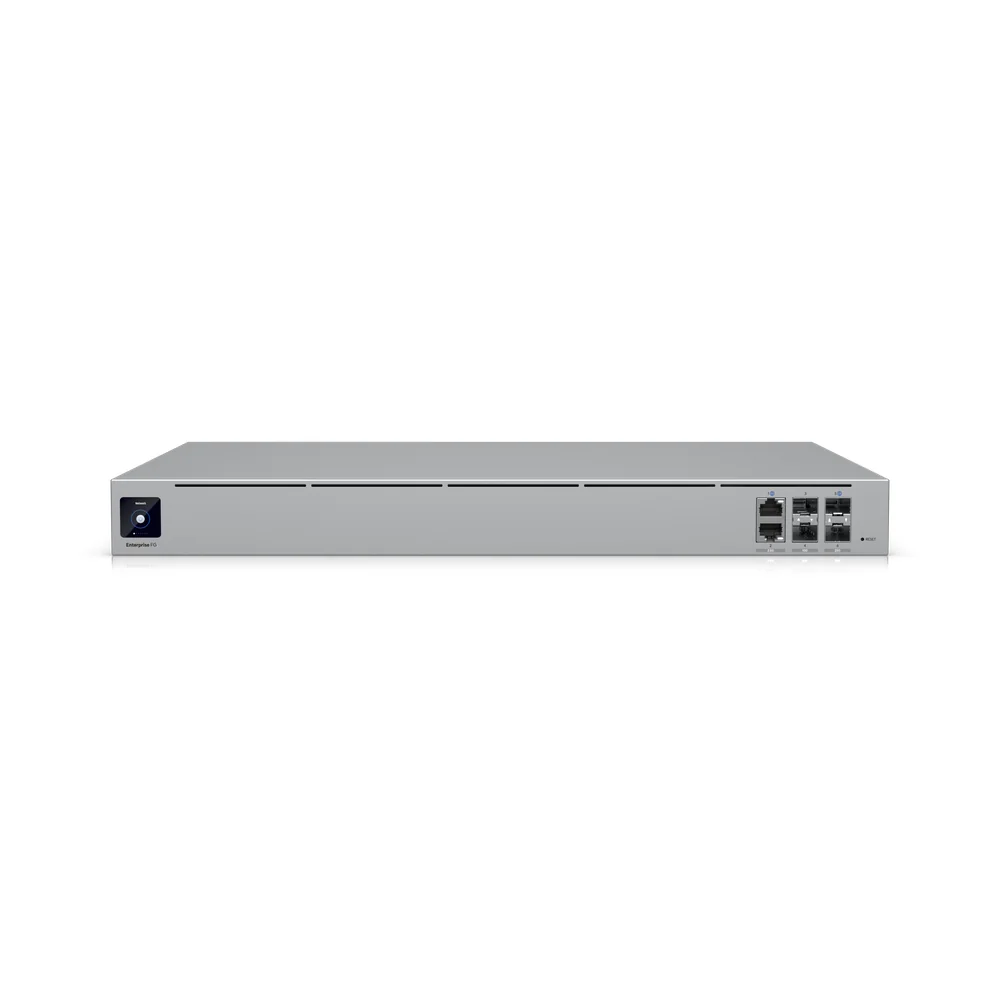

Ubiquiti UniFi Enterprise Fortress Gateway EFG

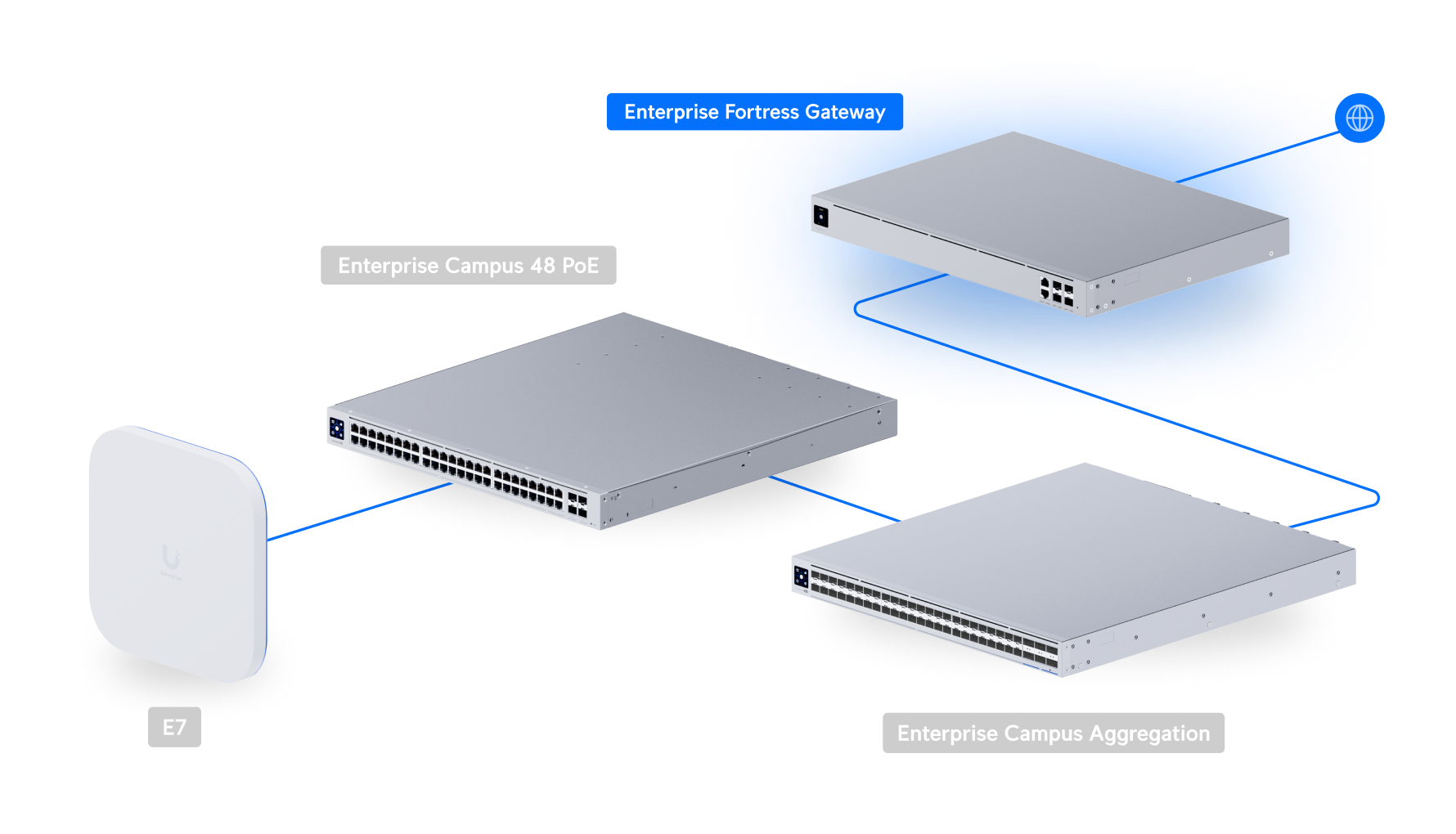

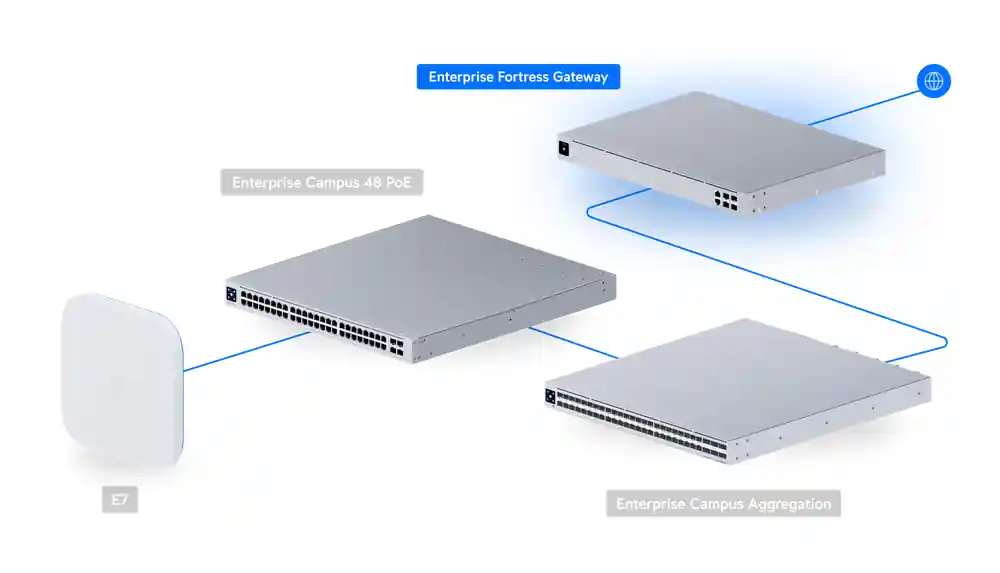

網絡拓撲

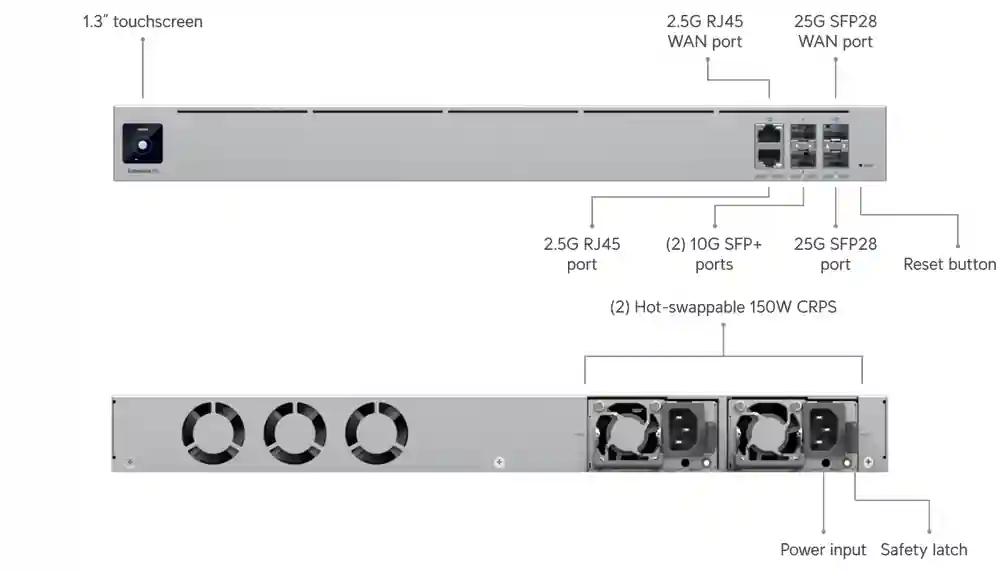

EFG 技術規格
Grid overview
| IDS/IPS |
12.5 Gbps |
| Max. Client Count |
5,000 |
| RADIUS over TLS (RadSec) |
Yes |
| IDS/IPS Throughput |
12.5 Gbps |
總覽
| Dimensions |
442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8″) |
| Network |
Yes |
| Managed UniFi Devices |
500+ |
| Simultaneous Users Connected |
5,000+ |
| Max. WAN Port Count |
5 |
| Default WAN Ports |
(1) 25G SFP28 (1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 |
2 (2.5G/1G/100M/10M) |
| 10G SFP+ |
2 (10G/1G) |
| 25G SFP28 |
2 (25G/10G/1G) |
| IDS/IPS Throughput |
12.5 Gbps |
| SSL/TLS Inspection Concurrent Sessions |
10,000 |
| Concurrent Sessions |
1 Million |
| New Sessions / Second |
71,000 |
| Form Factor |
Rack mount (1U) |
| Redundancy |
Shadow Mode (VRRP) Gateway Failover (2) Hot-Swappable PSUs |
安全功能
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| SSL Inspection & URL Filtering |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
Yes |
| Content Filtering |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes |
| Ad Blocking |
Yes |
| IDS/IPS Signatures |
95,000+ with CyberSecure Enterprise |
| VLAN/Subnet-based Traffic Segmentation |
Yes |
VPN & SD-WAN
| License-Free SD-WAN |
Yes |
| Site Magic |
Yes |
| IPsec |
Yes |
| OpenVPN |
Yes |
| Identity Endpoint One-Click VPN |
Yes |
| Teleport Zero-Configuration VPN |
Yes |
| WireGuard |
Yes |
| OpenVPN |
Yes |
| L2TP |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
| Identity Endpoint One-Click VPN |
1.2 Gbps |
| Teleport |
1.2 Gbps |
| WireGuard |
1.2 Gbps |
| OpenVPN |
210 Mbps |
| L2TP |
280 Mbps |
| Site Magic |
1.1 Gbps |
| OpenVPN |
120 Mbps |
| IPsec |
580 Mbps |
| WireGuard |
980 Mbps |
| OpenVPN |
180 Mbps |
Networking
| Multi-WAN Load Balancing |
Yes |
| Shadow Mode (VRRP) High Availability |
Yes |
| LACP Port Aggregation |
Yes |
| OSPF |
Yes |
| BGP |
Yes |
| Advanced QoS |
Yes |
| Multicast DNS (mDNS) |
Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
| Integrated RADIUS Server |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Additional Internet Failover with UniFi LTE Backup |
Yes |
| Internet Quality and Outage Reporting |
Yes |
| Policy-based WAN and VPN Routing |
Yes |
| Customizable DHCP Server |
Yes |
| IPv6 ISP Support |
Yes |
| IGMP Proxy |
Yes |
| All Traffic Flows |
Yes |
硬件規格
| Max. Power Consumption |
82W |
| Power Method |
Universal AC input, 100–240V AC, 7A Max., 50/60 Hz |
| Power Supply |
(2) Hot-swappable 150W CRPS |
| Supported Voltage Range |
100–240V AC |
| Heat Dissipation |
280 BTU/hr |
| Processor |
18-core ARM® v8.2 at 2 GHz |
| Weight |
6.5 kg (14.3 lb) |
| Enclosure Material |
Aluminium CNC, SGCC steel |
| LCM Display |
1.3″ touchscreen |
| Management |
Ethernet Bluetooth |
| Ethernet |
Yes |
| SFP+ |
Yes |
| Button |
(1) Factory reset |
| ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 06375-24-08356, SRRC |
軟件要求
| Mobile App |
UniFi iOS™:Version 10.16.2 and later UniFi Android™: Version 10.17.2 and later |

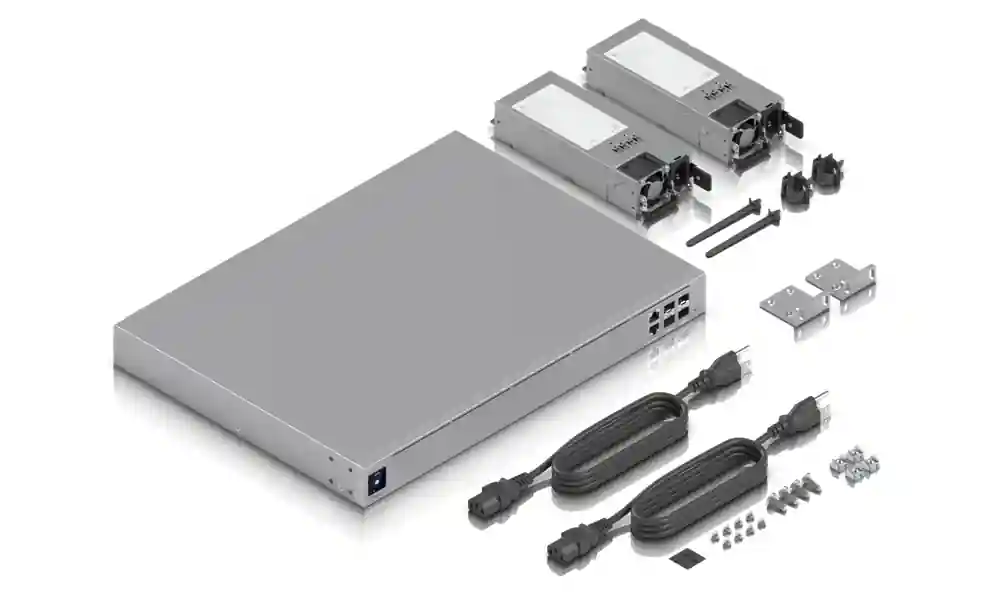

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
