Ubiquiti UniFi Enterprise NVR Core ENVR-Core
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Enterprise NVR Core ENVR-Core

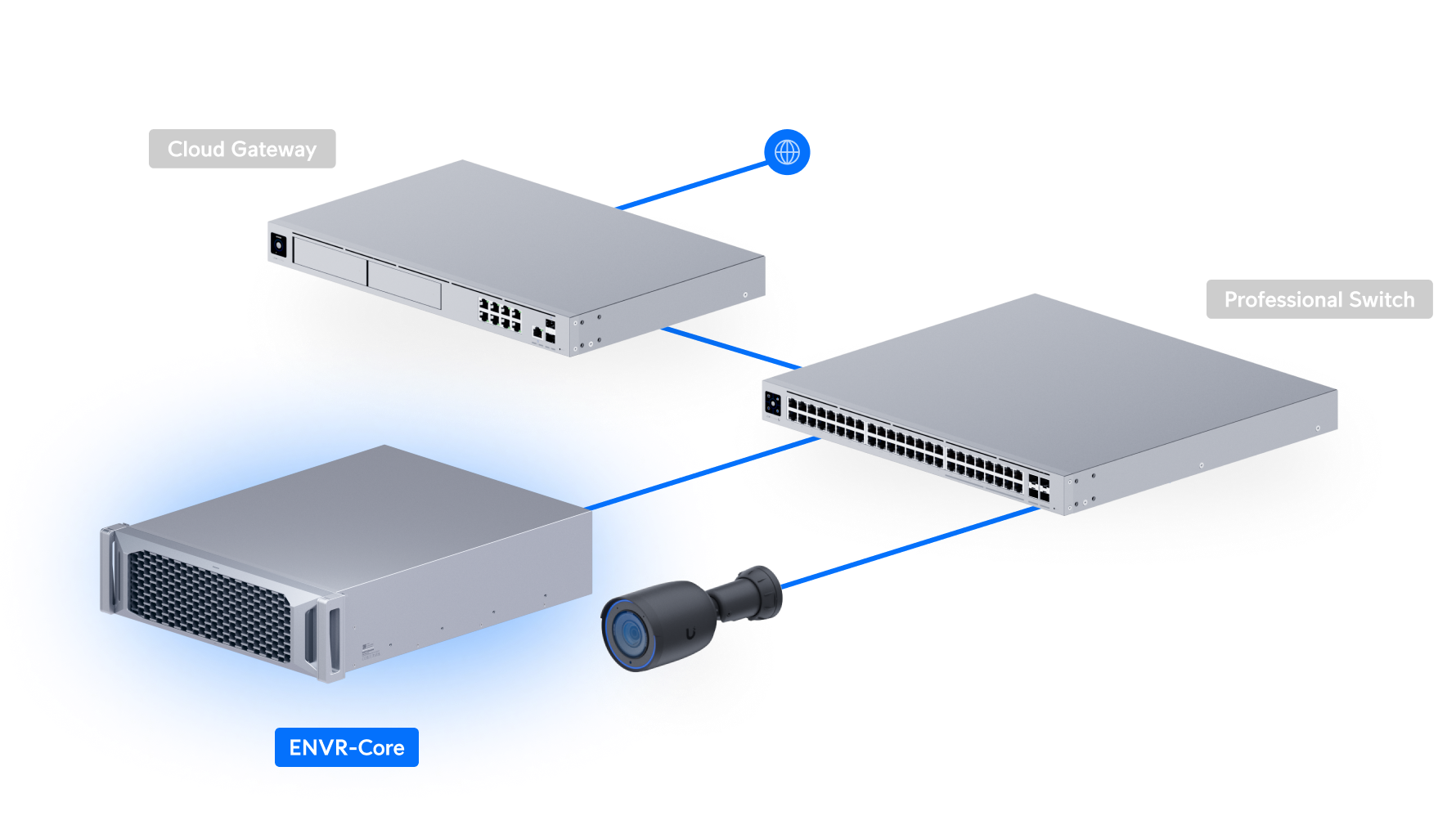

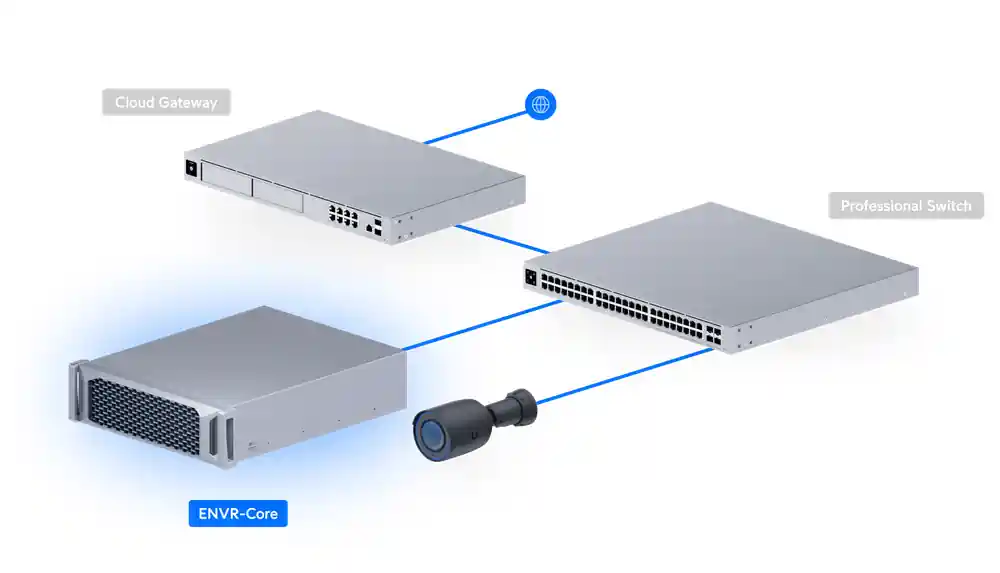

網絡拓撲
ENVR-Core 技術規格

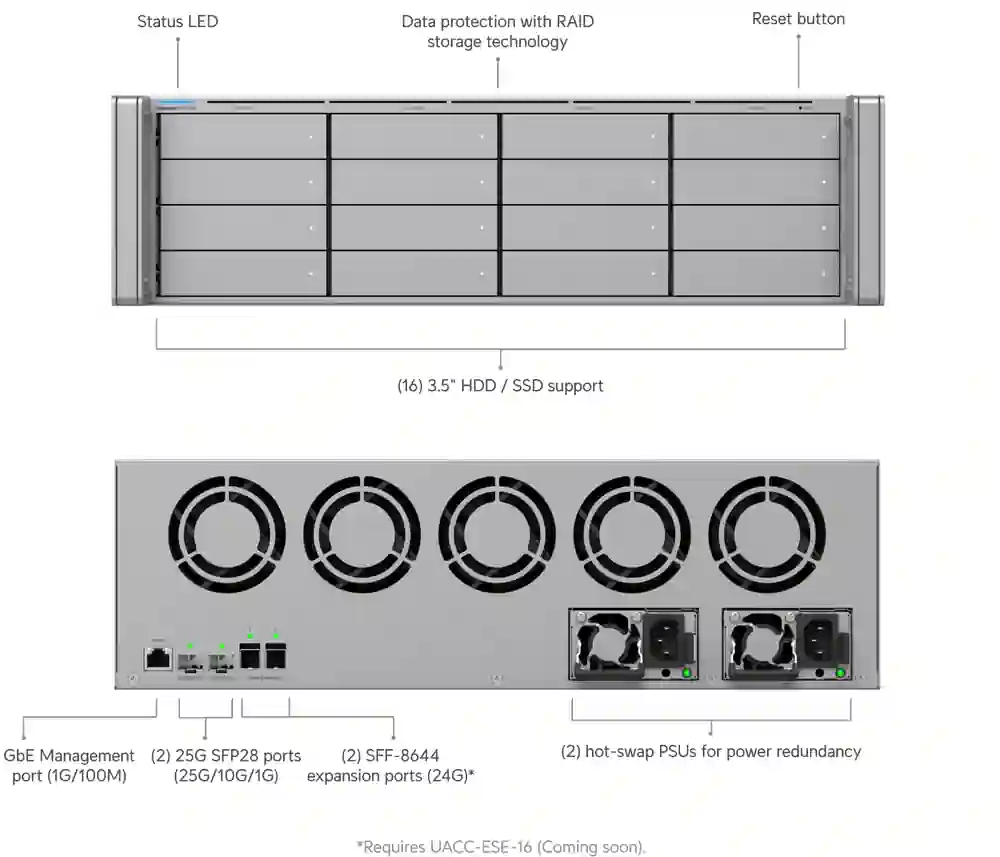

Grid overview
| Managed Cameras (grid) | 500 HD or 300 4K |
|---|---|
| Ports | GbE MGMT + 2 SFP28 + 2 SFF-8644 |
| Power | 2 Hot-Swap PSUs |
| Security | RAID Protection |
| Storage | 16 3.5″ HDD / SSD |
| App Suite | UniFi Protect |
總覽
| Dimensions | 481.4 x 550 x 132 mm (19 x 21.7 x 5.2″) |
|---|---|
| Managed Cameras | (500) HD (400) 2K (300) 4K |
| Managed Access Hubs | 300+ |
| Storage Capacity | (16) 3.5″ drive bays |
| Data Protection | Yes |
| Vantage Point | Yes |
| Networking Interface | (2) 25G SFP28 ports (25G/10G/1G) (1) GbE MGMT RJ45 port (1G/100M) |
| Expansion Port | (2) SFF-8644 ports (24G) |
| Power Redundancy | Yes |
| Form Factor | Rack Mount (3U) |
| Door Access Support | Yes |
| Management Application | UniFi Protect UniFi Access |
硬件規格
| Hard Drive Capacity | (16) 2.5/3.5″ HDD / SSD support (2) Expansion ports, support up to 48 total HDD/SSD |
|---|---|
| Max. Power Budget for Drives | 313W |
| Max. Power Consumption | 237W |
| Power Method | (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Processor | 128-core Arm® v8.2 at 2.6 GHz |
| Memory | 64 GB |
| Management | Ethernet Bluetooth |
| Weight | Without rails: 20.5 kg (45.2 lb) With rails: 23.4 kg (51.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |

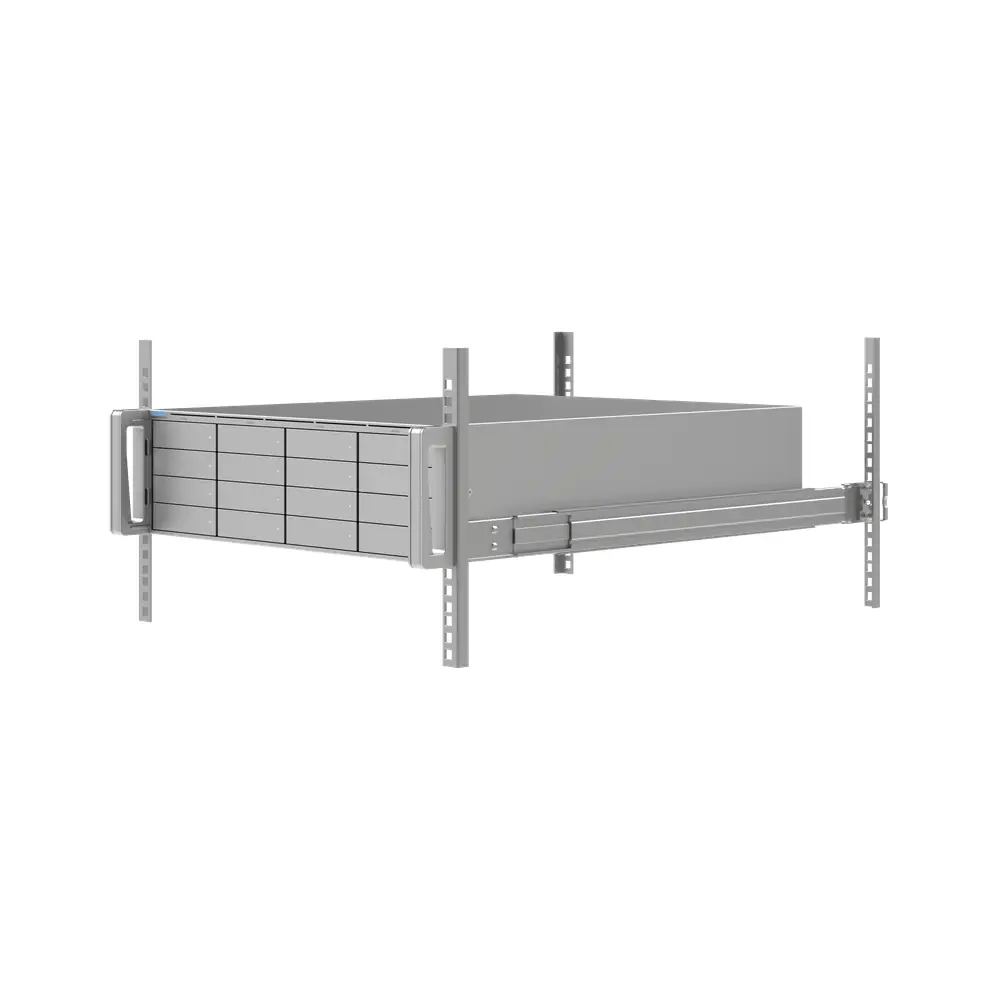

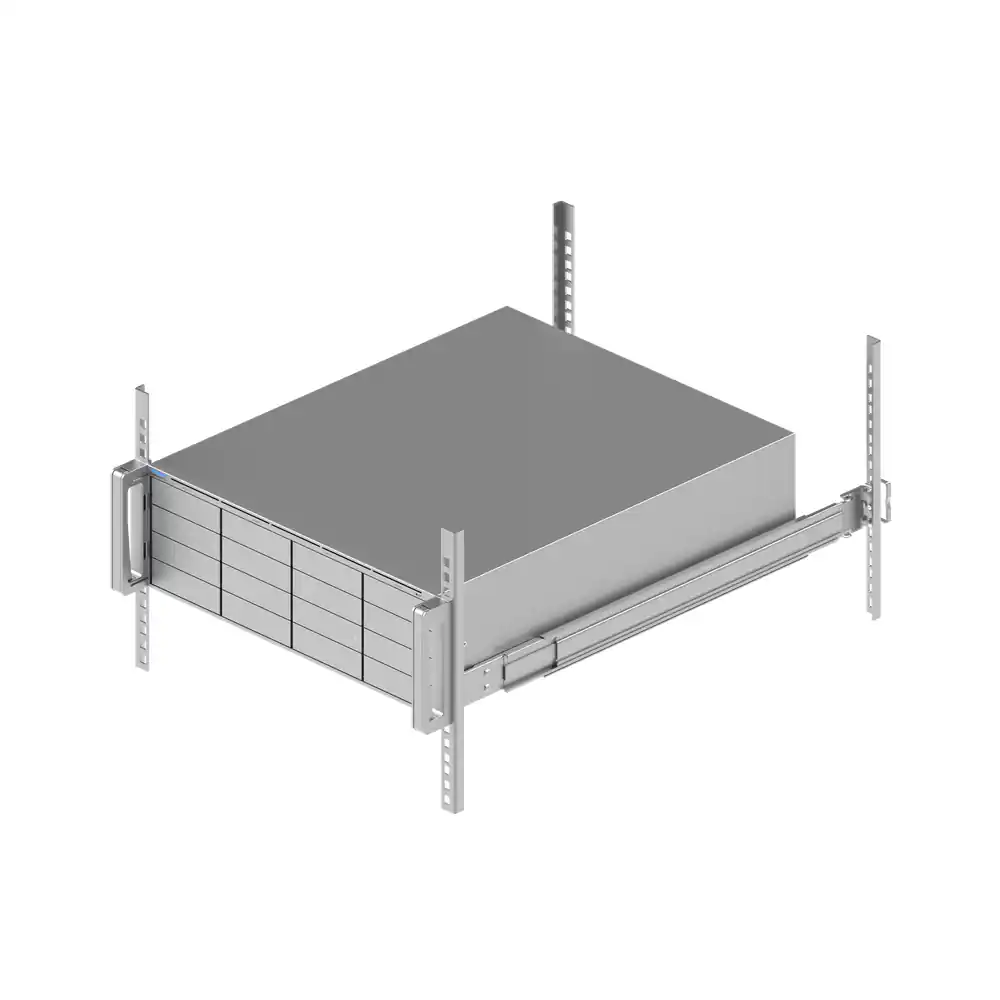

| Slide Rails | The rails support 482.6 mm (19″) four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42″) |

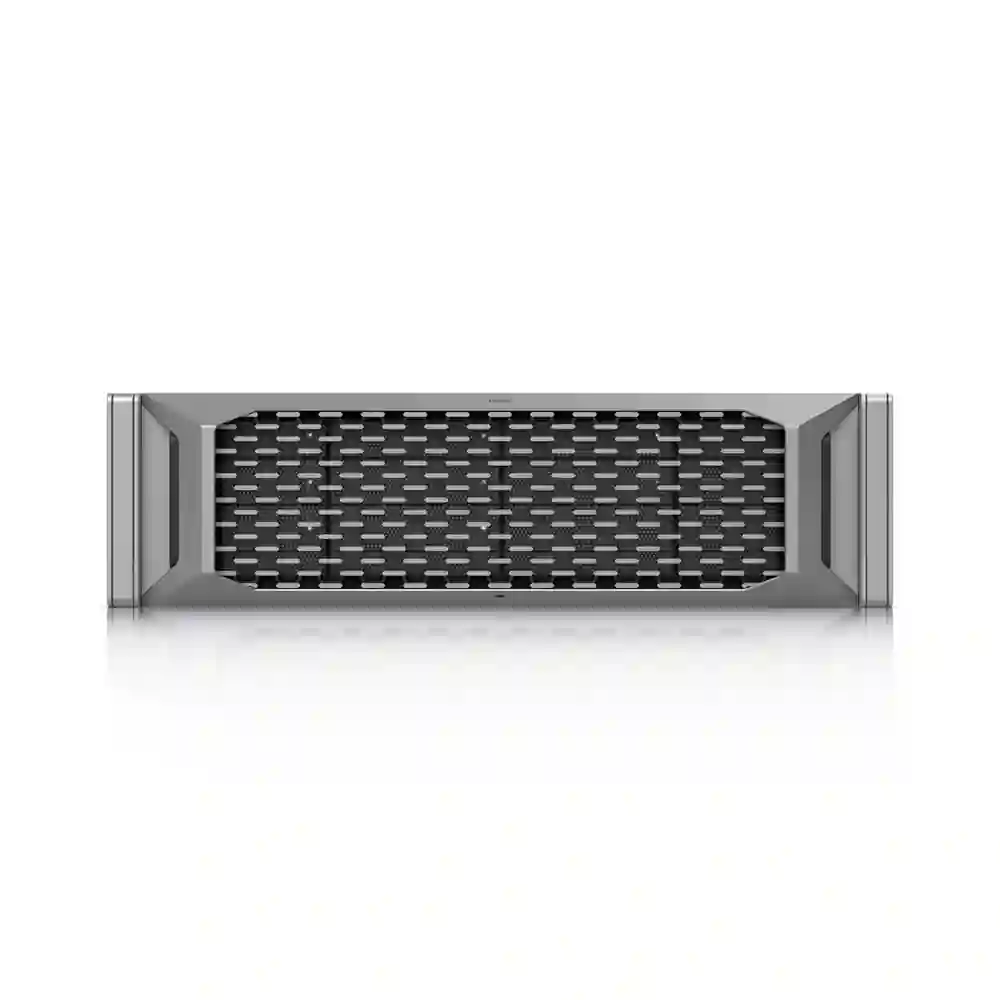

| Faceplate | Support UACC-3U-Bezel-Lite (Included) |
| SFP28 | Yes |
| HDD | Yes |
| System | Yes |
| Expansion Port | Yes |
| CRPS | Yes |
| Ambient Operating Temperature | 10 to 35° C (50 to 95° F) |
| Ambient Operating Humidity | 20 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
軟件要求
| Mobile App | UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later |
|---|

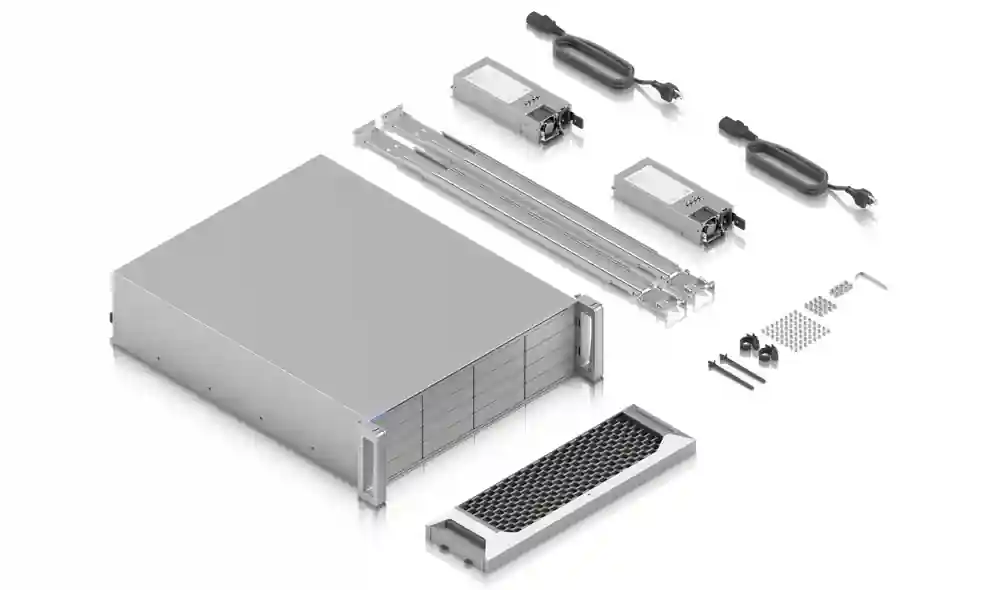

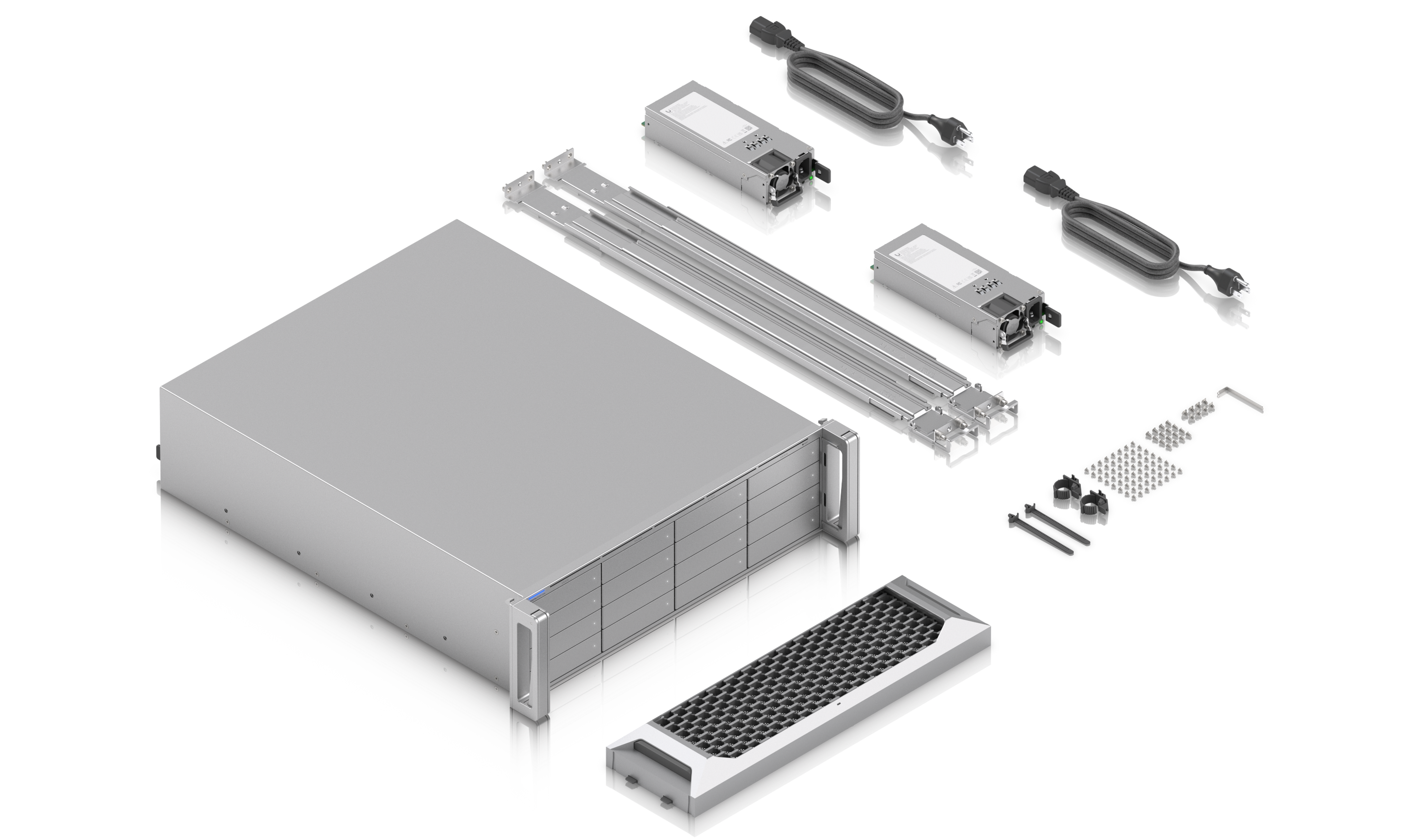

包裝內容
產品資源
| Brands | Ubiquiti |
|---|
