Ubiquiti UniFi Switch Flex 2.5G PoE USW-Flex-2.5G-8-PoE

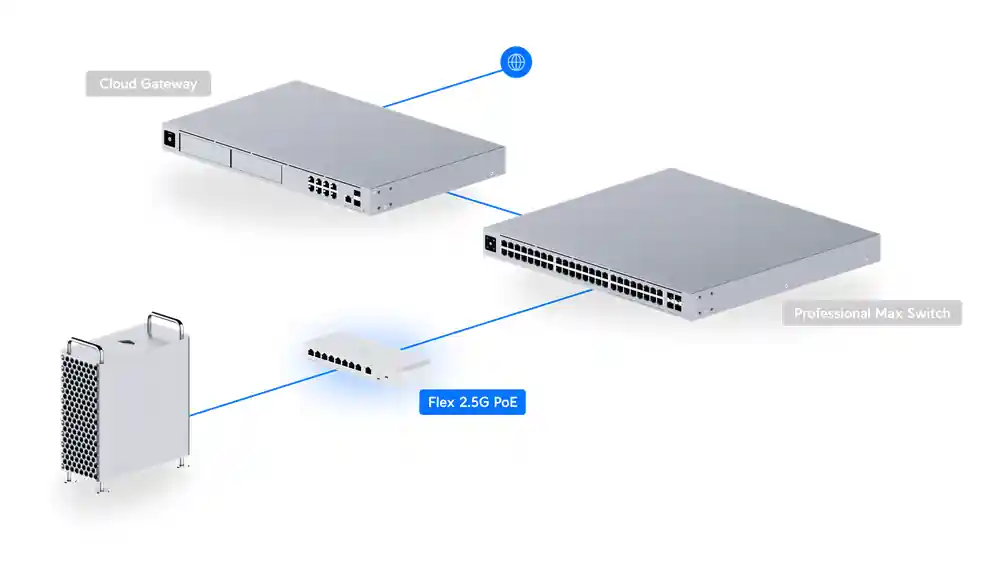

網絡拓撲
USW-Flex-2.5G-8-PoE 技術規格
總覽
| Dimensions |
212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3″) |
| 2.5 GbE RJ45 |
8 (All PoE++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 |
1 (PoE+++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ |
1 (10G/1G) |
| Max. PoE Output |
Up to PoE++ |
| Total PoE Availability |
PoE+++ input: 76W PoE++ input: 46W PoE+ input: 16W 210W AC adapter input: 196W |
| Form Factor |
Compact Desktop, wall, DIN, magnetic |
效能
| Switching Capacity |
60 Gbps |
| Total Non-Blocking Throughput |
30 Gbps |
| Forwarding Rate |
45 Mpps |
| Supported VLANs |
256 |
| MAC Address Table Size |
4,000 |
第二層功能
| STP & RSTP |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| Loop Protection |
Yes |
硬件規格
| PoE++ |
8 |
| PoE |
15.4W |
| PoE+ |
32W |
| PoE++ |
64W |
| Max. Power Consumption |
14W (Excluding PoE output) with PoE input 17W (Excluding PoE output) with AC adapter input 210W (Including PoE Output) |
| Power Method |
(1) AC/DC adapter (Excluded) (1) PoE+++ |
| Power Input Method |
DC Input PoE |
| Supported Voltage Range |
50–57V DC/PoE |
| Management |
Ethernet |
| Weight |
567 g (20 oz) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| Ambient Operating Temperature |
-20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
軟件要求
| UniFi Network |
Version 9.0.114 and later |

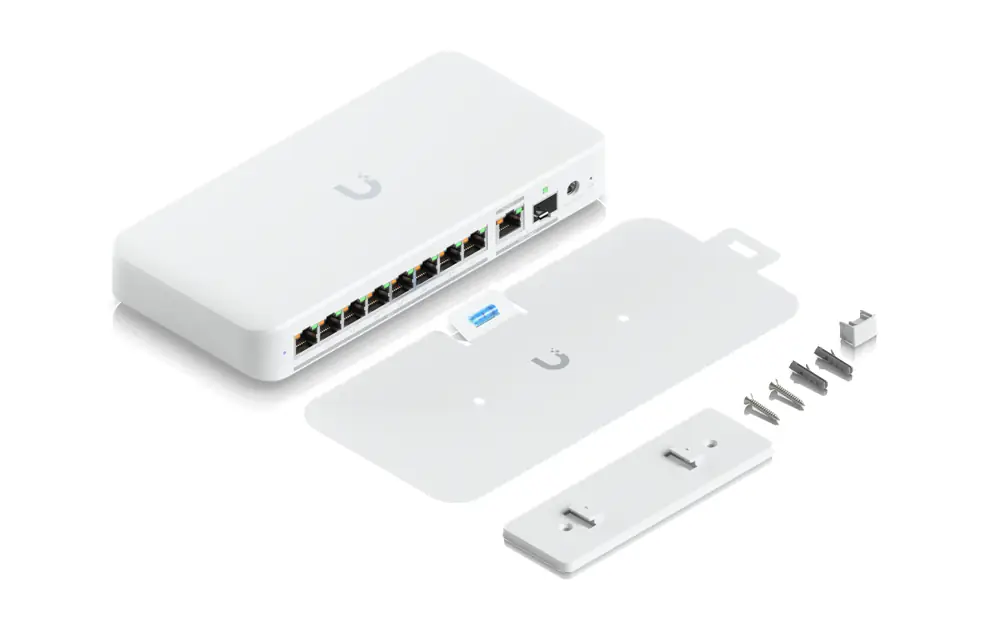

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
