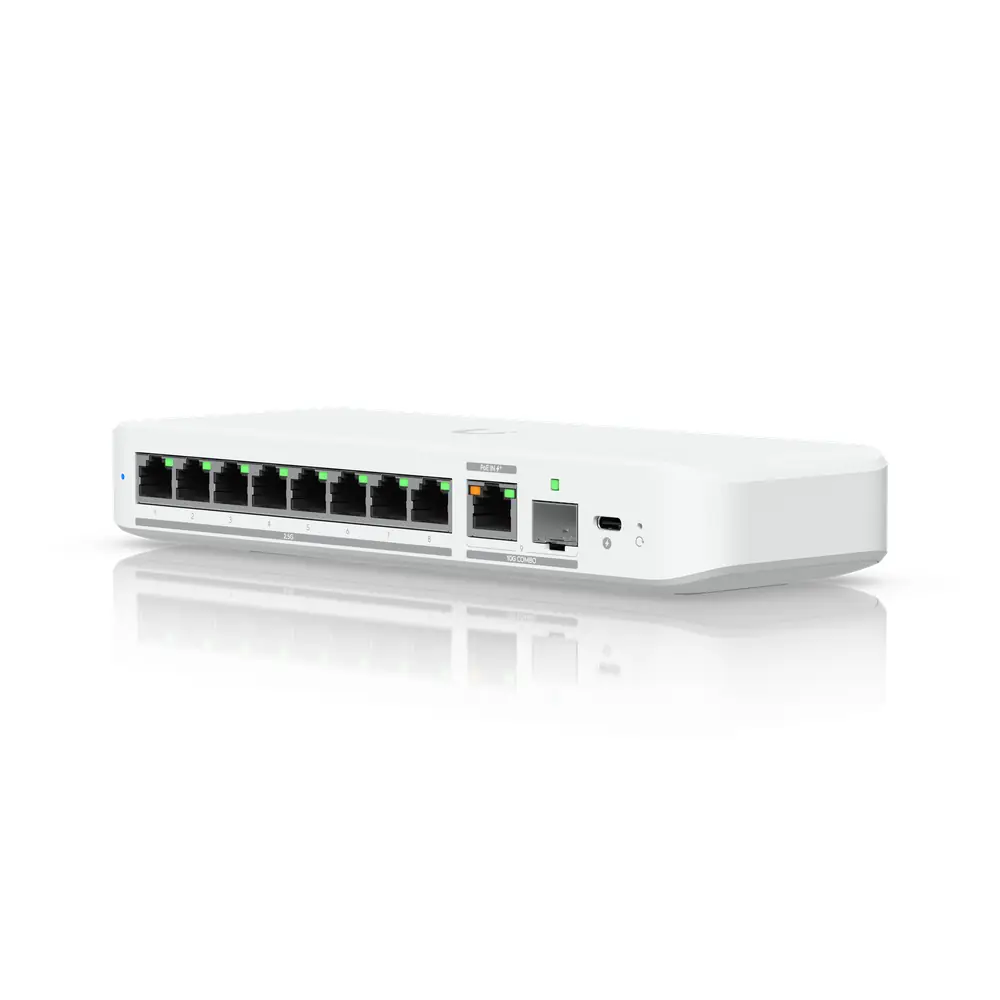

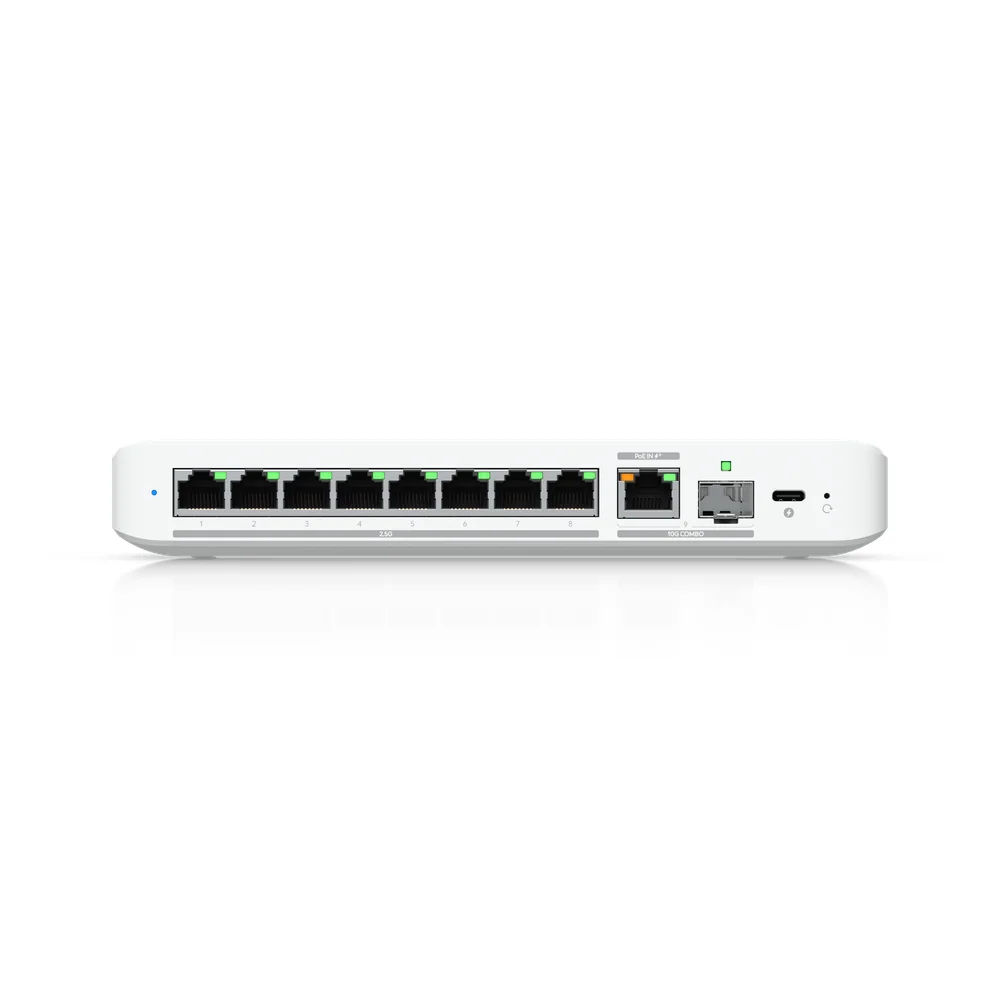

Ubiquiti UniFi Switch Flex 2.5G USW-Flex-2.5G-8

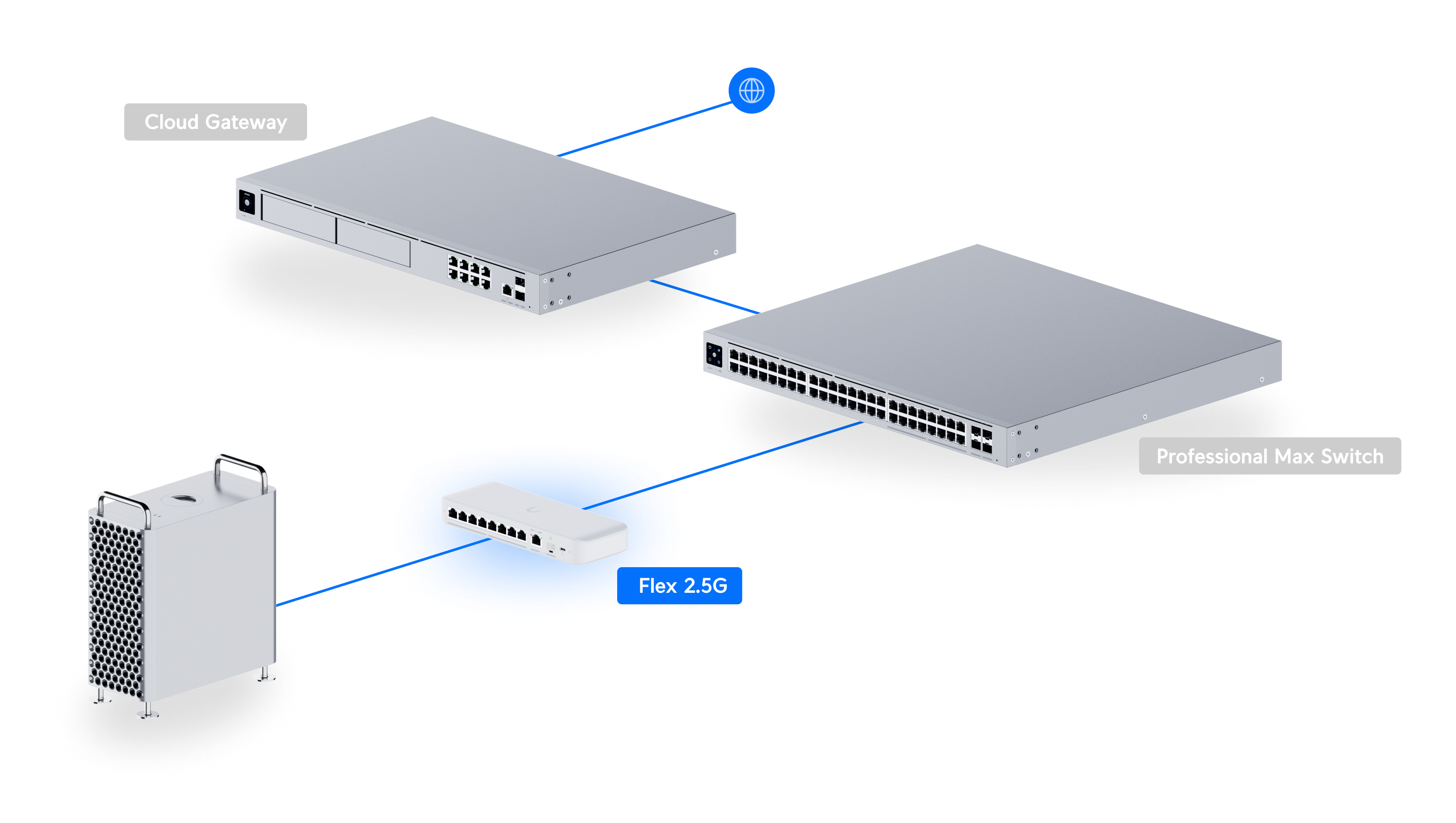

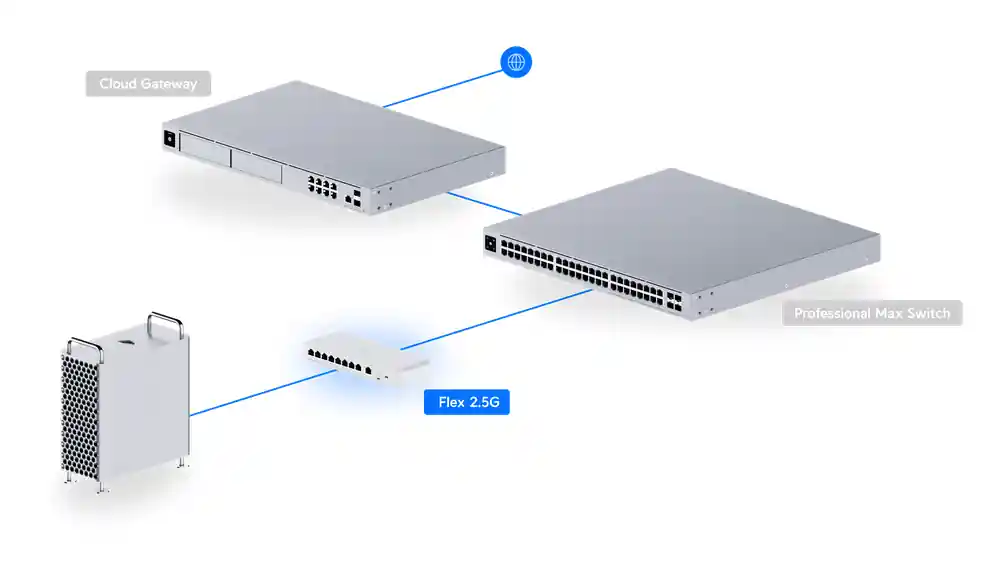

網絡拓撲

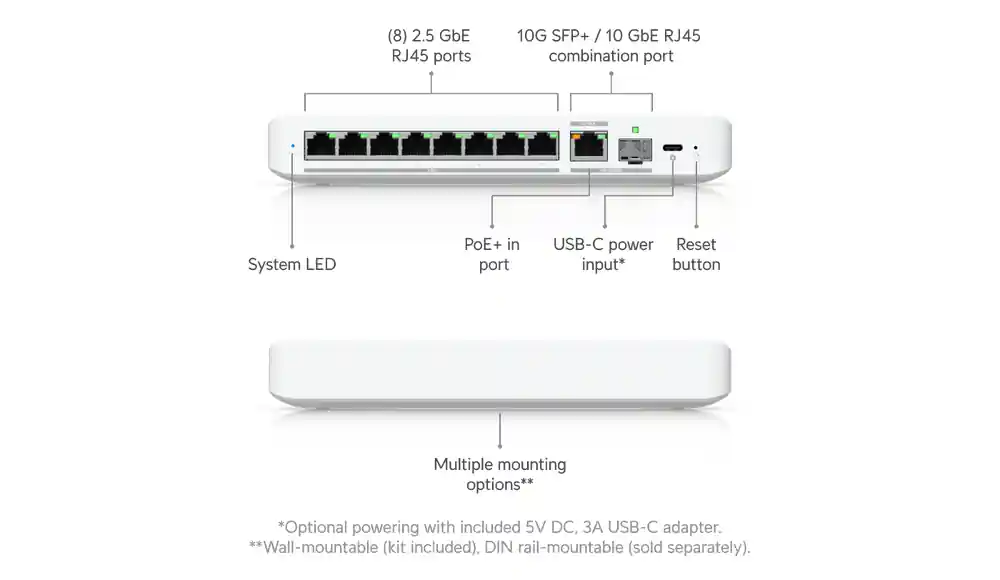

USW-Flex-2.5G-8 技術規格
總覽
| Dimensions |
212.9 x 76 x 33.5 mm (8.4 x 3 x 1.3″) |
| 2.5 GbE RJ45 |
8 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 |
1 (10G/5G/2.5G/1G/100M) |
| 10G SFP+ |
1 (10G/1G) |
| Form Factor |
Compact Desktop, wall, DIN, magnetic |
效能
| Switching Capacity |
60 Gbps |
| Total Non-Blocking Throughput |
30 Gbps |
| Forwarding Rate |
45 Mpps |
| Supported VLANs |
256 |
| MAC Address Table Size |
4,000 |
第二層功能
| STP & RSTP |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| Loop Protection |
Yes |
硬件規格
| Max. Power Consumption |
14W with PoE input 14W with AC adapter input |
| Power Method |
(1) USB Type-C, 5V DC, 3A (1) PoE+ |
| Power Input Method |
USB Input PoE |
| Power Supply |
AC/DC, external, 15W |
| Supported Voltage Range |
4.8—5.2V DC/USB 44V—57V PoE |
| Management |
Ethernet |
| Weight |
395 g (0.87 lb) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| Ambient Operating Temperature |
-20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel |
軟件要求
| UniFi Network |
Version 9.0.114 and later |

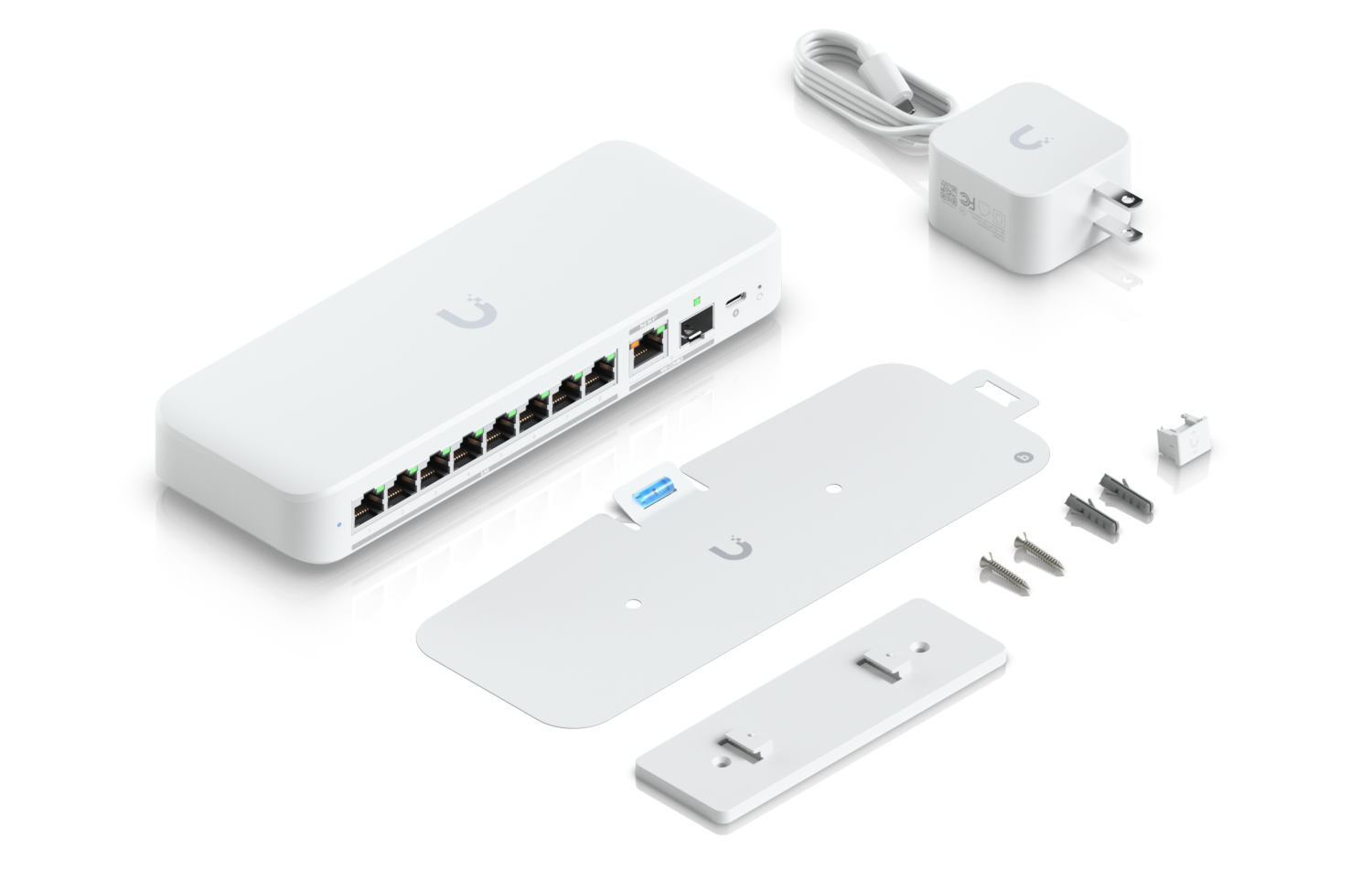

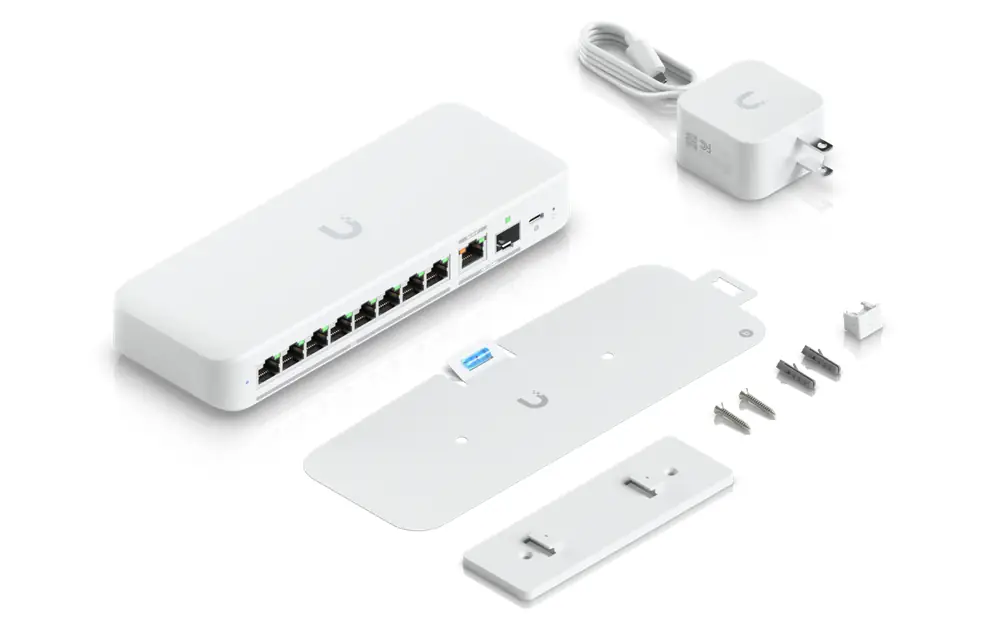

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
