Ubiquiti UniFi Switch Flex Mini 2.5G USW-Flex-2.5G-5

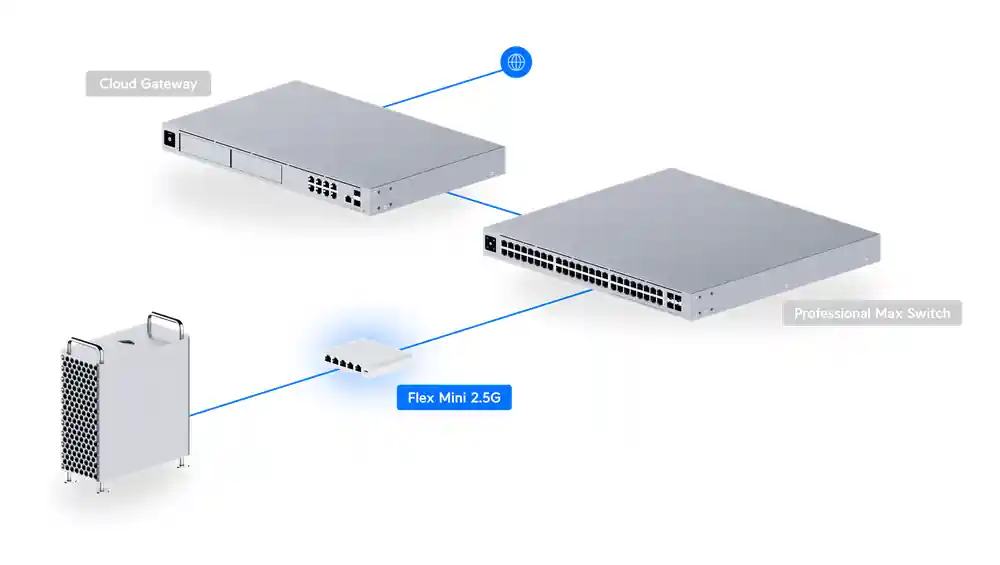

網絡拓撲
USW-Flex-2.5G-5 技術規格
總覽

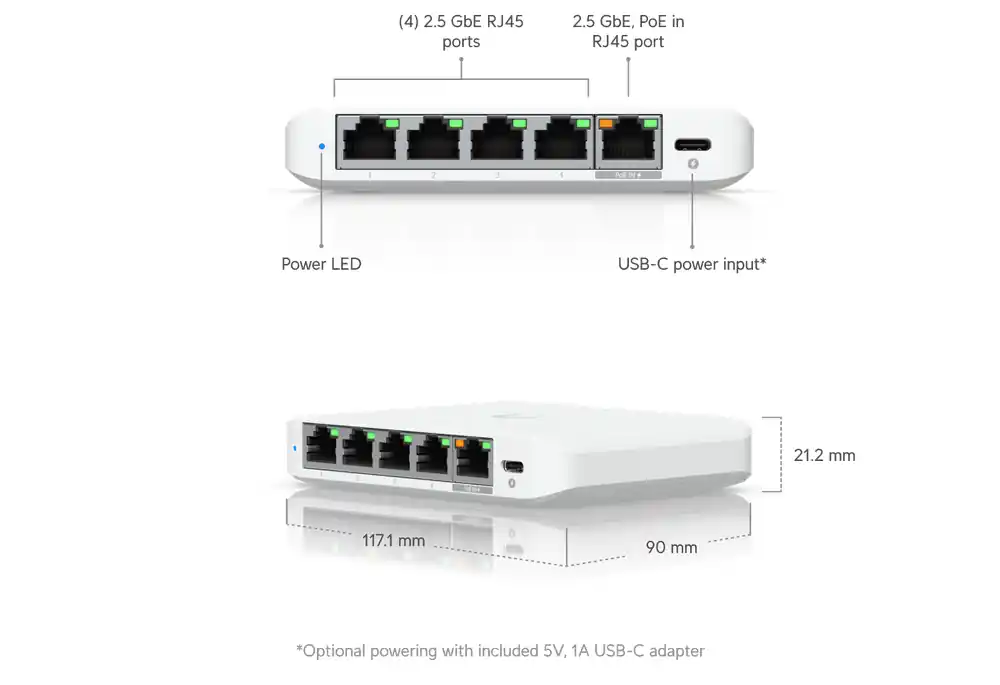

| Dimensions |
117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8″) |
| 2.5 GbE RJ45 |
5 (2.5G/1G/100M/10M) |
| Form Factor |
Compact desktop |
效能
| Switching Capacity |
25 Gbps |
| Total Non-Blocking Throughput |
12.5 Gbps |
| Forwarding Rate |
19 Mpps |
| Supported VLANs |
256 |
| MAC Address Table Size |
4,000 |
第二層功能
| STP & RSTP |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| Loop Protection |
Yes |
硬件規格
| Max. Power Consumption |
5W (AC/DC input) 6.4W (PoE input) |
| Power Method |
(1) USB Type-C, 5V DC, 1A (1) PoE |
| Power Input Method |
USB Input PoE |
| Power Supply |
AC/DC, external, 5W |
| Supported Voltage Range |
4.8—5.2V DC/USB 44V—57V PoE |
| Management |
Ethernet |
| Weight |
206 g (7.3 oz) |
| Enclosure Material |
Polycarbonate |
| Ambient Operating Temperature |
-20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel |
軟件要求
| UniFi Network |
Version 8.6.9 and later |

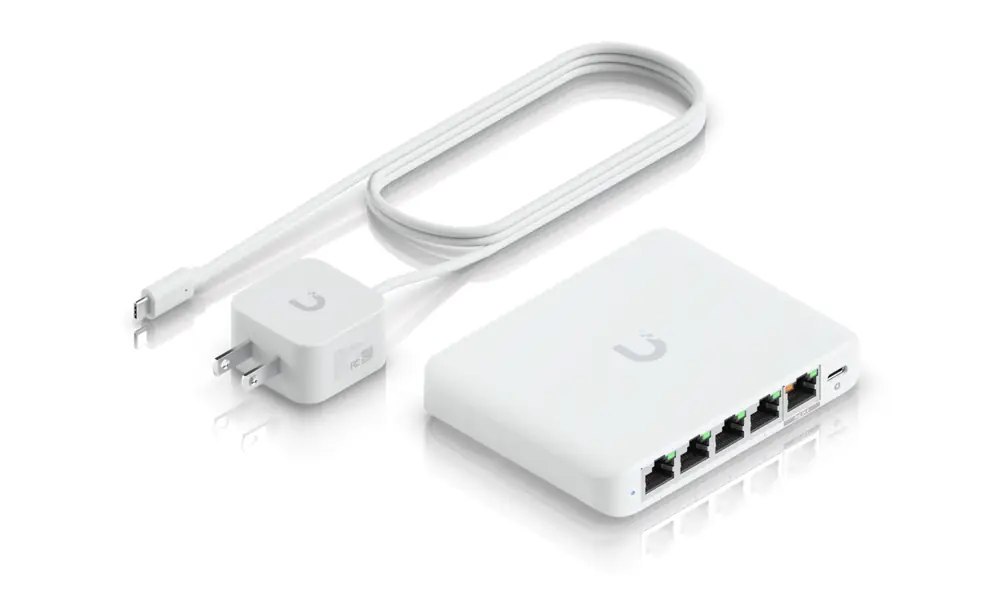

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
