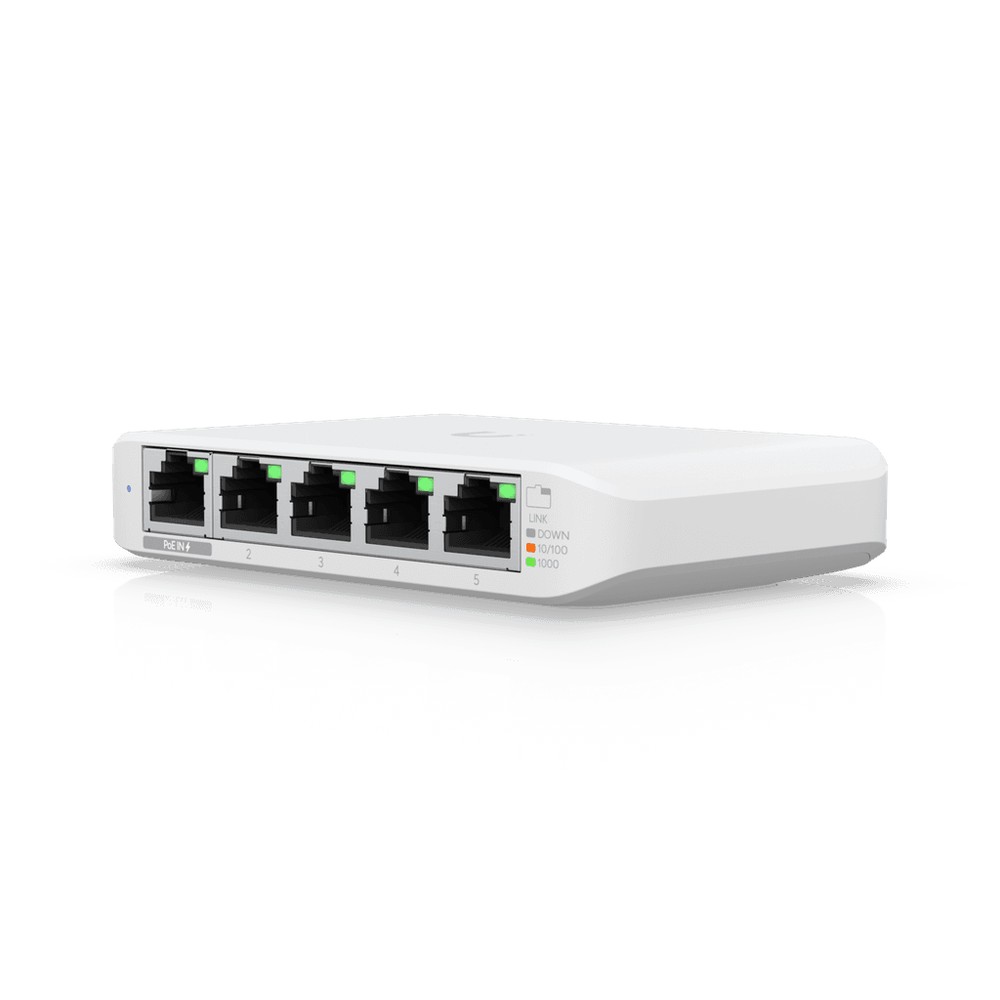

Ubiquiti UniFi Switch Flex Mini USW-Flex-Mini

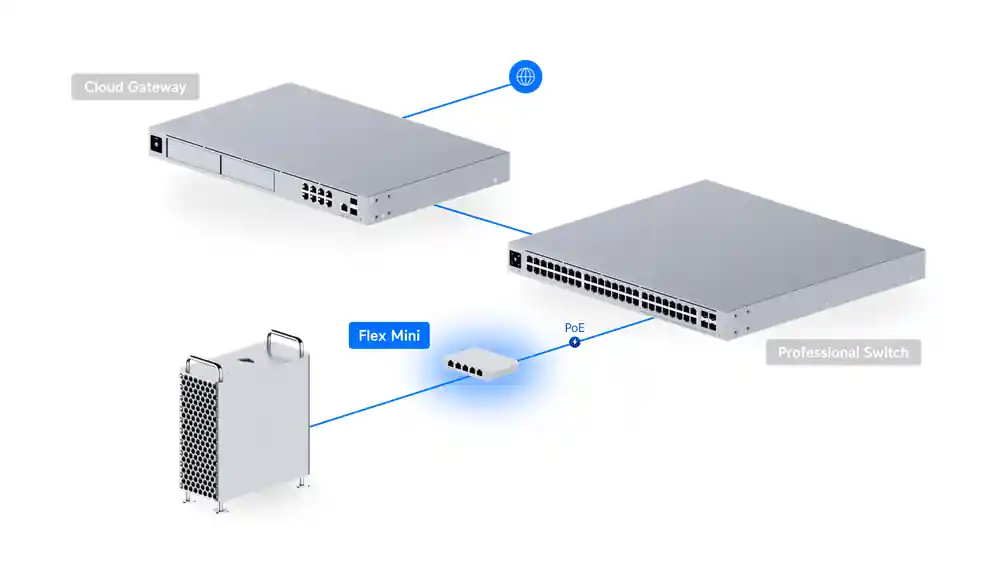

網絡拓撲
USW-Flex-Mini 技術規格
總覽
| Dimensions |
107 x 70 x 21 mm (4.2 x 2.8 x 0.8″) |
| 1 GbE RJ45 |
5 (1G/100M/10M) |
| Form Factor |
Compact desktop |
效能
| Switching Capacity |
10 Gbps |
| Total Non-Blocking Throughput |
5 Gbps |
| Forwarding Rate |
7 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
2,000 |
第二層功能
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
硬件規格
| Max. Power Consumption |
2.5W |
| Power Method |
(1) USB Type-C, 5V DC, 1A (1) PoE |
| Power Input Method |
USB Input PoE |
| Power Supply |
AC/DC, external, 5W |
| Supported Voltage Range |
4.8—5.2V DC/USB 44V—57V PoE |
| Management |
Ethernet |
| Heat Dissipation |
6.8 BTU/hr |
| Weight |
150 g (5.3 oz) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| ESD Protection |
Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature |
-5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 14501-20-08356 |
軟件要求
| UniFi Network |
Version 5.12.5 and later |

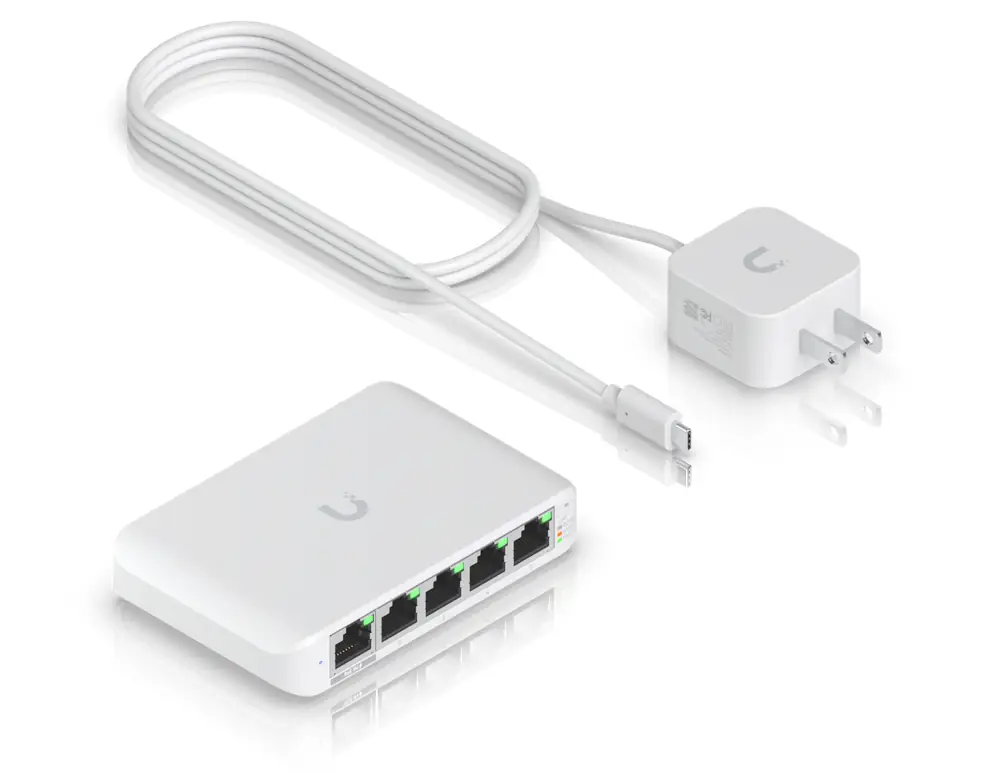

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
