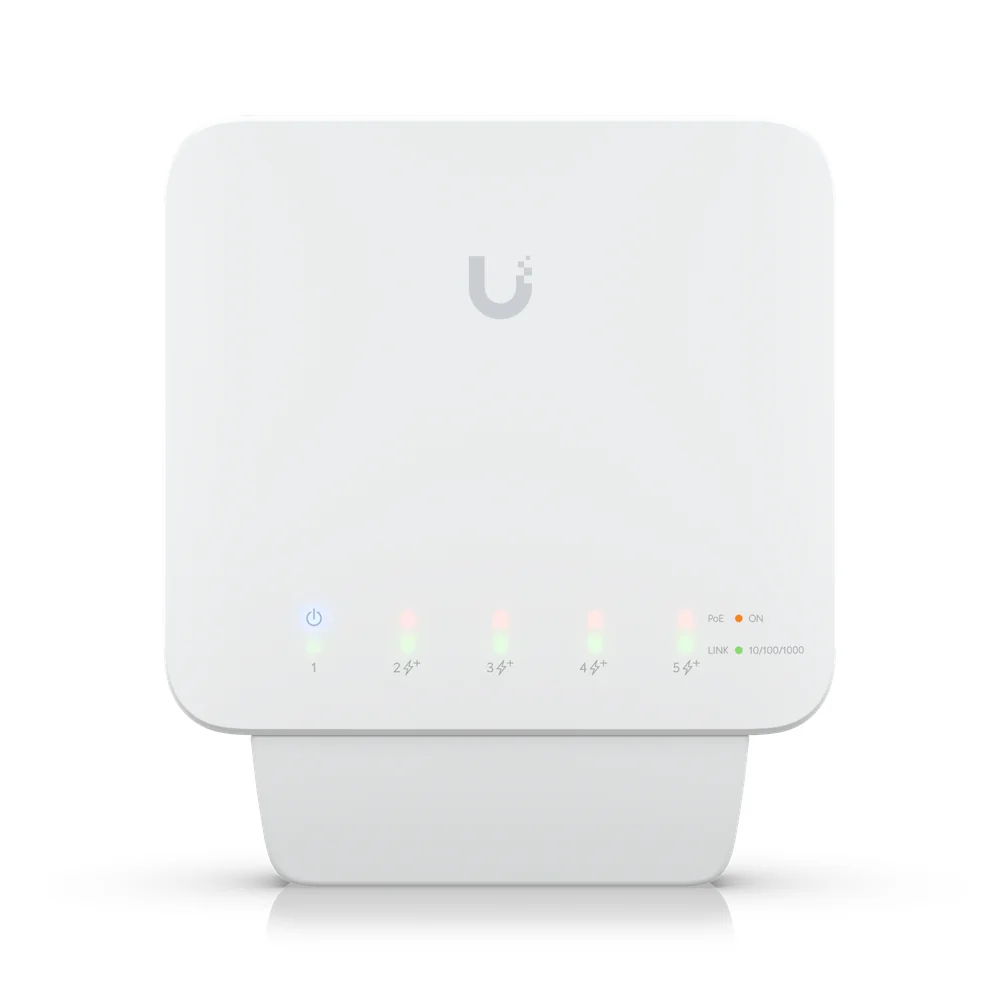

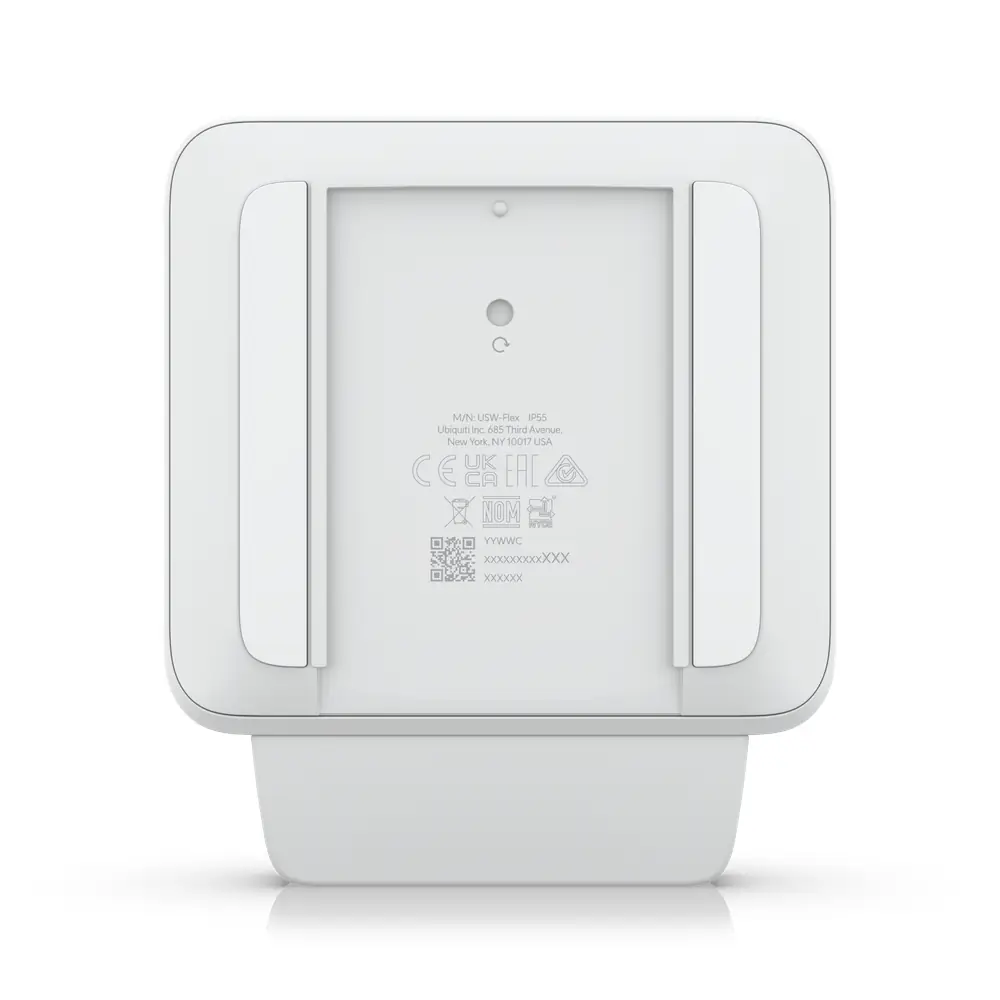

Ubiquiti UniFi Switch Flex USW-Flex

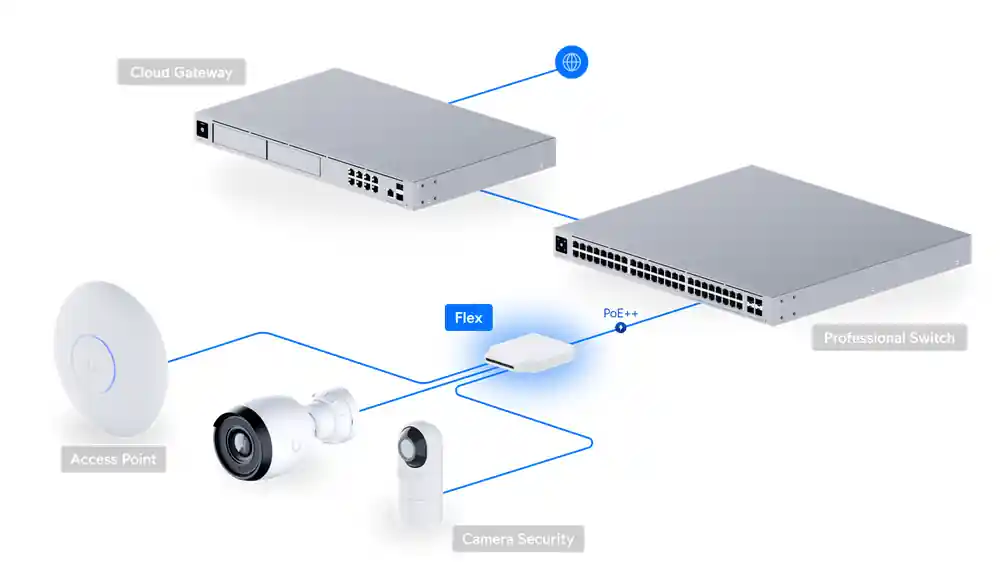

網絡拓撲
USW-Flex 技術規格
總覽
| Dimensions |
122.5 x 107.1 x 28 mm (4.8 x 4.2 x 1.1″) |

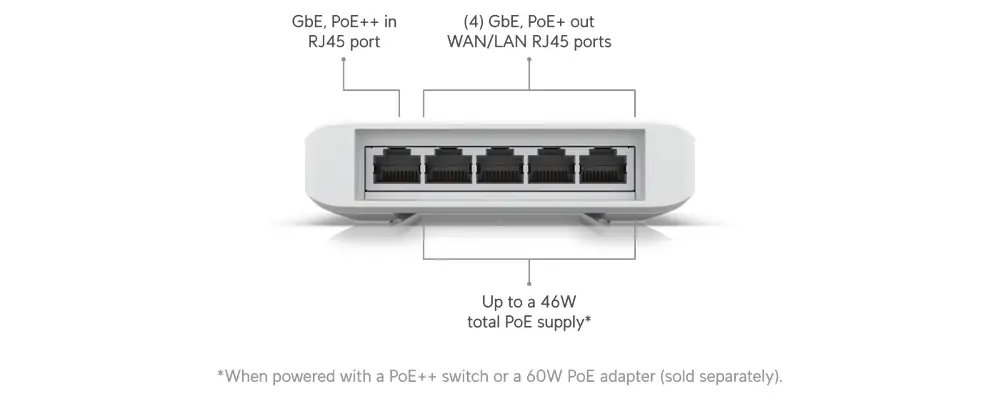

| 1 GbE RJ45 |
5 (4 PoE+, 1 PoE++) (1G/100M/10M) |
| Max. PoE Output |
Up to PoE+ |
| Total PoE Availability |
PoE++/60W PoE adapter input: 46W PoE+ input: 20W PoE input: 8W |
| Form Factor |
Compact desktop, wall, pole |
效能
| Switching Capacity |
10 Gbps |
| Total Non-Blocking Throughput |
5 Gbps |
| Forwarding Rate |
7 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
2,000 |
第二層功能
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
硬件規格
| PoE+ |
4 |
| PoE++ |
1 |
| PoE+ |
25W |
| Max. Power Consumption |
5W (Excluding PoE Output) 51W (Including PoE Output) |
| Power Method |
PoE++ |
| Power Input Method |
PoE |
| Supported Voltage Range |
50–57V PoE |
| Management |
Ethernet |
| Heat Dissipation |
17.1 BTU/hr (Excluding PoE Output) |
| Outdoor Ready |
Yes |
| Weight |
230 g (8.1 oz) |
| ESD Protection |
Air/contact: ± 16kV |
| Ambient Operating Temperature |
46W PoE output: -40 to 55° C (-40 to 131° F) 25W PoE output: -40 to 65° C (-40 to 149° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 14502-20-08356 |
軟件要求
| UniFi Network |
Version 5.10.3 and later |

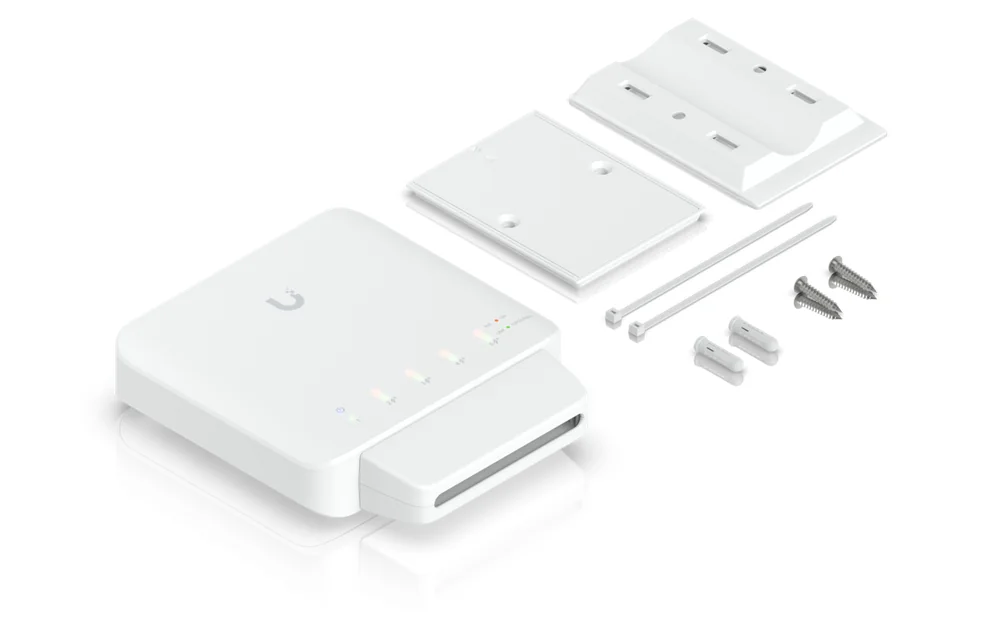

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
