Ubiquiti UniFi G3 Starter Kit Pro UA-G2-SK-Pro

Ubiquiti UniFi G3 Starter Kit Pro UA-G2-SK-Pro

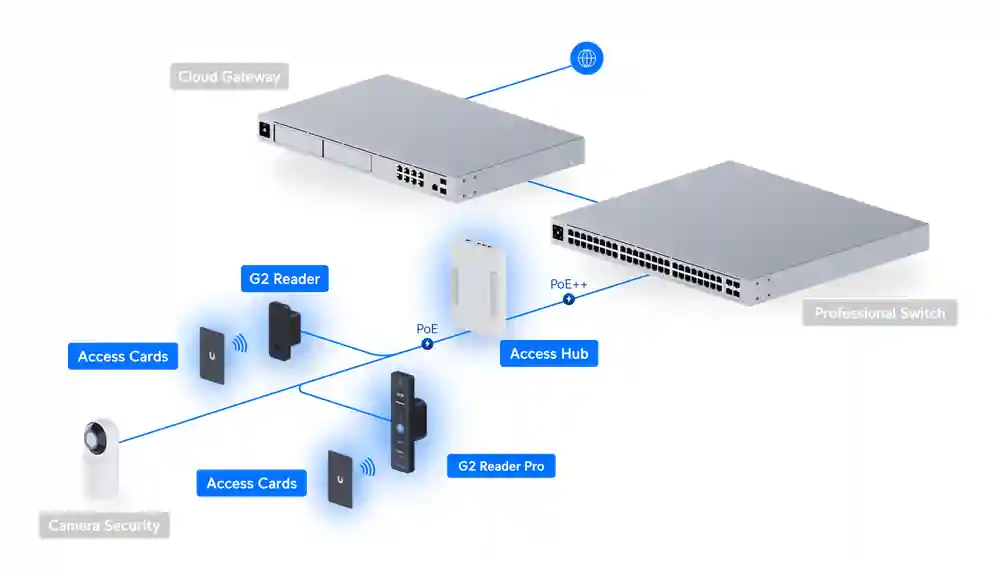

網絡拓撲

UA-G2-SK-Pro 技術規格

總覽

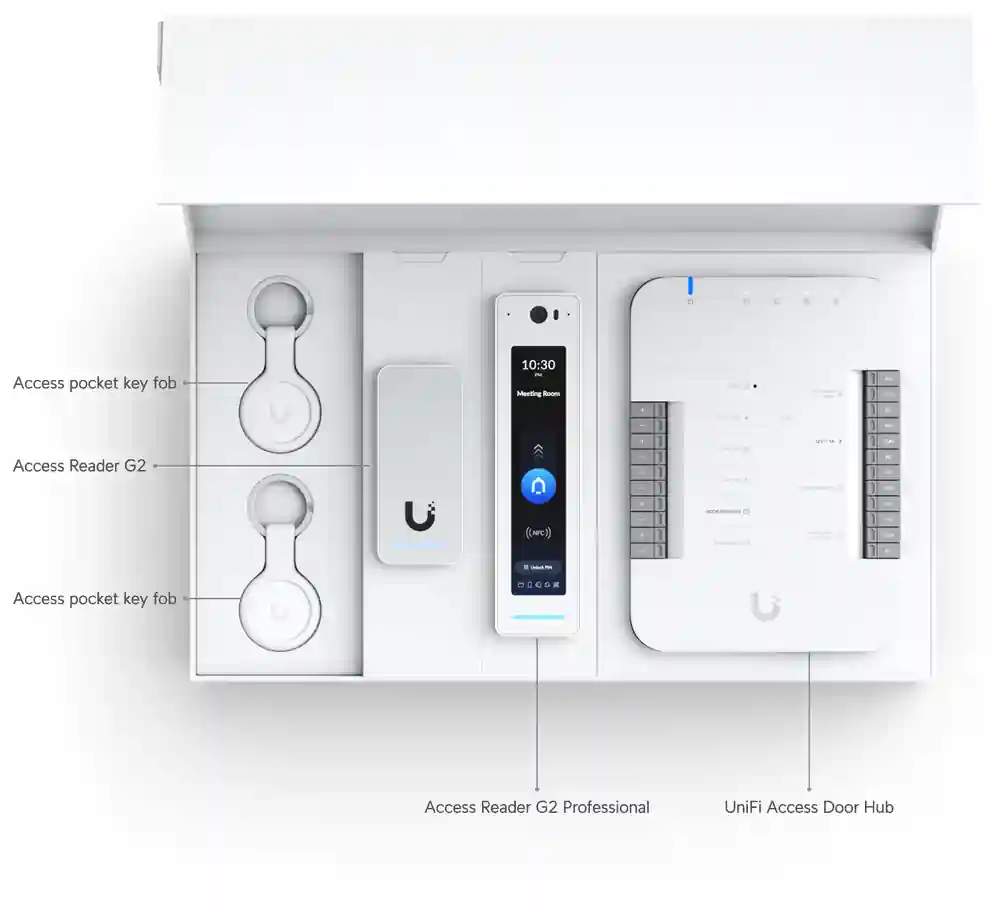

In the Box	(1) Door Hub (1) G2 Reader Pro (1) G2 Reader (2) Pocket Keyfobs

Door Hub

Dimensions	174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3″)
Supported Doors	1
Maximum User Count	6,000
Input Terminals	(2) Door exit request (1) Door position (1) Emergency
Power Method	PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
NDAA Compliant	Yes
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight	363 g (12.8 oz)
Enclosure Material	Polycarbonate
Mount Material	Polycarbonate

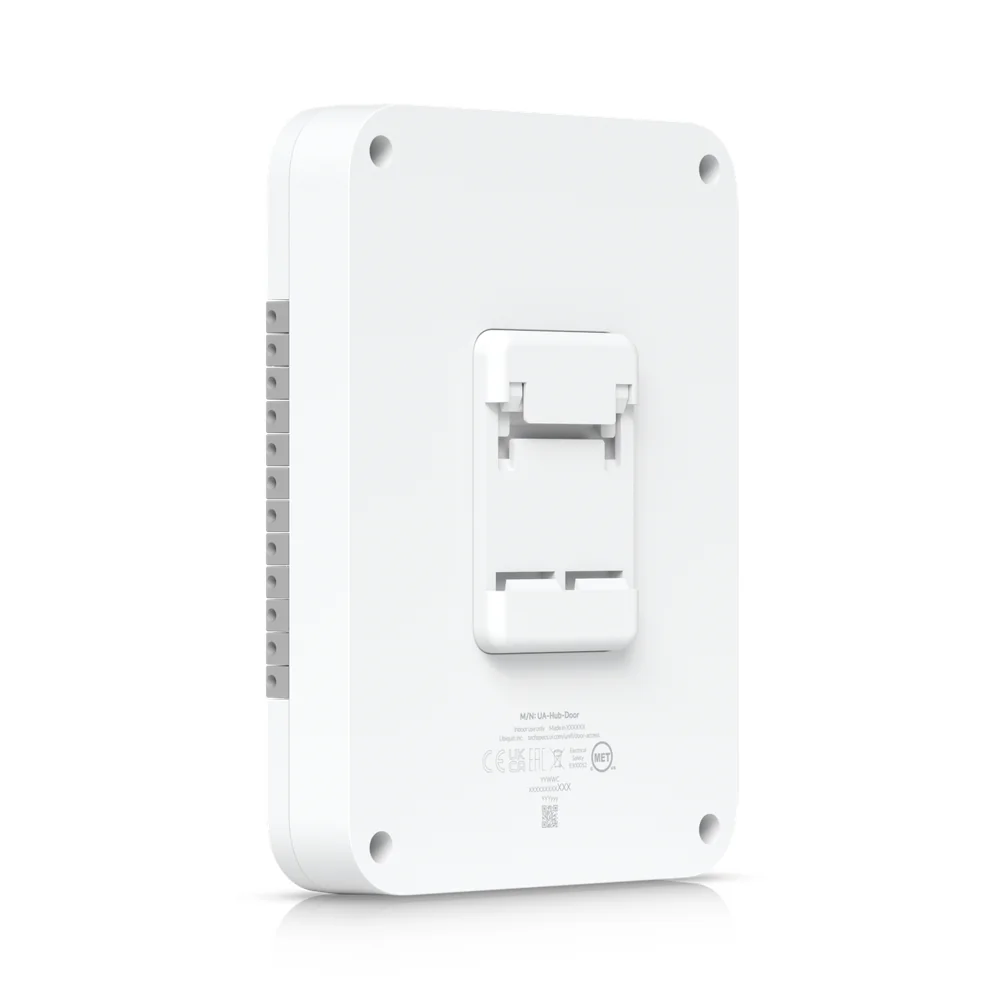

Mounting	DIN-rail (Included)
Ambient Operating Temperature	0 to 40° C (32 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing

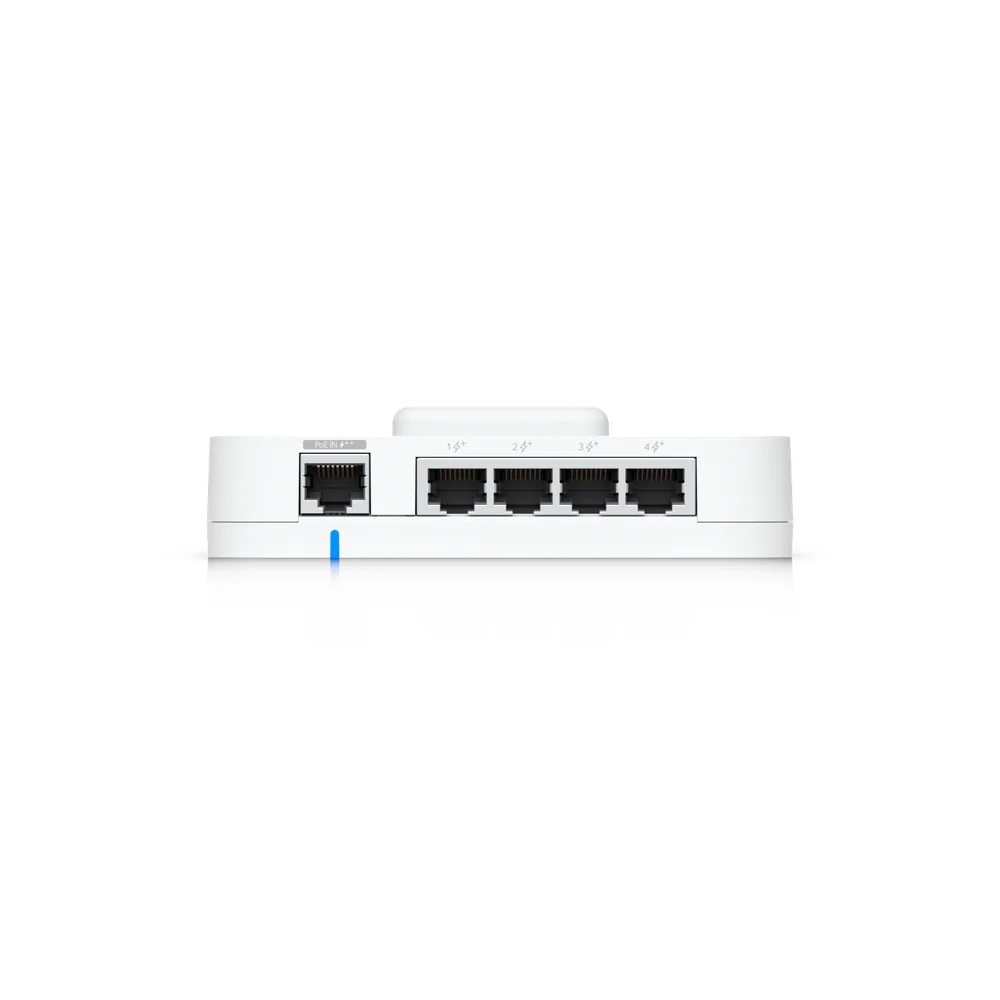

Networking Interface	(5) 10/100/1000 Base-T
PoE Interface	(1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, 30W per port (Max 45W aggregated)
Max. Power Consumption	30W (Without PoE output) 50W (With PoE output)
Digital Input	Request to exit, request to enter, remote release, door position sensor
Dry Output Relay	Lock: 30V DC, 1A Aux: 30V DC, 1A
Powered Output Relay	Lock: 12V DC, 1A Aux: 12V DC, 0.33A 12V DC, 0.33A
LEDs	B/W Learn More
Button	(1) Factory reset
UA-Lock-Magnetic-540kg (500mA)	24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
UA-Lock-Magnetic-270kg (800mA)	24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords, 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: 1
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-Hub-Door002, V01
Software Information	The software version can be checked at https://unifi.ui.com

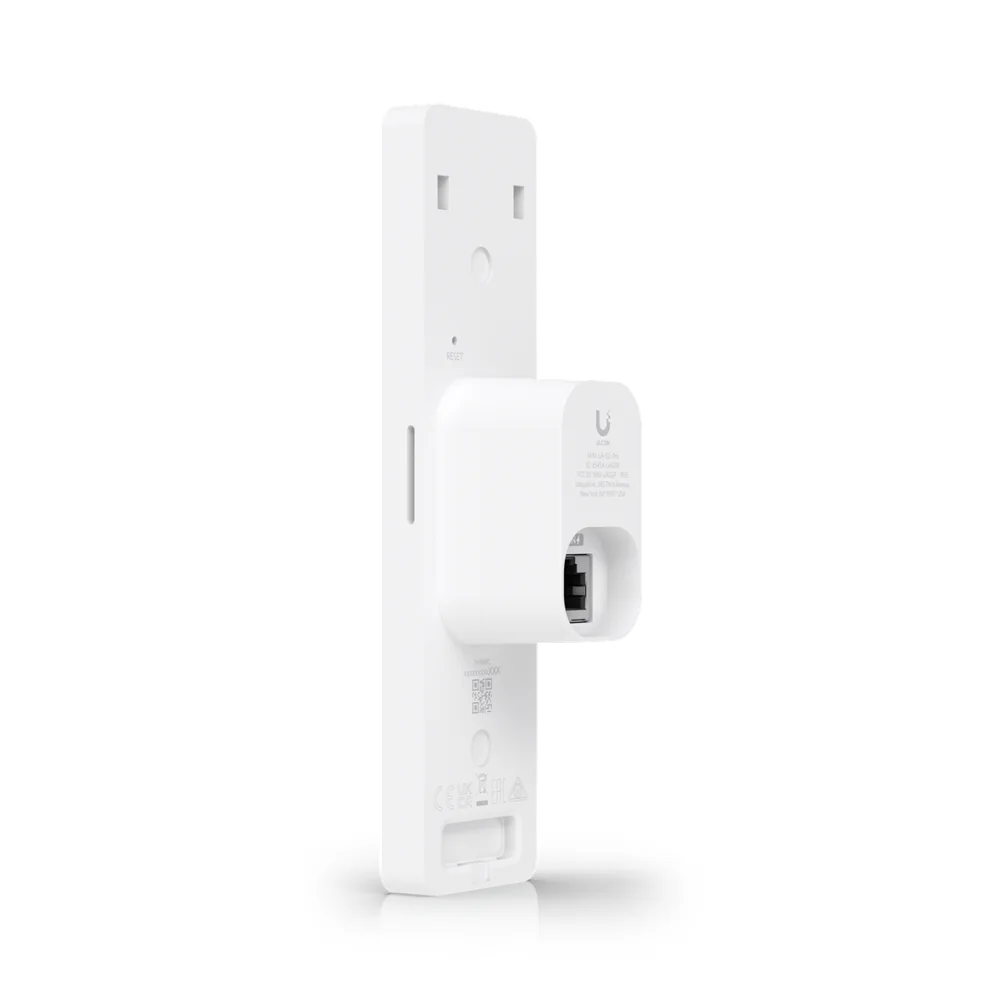

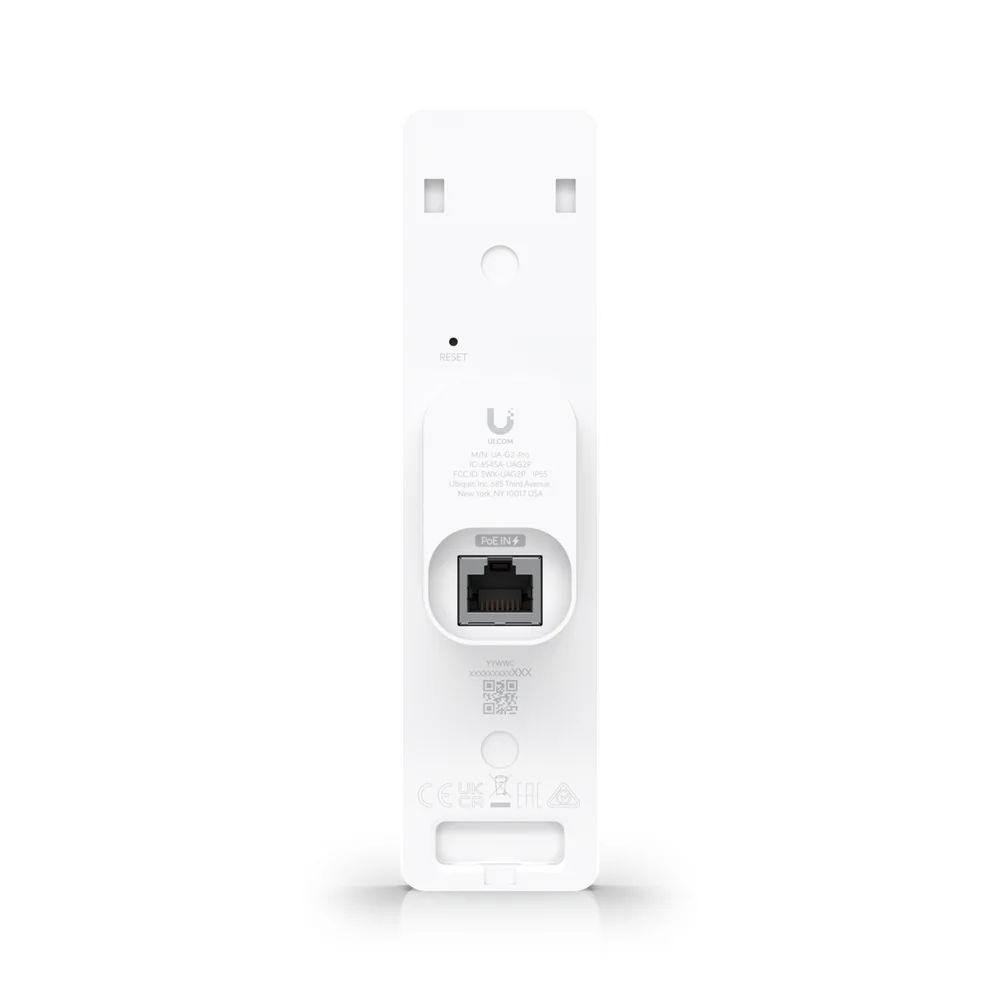

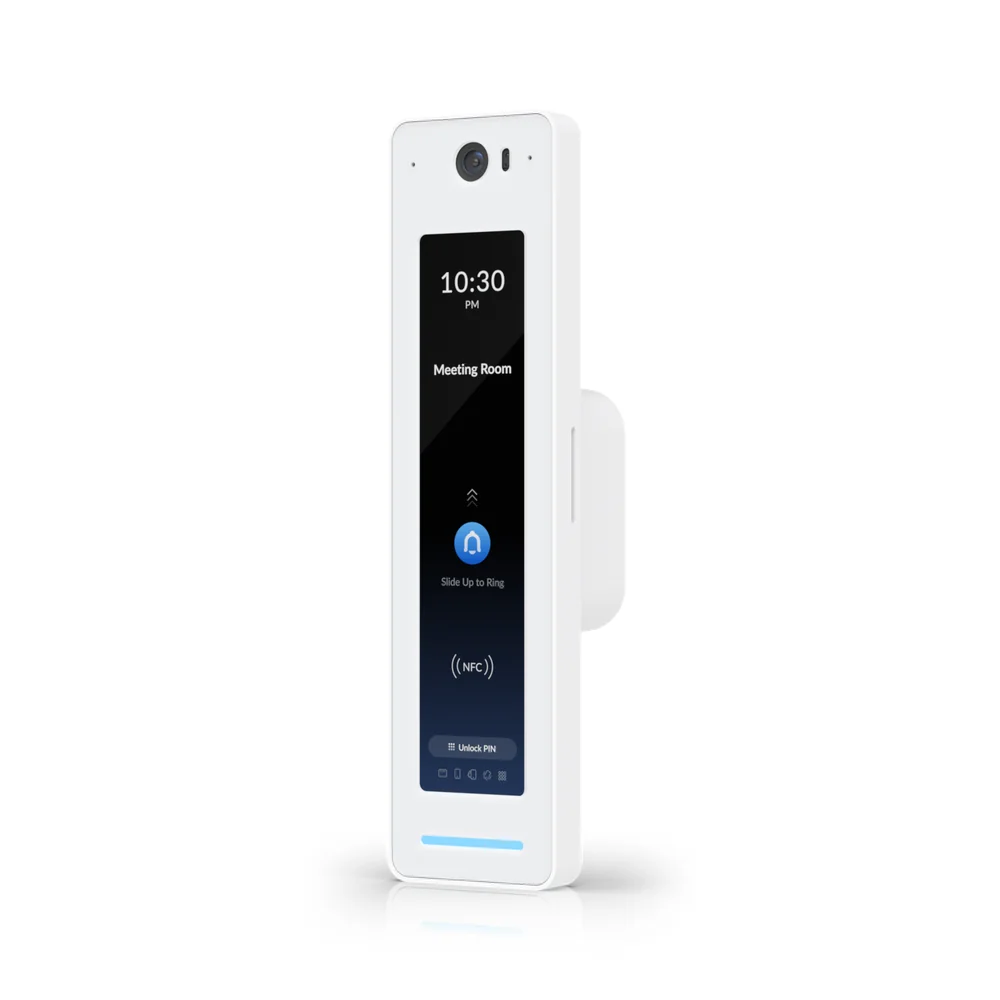

G2 Reader Pro

Dimensions	160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6″)
Integrated Camera	Yes
NFC Card & Keyfob Access	Yes
PIN Access	Yes
Mobile Unlock	Yes
Face Unlock	Yes
Two-Way Intercom & Doorbell Access	Yes
Weatherproofing	IP55
NDAA Compliant	Yes
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight	136 g (4.8 oz)
Enclosure Material	Polycarbonate, glass
Mount Material	Aluminum alloy
Mounting	Wall, gang-box mount (Included) Angle mount, junction box (Optional)
Indoor and Outdoor Use	Yes
Ambient Operating Temperature	Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity	5 to 90% noncondensing
Networking Interface	(1) GbE RJ45 port
Connectivity	BLE 4.2 NFC
Power Method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption	6W
Supported Voltage Range	48V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Max. Frame Rate	30 FPS
Resolution	2MP 1200 x 1600 (3:4)
Resolution	12 MP (3072 × 4096)
Field of View	H: 98.6°, V: 125.7°, D: 157.8°
Sensors	Proximity sensor
Luminance	480 nits (Typical)
Screen Orientation	Portrait
Resolution	1280 x 286 px
Screen Technology	Capacitive touch
Size	120 mm (4.7″) diagonal
Microphone	Yes
Speaker	(1) Yes, 1.5W
LEDs	R/G/B/W/Amber Learn More
Button	(1) Factory reset
NFC Read Range	< 30 mm (1.18'')
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
NFC Frequency	13.56 MHz
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords, 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-G2-Pro/UA-G2-Pro-Black, V02
Software Information	The software version can be checked at https://unifi.ui.com

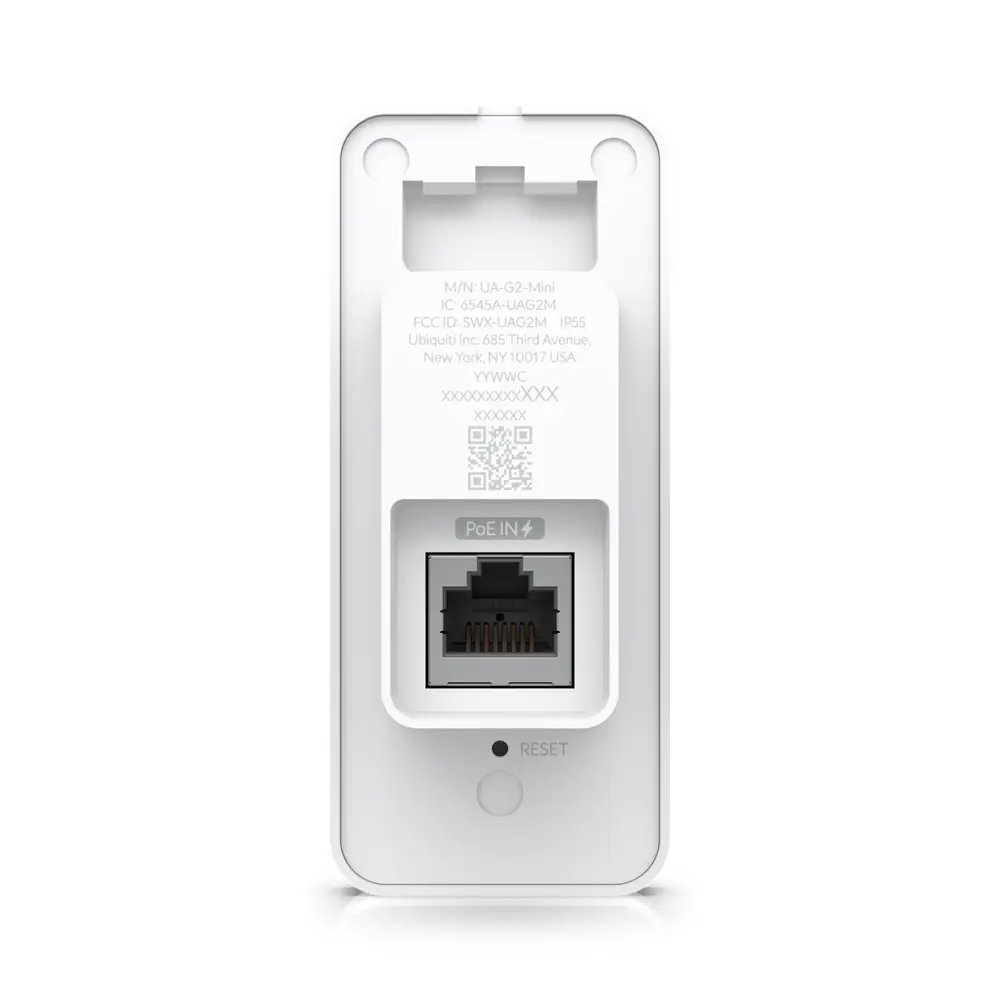

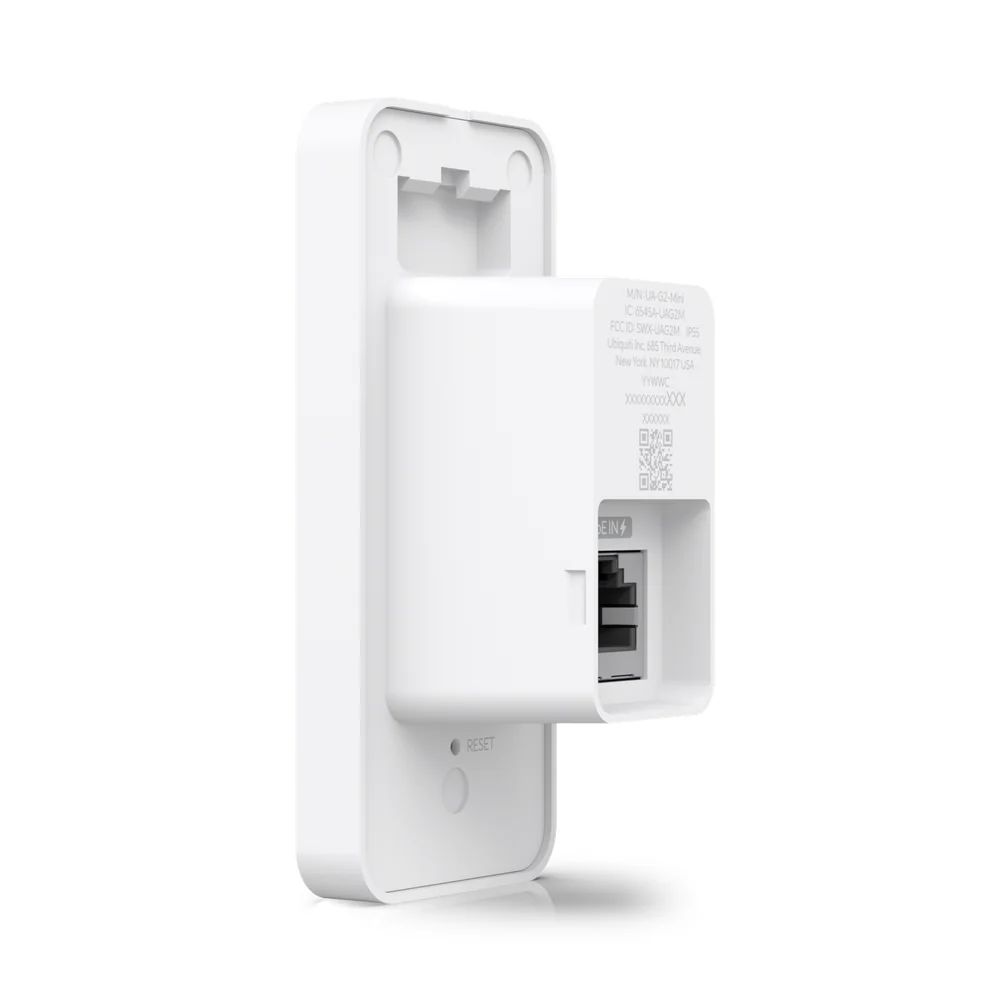

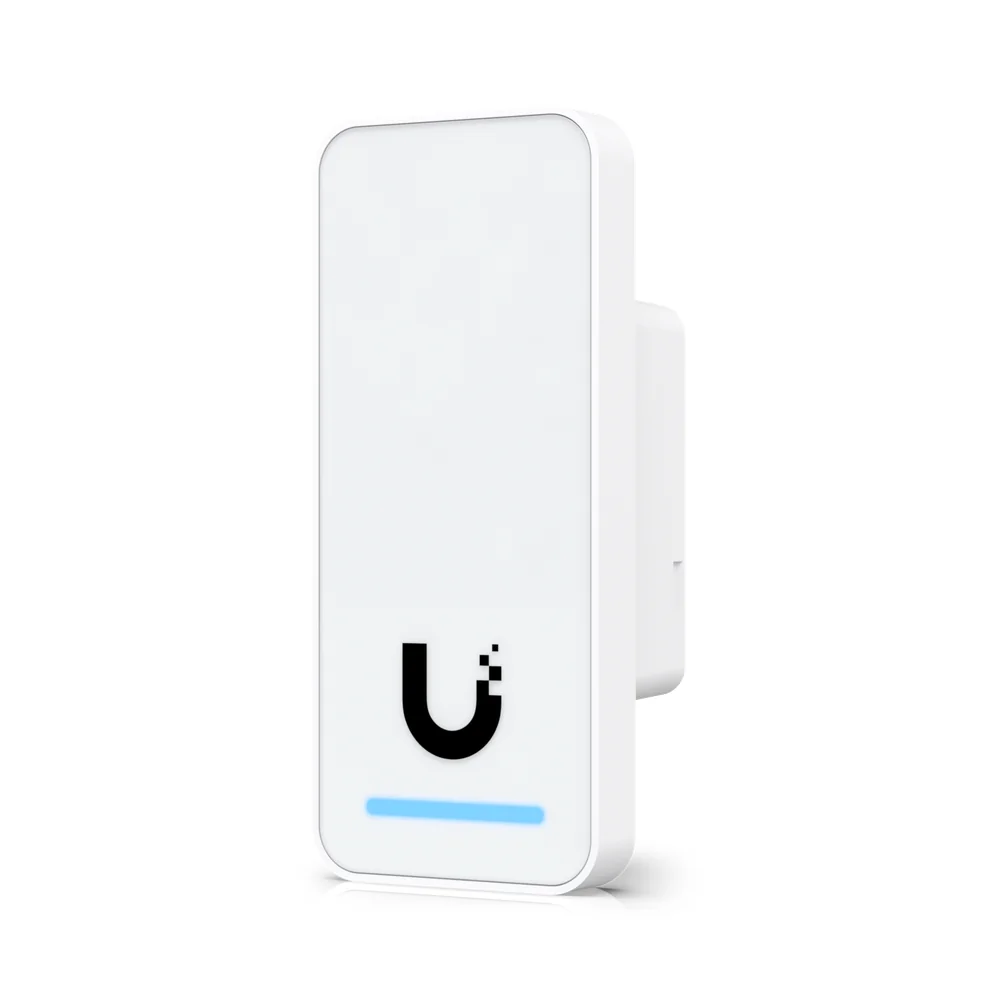

G2 Reader

Dimensions	93 x 40 x 36.5 mm (3.7 x 1.6 x 1.4″)
NFC Card & Keyfob Access	Yes
Mobile Unlock	Yes
Handwave Request to Exit	Yes
Weatherproofing	IP55
NDAA Compliant	Yes
UL 294 Level	Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
Weight	82 g (2.9 oz)
Enclosure Material	Polycarbonate, glass
Mount Material	Aluminum alloy
Mounting	In-wall, gang box (Included) Junction box (Optional)
Indoor and Outdoor Use	Yes
Ambient Operating Temperature	-30 to 45° C (-22 to 113° F)
Ambient Operating Humidity	5 to 90% noncondensing
Networking Interface	(1) 10/100 MbE RJ45 port
Connectivity	BLE 4.1 NFC
Power Method	PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption	5W
Supported Voltage Range	48V DC
ESD/EMP Protection	Air: ± 15kV, contact: ± 8kV
Sensors	Proximity sensor
Speaker	(1) Yes, 0.7W
LEDs	R/G/B/W Learn More
Button	(1) Factory reset
NFC Read Range	< 30 mm (1.18'')
NFC Frequency	13.56 MHz
NFC Technology	ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling Requirements	Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords, 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 Statement	Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 Grade	Grade assignment: I
Certifications	CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision level	UA-G2/UA-G2-Black, V02
Software Information	The software version can be checked at https://unifi.ui.com

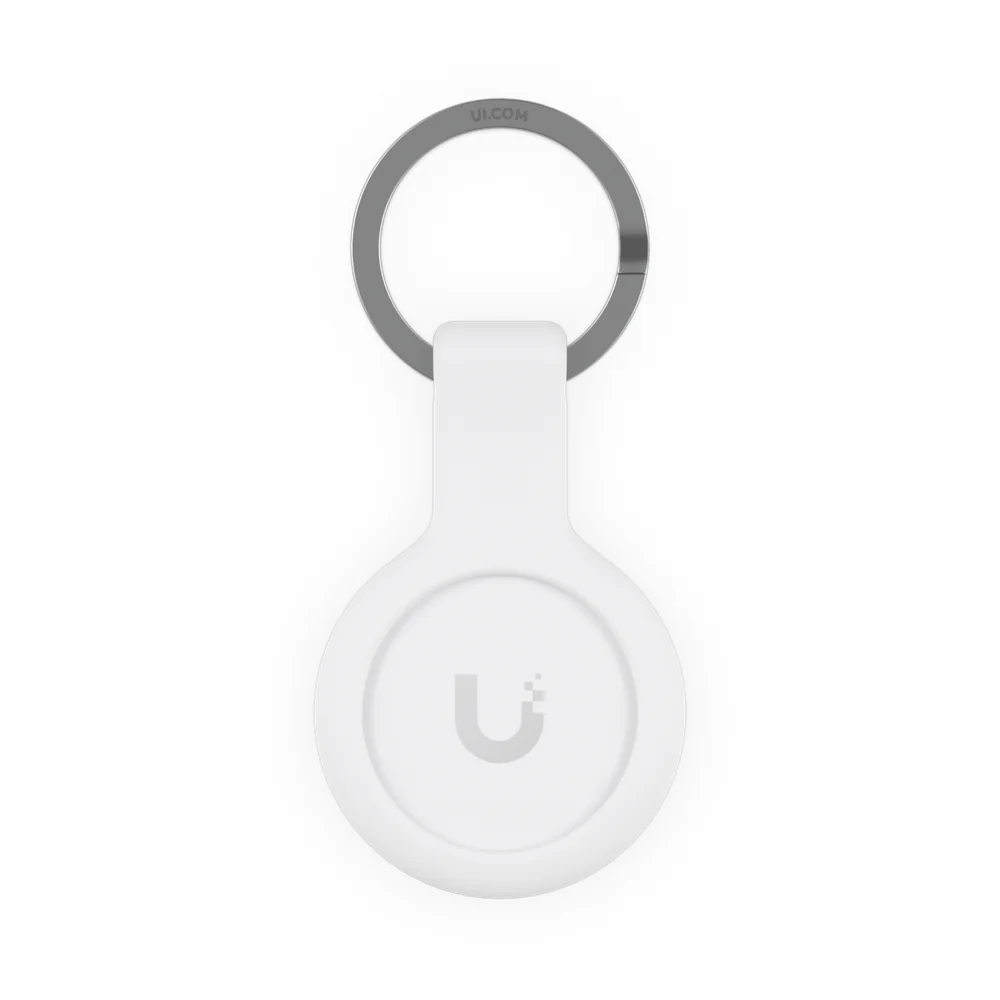

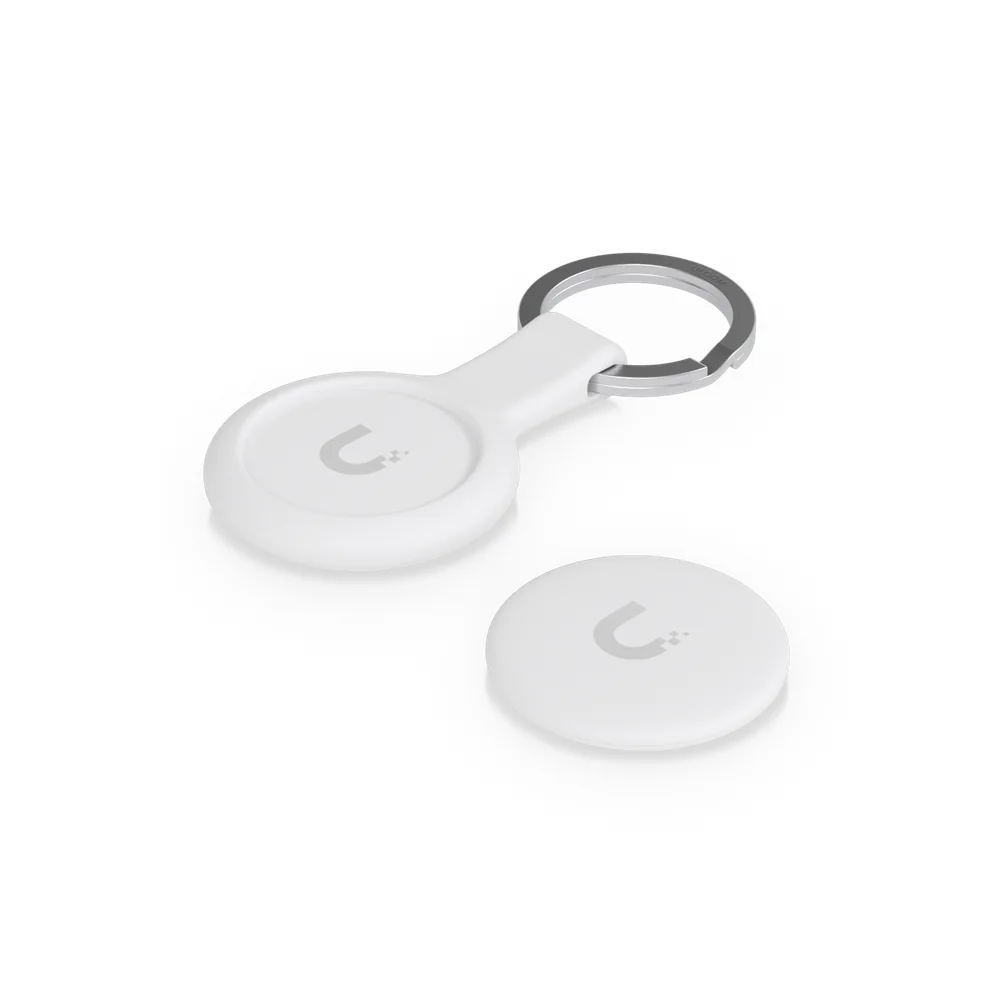

Pocket Keyfob

Dimensions	84 x 39 x 7.4 mm (3.3 x 1.5 x 0.29″)
Weight	16 g (0.56 oz)
Enclosure Material	Polycarbonate, stainless steel, silicone rubber
Weatherproofing	IP54
NDAA Compliant	Yes
Ambient Operating Humidity	10 to 90% noncondensing
Ambient Operating Temperature	-10 to 45° C (14 to 113° F)
NFC Frequency	13.56 MHz
NFC Technology	ISO/IEC 14443 Type A MIFARE DESFire EV3 4K UniFi Access Proprietary Security Protocol
Certification	CE
