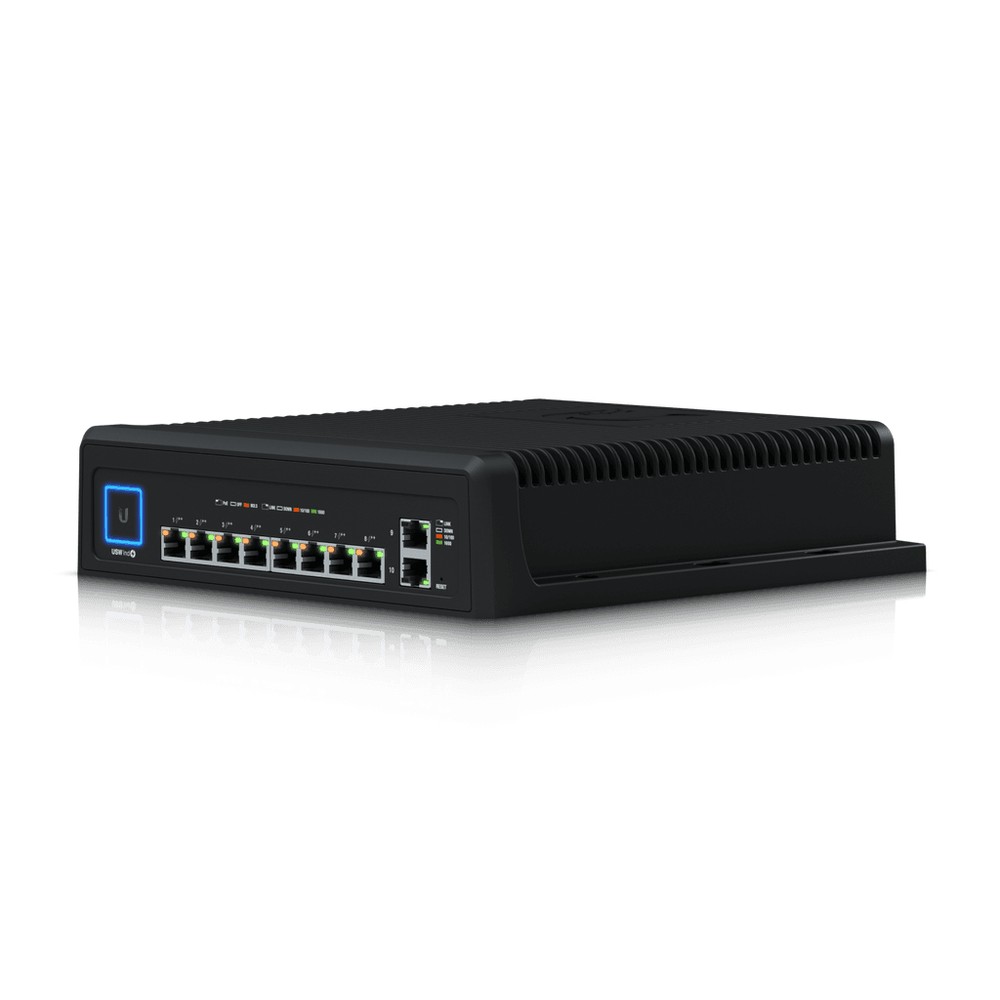

Ubiquiti UniFi Industrial USW-Industrial

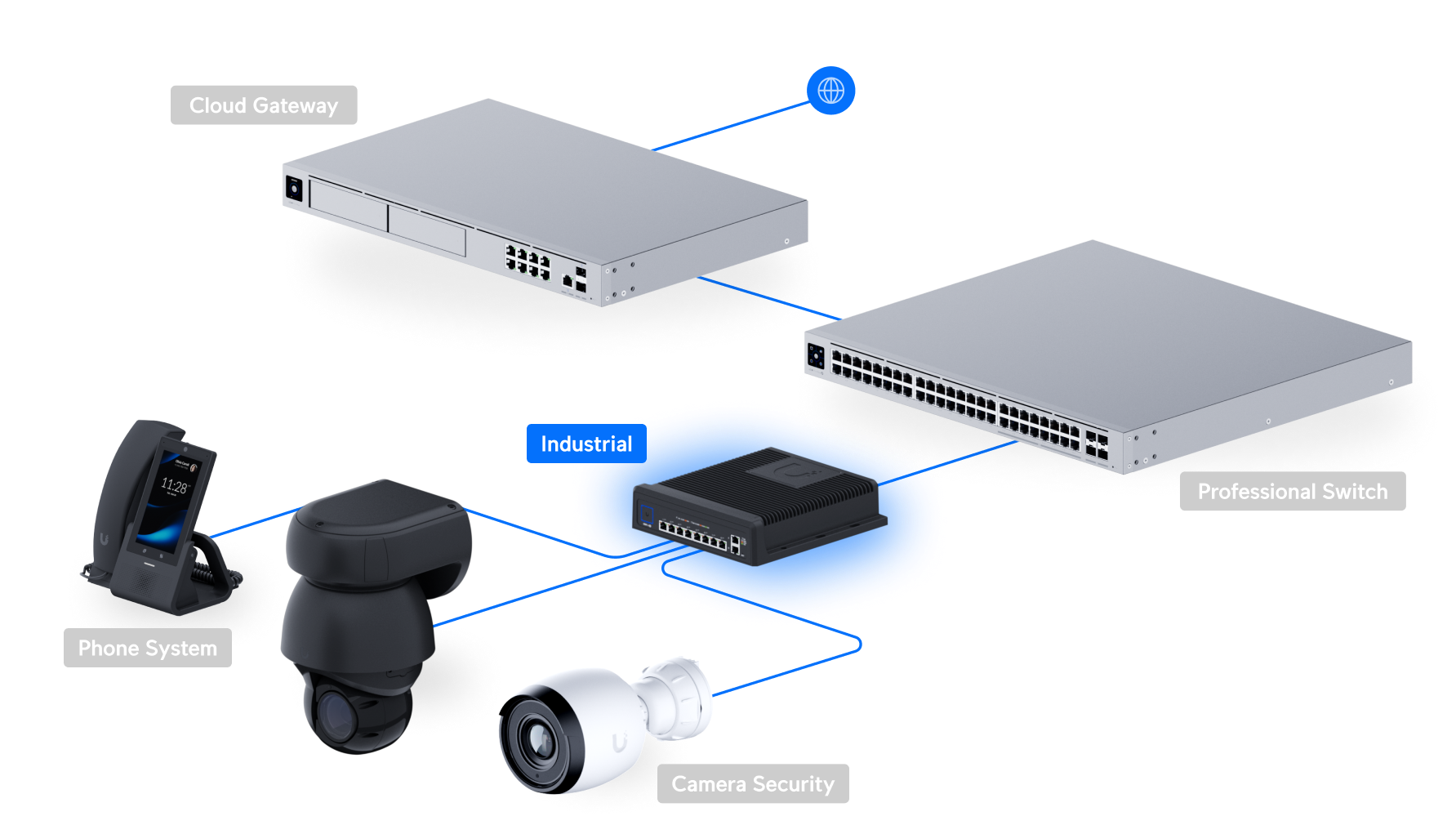

網絡拓撲
USW-Industrial 技術規格
總覽
| Dimensions |
252.5 x 238 x 60 mm (9.9 x 9.4 x 2.4″) |
| 1 GbE RJ45 |
10 (8 PoE++) (1G/100M/10M) |
| Max. PoE Output |
Up to PoE++ |
| Total PoE Availability |
430W |
| Form Factor |
Compact desktop, wall |
效能
| Switching Capacity |
20 Gbps |
| Total Non-Blocking Throughput |
10 Gbps |
| Forwarding Rate |
15 Mpps |
| Supported VLANs |
256 |
| MAC Address Table Size |
4,000 |
第二層功能
| STP & RSTP |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| PoE++ |
8 |
| PoE++ |
64W |
| Max. Power Consumption |
20W (Excluding PoE Output) 450W (Including PoE Output) |
| Power Method |
Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 450W |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet |
| Heat Dissipation |
68.2 BTU/hr (Excluding PoE Output) |
| Weight |
3.9 kg (8.5 lb) |
| Enclosure Material |
Die-cast aluminum with black powder coated finish |
| ESD Protection |
Air: ± 24kV, contact: ± 24kV |
| Ambient Operating Temperature |
Internal AC/DC @ 450W: -40 to 50° C (-40 to 122° F) Internal AC/DC @ 240W: -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
軟件要求
| UniFi Network |
Version 7.2.94 and later |
包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
