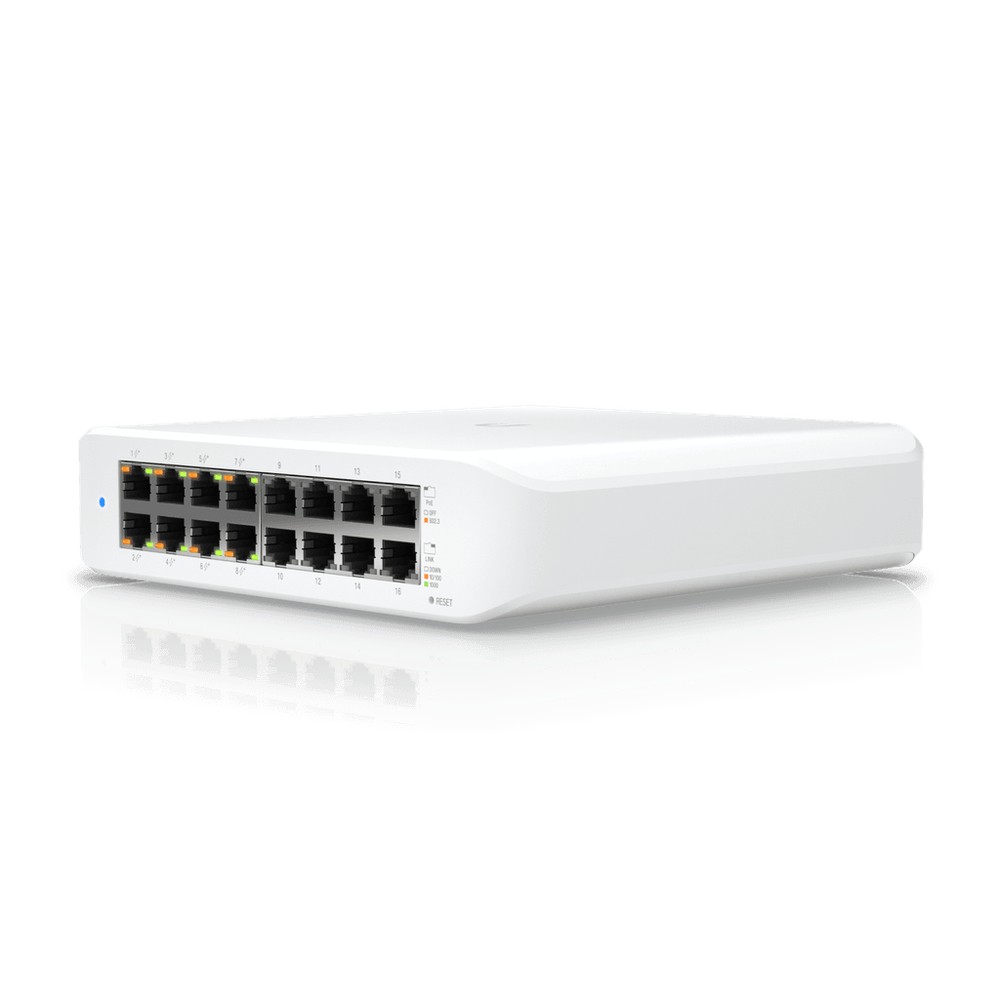

Ubiquiti UniFi Switch Lite 16 PoE USW-Lite-16-PoE

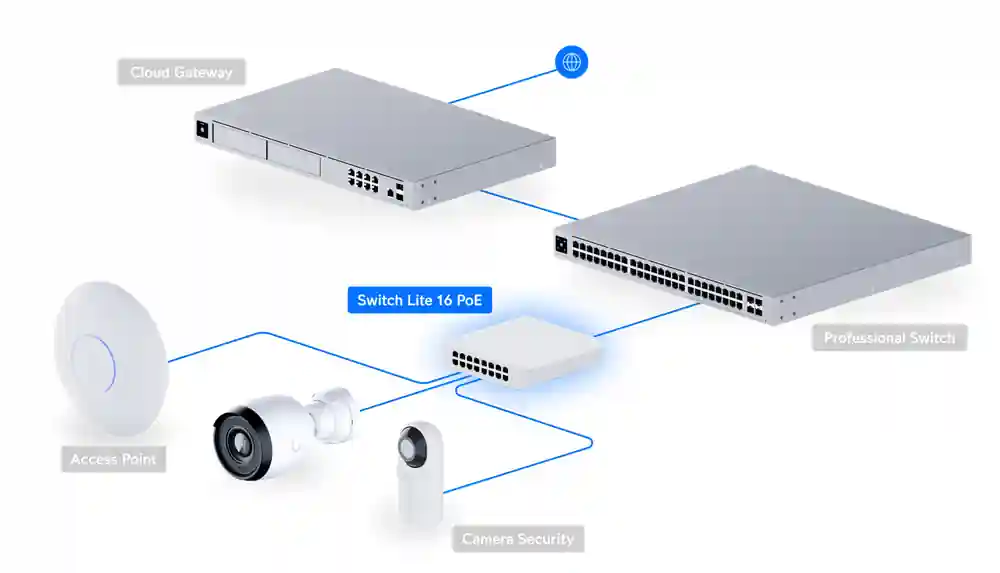

網絡拓撲

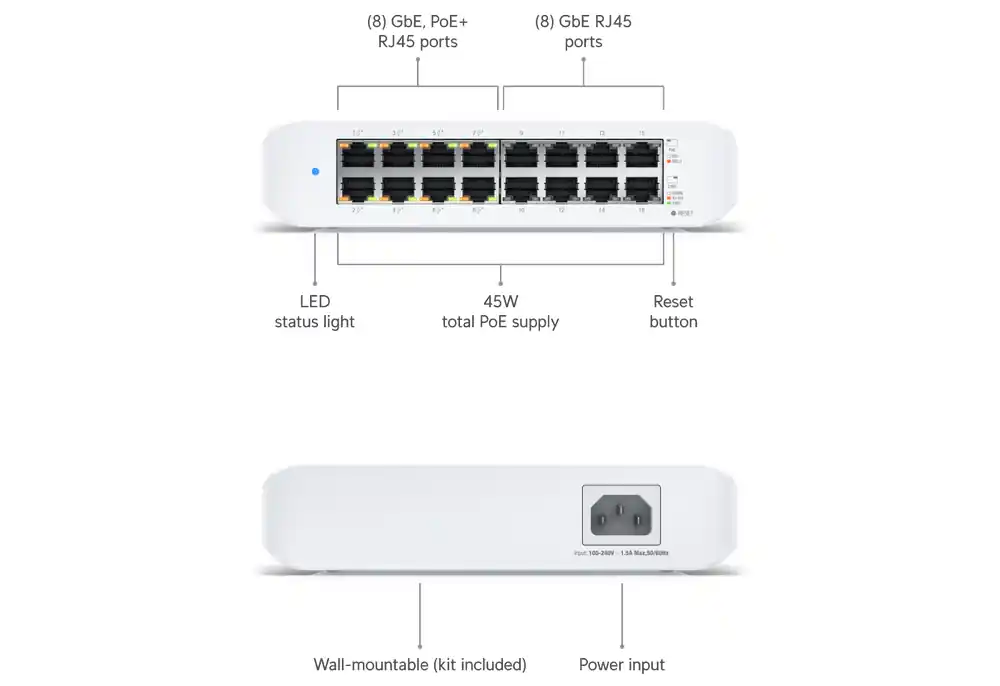

USW-Lite-16-PoE 技術規格
總覽
| Dimensions |
192 x 185 x 44 mm (7.6 x 7.3 x 1.7″) |
| 1 GbE RJ45 |
16 (8 PoE+) (1G/100M/10M) |
| Max. PoE Output |
Up to PoE+ |
| Total PoE Availability |
45W |
| Form Factor |
Compact desktop, wall |
效能
| Switching Capacity |
32 Gbps |
| Total Non-Blocking Throughput |
16 Gbps |
| Forwarding Rate |
24 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
8,000 |
| Packet Buffer Size |
0.5 MB |
| IPv4 |
128 |
| MAC |
128 |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| PoE+ |
8 |
| PoE+ |
32W |
| Max. Power Consumption |
15W (Excluding PoE Output) 60W (Including PoE Output) |
| Power Method |
Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 60W |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet |
| Heat Dissipation |
51.2 (Excluding PoE Output) |
| Weight |
1.2 kg (2.6 lb) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Polycarbonate |
| Supported Rack Depth |
400~1200 mm (15.7-47.2″) |
| Ambient Operating Temperature |
-15 to 40° C (5 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 04479-21-08356 |
軟件要求
| UniFi Network |
Version 7.2.94 and later |

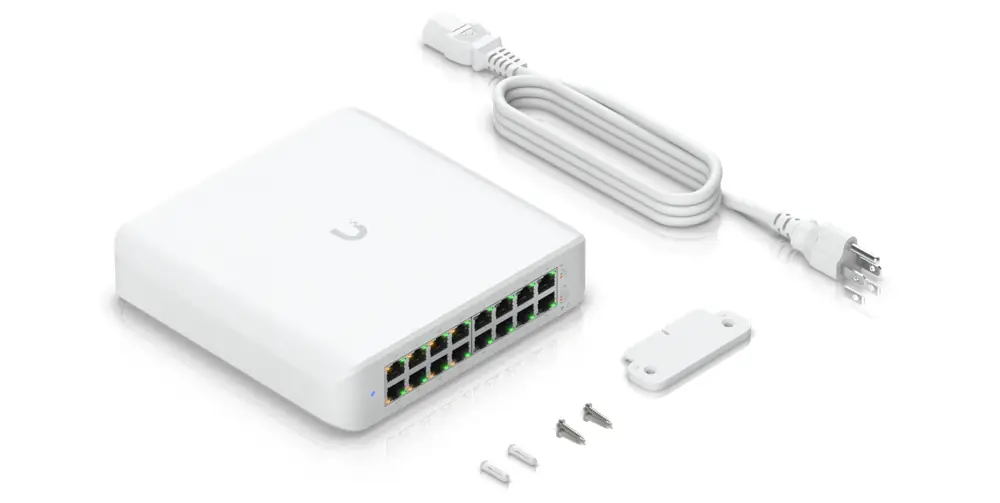

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
