Ubiquiti UniFi Long-Range Ethernet Repeater UACC-LRE
UACC-LRE 技術規格
總覽
| Dimensions |
196.5 x 93.5 x 39 mm (7.7 x 3.7 x 1.5″) |
Mechanical
| Weight |
350 g (12.3 oz) |
| Enclosure Material |
UV stabilized polycarbonate |

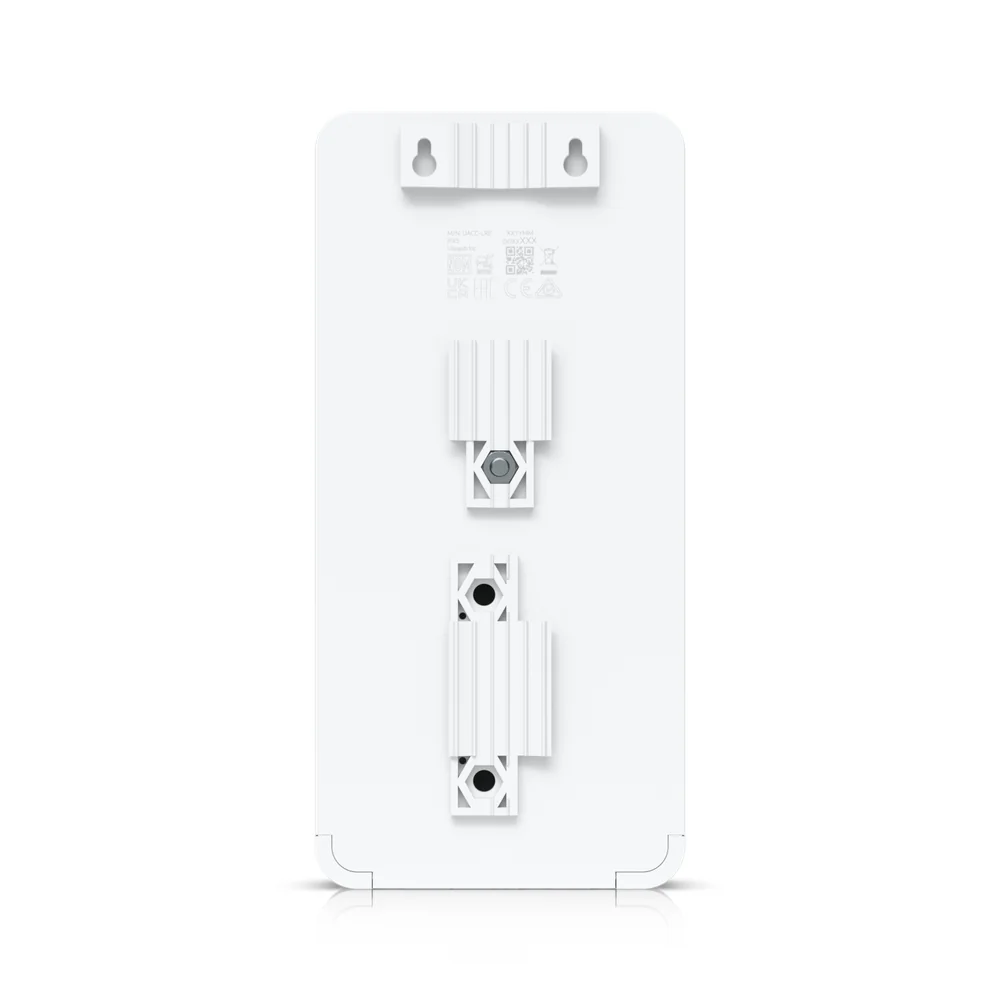

| Mounting Material |
Stainless steel |
| Weatherproofing |
IPX5 |
硬件規格
| Power Method |
PoE/PoE+ 2-pairs (Pins 1, 2+, 3, 6-) |
| Max. Power Consumption |
1.5W (Excluding PoE output) |

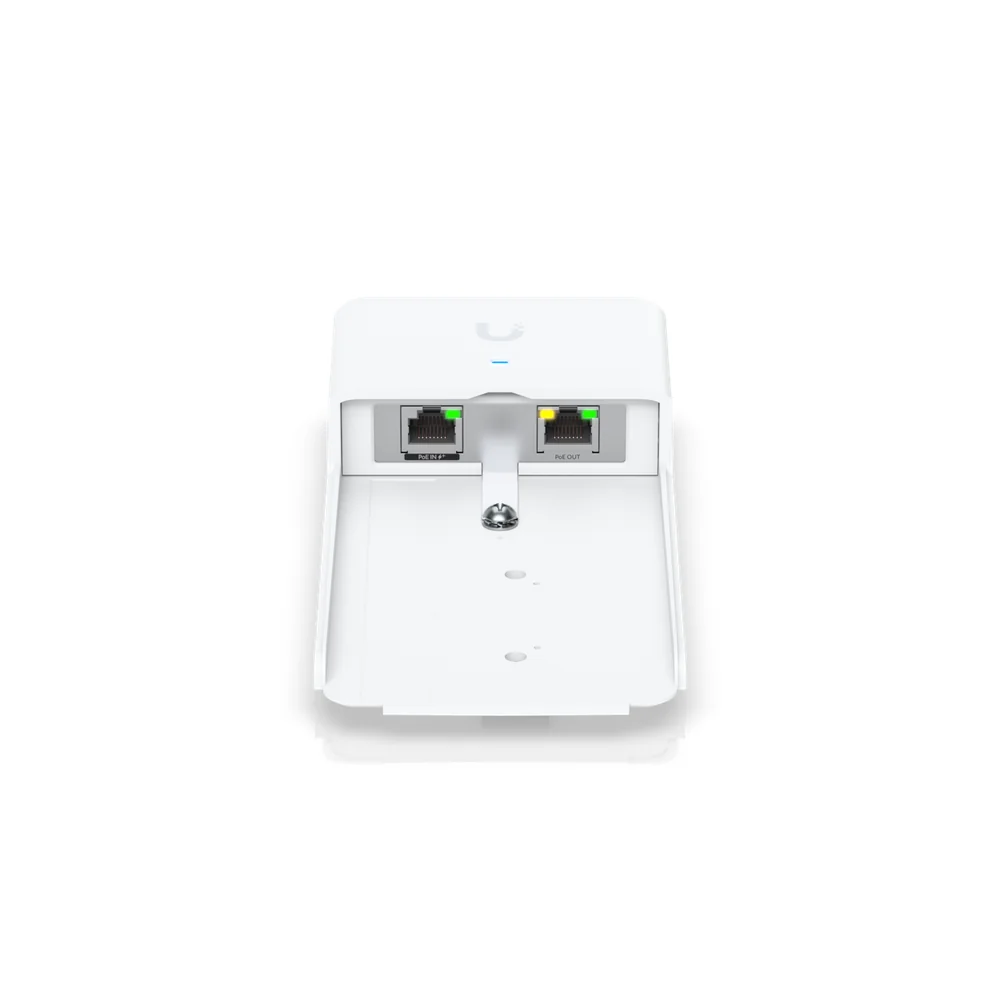

| Networking Interface |
(2) GbE RJ45 ports |
| PoE Interface |
(1) Passthrough PoE output 2-pairs (pins 1,2+, 3,6-) |
| Total Non-Blocking Line Rate |
2 Gbps |
| Switching Capacity |
4 Gbps |
| Forwarding Rate |
1.488 Mpps |
| Total Available PoE |
22.5W |
| Voltage Range PoE Mode |
37—57V DC |
| ESD/EMP Protection |
Air/contact: ± 30kV |
| DC Sparkover Voltage |
90V at 100V/s |
| Max. Impulse Sparkover Voltage |
700V at 1kV/μs |
| Discharge Current |
10kA+ |
| Max. MTU |
1,500 bytes |
| System |
Blue: power ON |
| Ethernet |
Green: 1 Gbps Amber: 10/100 Mbps |
| PoE |
Amber: passthrough PoE out |
| Ambient Operating Temperature |
-40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity |
10 to 95% noncondensing |
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
