Ubiquiti UniFi Mobile Router Industrial UMR-Industrial

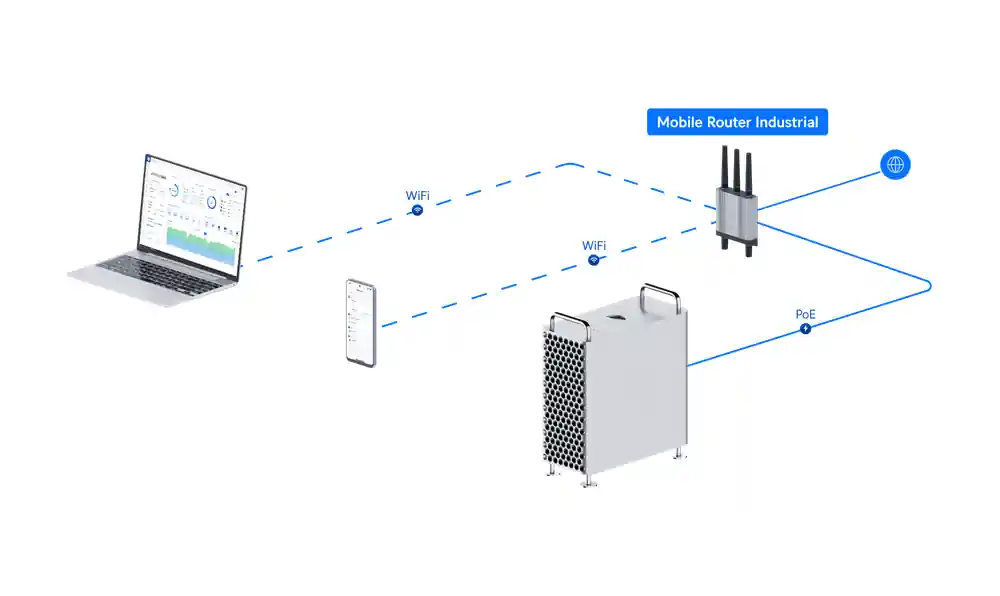

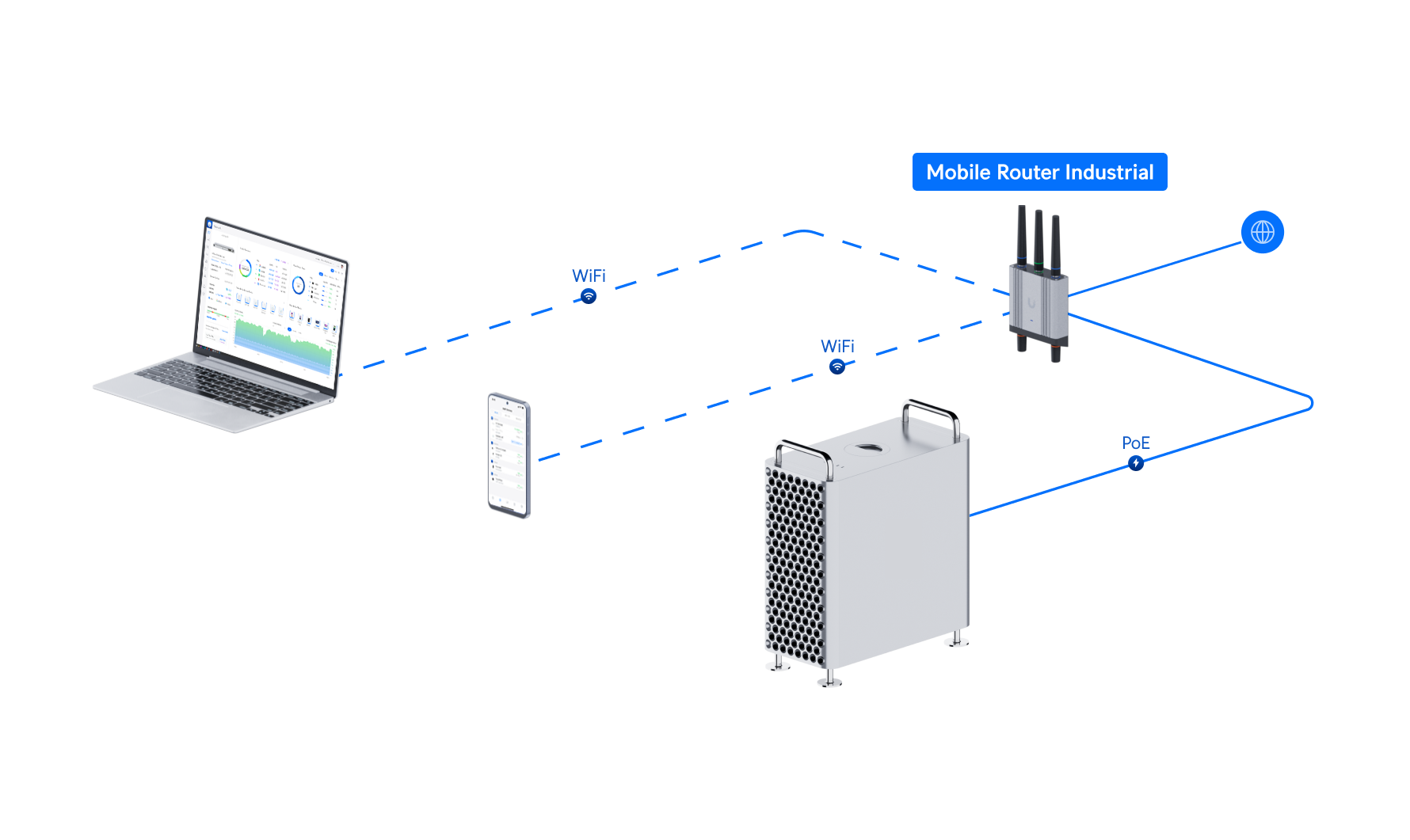

網絡拓撲

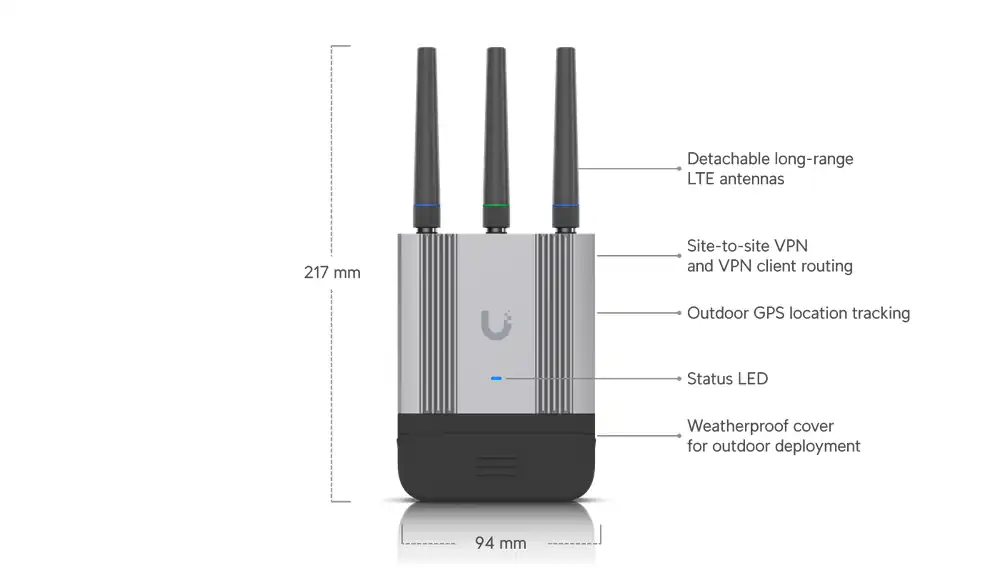

UMR-Industrial 技術規格
總覽
| Dimensions |
Without antennas and outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3″) With antennas: 213 x 93.6 x 32 mm (83 x 3.7 x 1.3″) With antennas and outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3″) |
| Networking Interface |
(2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
| SIM |
Nano SIM |
| LTE Bands |
B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 |
| PoE Interface |
(1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch) |
| Mounting |
DIN rail, Wall, Pole (Mounts Included) |
| Weatherproofing |
IP66 |
Mechanical
| Weight |
Device: 360 g (12.7 oz) Device with outdoor cover: 395 g (13.9 oz) DIN rail/wall mounts: 25 g (0.9 oz) |
| Enclosure Material |
Polycarbonate, aluminum |
| Mount Material |
Wall, Pole, DIN Rail Mount: Polycarbonate |
| Pole Mount Diameter |
1–2″ (25–50 mm) on pipe outer diameter |
| Wind Loading |
38.8 N at 200 km/h (8.7 lbf at 125 mph) |
Features
| Priority & Fallback |
Yes |
| Cellular |
Yes |
| WiFi |
Yes |
| Ethernet |
Yes |
| LTE Passthrough mode |
Yes |
| Ethernet Bridge Mode |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
| IPsec |
Yes |
| WireGuard |
Yes |
| WiFi Standard |
WiFi 4 |
| Port Forwarding |
Yes |
| Firewall |
Yes |
| Static Routes |
Yes |
Networking
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS7, HT 20/40) |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
硬件規格
| Management |
Ethernet WiFi |
| LTE Throughput Speed |
Download 150 Mbps / Upload 50 Mbps |
| GPS |
Yes |
| Ports |
(1) Mobile 1: SMA female (1Tx/1Rx) (1) Mobile 2: SMA female (1Rx) (1) GPS: SMA female (2) WiFi: RP-SMA female |
| Type |
(2) External LTE antenna (2) External WiFi (1) External GPS |
| Max. TX Power |
22 dBm |
| WiFi MIMO |
2 x 2 |
| Max. Power Consumption |
12.5W |
| Power Method |
PoE+ (48–54V DC) USB Type-C (5V DC) 4-pin ATX DC (9–30V DC) |
| Power Supply |
USB Type-C, 5V DC, 3A (Adapter included) |
| Buttons |
(1) Factory reset |
| Ambient Operating Temperature |
-40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |

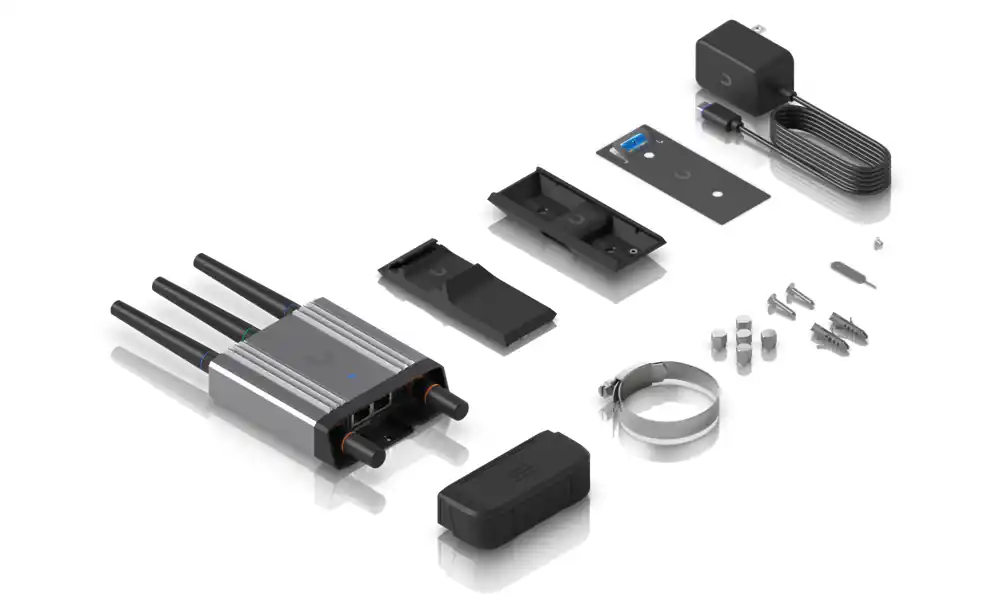

包裝內容
