Ubiquiti UniFi Mobile Router Industrial UMR-Ultra

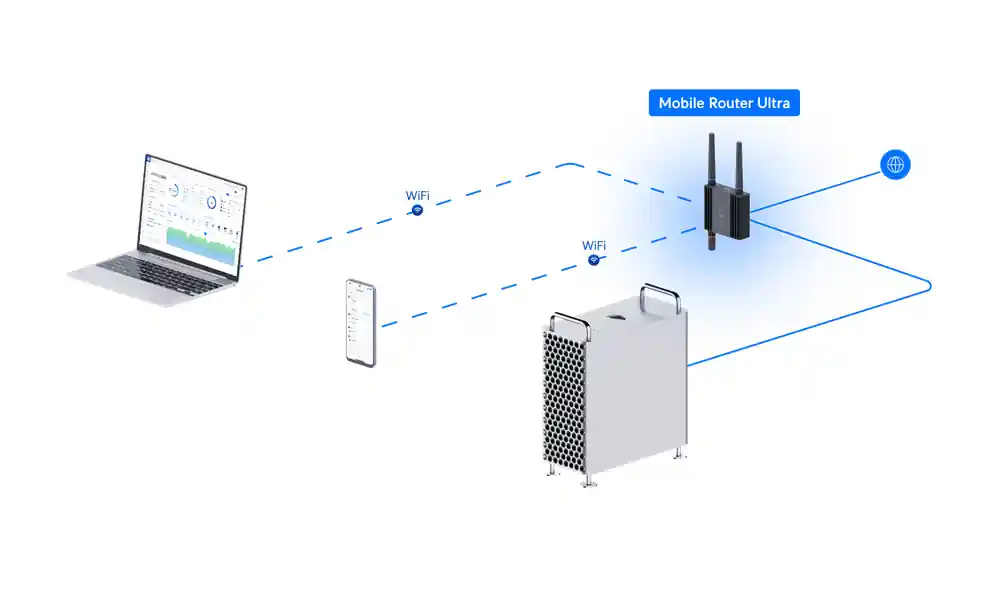

網絡拓撲
UMR-Ultra 技術規格
總覽
| Dimensions |

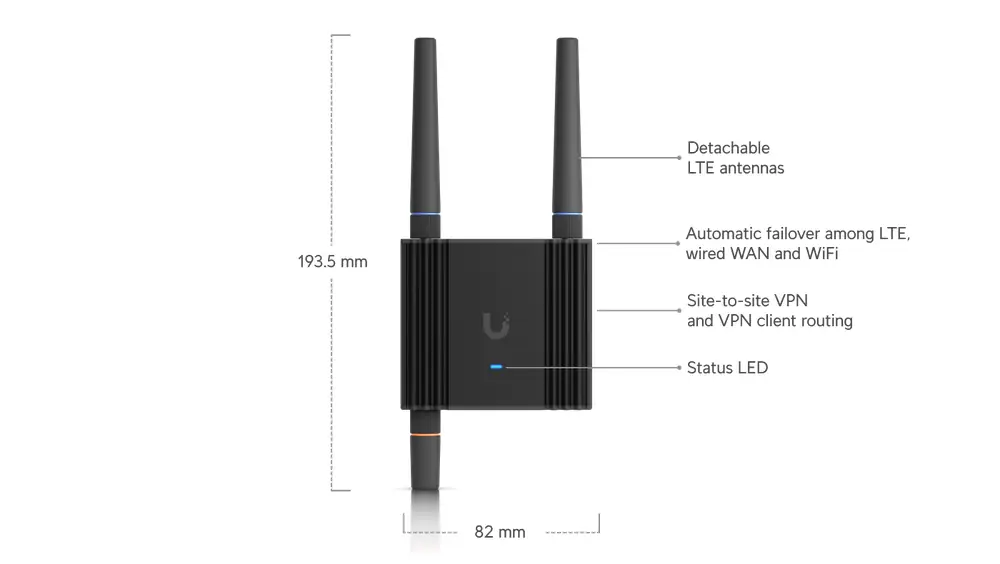

Without antennas: 84 x 82 x 26 mm (3.3 x 3.2 x 1″) With antennas: 193.5 x 82 x 26 mm (7.6 x 3.2 x 1″) |
| Networking Interface |
(2) FE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
| SIM |
Nano SIM |
| LTE Bands |
B2, B4, B5, B12, B13, B14, B25, B26, B66, B71 |
| Mounting |
DIN rail, Wall (Mounts Included) |
Mechanical
| Weight |
Device: 200 g (7.1 oz) DIN rail/wall mounts: 20 g (0.7 oz) |
| Enclosure Material |
Polycarbonate |
| Mount Material |
Wall Mount: Polycarbonate DIN Rail Mount: Steel |
Features
| Priority & Fallback |
Yes |
| Cellular |
Yes |
| WiFi |
Yes |
| Ethernet |
Yes |
| LTE Passthrough mode |
Yes |
| Ethernet Bridge Mode |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
| IPsec |
Yes |
| WireGuard |
Yes |
| WiFi Standard |
WiFi 4 |
| Port Forwarding |
Yes |
| Firewall |
Yes |
| Static Routes |
Yes |
Networking
| 802.11n |
6.5 Mbps to 150 Mbps (MCS0 – MCS7, HT 20/40) |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
硬件規格
| Management |
Ethernet WiFi |
| LTE Throughput Speed |
Download 150 Mbps / Upload 50 Mbps |
| Ports |

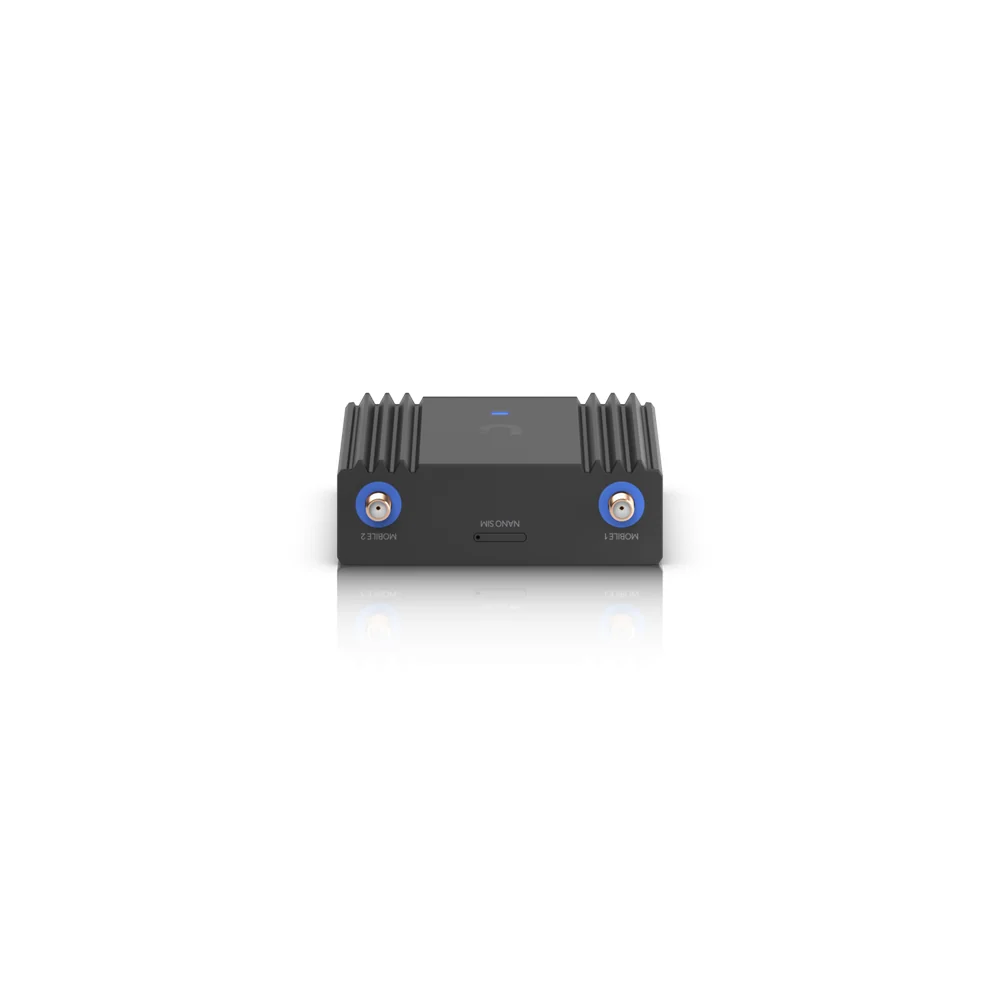

(1) Mobile 1: SMA female (1Rx) (1) Mobile 2: SMA female (1Tx/1Rx) (1) WiFi: RP-SMA female |
| Type |
(2) External LTE antenna (1) External WiFi |
| Max. TX Power |
17 dBm |
| WiFi MIMO |
1 x 1 |
| Max. Power Consumption |
5.7W |
| Power Method |
USB Type-C (5V DC/2A) 4-pin ATX DC (9—30V DC) |
| Buttons |
(1) Factory reset |
| Ambient Operating Temperature |
-30 to 70° C (-22 to 158° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, PTCRB, GCF, AT&T, T-Mobile, Verizon, Wi-Fi Alliance® |
安裝教學

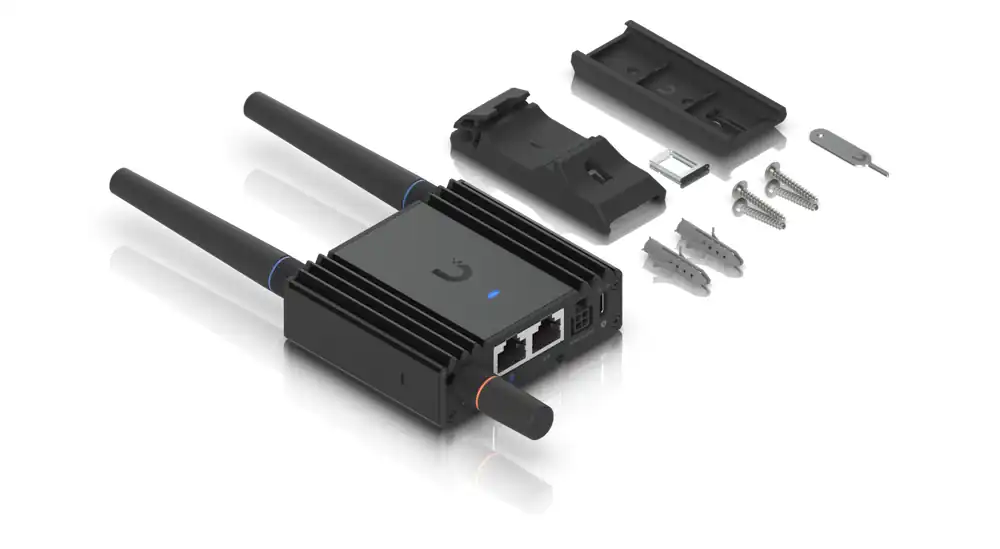

包裝內容
