Ubiquiti UniFi Mobile Router Industrial UMR

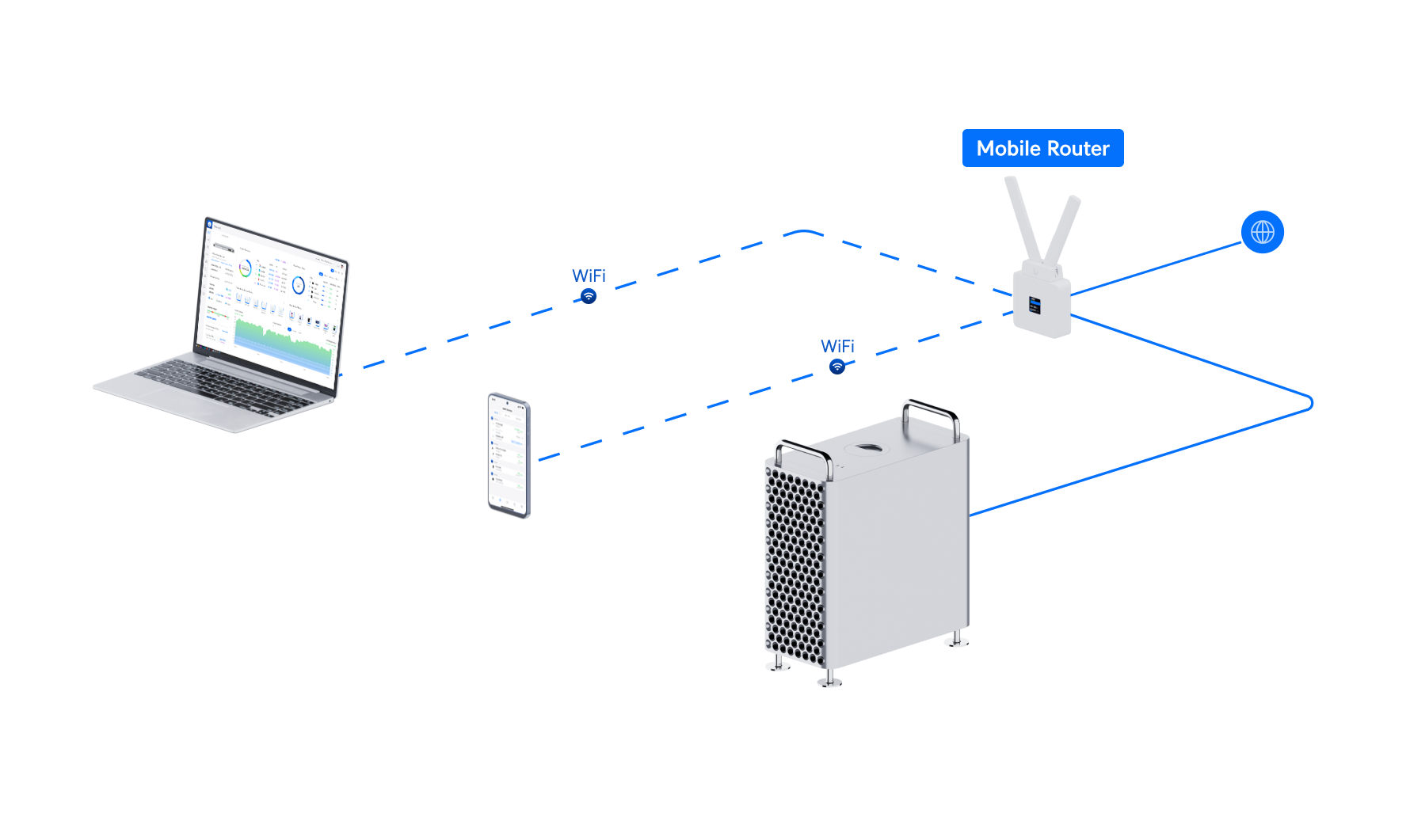

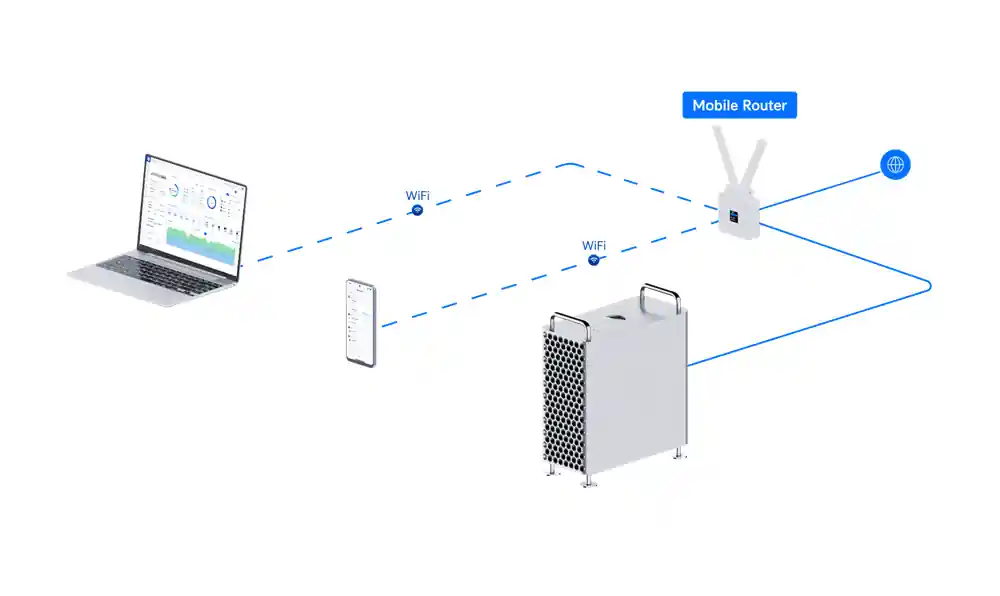

網絡拓撲
UMR 技術規格
總覽

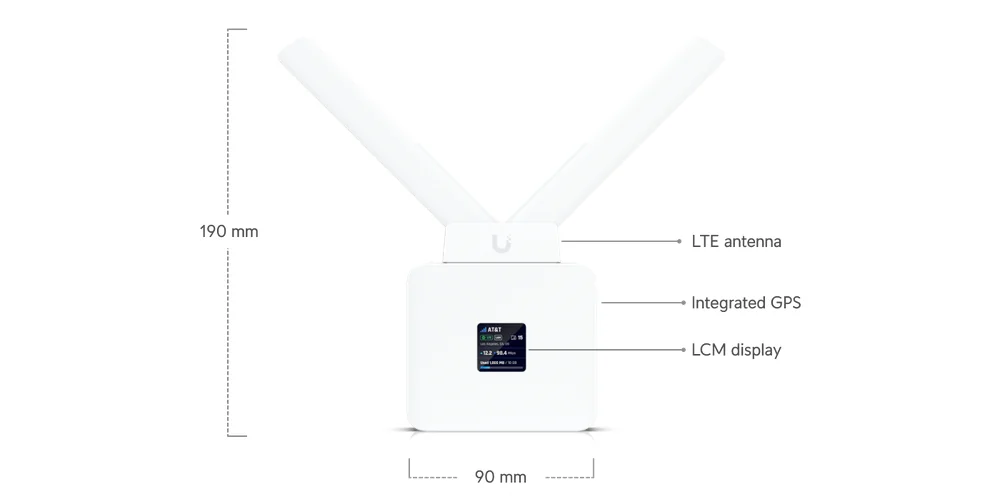

| Dimensions |
190 x 89.8 x 28.8 mm (7.4 x 3.5 x 1.1″) |
| Networking Interface |
(2) GbE RJ45 ports, LTE Cat 4 radio, WiFi 4 |
| SIM |
Pre-installed AT&T nano SIM |
| LTE Bands |
B2, B4, B5, B12, B14, B66 |
| PoE Interface |
(1) PoE input (1) PoE output (Max. 10W, requires PoE+ switch) |
| Mounting |
DIN rail, Wall (Mounts Included) |
Mechanical
| Weight |
Without mount: 257 g (9.1 oz) With mount: 303 g (10.7 oz) |
| Enclosure Material |
Polycarbonate, aluminum alloy |
| Mount Material |
Polycarbonate |
Features
| Priority & Fallback |
Yes |
| Cellular |
Yes |
| Ethernet |
Yes |
| LTE Passthrough mode |
Yes |
| Ethernet Bridge Mode |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
| IPsec |
Yes |
| WireGuard |
Yes |
| WiFi Standard |
WiFi 4 |
| Port Forwarding |
Yes |
| Firewall |
Yes |
| Static Routes |
Yes |
Networking
| 802.11n |
6.5 Mbps to 150 Mbps (MCS0 – MCS7, HT 20/40) |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
硬件規格
| Management |
Ethernet WiFi |
| LTE Throughput Speed |
Download 150 Mbps / Upload 50 Mbps |
| GPS |
Yes |
| Ports |
(1) External LTE antenna (TS9 male) |
| Type |
(1) External LTE antenna (TS9 male) (1) Internal WiFi (1) Internal GPS |
| Max. TX Power |
19 dBm |
| WiFi MIMO |
1 x 1 |
| Max. Power Consumption |
9W |
| Power Method |
PoE+ (48-54V DC) USB Type-C (5V DC, 3A) 4-pin ATX DC (9V DC, 1A) |
| Power Supply |
USB Type-C, 5V DC, 3A (Adapter included) |
| Display |
1.3″ touchscreen |
| Buttons |
(1) Factory reset |
| Ambient Operating Temperature |
-20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC, PTCRB, AT&T |

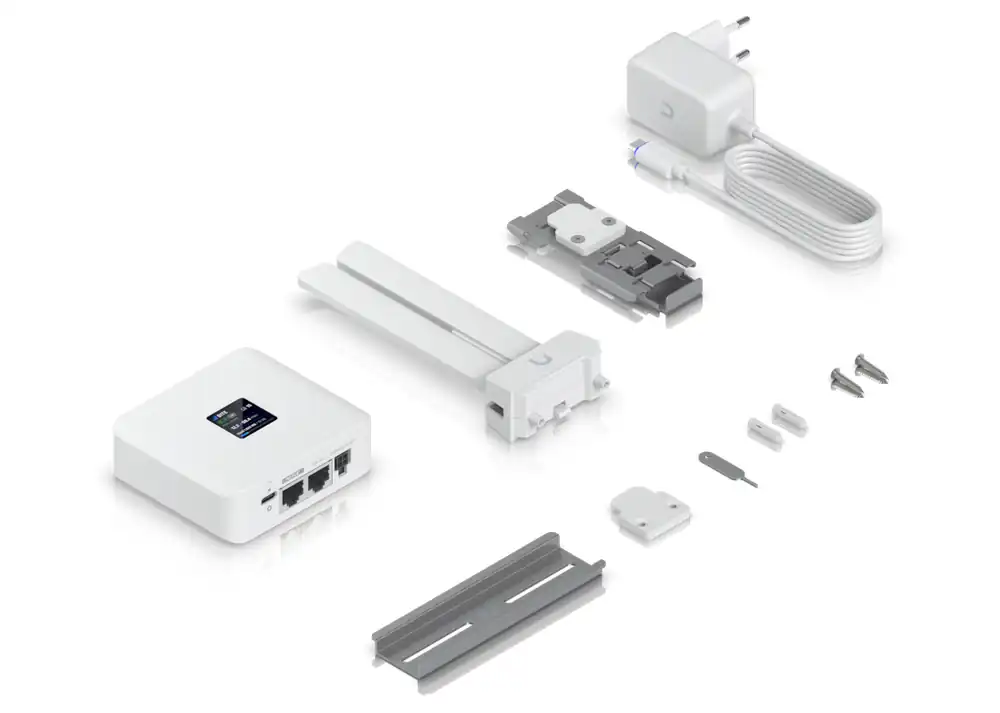

包裝內容
