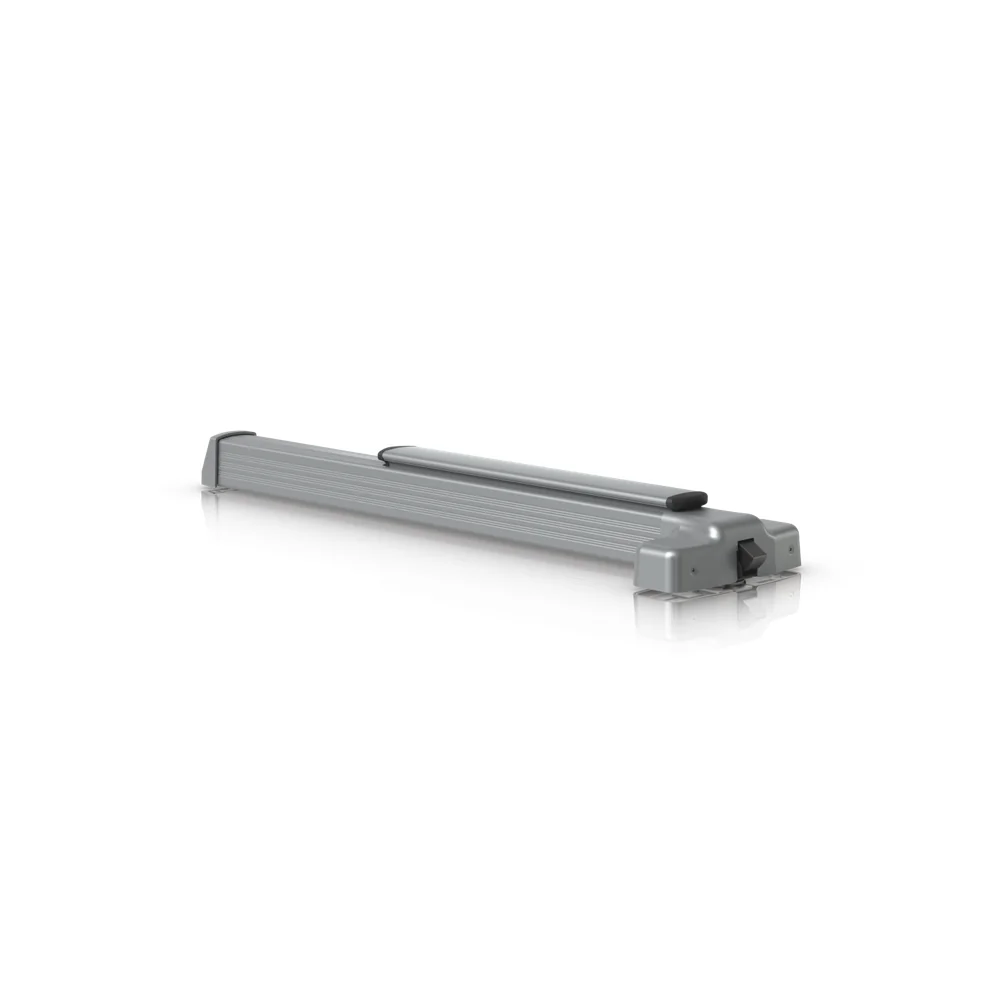

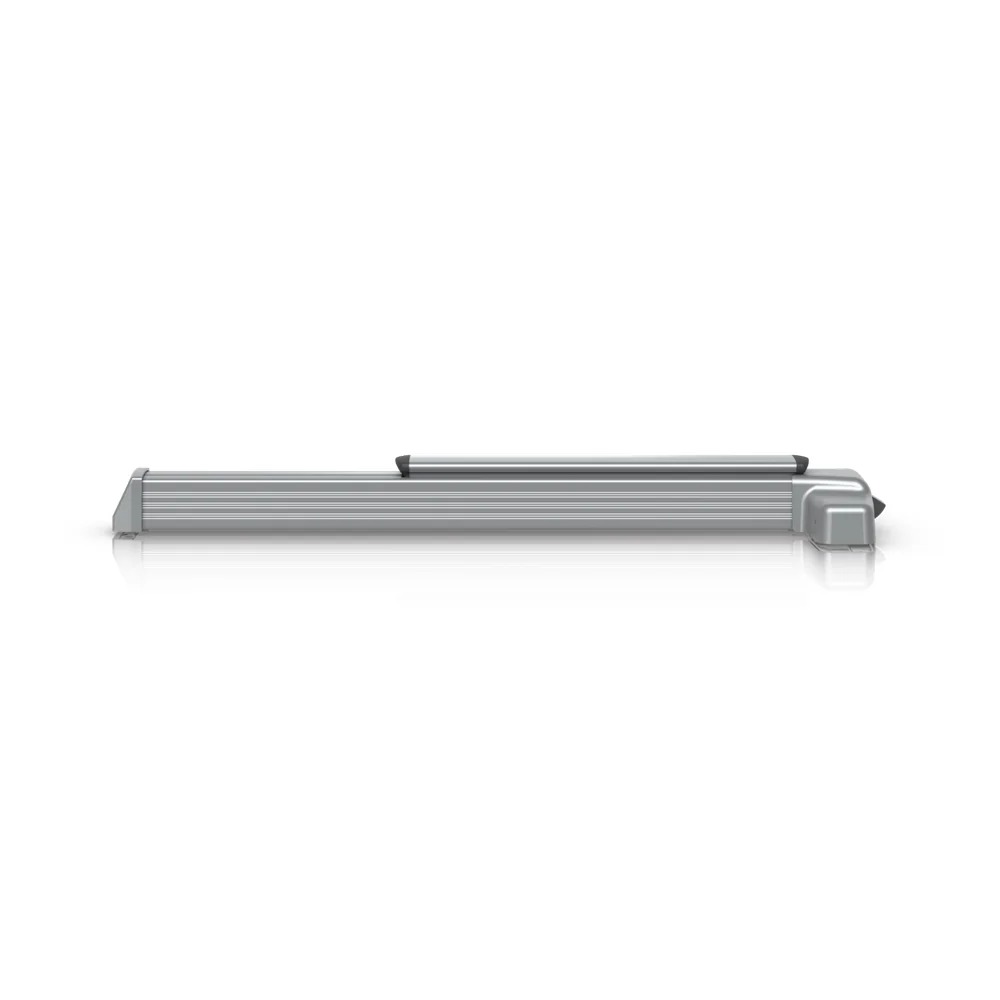

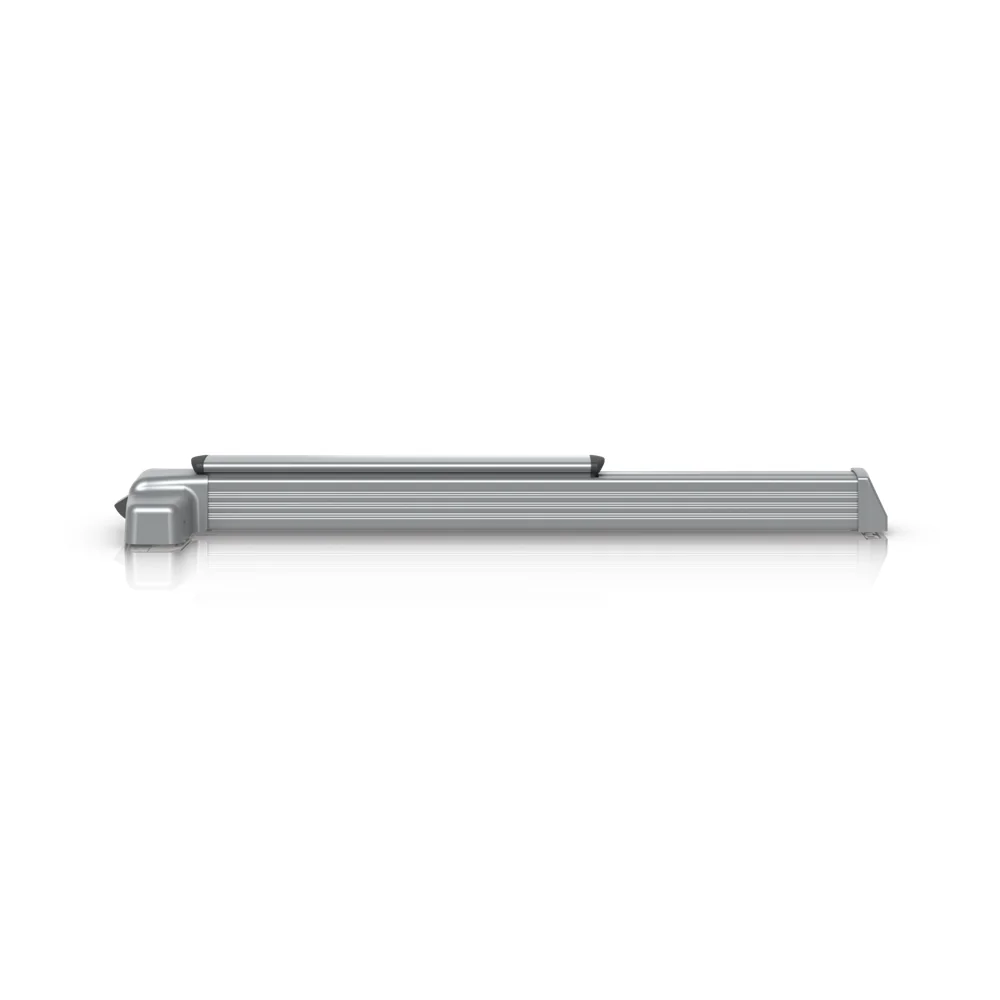

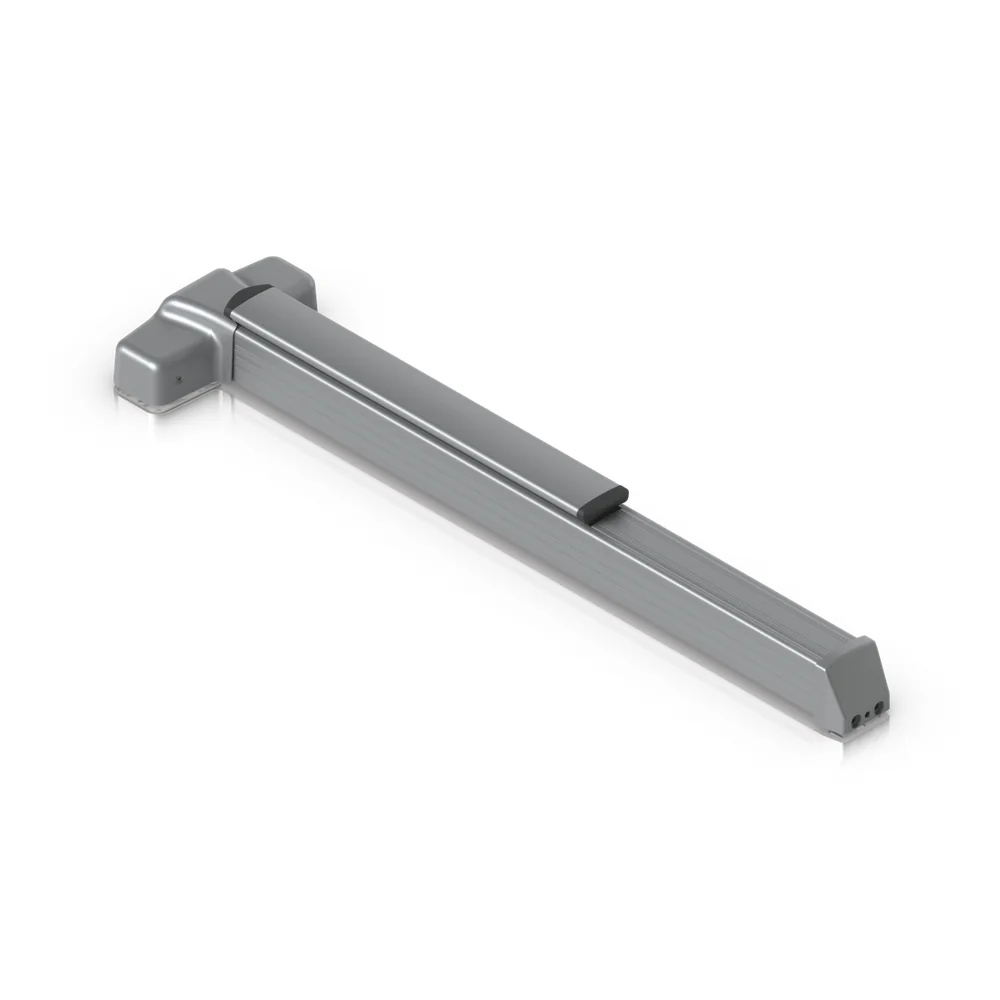

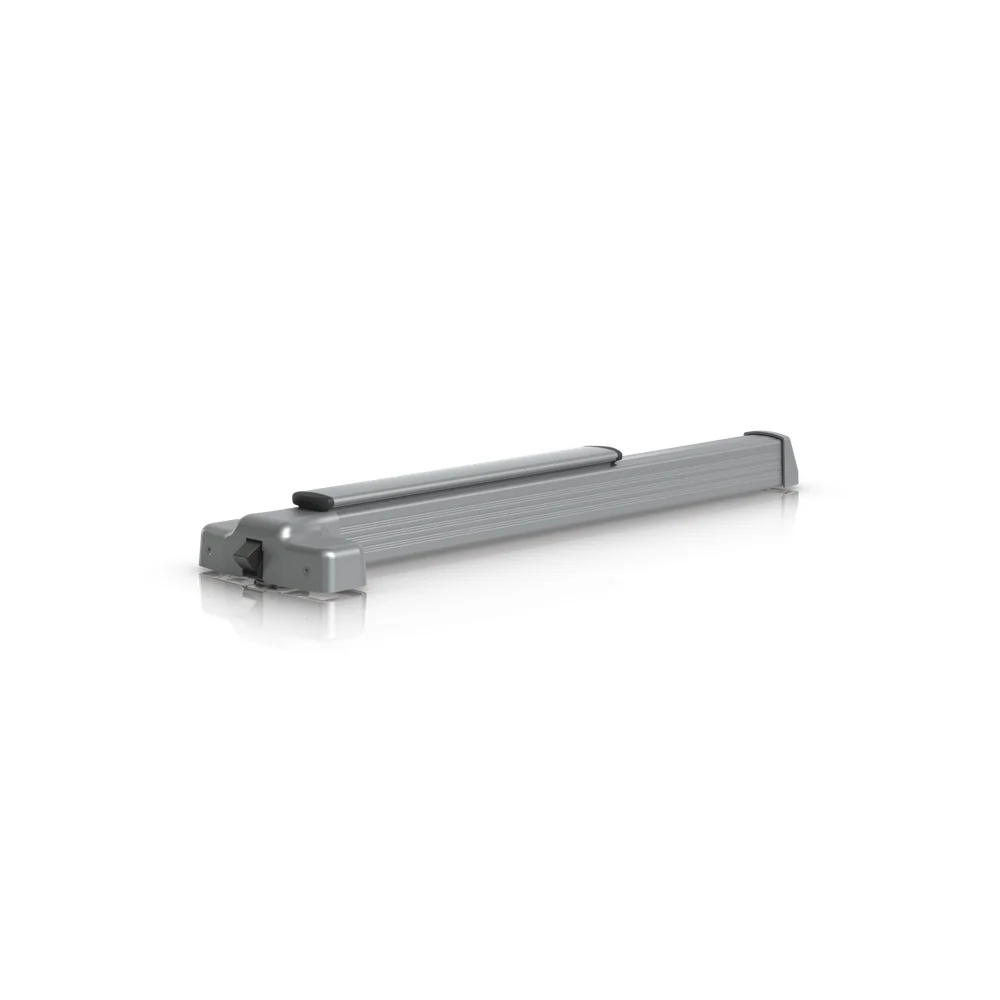

Ubiquiti UniFi Panic Bar UACC-PanicBar
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Panic Bar UACC-PanicBar
UACC-PanicBar 技術規格
Mechanical
| Dimensions | 838 x 294 x 94 mm (33 x 11.6 x 3.7″) |
|---|---|
| Weight | 5.8 kg (12.8 lb) |
| Enclosure Material | Aluminum, stainless steel |
| Supported Door Width | 3′ standard for door width of 2′4″ to 3′ (711 to 914 mm) |
| Supported Door Thickness | 1-3/4” (44 mm) and 2” (51 mm) thick of metal or wood door |
| Strike | For 3/4” (19 mm) stop |
| Reversible | Non-handed, reversible for all functions and trims |
| Stiley | 4-1/4” (108 mm) minimum |
| Connection | 2 lines for dry relay |
| Wiring Connection | Dry output Contact rating: 30V DC, 1A Push = Short/Release = Open |
硬件規格
| Certifications | UL 305, UL 10C, CAN/ULC-S132 ANSI/BHMA A156.3 Grade 1 Exit Devices Meets California Building Code Sec. 11B-309.4. |
|---|

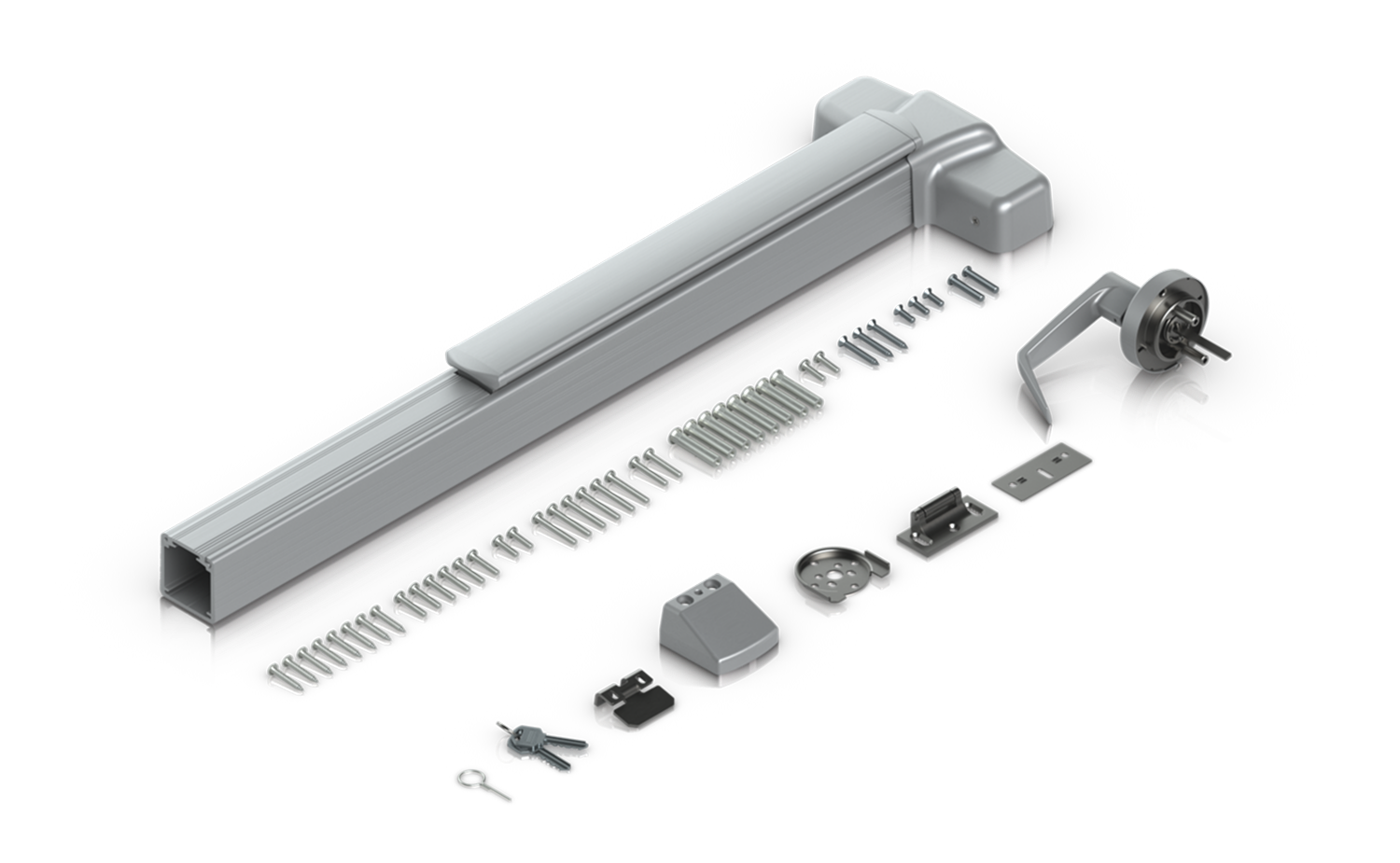

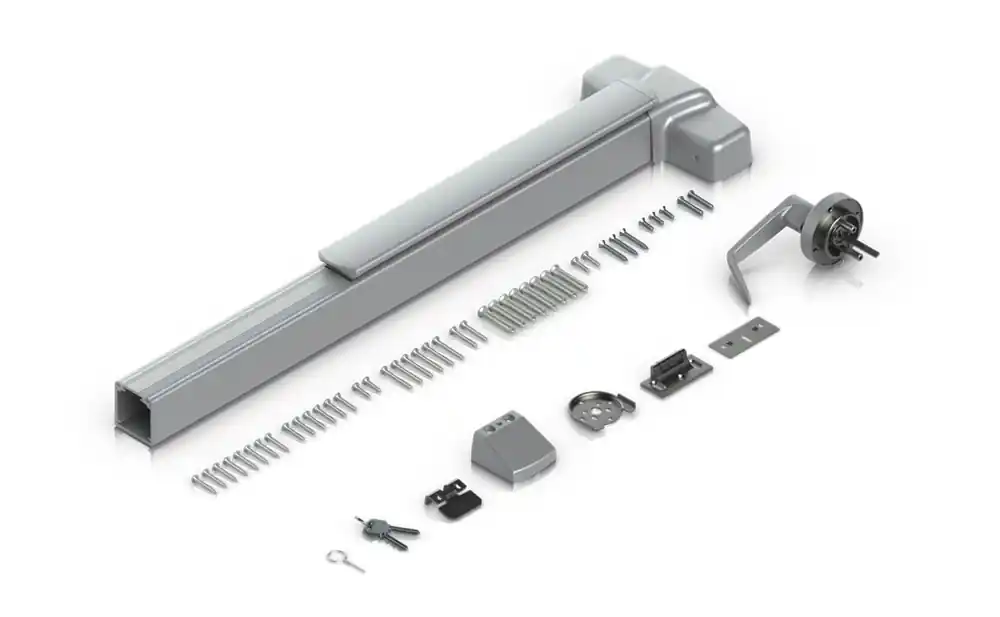

包裝內容
產品資源
| Brands | Ubiquiti |
|---|
