Ubiquiti UniFi PoE Integrated AC Adapter UACC-PoE+-USBC
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi PoE Integrated AC Adapter UACC-PoE+-USBC
UACC-PoE+-USBC 技術規格
總覽
| Dimensions | 146 x 62 x 42 mm (5.7 x 2.4 x 1.7″) |
|---|---|
| Weight | 358 g (12.6 oz) |
| Length | Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft) |
| Output Voltage | Type-C: 5V@ 5A PoE+: 48V@ 0.65A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Clamping Protection | 11V data, 60V power |
| Data In / PoE | RJ45 shielded socket |
| Input Current | 1.5A max. |
| Inrush Current | 120A |
| Efficiency | 82% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% max. |
| Line Regulation | ≤ 5% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, UL, UKCA, CCC, RoHS |

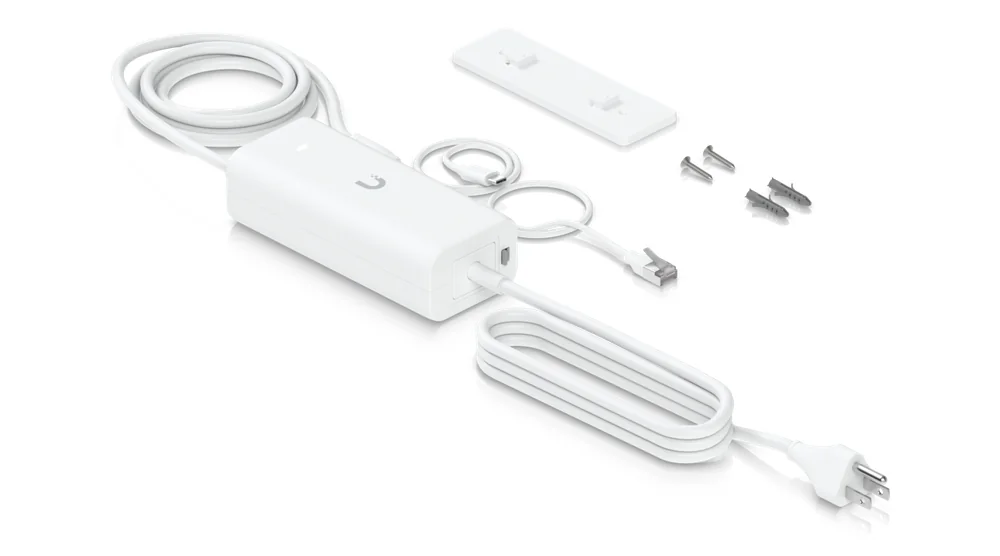

包裝內容
產品資源
| Brands | Ubiquiti |
|---|
