Ubiquiti UniFi Power Distribution Pro USP-PDU-HD
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Power Distribution Pro USP-PDU-HD

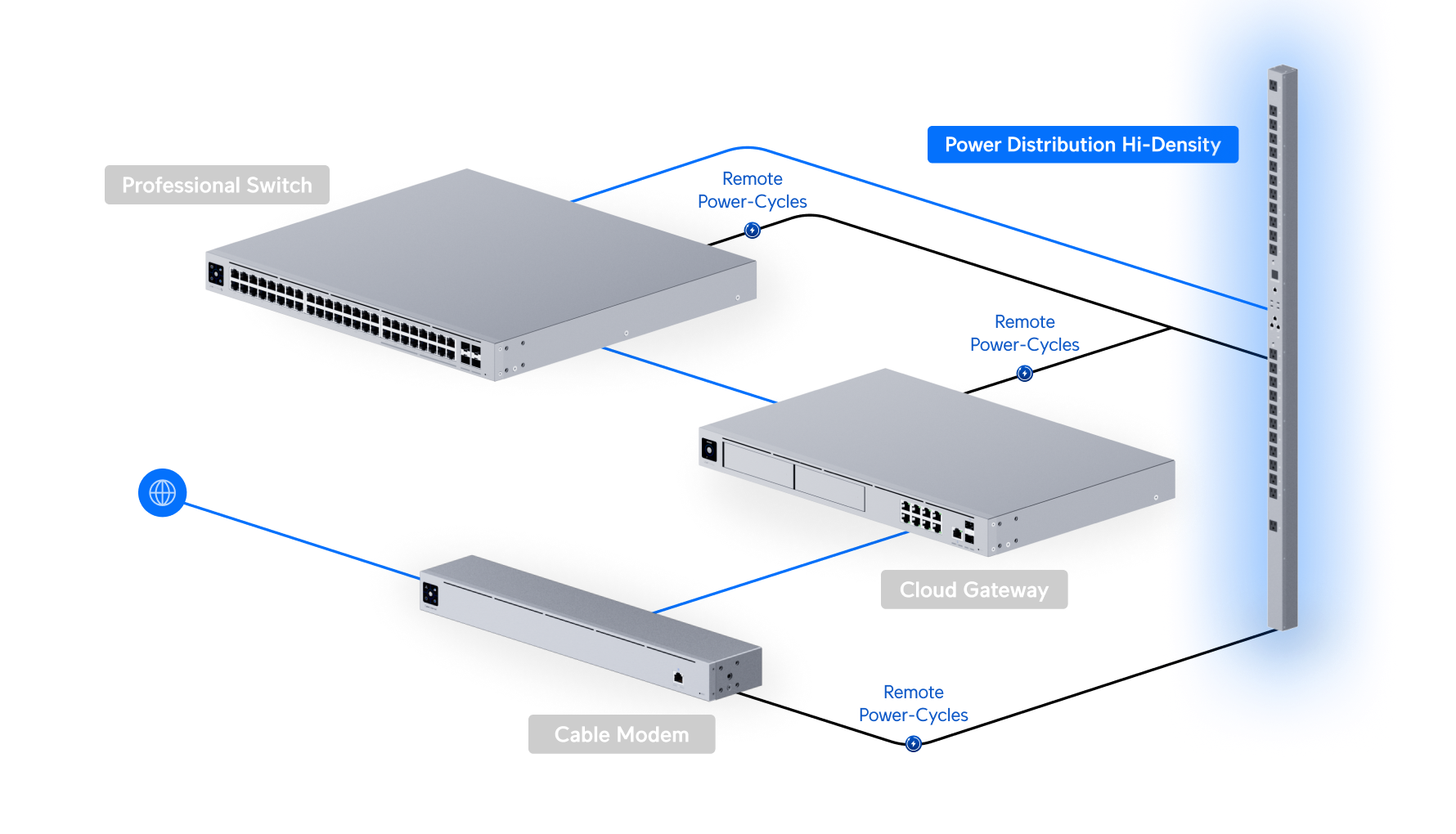

網絡拓撲
USP-PDU-HD 技術規格
Mechanical
| Dimensions | 1485 x 55 x 56 mm (58.5 x 2.17 x 2.2″) |
|---|---|
| Weight | 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
硬件規格
| Management | Ethernet |
|---|---|
| Networking Interface | (1) 10/100 MbE RJ45 port (3) GbE RJ45 ports for network redundancy |
| Power Method | 100–125V AC, 30A Max. (Derated to 24A), 50/60 Hz (NEMA L5-30P) |
| Power Output | (24) Power control outlets: Per Bank (Bank1: port 1 to 12, Bank2: port 17 to 28): Rating output current: 12A at 125V AC (1500W) Max. output current: 15A at 125V AC (1875W) Total: Rating output current: 24A at 125V AC (3000W) Max. output current: 30A at 125V AC (3750W) (4) USB type C ports: 5VDC 2A per port, total 20W Max. power |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Display | 1.3″ touchscreen |
| Buttons | (1) Factory reset (1) Circuit breaker |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC |
軟件要求
| Mobile Apps | UniFi iOS™ and 10.11.0 and later Android™ 10.11.0 and later |
|---|---|
| UniFi Network | Version 8.0.24 and later |
包裝內容
產品資源
| Brands | Ubiquiti |
|---|
