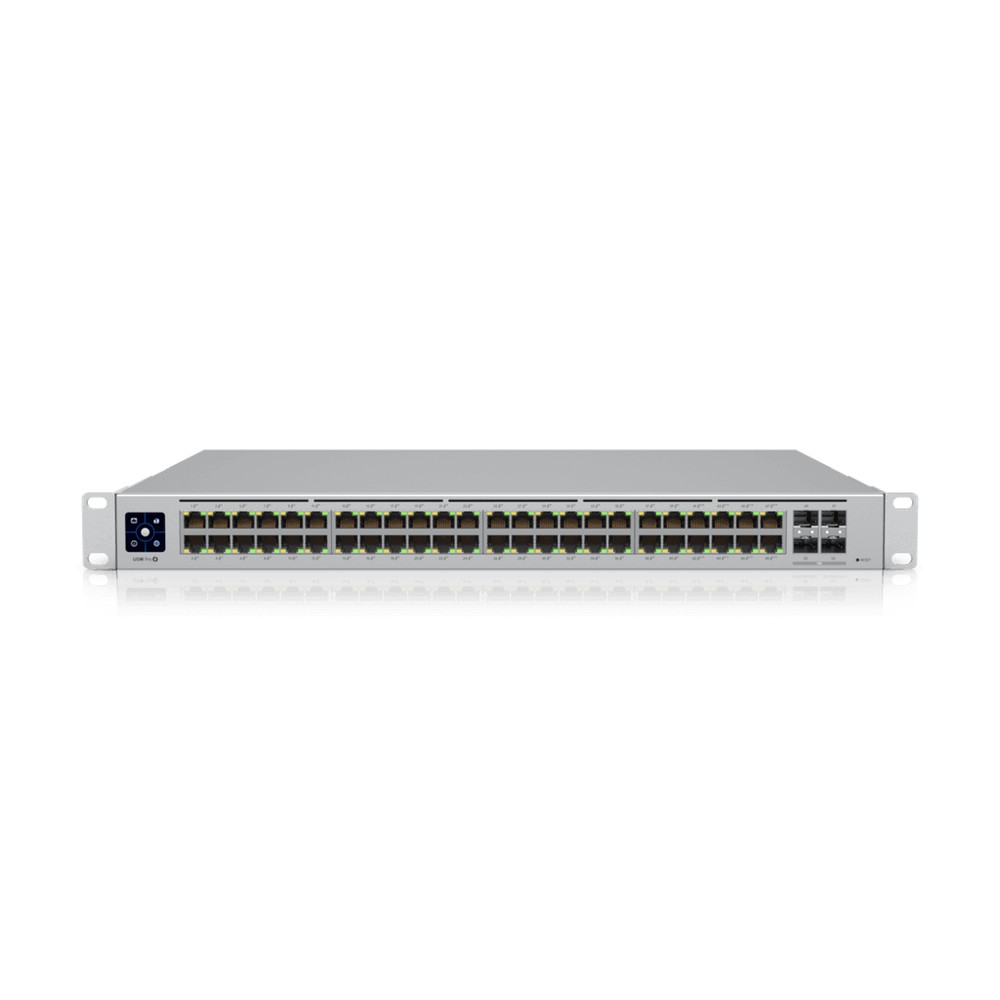

Ubiquiti UniFi Switch Pro 48 PoE USW-Pro-48-POE

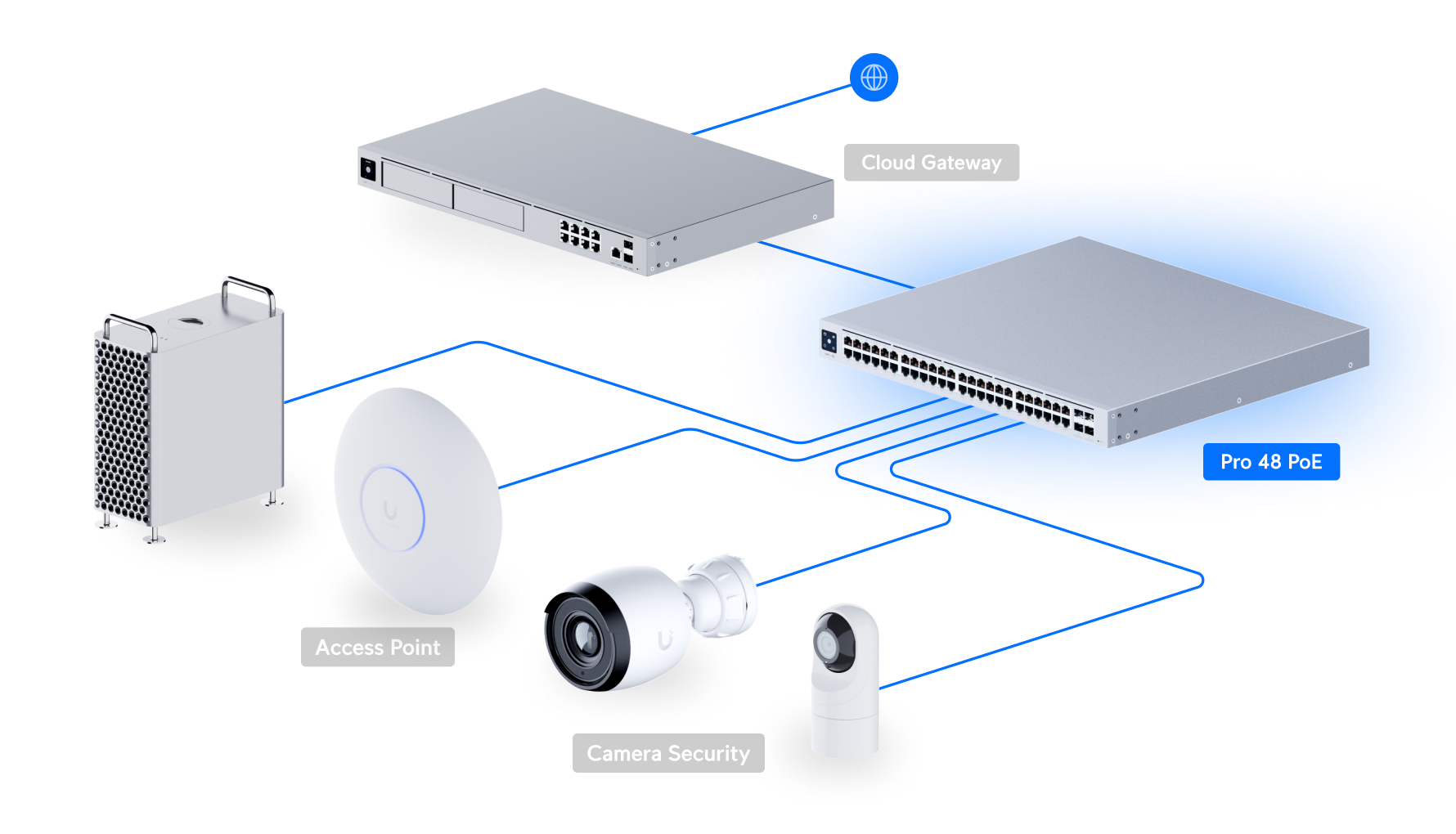

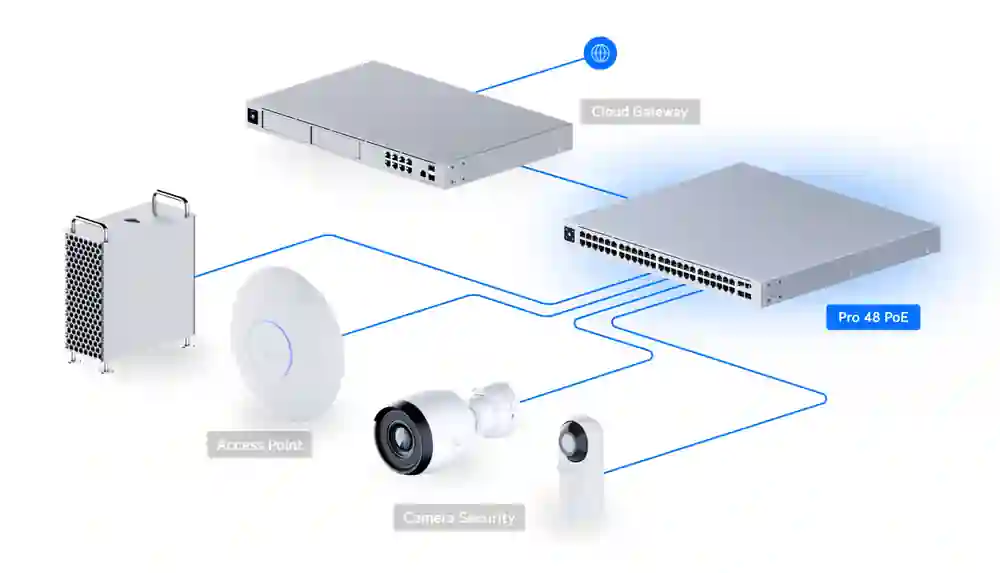

網絡拓撲

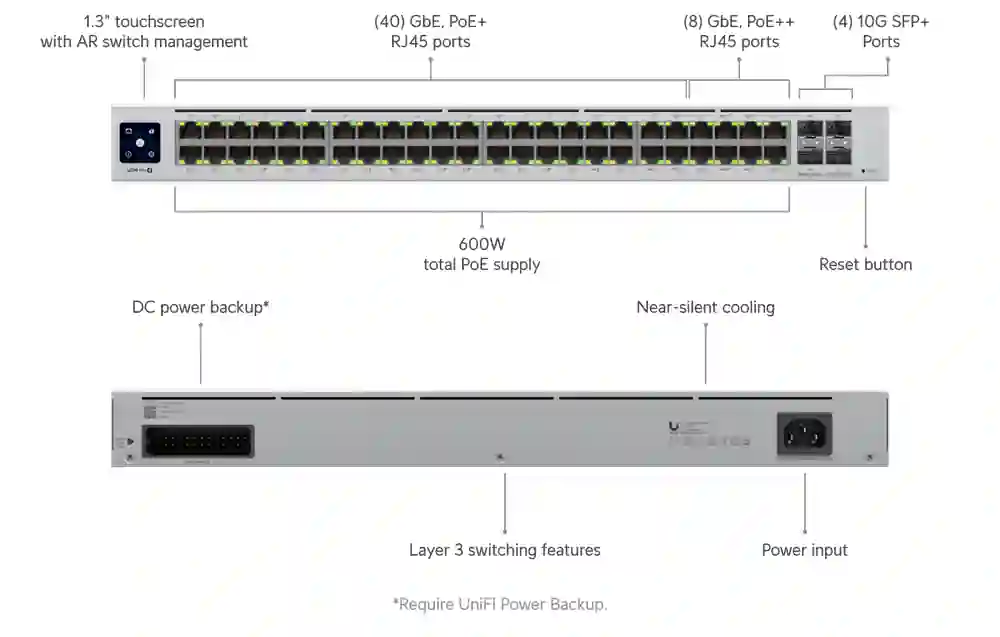

USW-Pro-48-POE 技術規格
總覽
| Dimensions |
442 x 400 x 44 mm (17.4 x 15.7 x 1.7″) |
| 1 GbE RJ45 |
48 (40 PoE+, 8 PoE++) (1G/100M/10M) |
| 10G SFP+ |
4 (10G/1G) |
| Max. PoE Output |
Up to PoE++ |
| Total PoE Availability |
600W |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |
| Form Factor |
Rack mount (1U) |
效能
| Switching Capacity |
176 Gbps |
| Total Non-Blocking Throughput |
88 Gbps |
| Forwarding Rate |
131 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
16,000 |
| ARP Entries |
4,000 |
| IPv4 Routes |
1,000 |
| IPv4 Static Routes |
256 |
| Packet Buffer Size |
4 MB |
| IPv4 |
128 |
| MAC |
128 |
第三層功能
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| QoS (DSCP) |
Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| PoE+ |
40 |
| PoE++ |
8 |
| PoE |
15.4W |
| PoE+ |
32W |
| PoE++ |
64W |
| Max. Power Consumption |
60W (Excluding PoE Output) 660W (Including PoE Output) |
| Power Method |
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 660W |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet AR |
| Heat Dissipation |
204.7 BTU/hr (Excluding PoE Output) |
| Weight |
Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
400~1200 mm (15.7-47.2″) |
| LCM Display |
1.3″ touchscreen |
| ESD Protection |
Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 13790-20-08356 |
軟件要求
| UniFi Network |
Version 5.10.5 and later< |

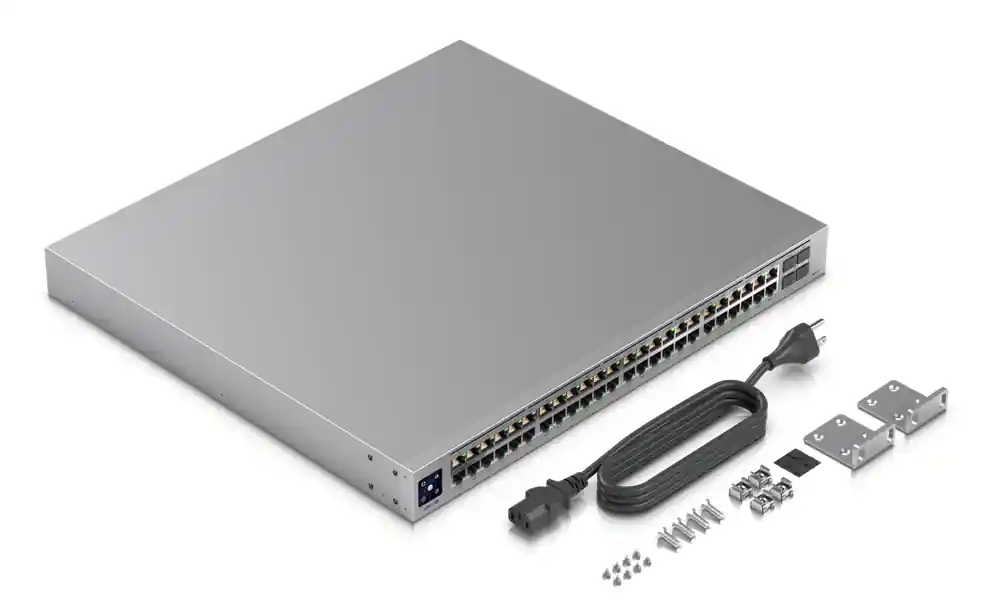

包裝內容
