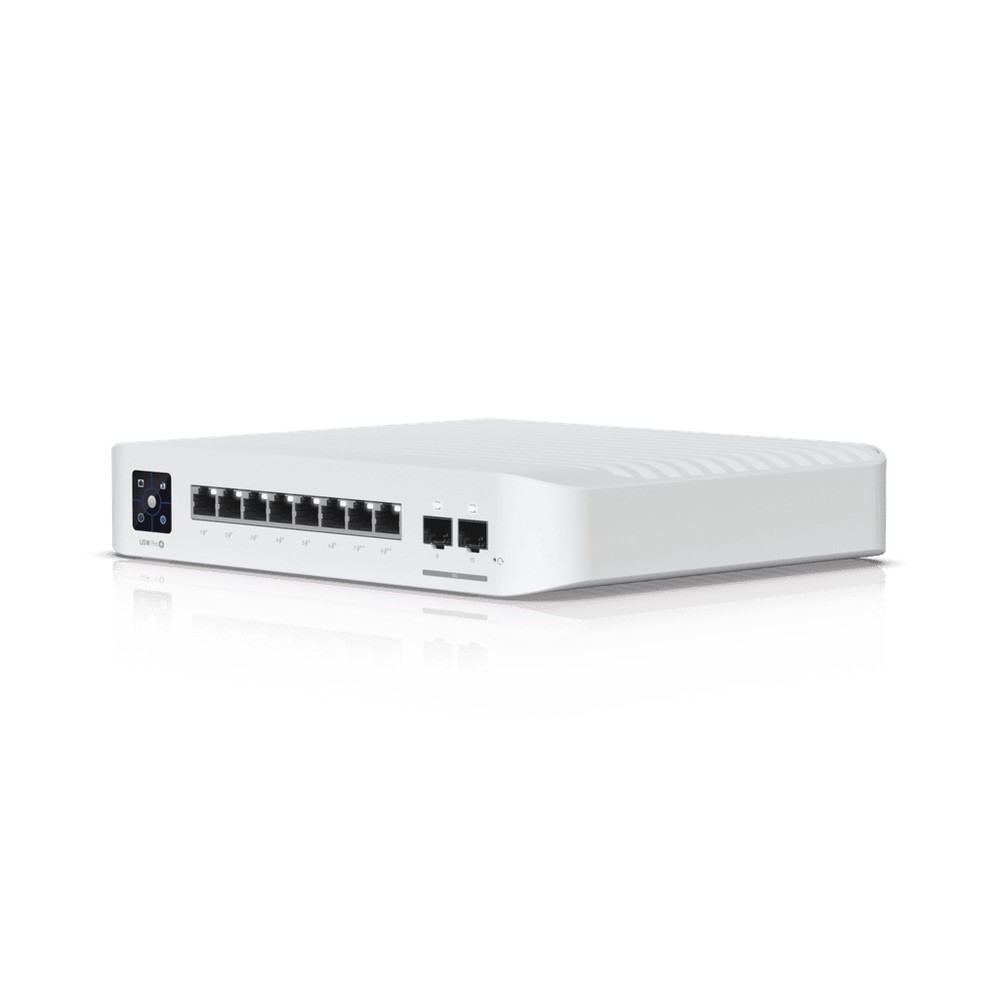

Ubiquiti UniFi Switch Pro 8 PoE USW-Pro-8-PoE

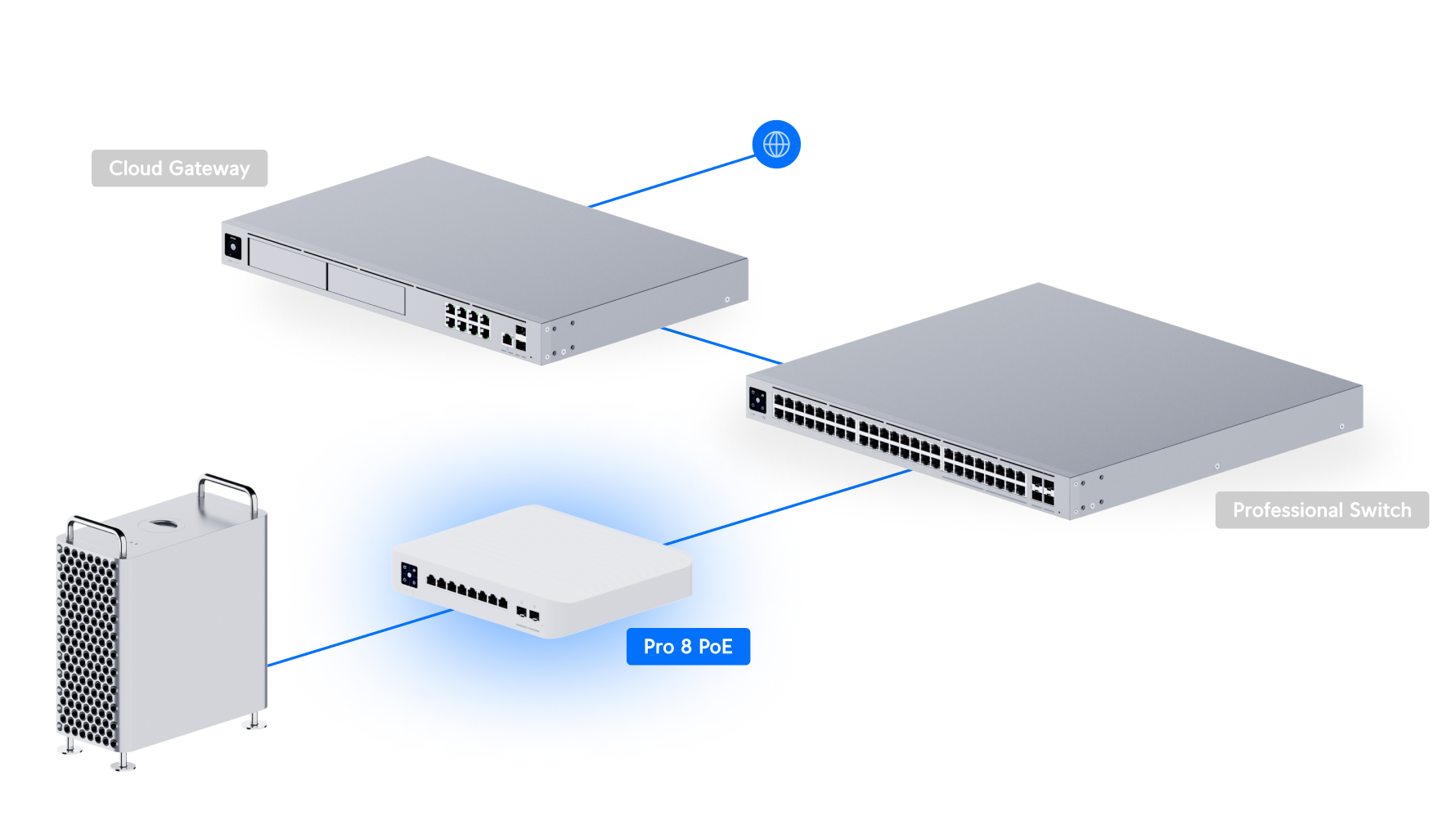

網絡拓撲

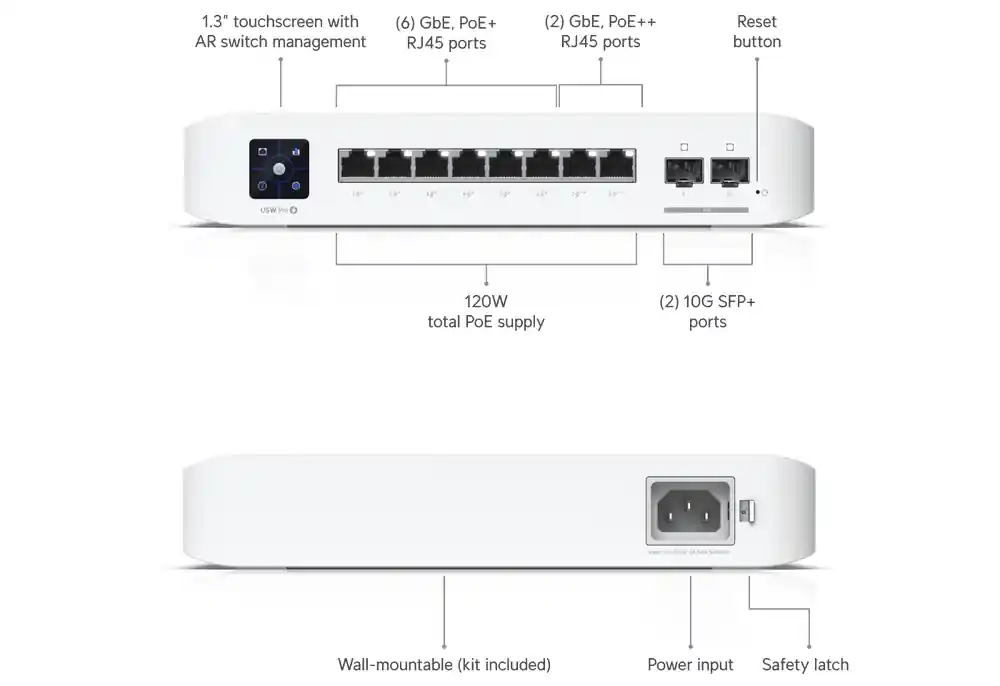

USW-Pro-8-PoE 技術規格
總覽
| Dimensions |
200 x 248 x 44 mm (7.9 x 9.8 x 1.7″) |
| 1 GbE RJ45 |
8 (6 PoE+, 2 PoE++) (1G/100M/10M) |
| 10G SFP+ |
2 (10G/1G) |
| Max. PoE Output |
Up to PoE++ |
| Total PoE Availability |
120W |
| Layer 3 |
Yes |
| Form Factor |
Compact desktop, wall |
效能
| Switching Capacity |
56 Gbps |
| Total Non-Blocking Throughput |
28 Gbps |
| Forwarding Rate |
42 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
16,000 |
| ARP Entries |
6,000 |
| IPv4 Routes |
512 |
| IPv4 Static Routes |
256 |
| Packet Buffer Size |
1.5 MB |
| IPv4 |
128 |
| MAC |
128 |
第三層功能
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| PoE+ |
6 |
| PoE++ |
2 |
| PoE |
15.4W |
| PoE+ |
32W |
| PoE++ |
64W |
| Max. Power Consumption |
30W (Excluding PoE Output) 150W (Including PoE Output) |
| Power Method |
Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 150W |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet AR |
| Heat Dissipation |
102.4 BTU/hr (Excluding PoE Output) |
| Weight |
2.1 kg (4.6 lb) |
| Enclosure Material |
Polycarbonate, metal |
| Mount Material |
Polycarbonate |
| Supported Rack Depth |
400~1200 mm (15.7-47.2″) |
| LCM Display |
1.3″ touchscreen |
| Ambient Operating Temperature |
-5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 05214-24-08356 |
軟件要求
| UniFi Network |
Version 7.5.176 and later |

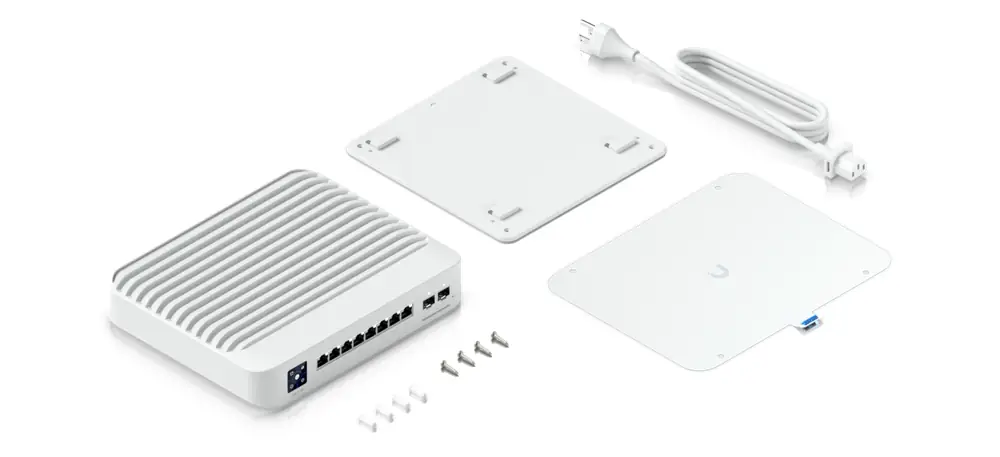

包裝內容
