Ubiquiti UniFi Switch Pro Max 16 PoE USW-Pro-Max-16-PoE

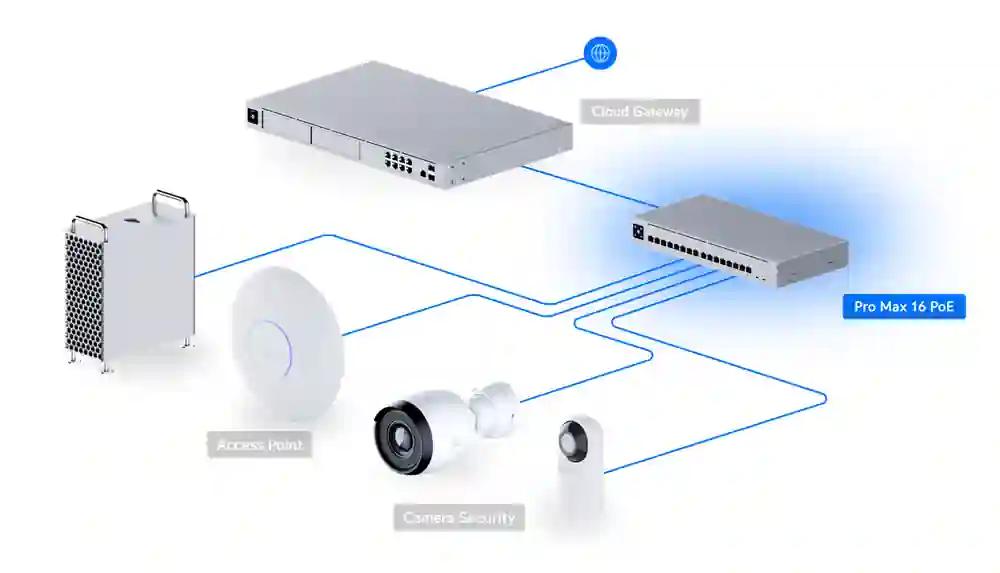

網絡拓撲

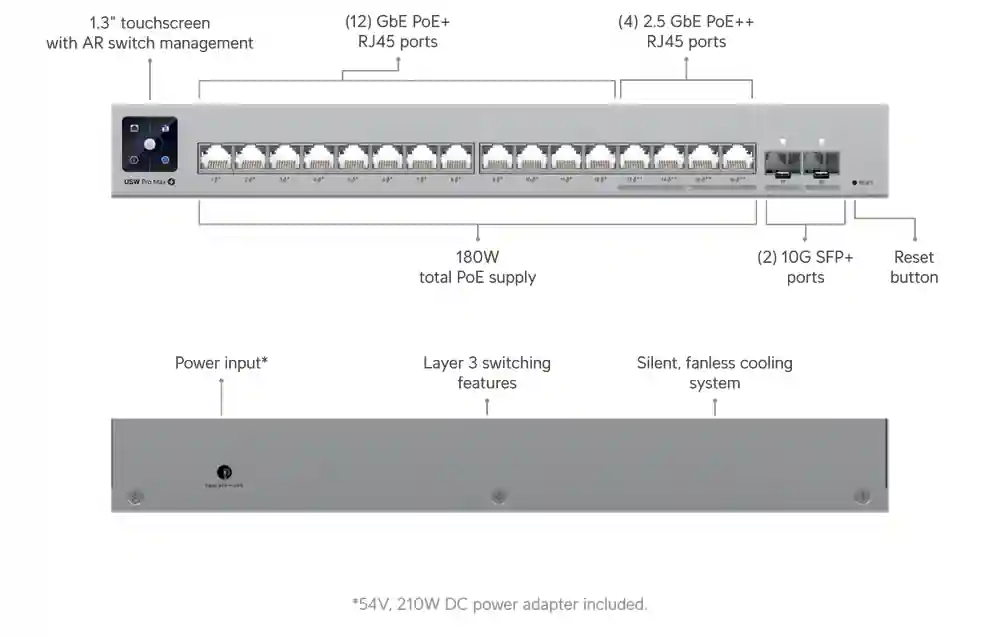

USW-Pro-Max-16-PoE 技術規格
總覽
| Dimensions |
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7″) |
| 1 GbE RJ45 |
12 (All PoE+) (1G/100M/10M) |
| 2.5 GbE RJ45 |
4 (All PoE++) (2.5G/1G/100M/10M) |
| 10G SFP+ |
2 (10G/1G) |
| Max. PoE Output |
Up to PoE++ |
| Total PoE Availability |
180W |
| Layer 3 |
Yes |
| Form Factor |
Rack mount (1U), desktop, wall |
| Etherlighting™ |
Yes |
效能
| Switching Capacity |
84 Gbps |
| Total Non-Blocking Throughput |
42 Gbps |
| Forwarding Rate |
62 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
16,000 |
| ARP Entries |
6,000 |
| IPv4 Routes |
512 |
| IPv4 Static Routes |
256 |
| Packet Buffer Size |
1.5 MB |
| IPv4 |
128 |
| MAC |
128 |
第三層功能
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| QoS (DSCP) |
Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| PoE+ |
12 |
| PoE++ |
4 |
| PoE |
15.4W |
| PoE+ |
32W |
| PoE++ |
64W |
| Max. Power Consumption |
25W (Excluding PoE Output) 210W (Including PoE Output) |
| Power Method |
AC Adapter |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, external, 210W |
| Supported Voltage Range |
50–54V DC |
| Management |
Ethernet AR |
| Heat Dissipation |
68 BTU/hr (Excluding PoE Output) |
| Weight |
2.1 kg (4.6 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
400~1200 mm (15.7-47.2″) |
| LCM Display |
1.3″ touchscreen |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Ethernet |
Yes |
| SFP+ |
Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 08953-24-08356 |
軟件要求
| UniFi Network |
Version 8.1.127 and later |

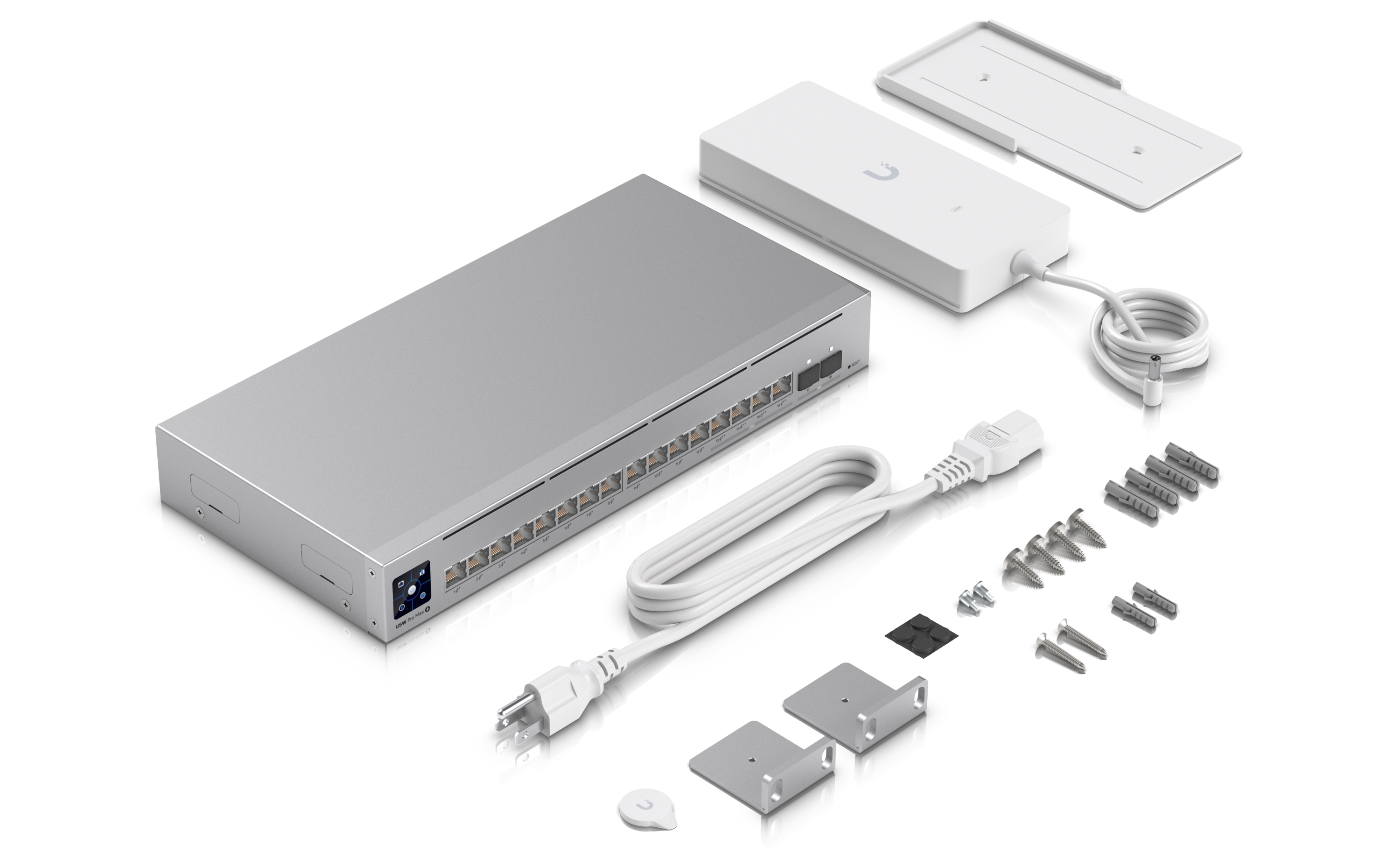

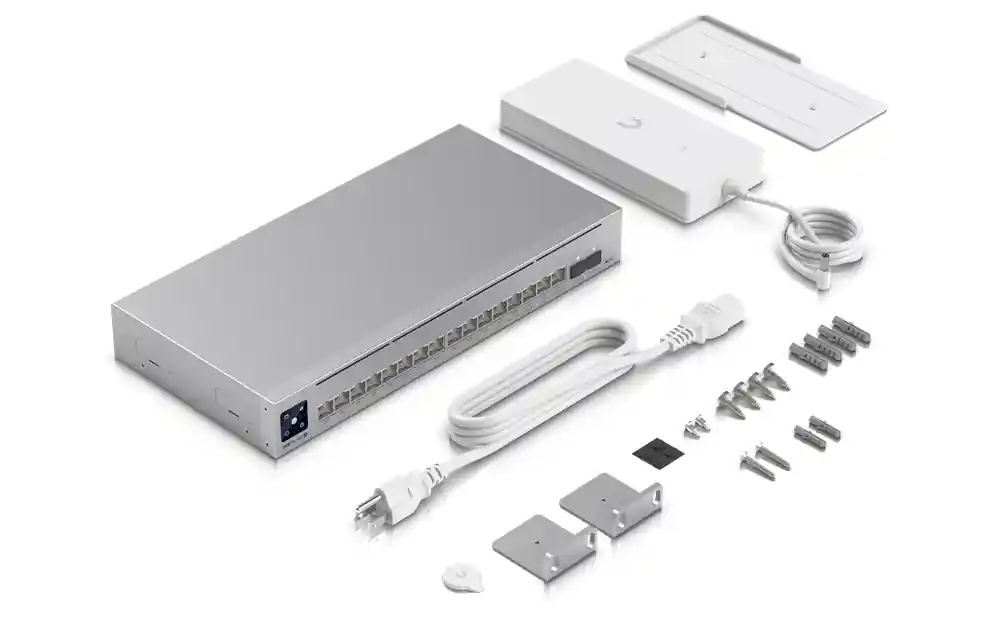

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
