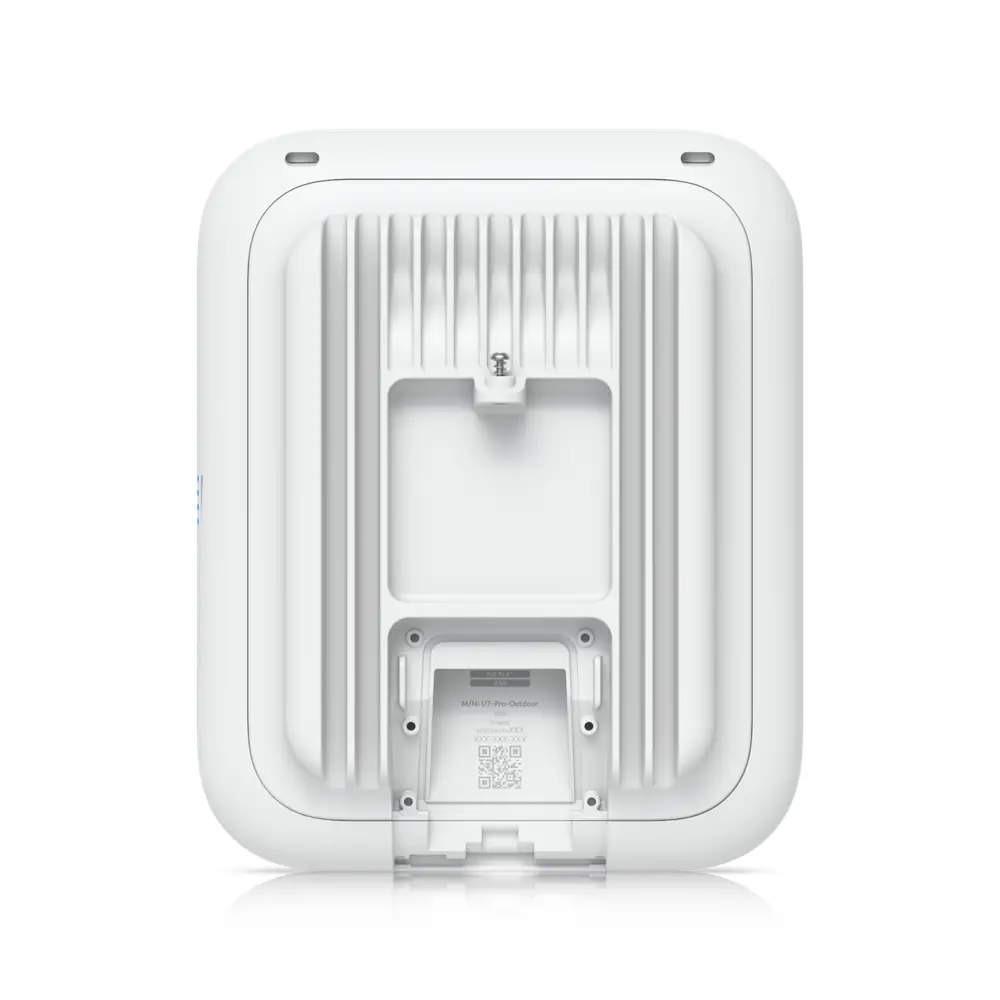

Ubiquiti UniFi Access Point U7 Pro Outdoor U7-Pro-Outdoor

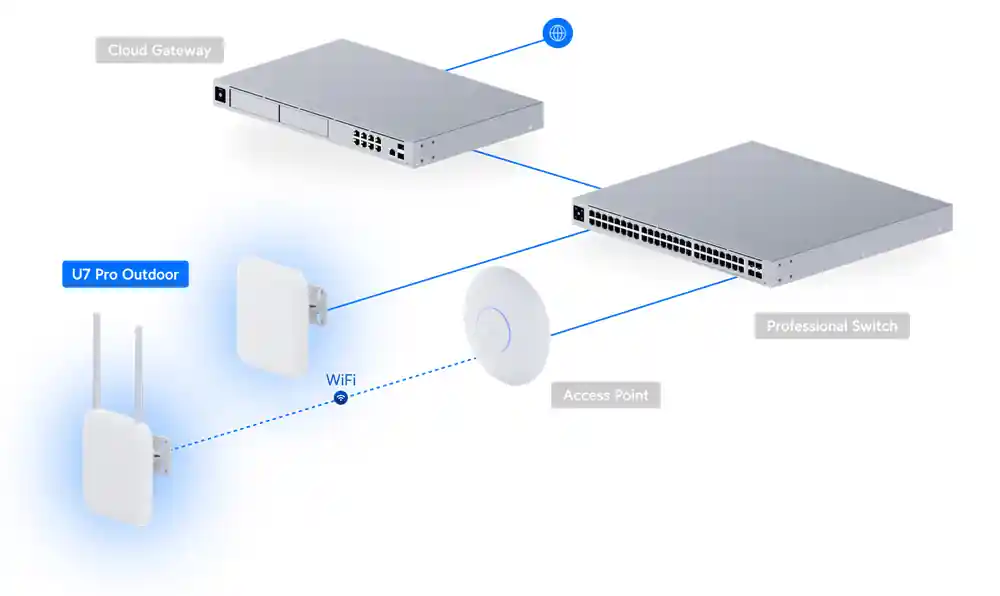

網絡拓撲
U7-Pro-Outdoor 技術規格
Grid overview
| Max. Client Count |
300 |
| WiFi7 |
WiFi 7 |
| Radio/Antenna |
6 GHz Radio |
| Uplink |
2.5 GbE |
總覽
| Dimensions |

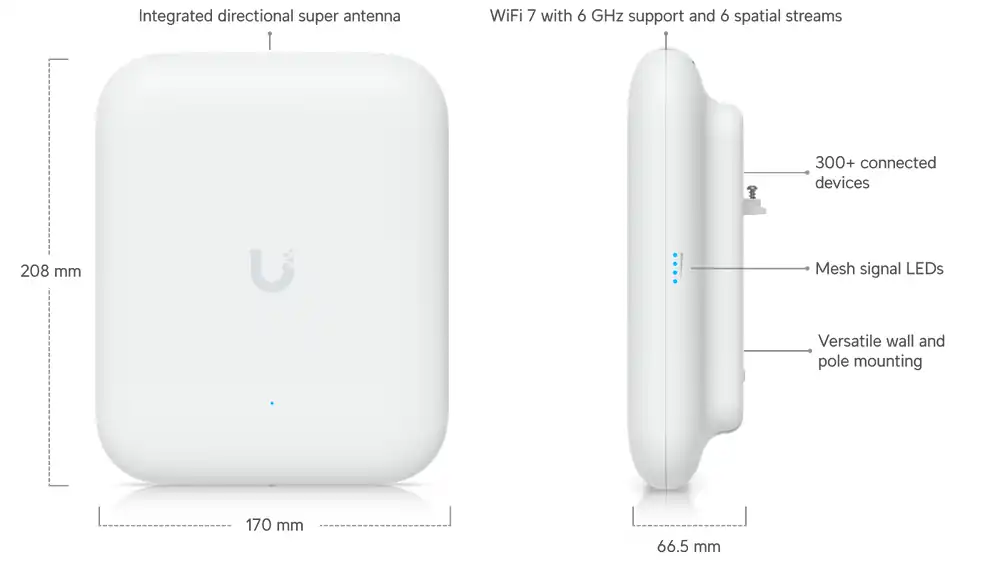

Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6″) With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8″) |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
6 |
| Coverage Area |
465 m² (5,000 ft²) |
| Max. Client Count |
300+ |
| Uplink |
2.5 GbE |

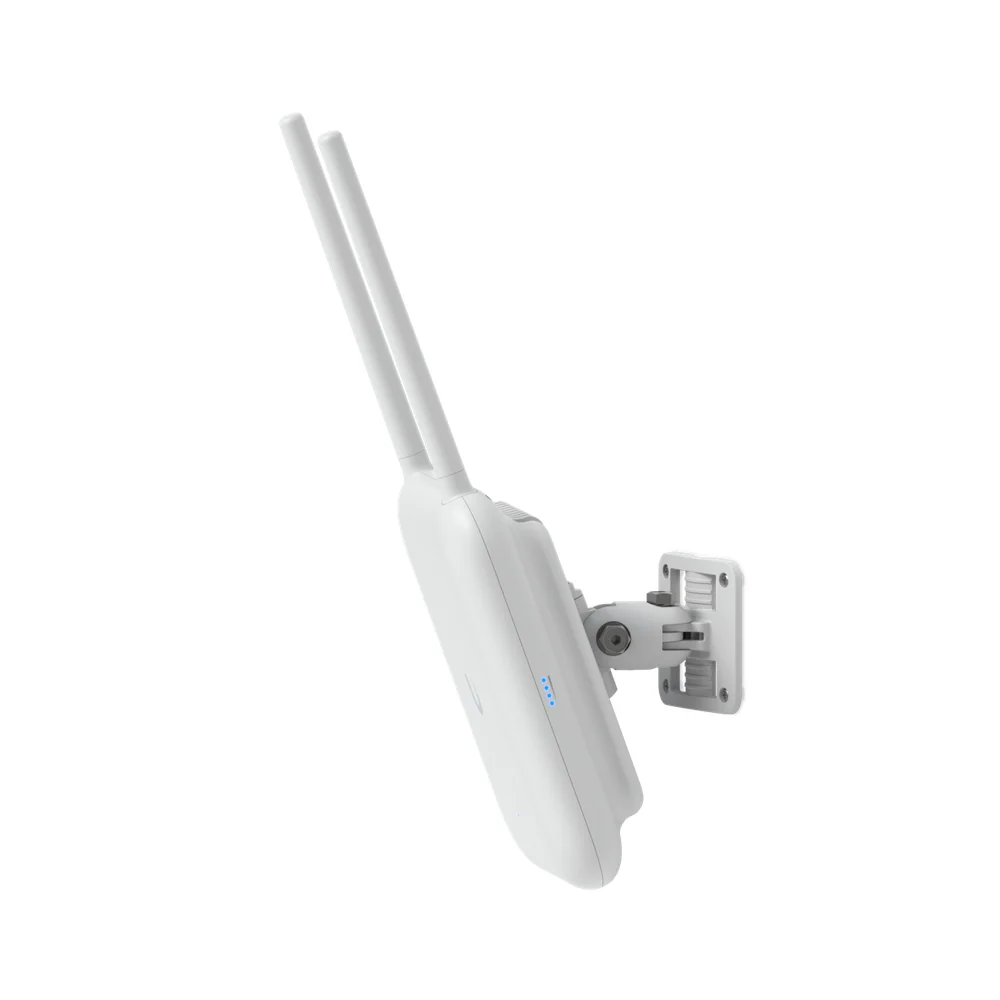

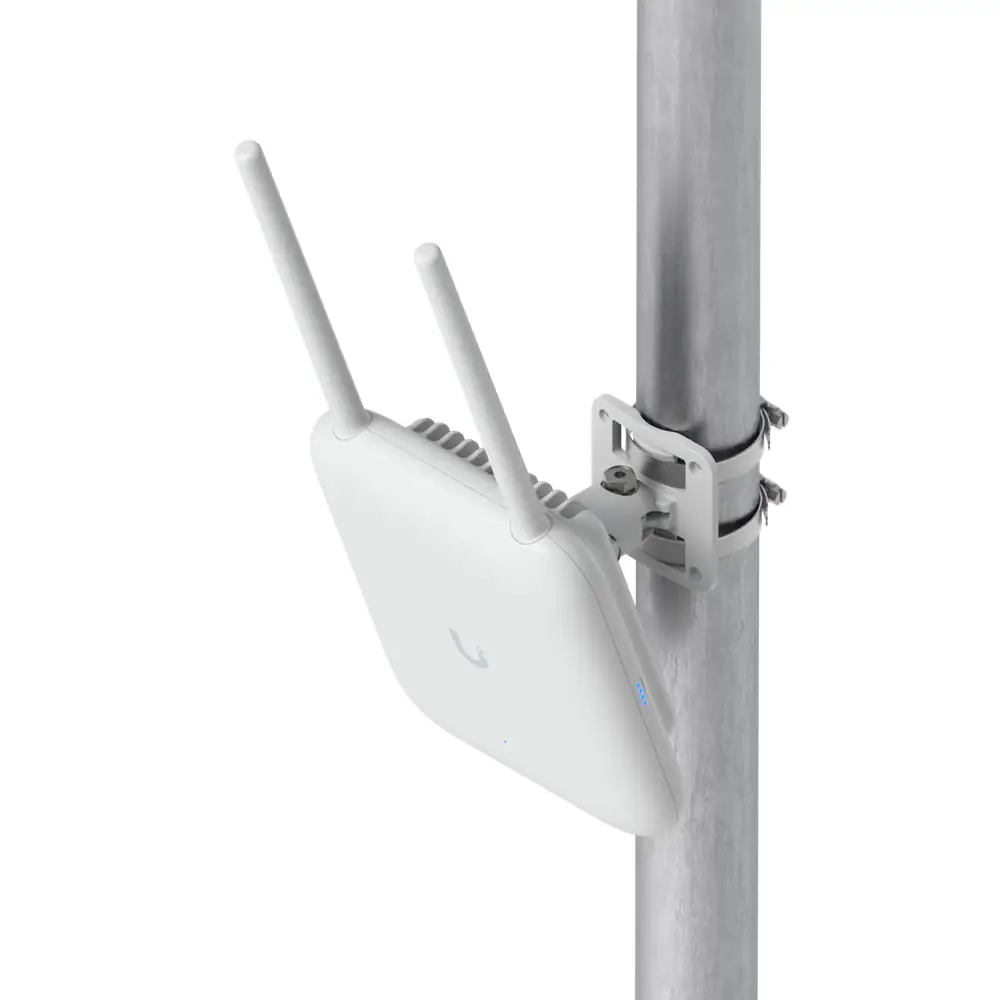

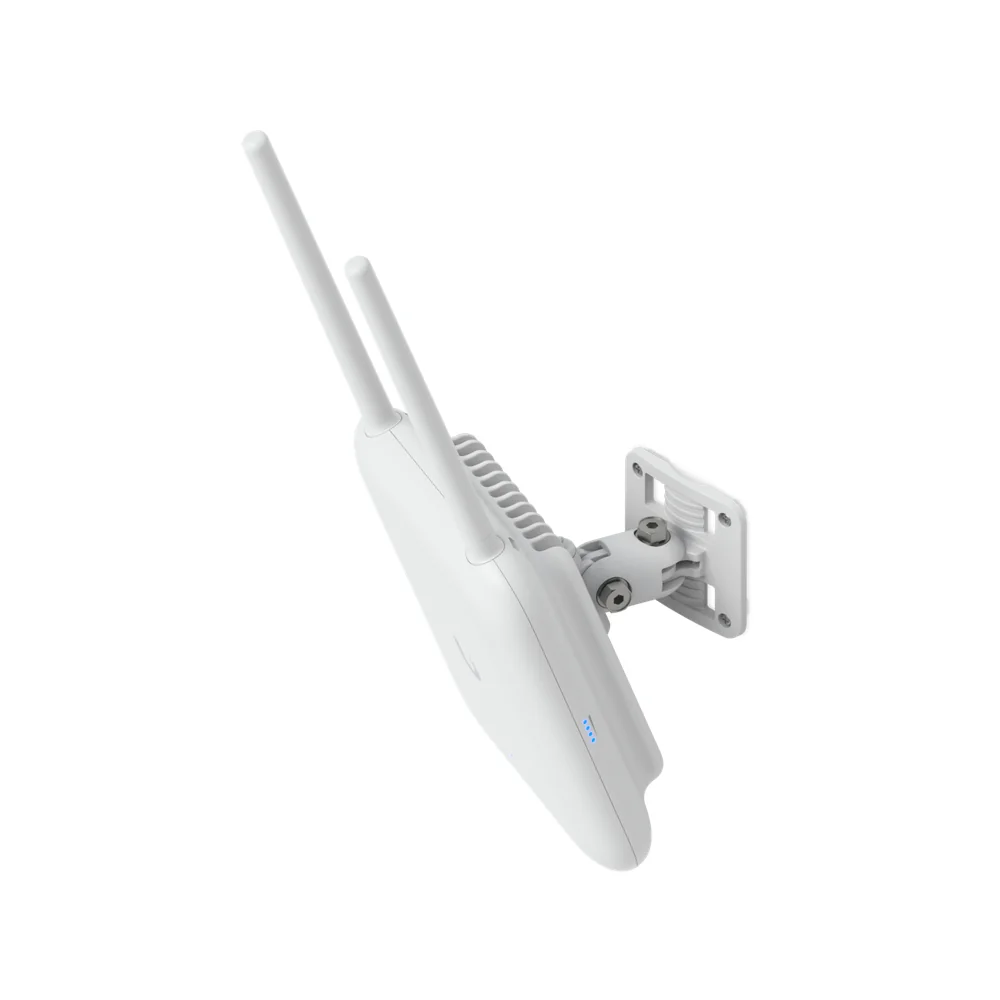

| Mounting |
Wall, Pole (Mounts Included) |
| Weatherproofing |
IPX6 IP67 (With cable-gland door kit) |
| Power Method |
PoE+ |
效能
| 6 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 6 GHz |
5.8 Gbps (BW320) |
| 5 GHz |
4.3 Gbps (BW240) |
| 2.4 GHz |
688 Mbps (BW40) |
| 6 GHz |
Directional internal: 10 dBi, 90° x 45° |
| 5 GHz |
Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15° |
| 2.4 GHz |
Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15° |
| 6 GHz |
26 dBm |
| 5 GHz |
26 dBm |
| 2.4 GHz |
23 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11be (WiFi 7) |
7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6/6E) |
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
21W |
| Supported Voltage Range |
42.5–57V DC |
| Networking Interface |
(1) 1/2.5 GbE RJ45 port |
| Weight |
Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb) |
| Wind Loading |
74.6 N at 200 km/h (16.8 lbf at 125 mph) |

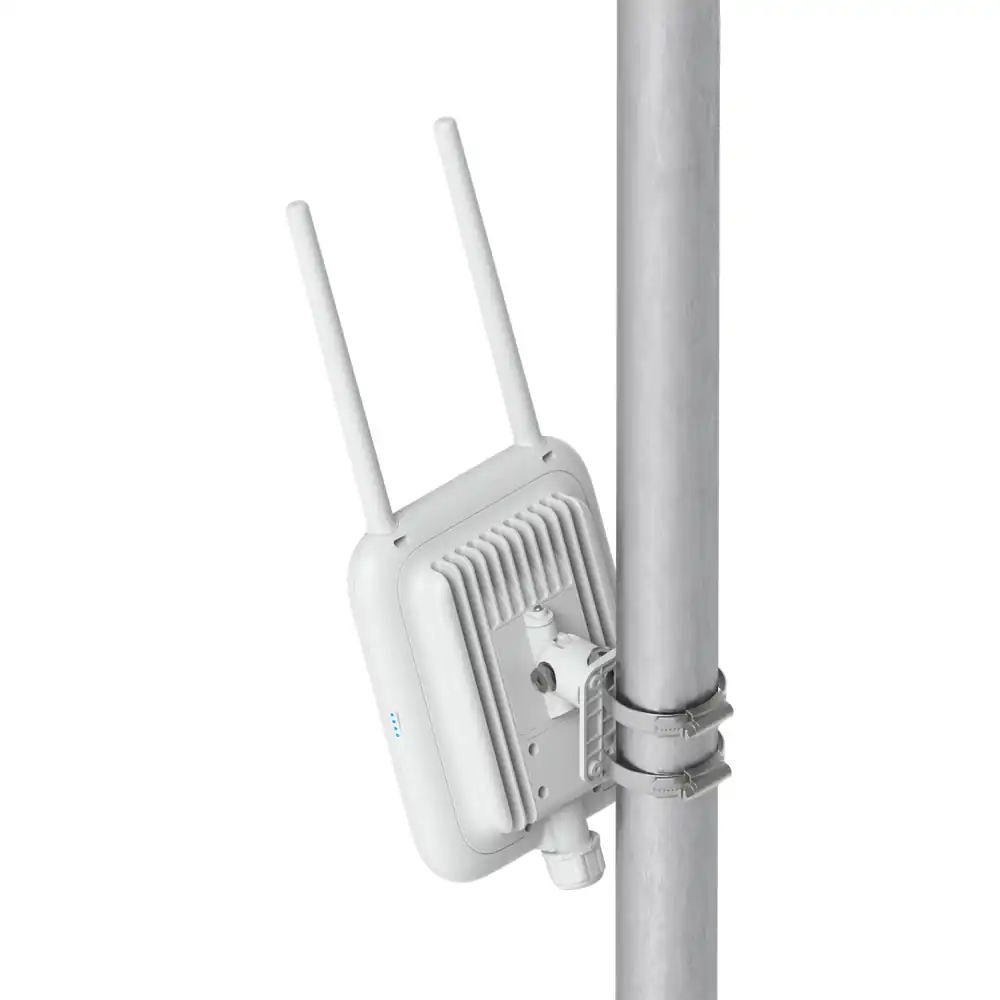

| Pole Mount Diameter |
1–2.5″ (25–63.5 mm) |
| Management |
Ethernet |
| Enclosure Material |
UV-stabilized polycarbonate, aluminum alloy |
| Mount Material |
UV-stabilized polycarbonate |
| System |
(1) Power: White/Blue (4) Mesh signal: Blue |
| NDAA Compliant |
Yes |
| Certifications |
FCC, IC |
| Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 9.0.114 and later |
| Mobile App |
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |

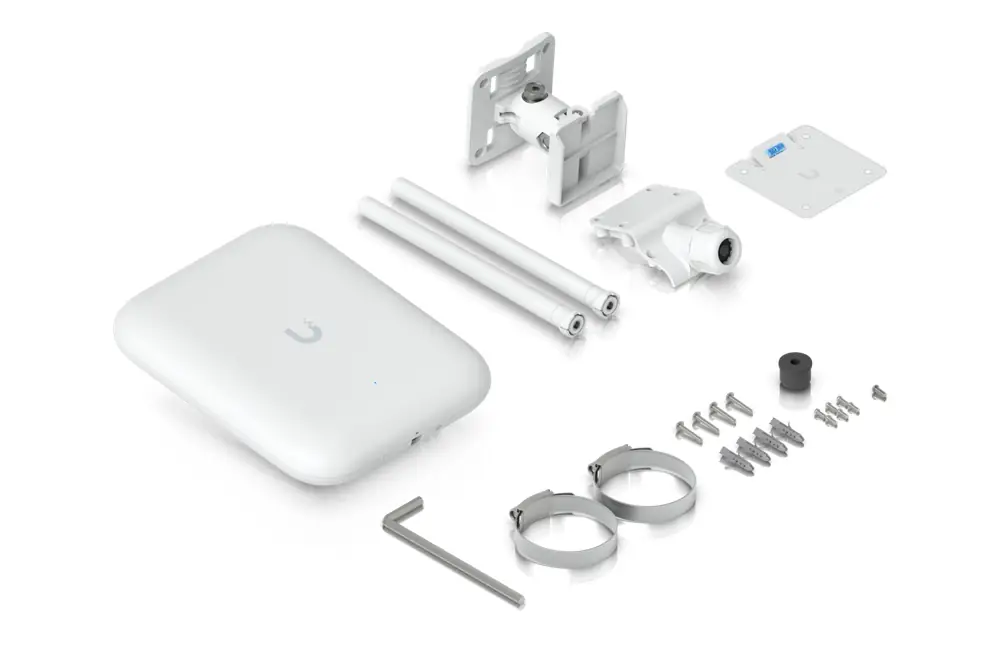

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
