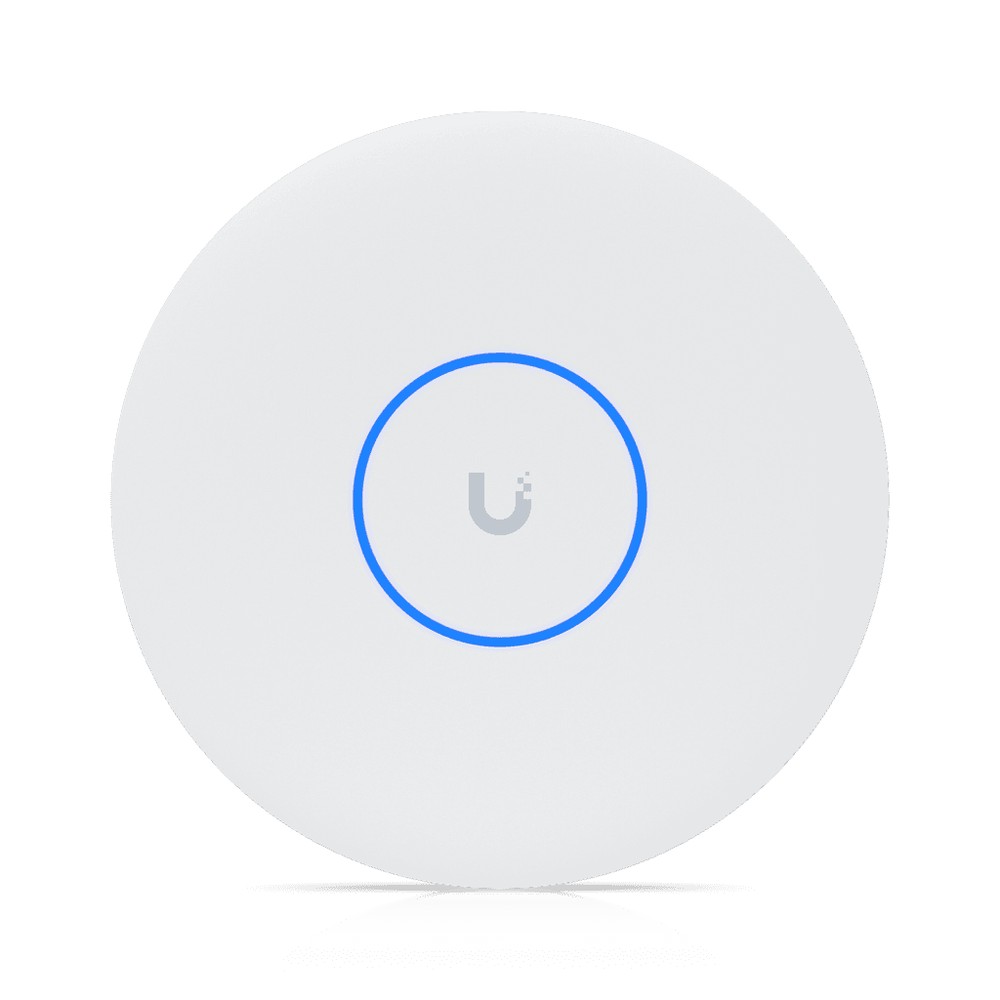

Ubiquiti UniFi Access Point U7 Pro XG U7-Pro-XG
網絡拓撲
U7-Pro-XG 技術規格
Grid overview
| Max. Client Count |
300 |
| WiFi7 |
WiFi 7 |
| Radio/Antenna |
6 GHz Radio |
總覽
| Dimensions |
⌀206 x 32.5 mm (⌀8.1 x 1.3″) |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
6 |
| Coverage Area |
140 m² (1,500 ft²) |
| Max. Client Count |
300+ |
| Uplink |
10 GbE |
| Mounting |
Ceiling, Wall (Lite Mount Included) |
| Power Method |
PoE+ |
效能
| 6 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 6 GHz |
5.8 Gbps (BW320) |
| 5 GHz |
4.3 Gbps (BW240) |
| 2.4 GHz |
688 Mbps (BW40) |
| 6 GHz |
6 dBi |
| 5 GHz |
5 dBi |
| 2.4 GHz |
4 dBi |
| 6 GHz |
24 dBm |
| 5 GHz |
26 dBm |
| 2.4 GHz |
23 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11be (WiFi 7) |
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
22W |
| Supported Voltage Range |
42.5–57V DC |
| Networking Interface |
(1) 10 GbE RJ45 port |
| Weight |
750 g (1.7 lb) |
| Management |
Ethernet |
| Enclosure Material |
UV-stabilized polycarbonate, aluminum alloy |
| Mount Material |
Stainless steel (SUS304), galvanized steel (SGCC) |
| System |
White/Blue |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 06630-25-08356 |
| Operating Frequency |
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz U-NII-5 to U-NII-8: 5925 – 7125 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5850 MHz 5925 – 7125 MHz |
| Ambient Operating Temperature |
-30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 9.0.114 and later (U7 Pro XG – White) Version 9.1.120 and later (U7 Pro XG – Black) |
