Ubiquiti UniFi Protect Alarm Hub Kit UP-AlarmHub-Kit

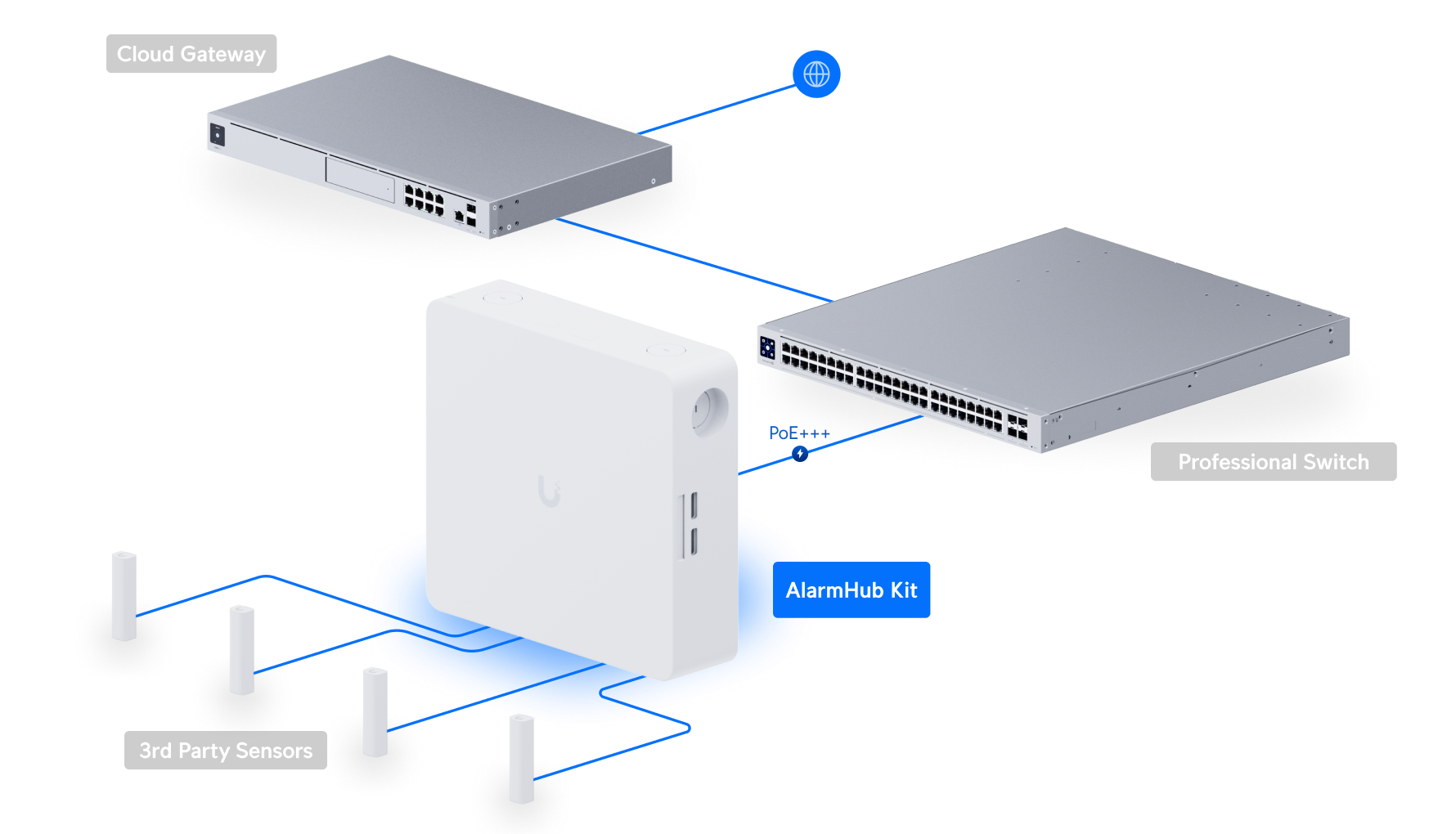

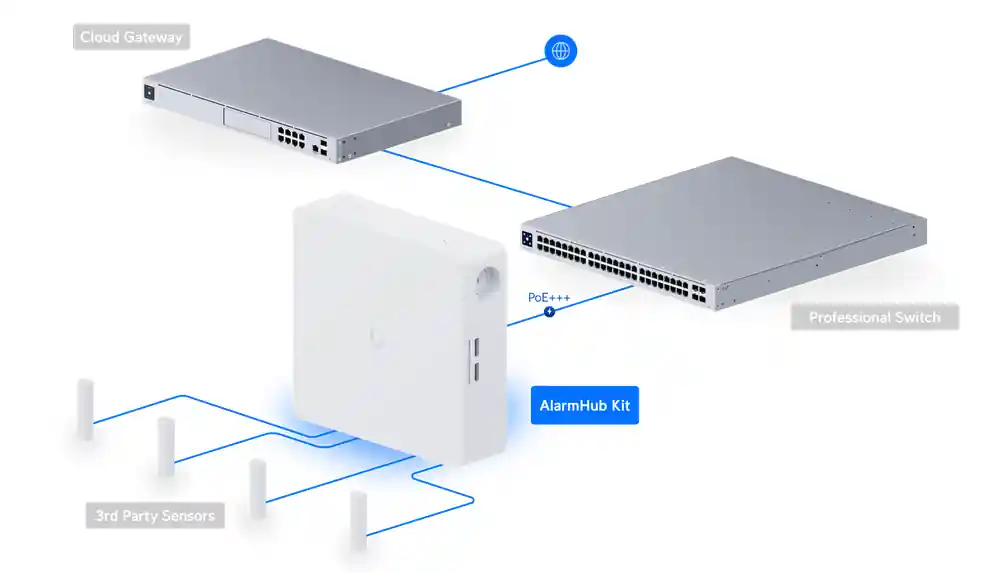

網絡拓撲

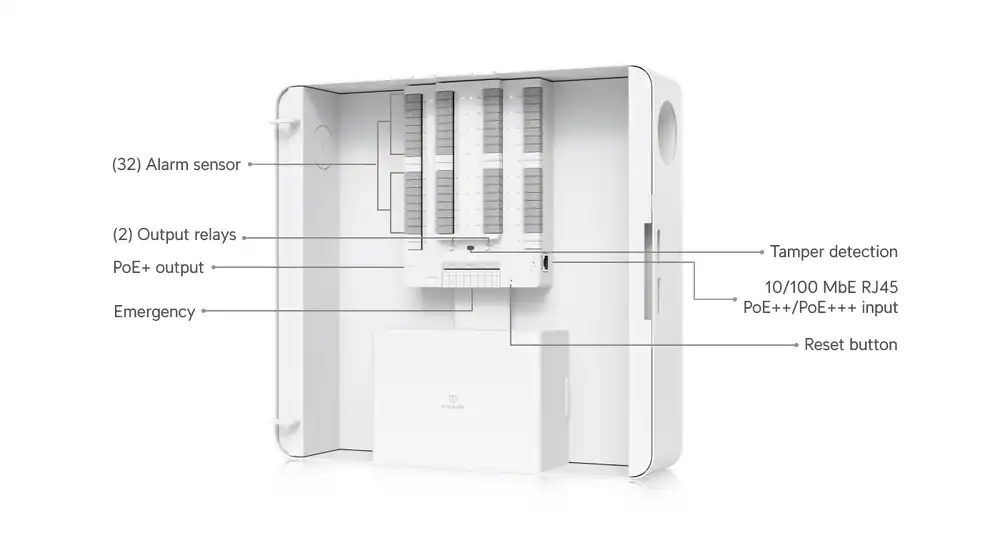

UP-AlarmHub-Kit 技術規格
Grid overview
| AUX Terminals |
2 AUX Terminals |
| PoE |
1 PoE Port |
總覽
| Dimensions |
379 x 355 x 105 mm (15 x 14 x 4.1″) |
| Input Terminals |
(32) Alarm sensor (1) Emergency |
| Power Method |
PoE++/PoE+++ 12V SLA battery |
| Power Output Availability |
PoE+++ input: 68W PoE++ input: 42W |
| NDAA Compliant |
Yes |
Mechanical
| Weight |
Device: 8.3 kg (18.3 lb) Mount: 624 g (1.4 lb) |
| Enclosure Material |
SGCC steel housing with polycarbonate cover |
| Mount Material |
SGCC steel |
| Mounting |
Wall |
硬件規格
| Digital Input |
(32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency |
| Output Relay |
(2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A |
| Aux Power Output |
For sensor: (3) 12V DC, 1A right side total, (3) 12V DC, 1A left side total |
| Indoor and Outdoor Use |
Indoor only |
| Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| Networking Interface |
(1) 10/100 MbE RJ45 port |
| PoE Interface |
(1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W |
| Max. Power Consumption |
90W |
| Battery Charge |
SLA backup battery, 12V, 0.3A |
| LEDs |
W/B Learn More |
| Buttons |
(1) Factory reset (2) Dry/Wet switch |
| Certifications |
CE, FCC, IC |
軟件要求
| UniFi Protect |
Version 7.0.88 and later |
| Mobile App |
UniFi Protect iOS™ version 3.3.0 and later UniFi Protect Android™ version 3.2.0 and later |

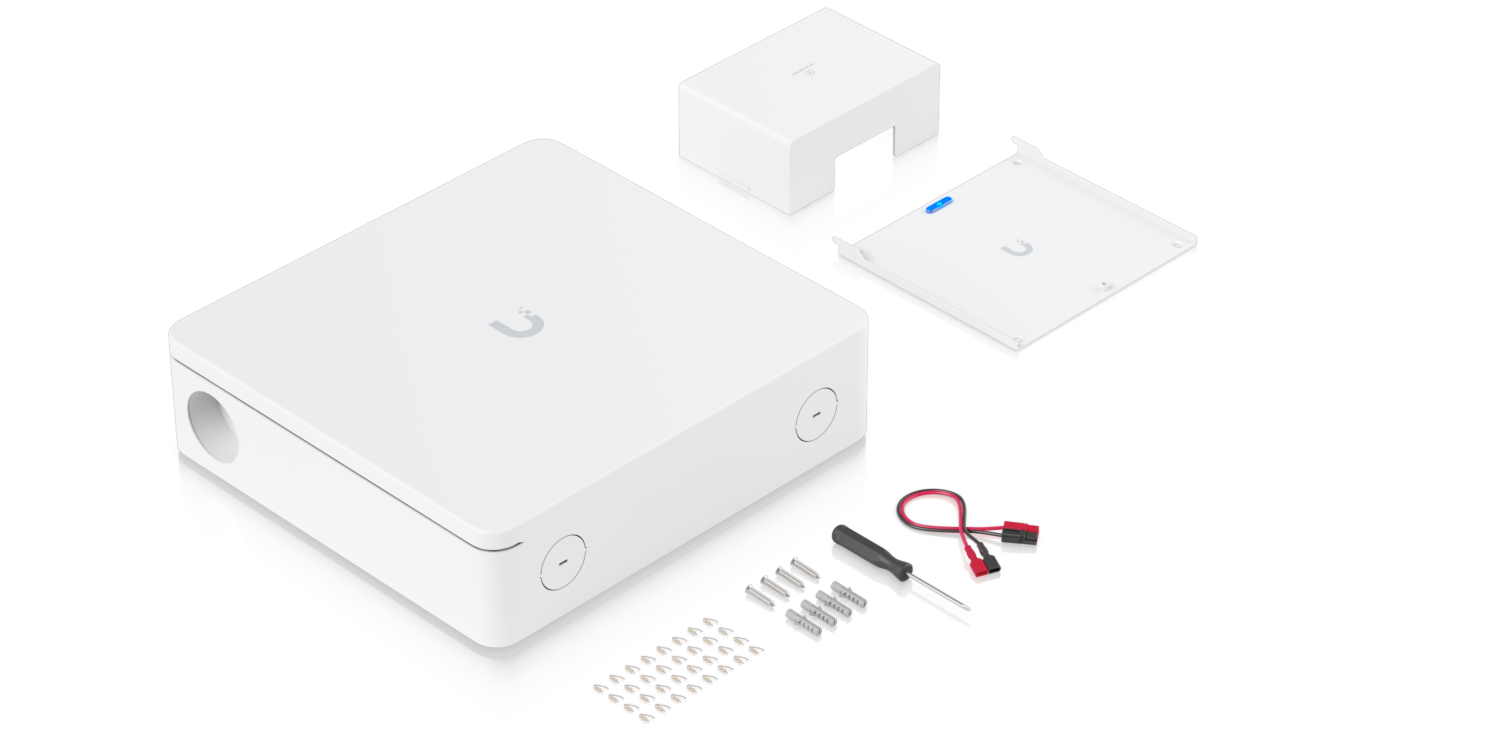

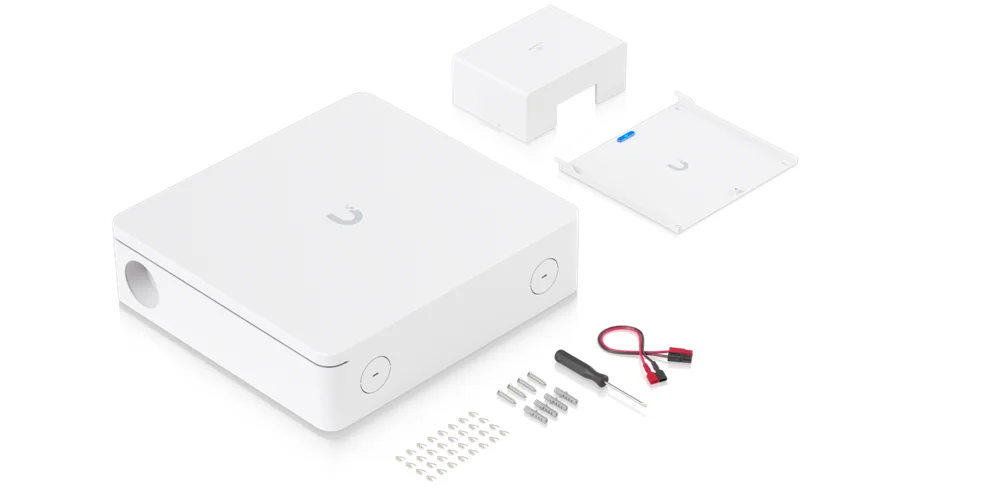

包裝內容
