Ubiquiti UniFi Protect Alarm Hub Kit UP-AlarmHub
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Protect Alarm Hub Kit UP-AlarmHub

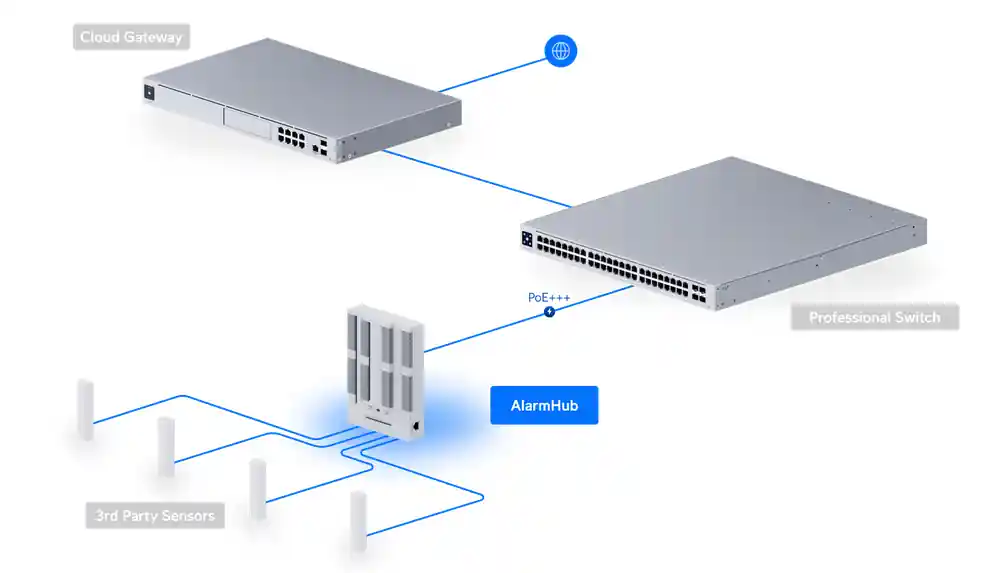

網絡拓撲
UP-AlarmHub 技術規格
Grid overview
| AUX Terminals | 2 AUX Terminals |
|---|---|
| PoE | 1 PoE Port |
總覽
| Dimensions | 138 x 200 x 40 mm (5.4 x 7.9 x 1.6″) |
|---|---|
| Input Terminals | (32) Alarm sensor (1) Emergency |
| Power Method | PoE++/PoE+++ 12V SLA battery |
| Power Output Availability | PoE+++ input: 68W PoE++ input: 42W |
| NDAA Compliant | Yes |
Mechanical
| Enclosure Material | SGCC steel, polycarbonate |
|---|---|
| Mount Material | SGCC steel |
| Mounting | Wall |
硬件規格
| Digital Input | (32) Inputs for alarm sensor (Compatible with EOL resistors: 1–5.6kΩ, 1kΩ included) (1) Emergency |
|---|---|
| Output Relay | (2) Wet/Dry Wet: 12V DC, 1A Dry: 30V DC, 1A |
| Aux Power Output | For sensor: (3) 12V DC, 1A right side total, (3) 12V DC, 1A left side total |
| Indoor and Outdoor Use | Indoor only |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Networking Interface | (1) 10/100 MbE RJ45 port |
| PoE Interface | (1) PoE++/PoE+++ input, 54V DC, 60W/90W (1) PoE+ output, 54V DC, 30W |
| Max. Power Consumption | 90W |
| Battery Charge | SLA backup battery, 12V, 0.3A |
| LEDs | W/B Learn More |
| Buttons | (1) Factory reset (2) Dry/Wet switch |
| Certifications | CE, FCC, IC |
軟件要求
| Management Application | UniFi Protect |
|---|---|
| Software Information | The software version can be checked at https://unifi.ui.com |
產品資源
| Brands | Ubiquiti |
|---|
