Ubiquiti UniFi Protect Relay USL-Relay
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi Protect Relay USL-Relay

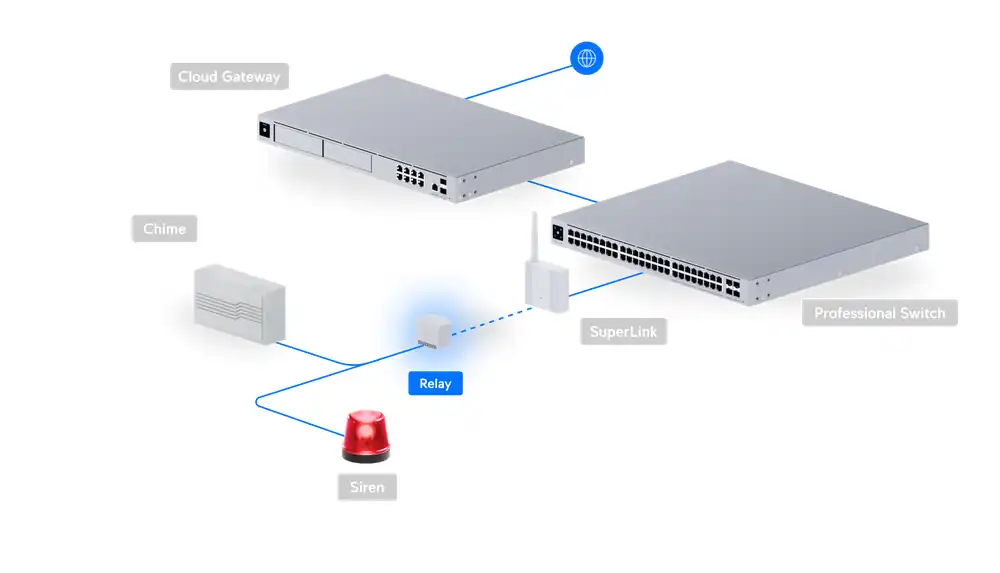

網絡拓撲

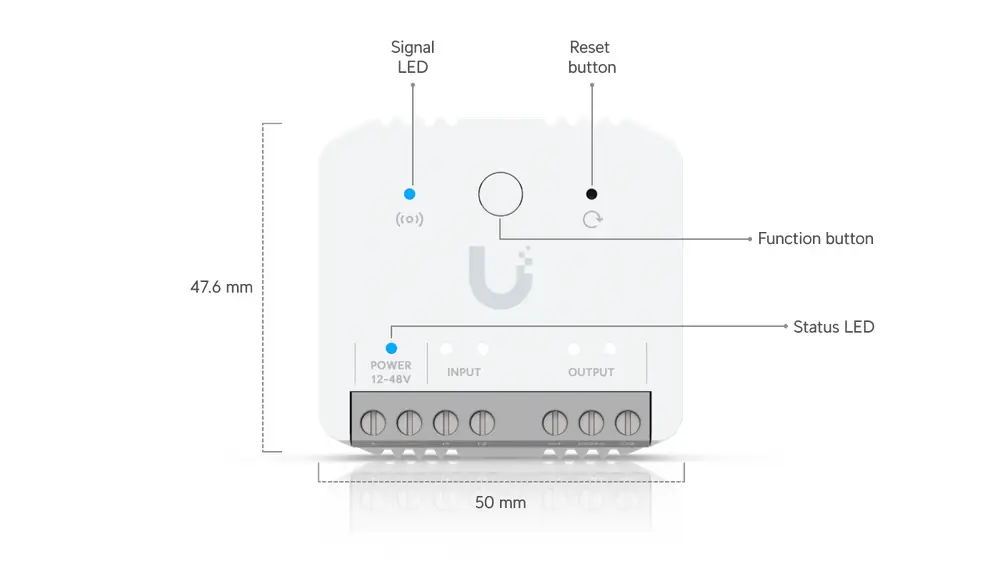

USL-Relay 技術規格
總覽
| Dimensions | 50 x 47.6 x 28 mm (12 × 1.9 × 1.1″) |
|---|---|

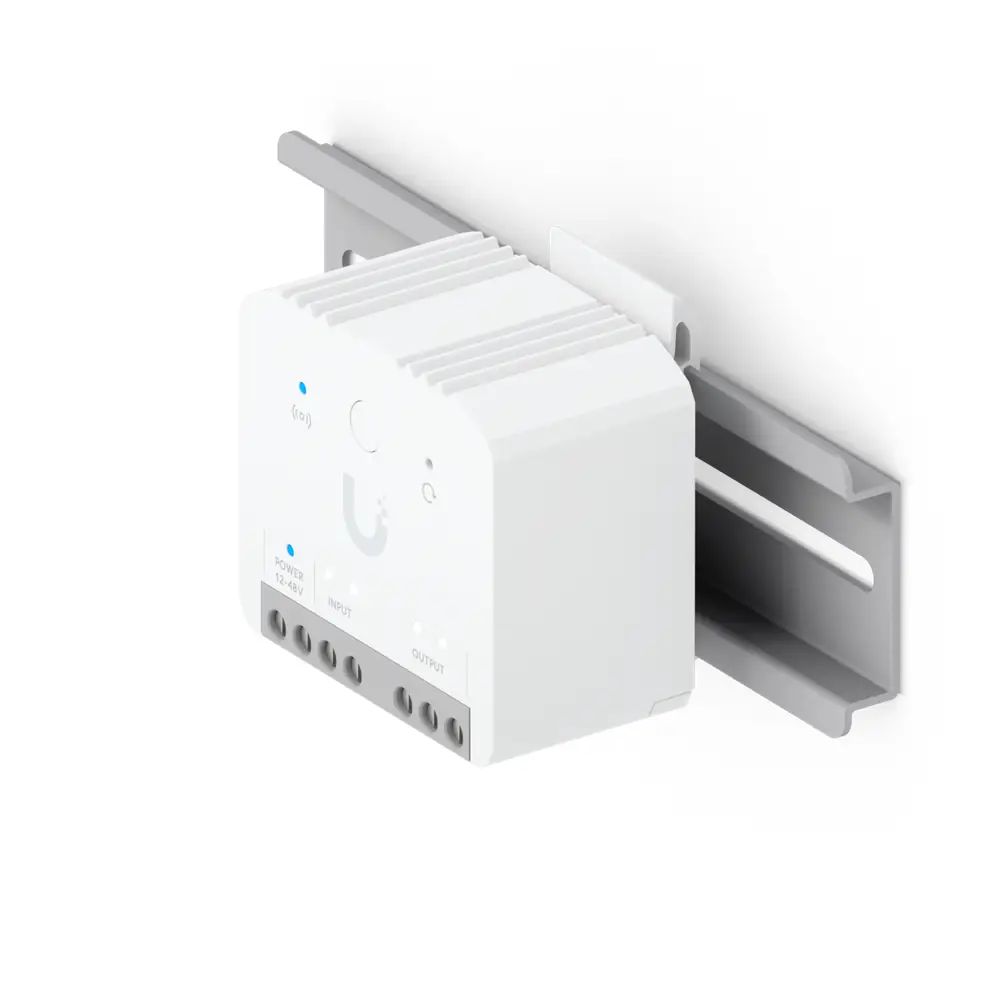

| Mounting | Adhesive, wall and DIN rail mount |
| UniFi Application Suite | Protect |
效能
| Connectivity | SuperLink (Proprietary) |
|---|---|
| US | 915.6–927.6 MHz |
| EU | 865.1–869.5 MHz |
| SuperLink | 1 dBi |
| SuperLink | 14 dBm |
| SuperLink | 2 km (1.2 mi) |
硬件規格
| Power Method | 12V DC / 24V DC / 48V DC |
|---|---|
| Weight | 100 g (3.5 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Buttons | (1) Factory reset (1) Test button |

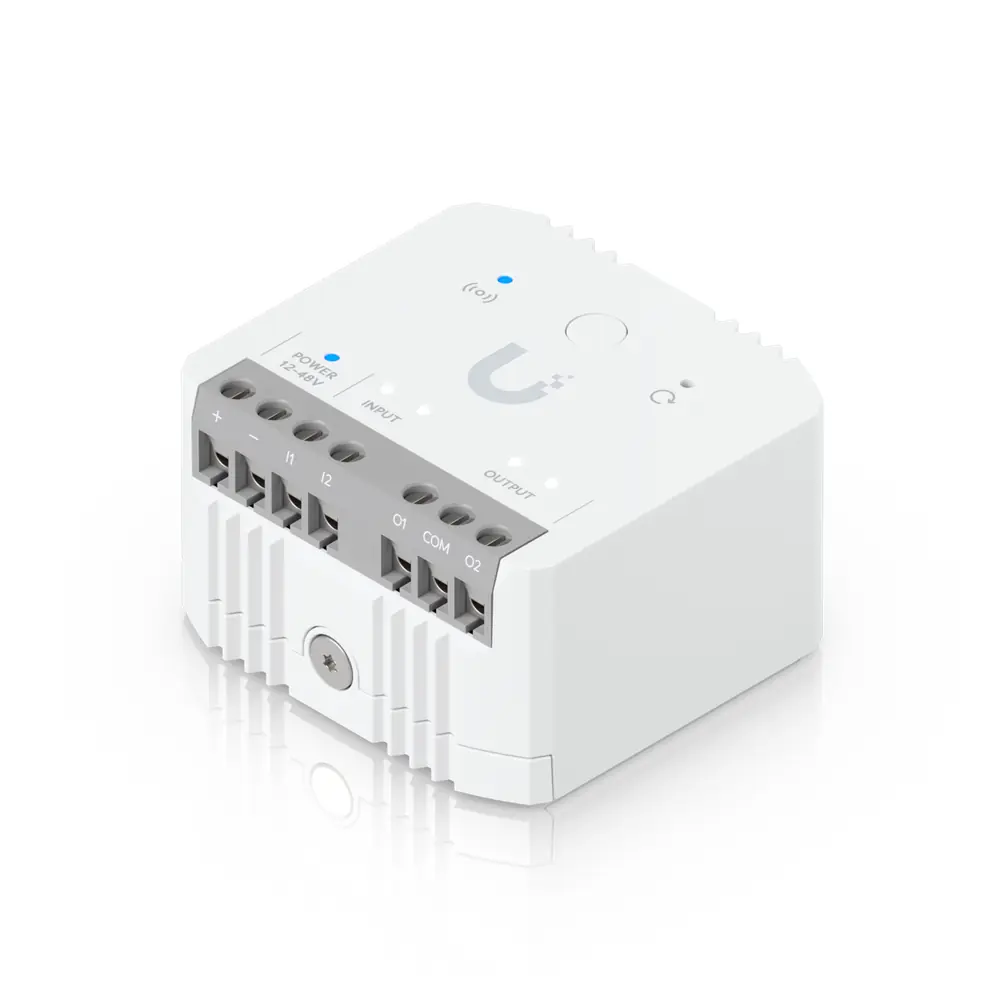

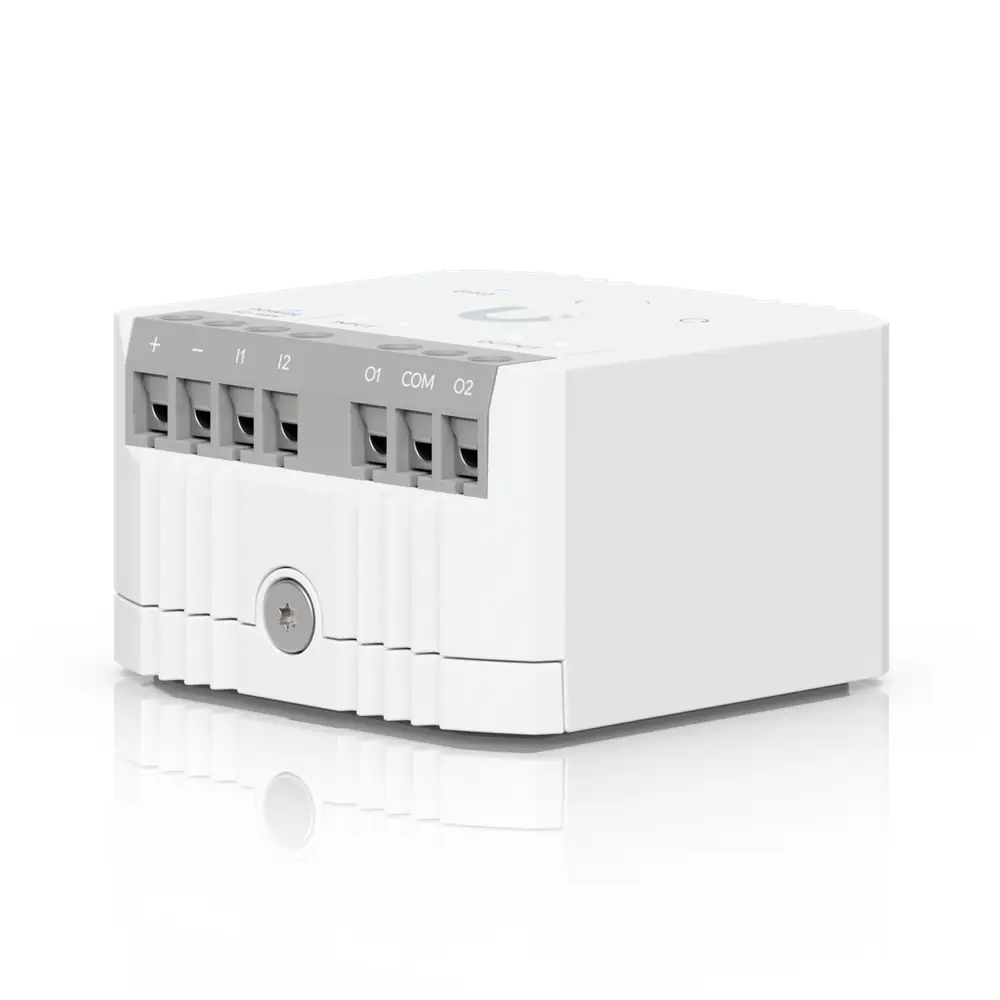

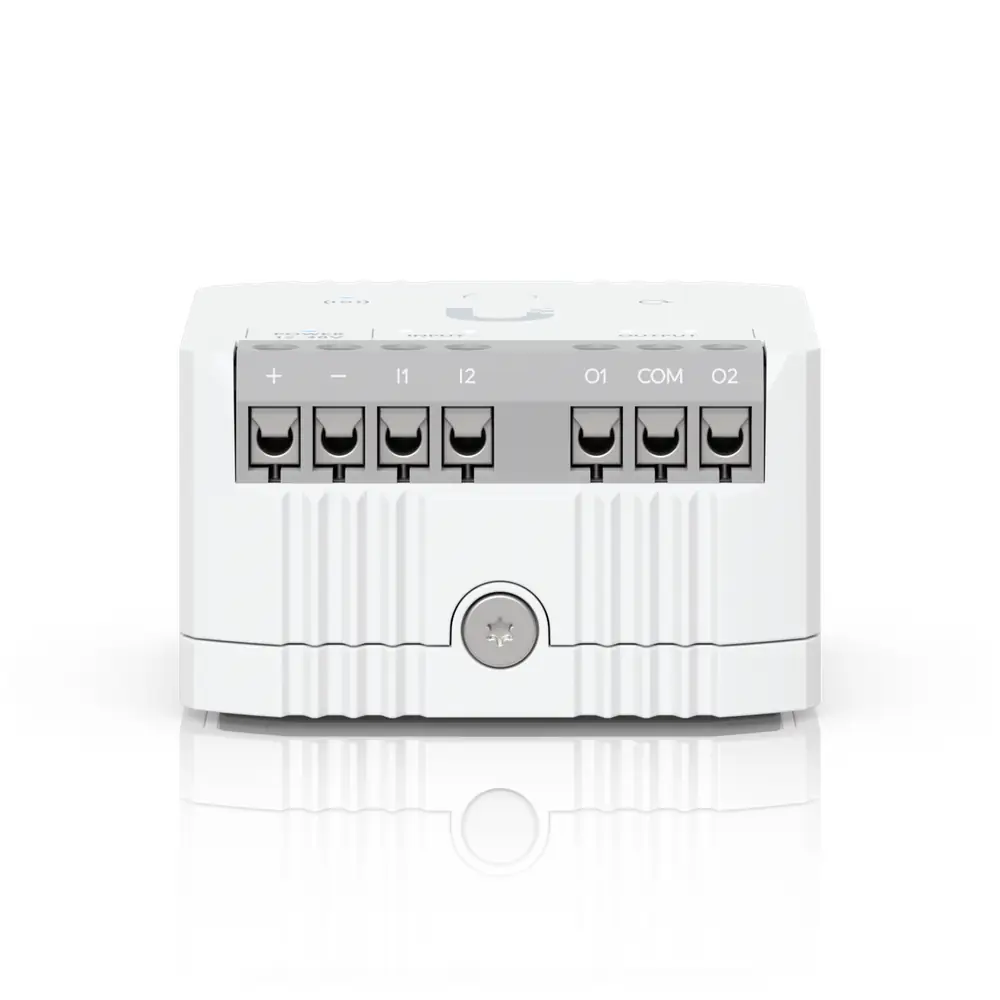

| Output | O1/COM/O2 Dry contact only (12-48V DC, 12-240V AC) 10A/port, UL total max: 12A IEC total max: 16A |
| Input | I1/I2 Dry contact only Open/Short (GND) Integrated 5V TVS protection |
| Power | VDD/GND 12–48V DC, max. 48V Integrated over-temperature protection (OTP) at 85°C (185°F) |
| LEDs | (1) LoRa, Status: RGBW (2) Signal input, Relay output: W |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
軟件要求
| Web Application | UniFi Protect |
|---|---|
| Mobile App | UniFi Protect iOS™ and Android™ |

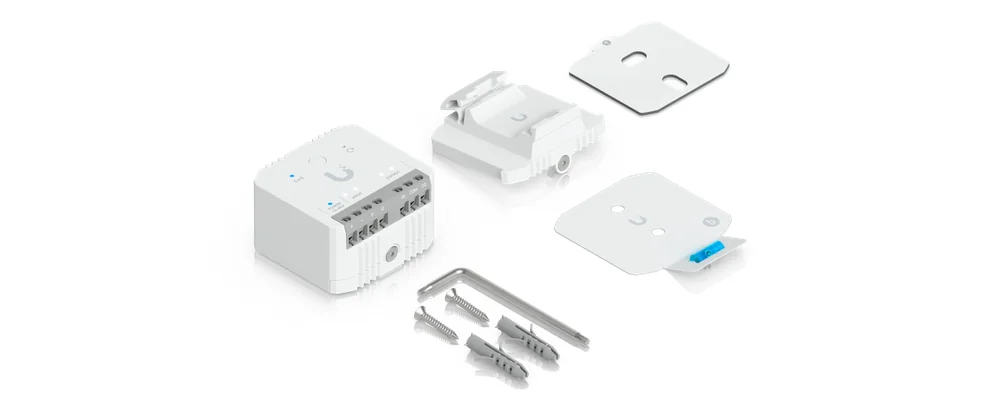

包裝內容
產品資源
| Brands | Ubiquiti |
|---|
