Ubiquiti UniFi Switch 24 PoE USW-24-POE

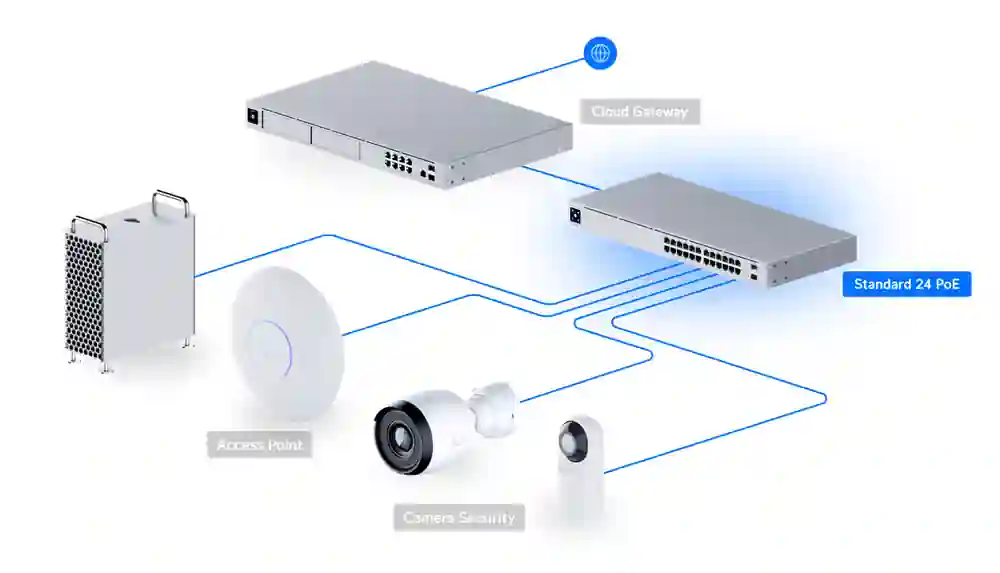

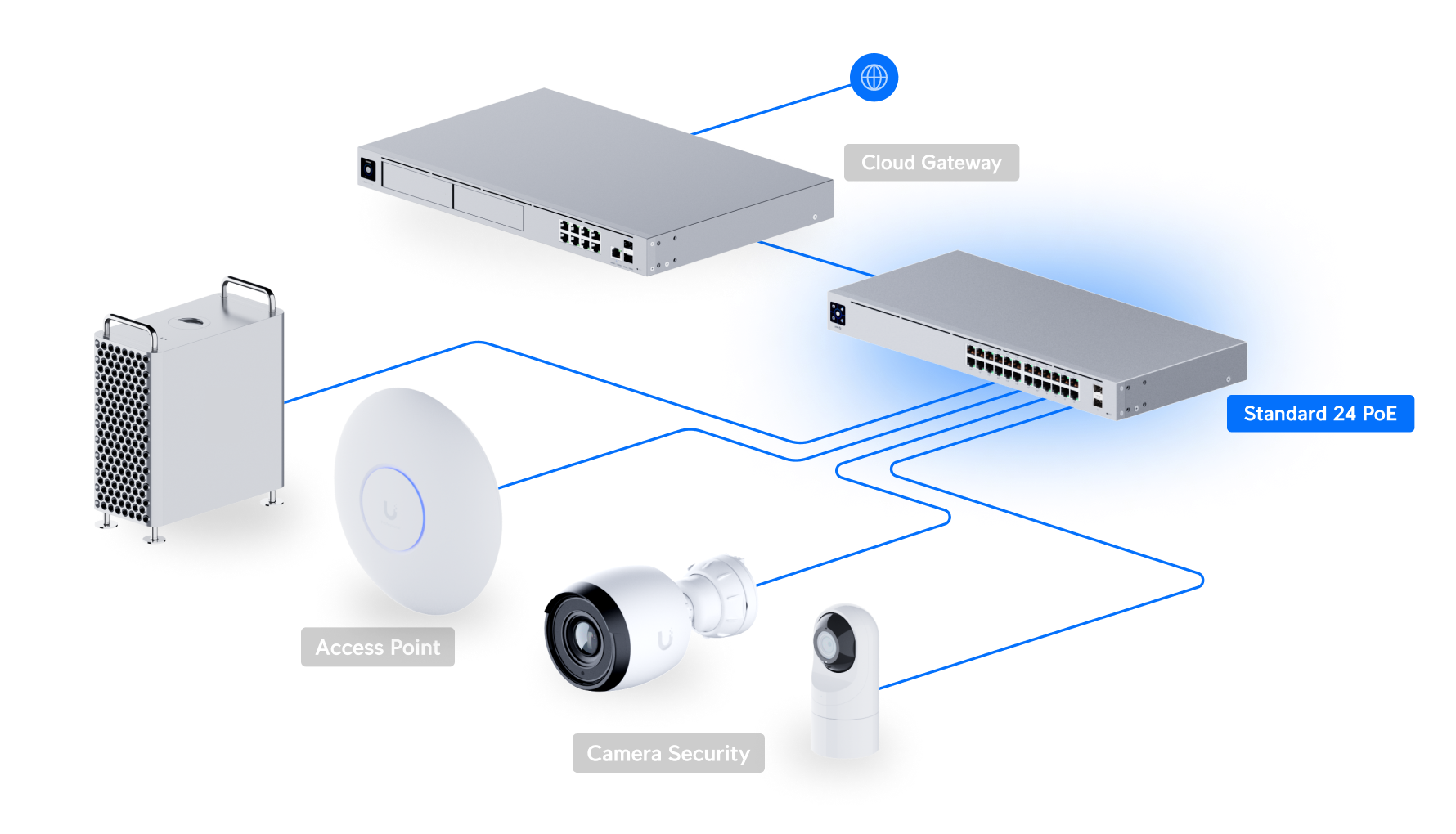

網絡拓撲

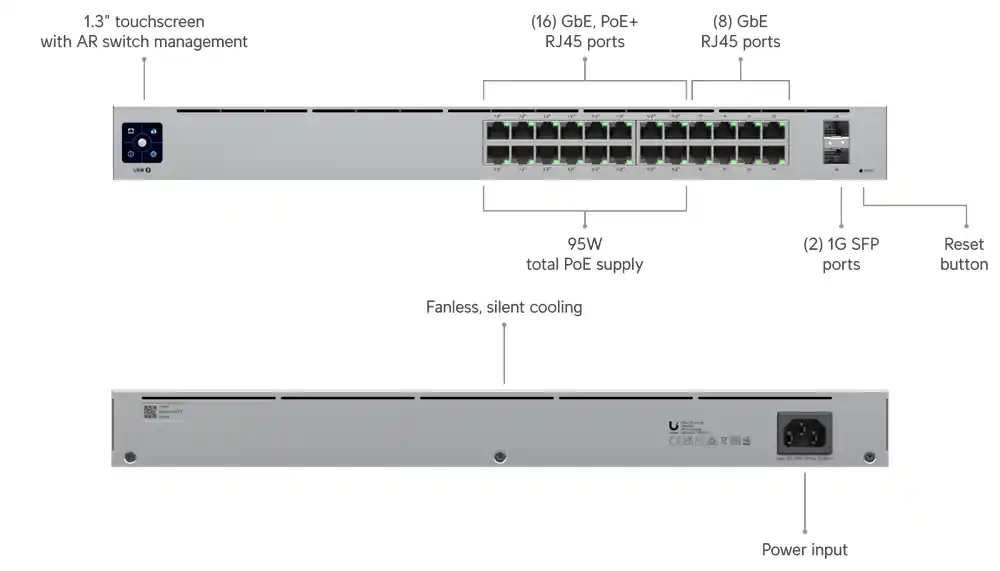

USW-24-POE 技術規格
總覽
| Dimensions |
442 x 200 x 44 mm (17.4 x 7.9 x 1.7″) |
| 1 GbE RJ45 |
24 (16 PoE+) (1G/100M/10M) |
| 1G SFP |
2 (1G) |
| Max. PoE Output |
Up to PoE+ |
| Total PoE Availability |
95W |
| Form Factor |
Rack mount (1U) |
效能
| Switching Capacity |
52 Gbps |
| Total Non-Blocking Throughput |
26 Gbps |
| Forwarding Rate |
39 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
8,000 |
| Packet Buffer Size |
0.5 MB |
| IPv4 |
128 |
| MAC |
128 |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| PoE+ |
16 |
| PoE |
15.4W |
| PoE+ |
32W |
| Max. Power Consumption |
25W (Excluding PoE output) 120W (Including PoE Output) |
| Power Method |
Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 120W |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet AR |
| Heat Dissipation |
85.3 BTU/hr (Excluding PoE Output) |
| Weight |
Without mounting brackets: 3 kg (6.6 lb) With mounting brackets: 3.1 kg (6.8 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
400~1200 mm (15.7-47.2″) |
| LCM Display |
1.3″ touchscreen |
| ESD Protection |
Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 00593-21-08356 |
軟件要求
| UniFi Network |
Version 7.2.94 and later |

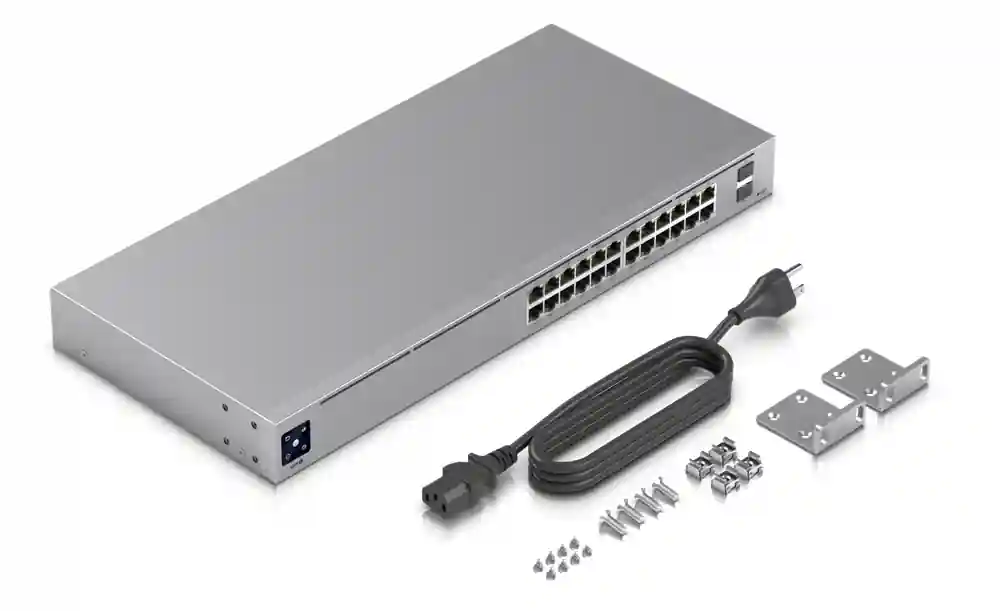

包裝內容
