Ubiquiti UniFi Switch Enterprise Campus Aggregation ECS-Aggregation

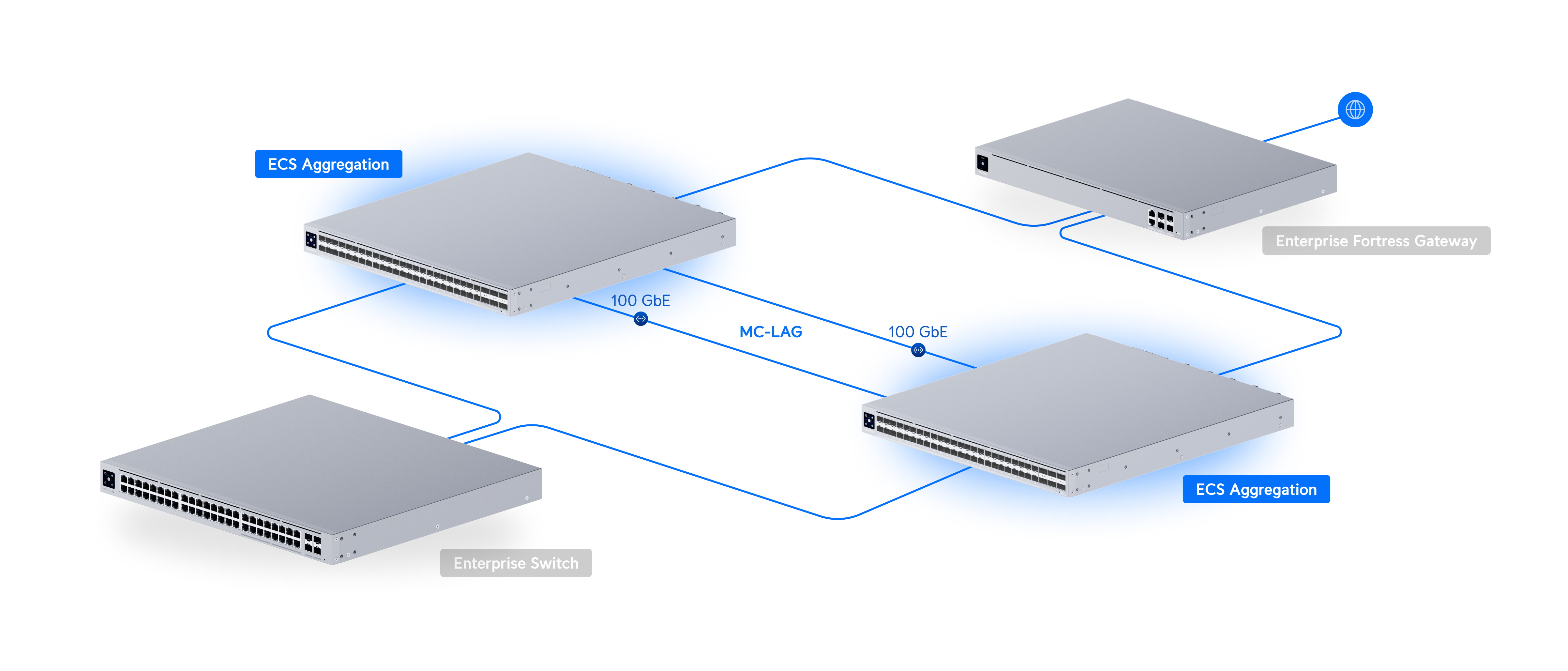

網絡拓撲

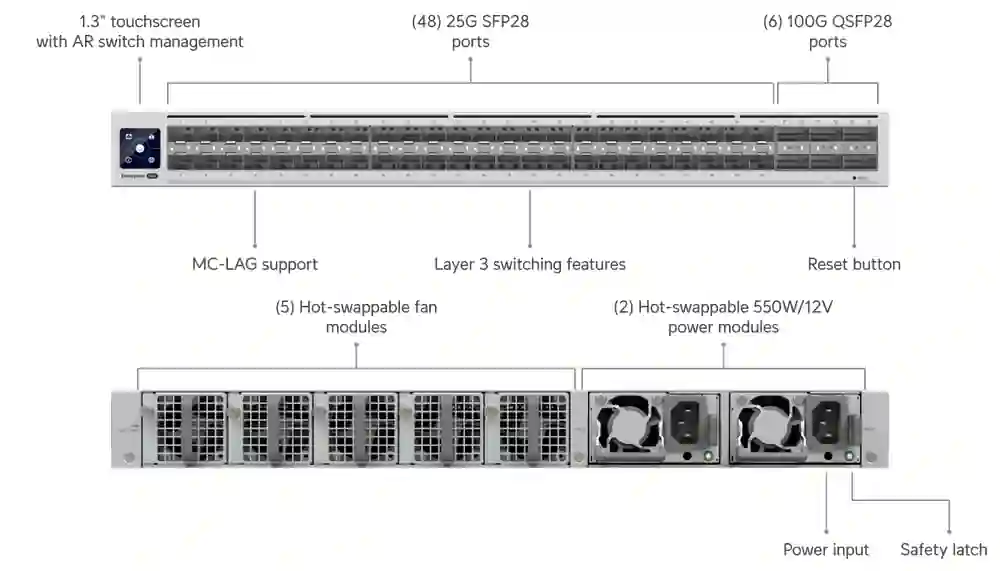

ECS-Aggregation 技術規格
總覽
| Dimensions |
442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5″) |
| 25G SFP28 |
48 (25G/10G) |
| 100G QSFP28 |
6 (100G/40G) |
| Redundancy |
Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans |
| Layer 3 |
Yes |
| Form Factor |
Rack mount (1U, Full-Depth) |
| Etherlighting™ |
Yes |
效能
| Switching Capacity |
3.6 Tbps |
| Total Non-Blocking Throughput |
1.8 Tbps |
| Forwarding Rate |
2.4 Bpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
128,000 |
| ARP Entries |
96,000 |
| IPv4 Routes |
288,000 |
| IPv4 Static Routes |
256 |
| Packet Buffer Size |
24 MB |
| IPv4 |
512 |
| MAC |
512 |
第三層功能
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
第二層功能
| LACP Port Aggregation |
Yes |
| MC-LAG |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
硬件規格
| Max. Power Consumption |
340W |
| Power Method |
(2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method |
(2) AC input, Hot-swappable power modules |
| Power Supply |
(2) Hot-swappable AC/DC 550W power modules |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet AR |
| Heat Dissipation |
1160 BTU/hr |
| Weight |
Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
482.6 mm (19″) four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display |
1.3″ touchscreen |
| ESD Protection |
Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 95% noncondensing |
| SFP28 |
Yes |
| QSFP28 |
Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 01327-25-08356 |
軟件要求
| UniFi Network |
Version 8.5.6 and later |
安裝教學

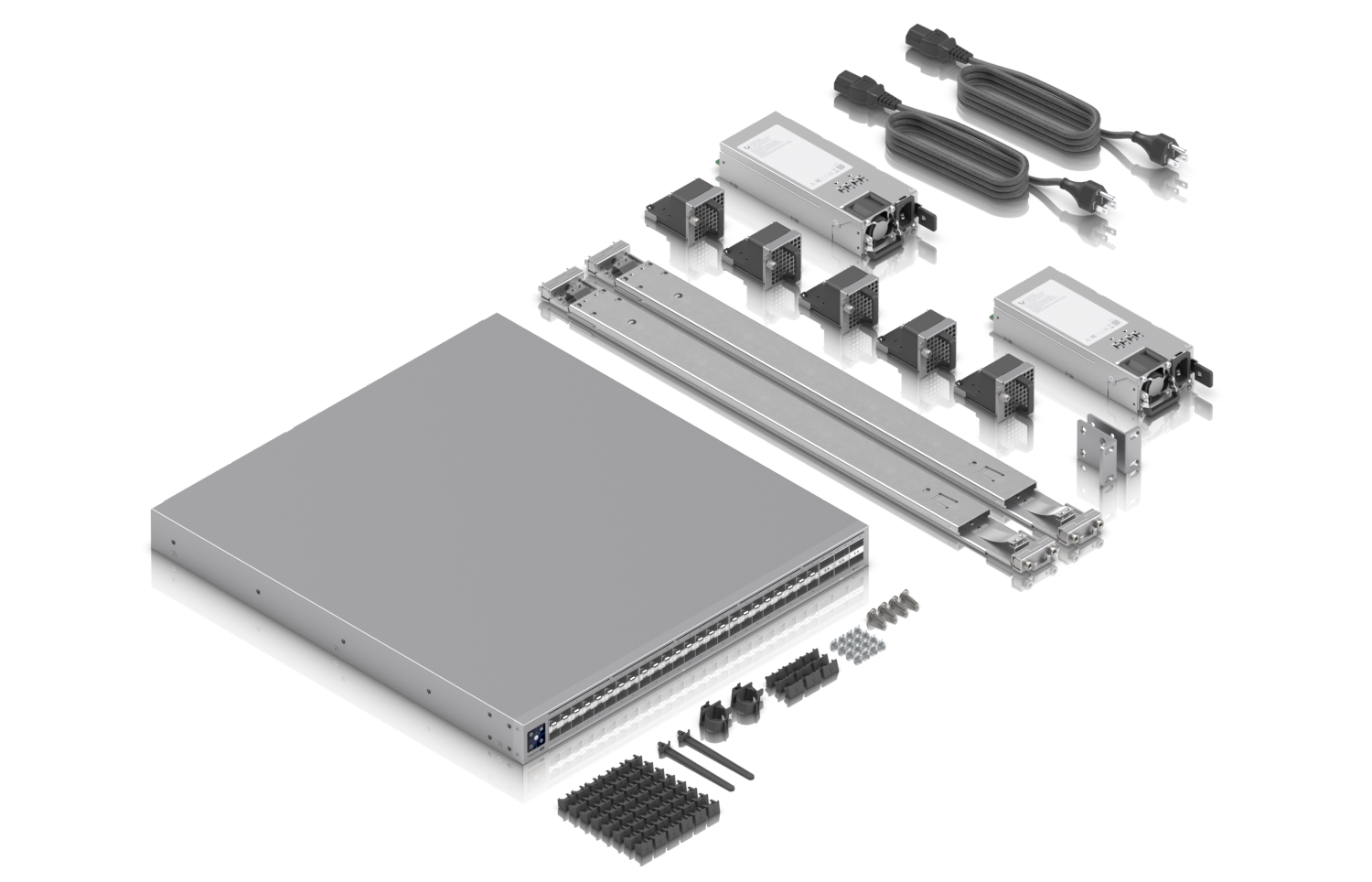

包裝內容
