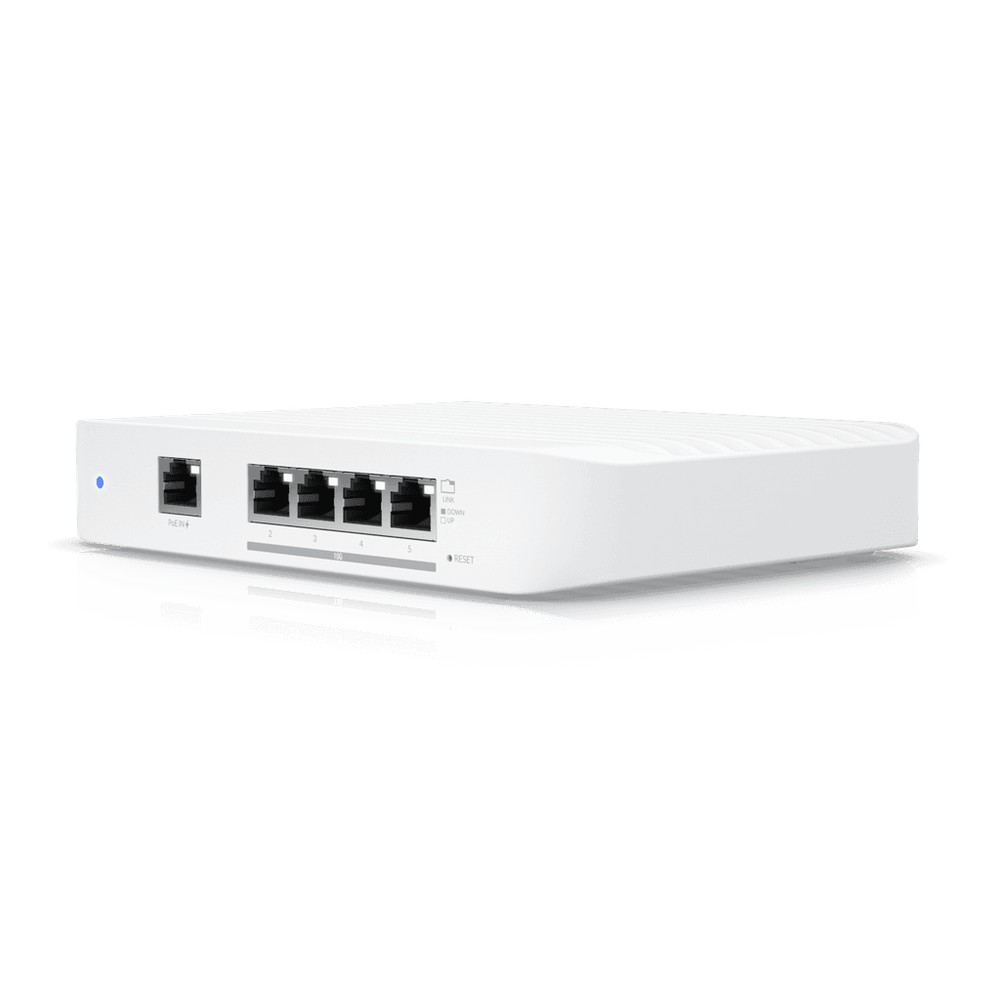

Ubiquiti UniFi Switch Flex XG USW-Flex-XG

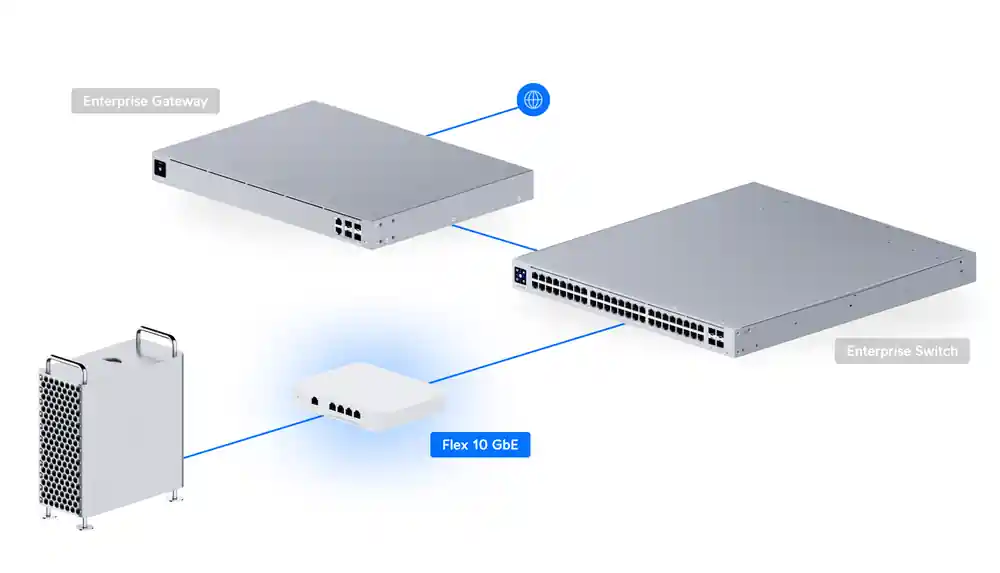

網絡拓撲

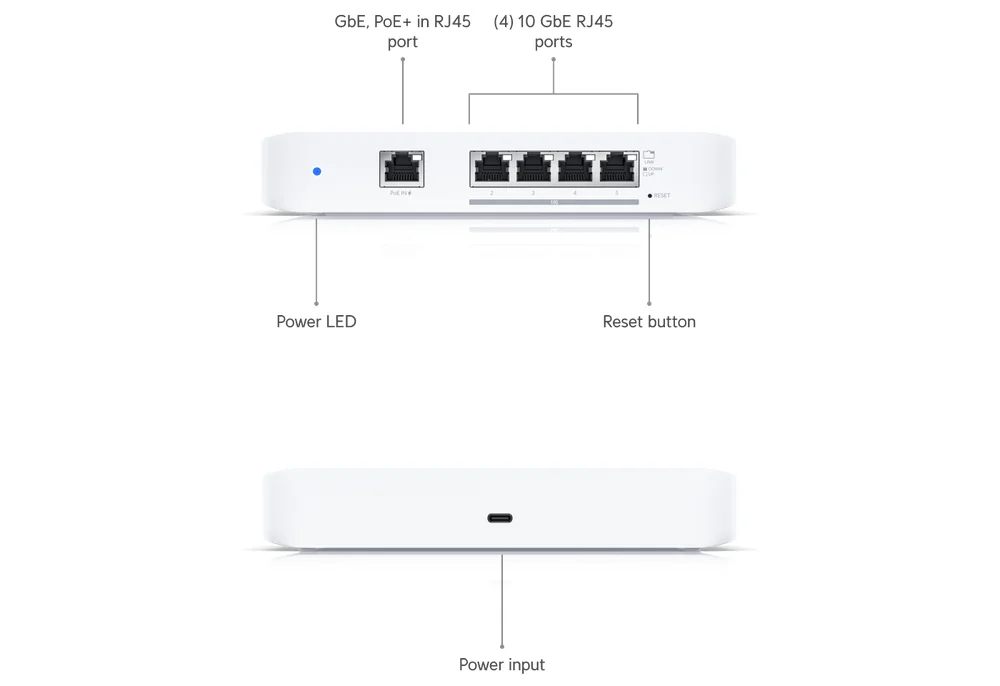

USW-Flex-XG 技術規格
總覽
| Dimensions |
135 x 185 x 32 mm (5.3 x 7.3 x 1.3″) |
| 1 GbE RJ45 |
1 (1G/100M/10M) |
| 10 GbE RJ45 |
4 |
| Form Factor |
Compact desktop, wall |
效能
| Switching Capacity |
82 Gbps |
| Total Non-Blocking Throughput |
41 Gbps |
| Forwarding Rate |
61 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
16,000 |
| Packet Buffer Size |
1.5 MB |
| IPv4 |
12 |
| MAC |
10 |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| Max. Power Consumption |
25W |
| Power Method |
(1) PoE+ (1) USB Type-C, 5V DC, 5A |
| Power Input Method |
USB Input PoE |
| Power Supply |
AC/DC, external, 25W |
| Supported Voltage Range |
4.8—5.2V DC/USB 44V—57V PoE |
| Management |
Ethernet |
| Heat Dissipation |
85.3 BTU/hr |
| Weight |
1.2 kg (2.7 lb) |
| Enclosure Material |
Polycarbonate |
| ESD Protection |
Air: ± 16kV, contact: ± 12kV |
| Ambient Operating Temperature |
-5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 06606-25-08356 |
軟件要求
| UniFi Network |
Version 6.1.67 and later |

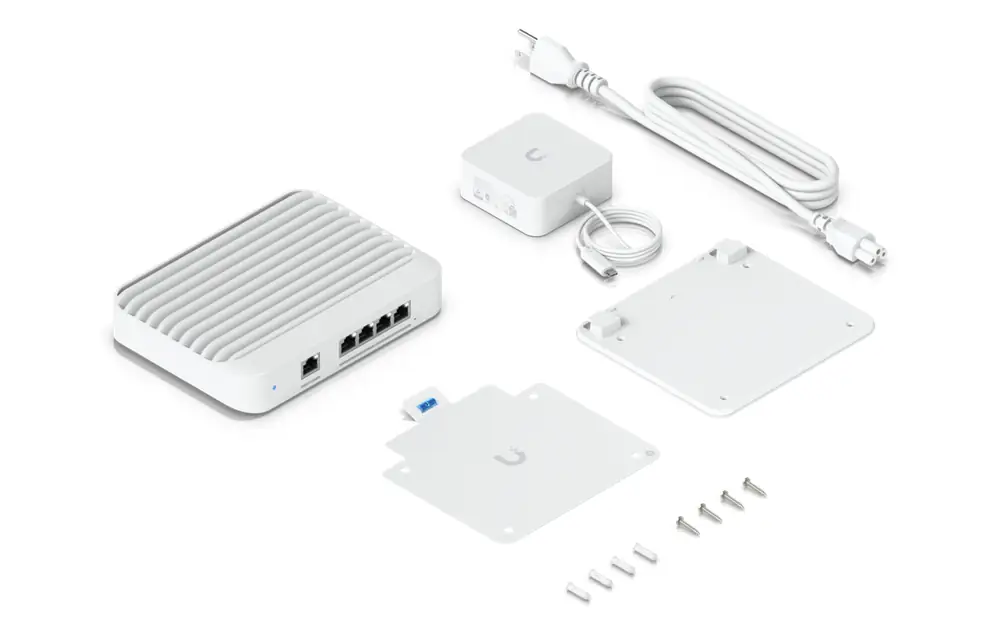

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
