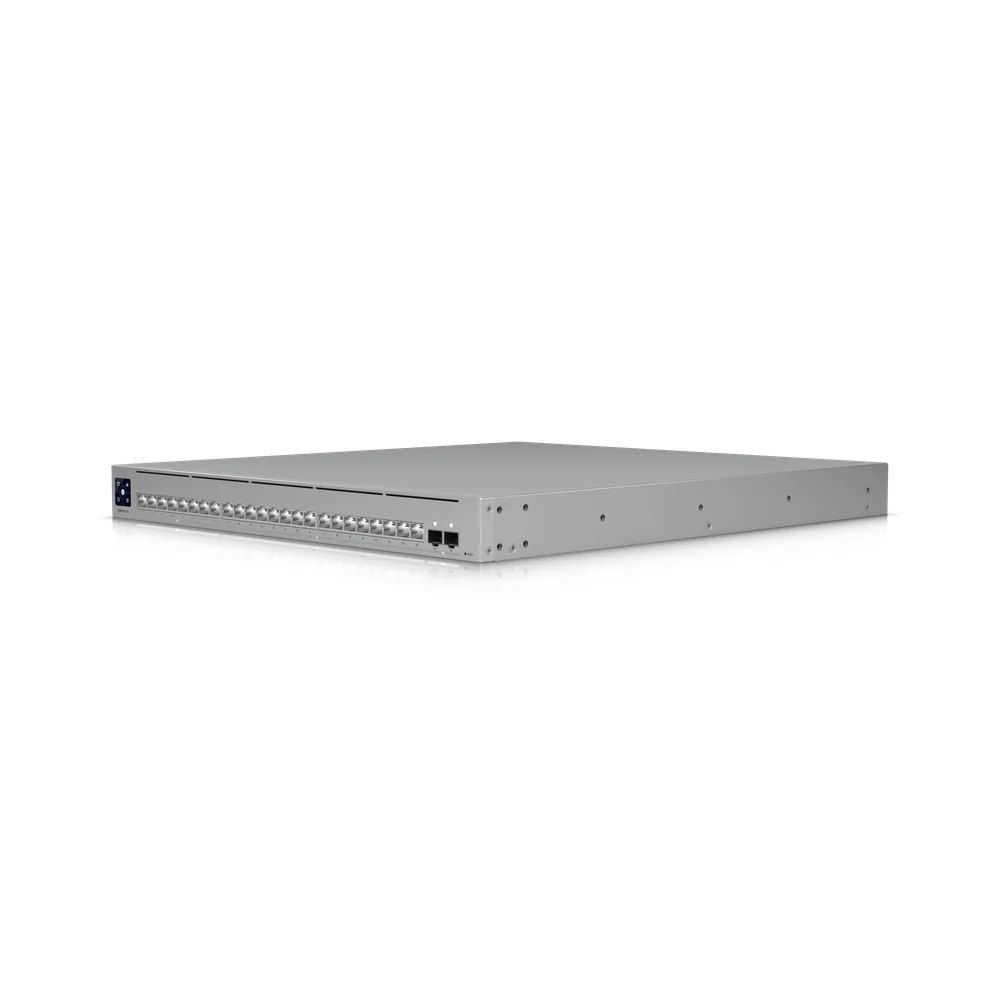

Ubiquiti UniFi Switch Pro XG 24 USW-Pro-XG-24

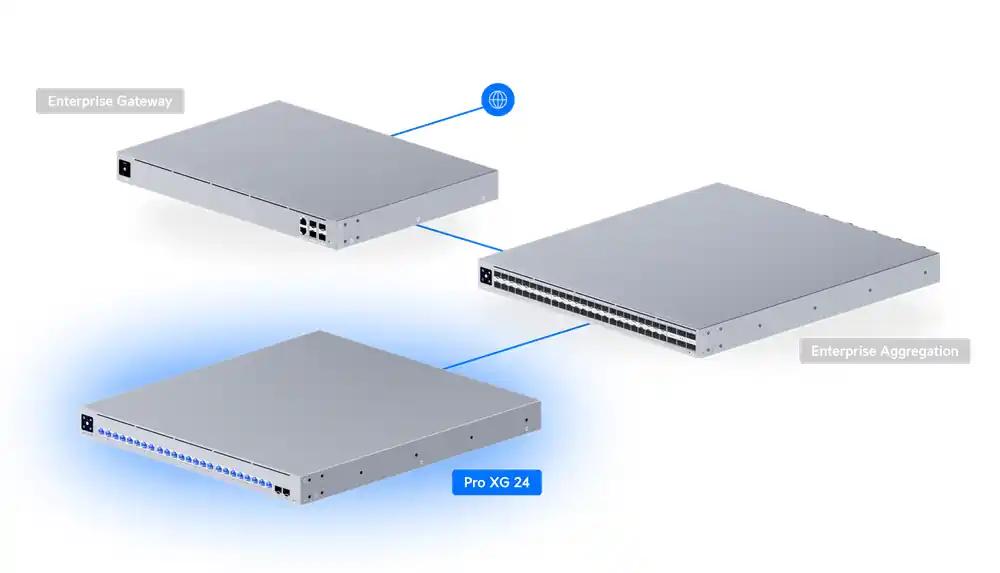

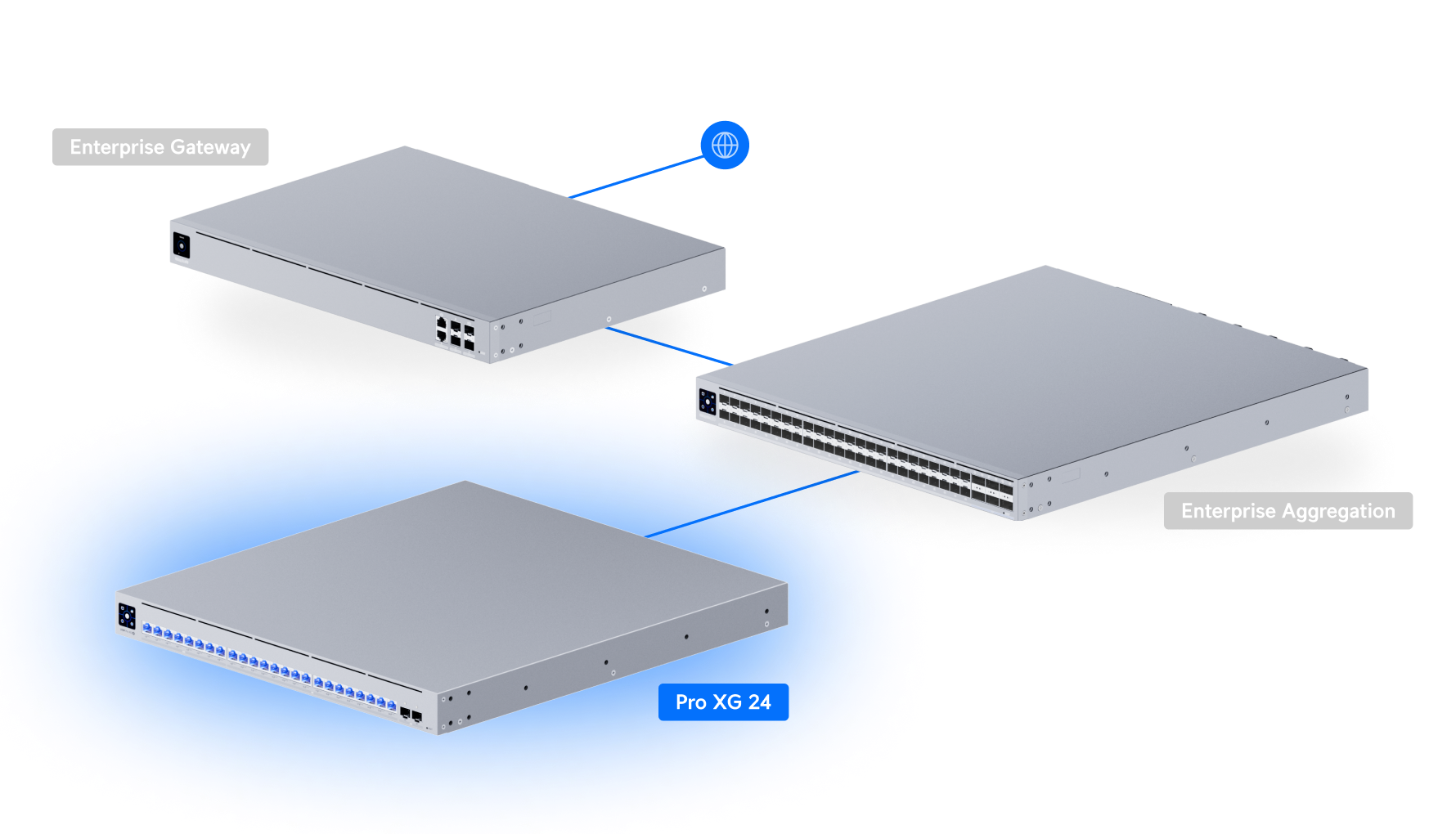

網絡拓撲

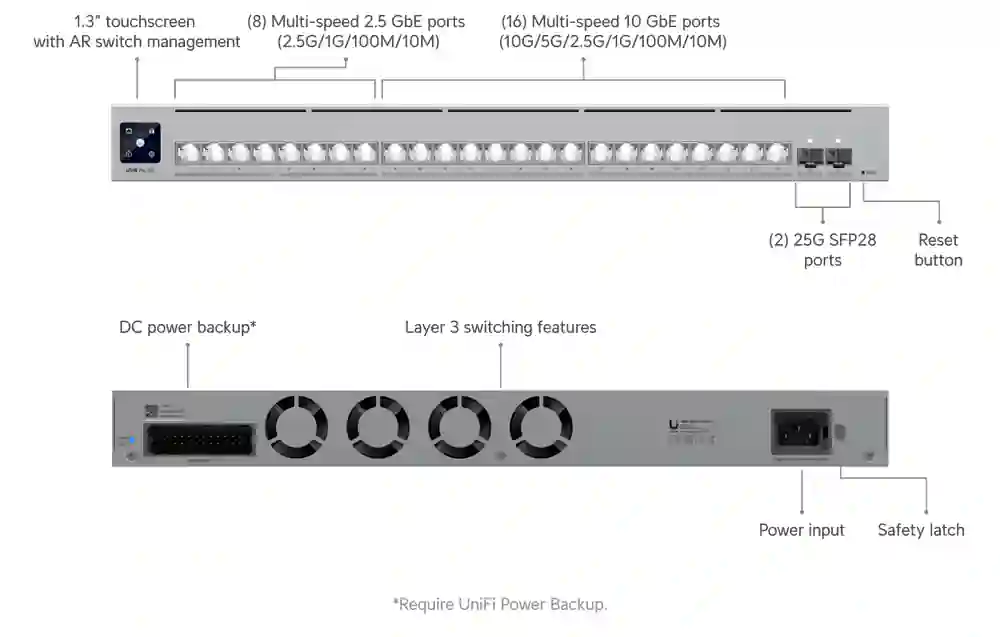

USW-Pro-XG-24 技術規格
總覽
| Dimensions |
442 x 480 x 44 mm (17.4 x 18.9 x 1.7″) |
| 2.5 GbE RJ45 |
8 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 |
16 (10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 |
2 (25G/10G/1G) |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |

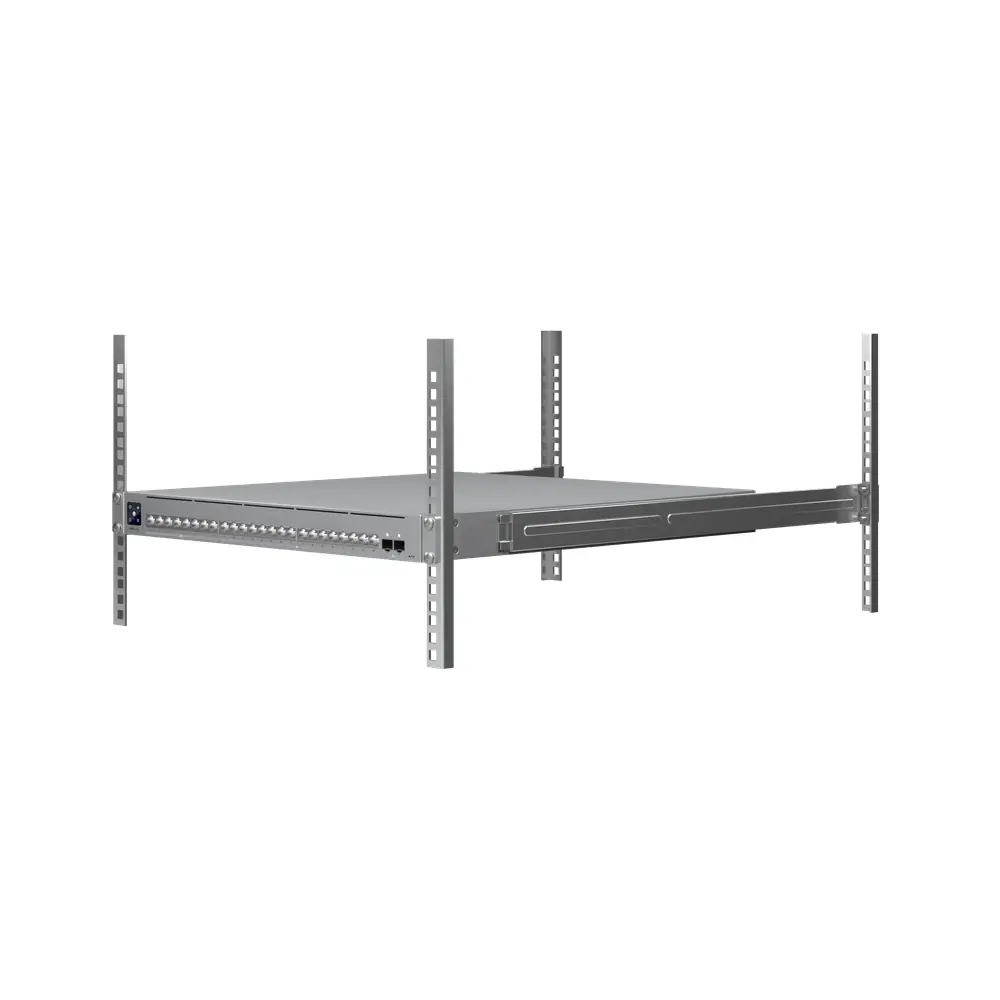

| Form Factor |
Rack mount (1U) |
| Etherlighting™ |
Yes |
效能
| Switching Capacity |
460 Gbps |
| Total Non-Blocking Throughput |
230 Gbps |
| Forwarding Rate |
342 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
128,000 |
| ARP Entries |
128,000 |
| IPv4 Routes |
256,000 |
| IPv4 Static Routes |
512 |
| Packet Buffer Size |
8 MB |
| IPv4 |
256 |
| MAC |
256 |
第三層功能
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| Max. Power Consumption |
150W |
| Power Method |
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 200W |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet AR |
| Weight |
Without mounting brackets: 7.2 kg (15.9 lb) With mounting brackets: 7.3 kg (16.1 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display |
1.3″ touchscreen |
| ESD Protection |
Air: ± 30kV, contact: ± 20kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Ethernet |
Yes |
| SFP28 |
Yes |
| RPS |
Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 06464-25-08356 |
軟件要求
| UniFi Network |
Version 9.0.114 and later |

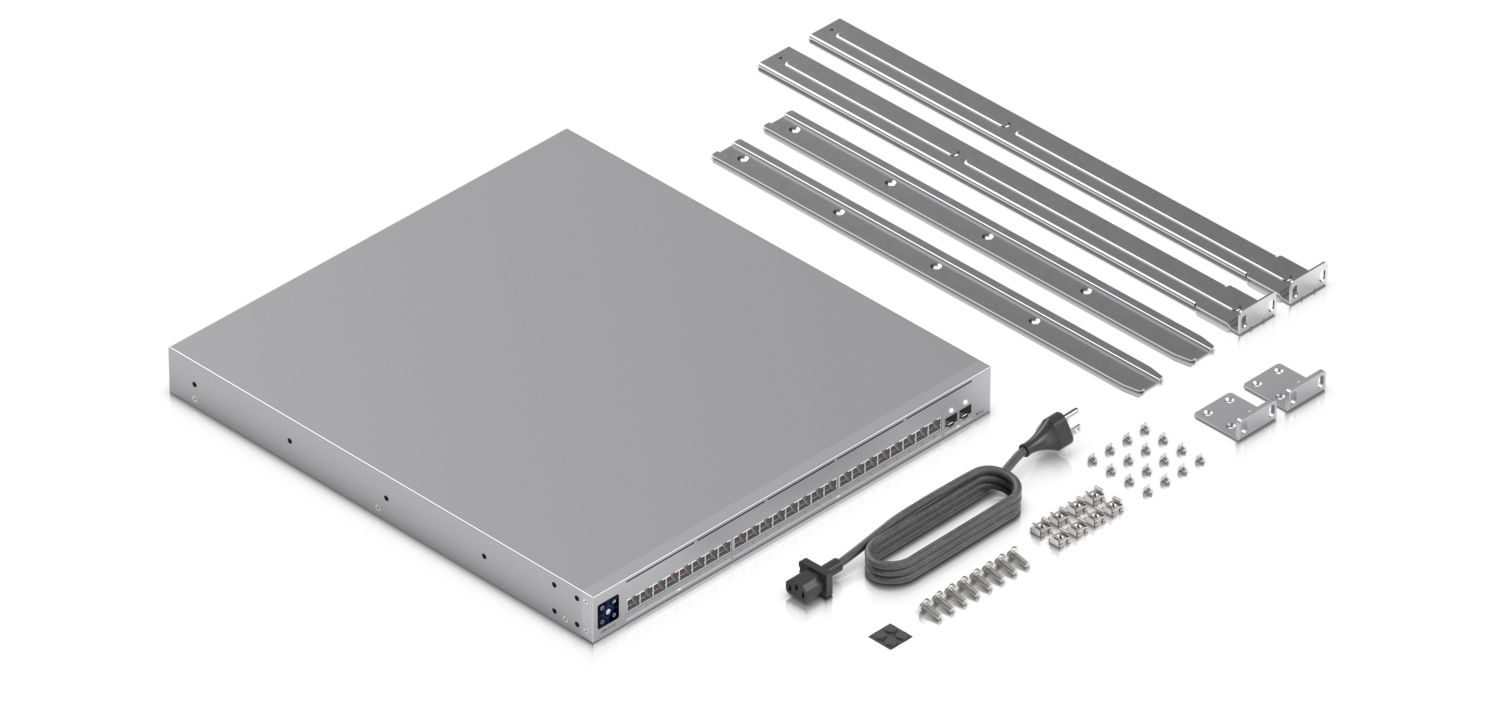

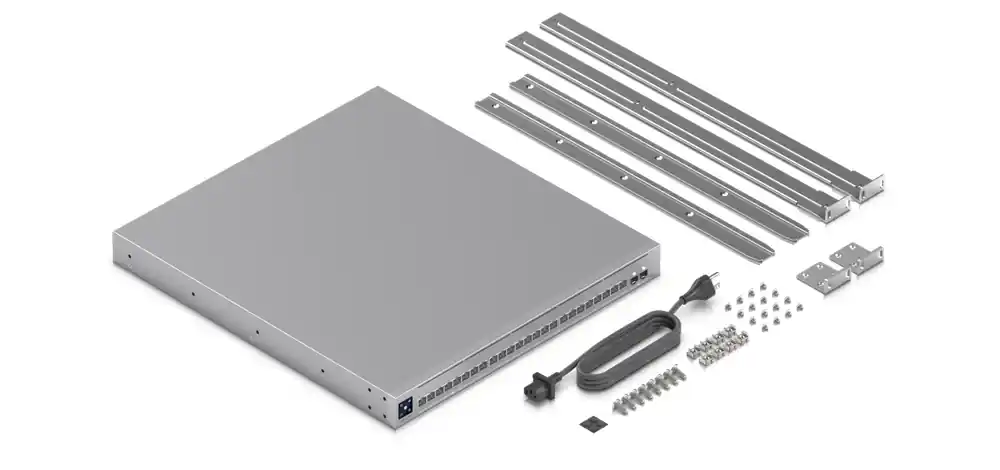

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
