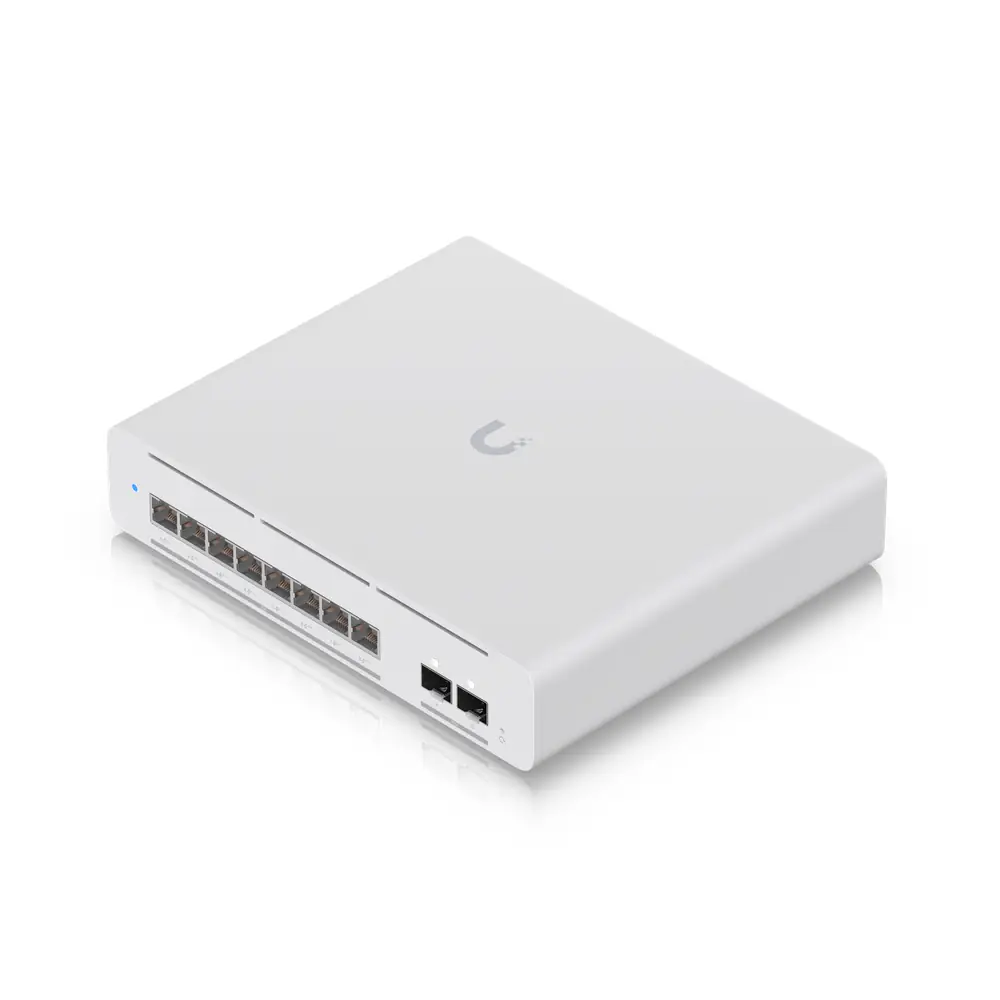

Ubiquiti UniFi Switch Pro XG 8 PoE USW-Pro-XG-8-PoE

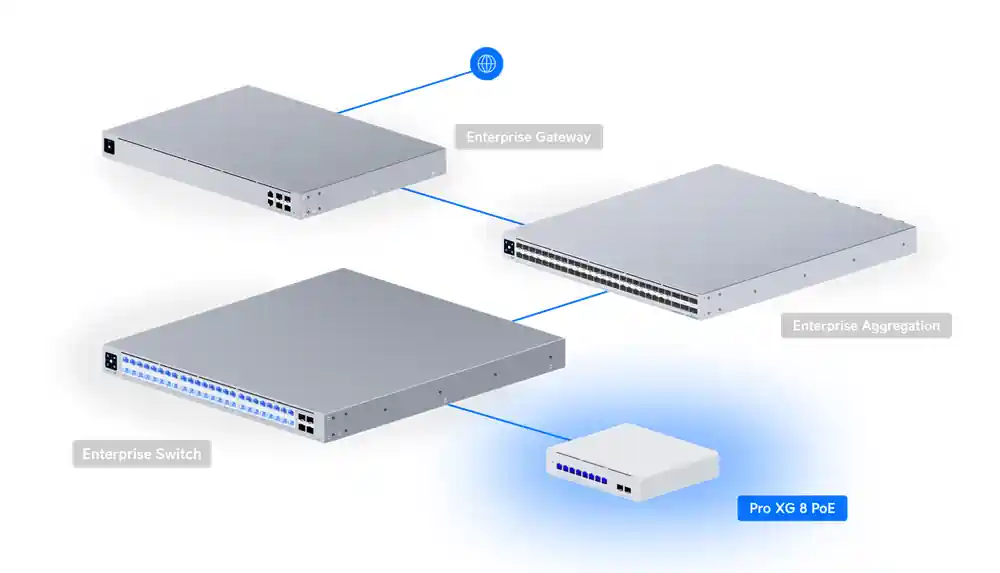

網絡拓撲

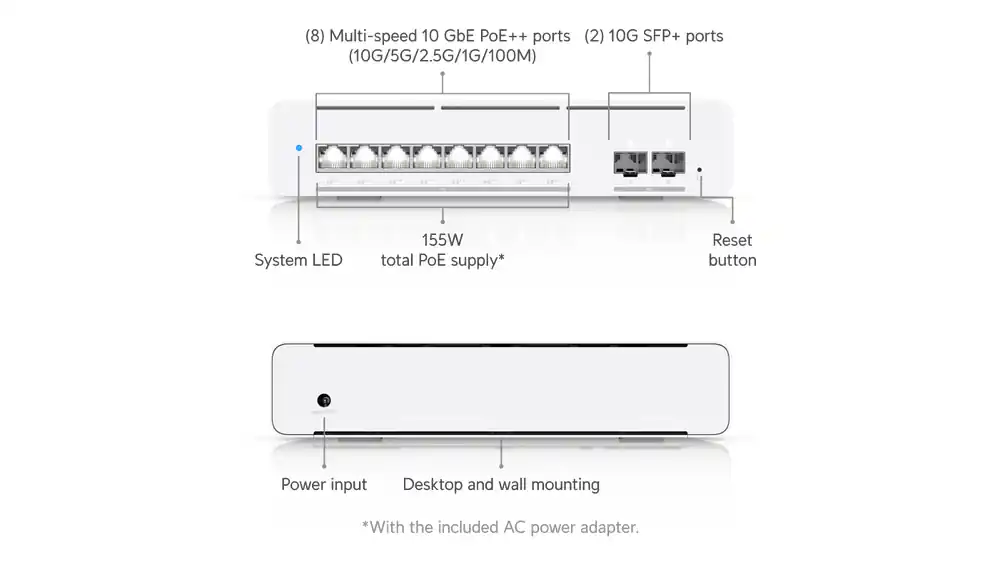

USW-Pro-XG-8-PoE 技術規格
總覽
| Dimensions |
210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7″) |
| 10 GbE RJ45 |
8 (All PoE++) (10G/5G/2.5G/1G/100M) |
| 10G SFP+ |
2 (10G/1G) |
| Max. PoE Output |
Up to PoE++ |
| Total PoE Availability |
155W |
| Layer 3 |
Yes |
| Form Factor |
Compact desktop, wall |
| Etherlighting™ |
Yes |
效能
| Switching Capacity |
200 Gbps |
| Total Non-Blocking Throughput |
100 Gbps |
| Forwarding Rate |
149 Mpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
32,000 |
| ARP Entries |
12,000 |
| IPv4 Routes |
12,000 |
| IPv4 Static Routes |
256 |
| Packet Buffer Size |
2 MB |
| IPv4 |
128 |
| MAC |
128 |
第三層功能
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| QoS (DSCP) |
Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| PoE++ |
8 |
| PoE |
15.4W |
| PoE+ |
30W |
| PoE++ |
60W |
| Max. Power Consumption |
61W (Excluding PoE output) 210W (Including PoE output) |
| Power Method |
AC/DC Adapter (included) |
| Power Input Method |
DC input |
| Power Supply |
AC/DC, external, 210W |
| Supported Voltage Range |
50–57V DC |
| Management |
Ethernet |
| Weight |
1.6 kg (3.5 lb) |
| Enclosure Material |
SGCC steel |
| Mount Material |
Polycarbonate |
| ESD Protection |
Air: ± 30kV, contact: ± 30kV |
| Ambient Operating Temperature |
-5 to 45° C (23 to 113° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Ethernet |
Yes |
| SFP+ |
Yes |
| System |
Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 04322-25-08356 |
軟件要求
| UniFi Network |
Version 9.0.114 and later |

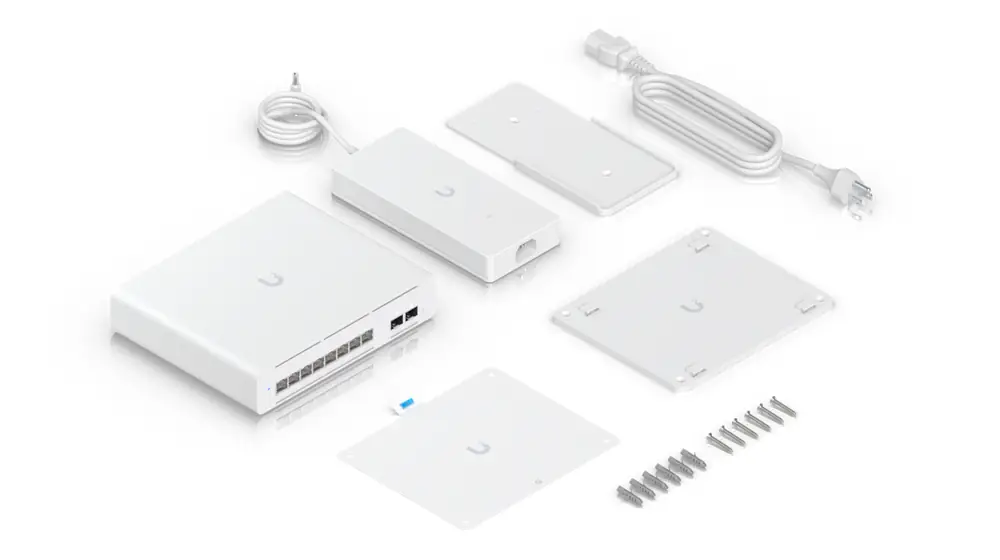

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
