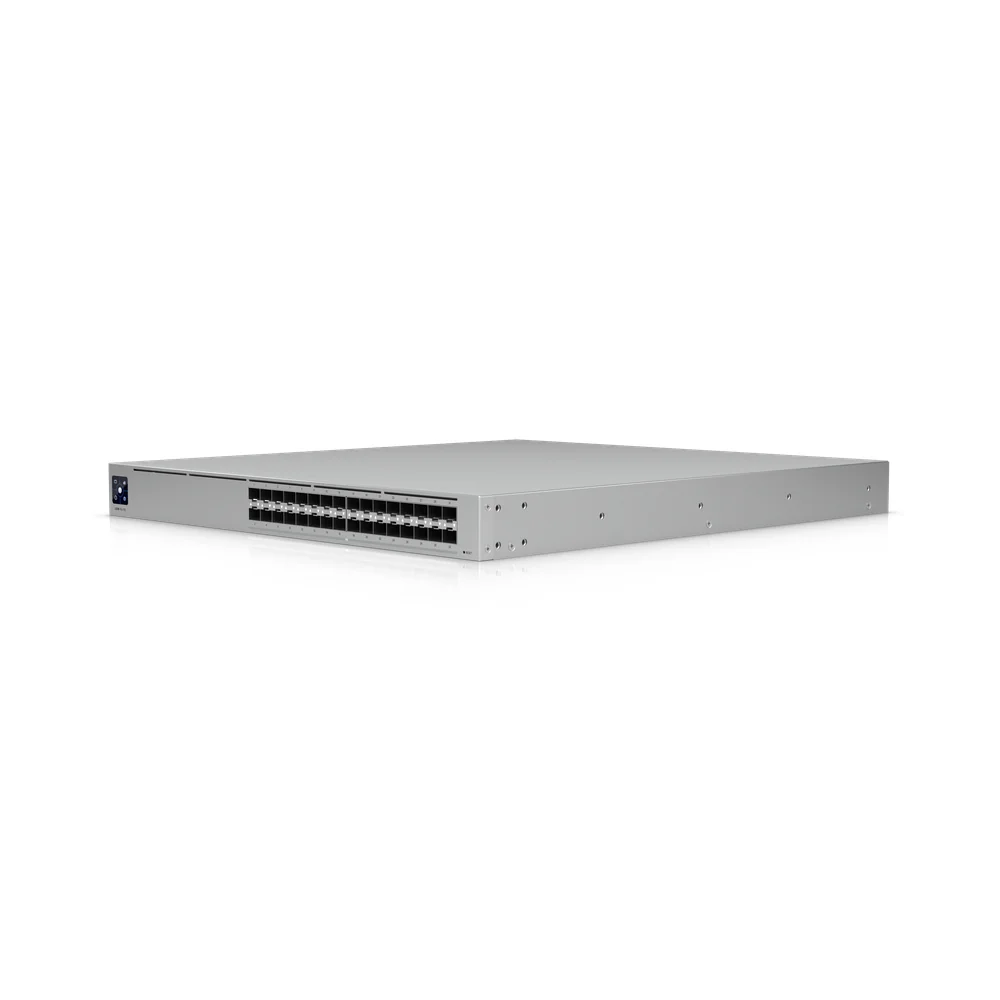

Ubiquiti UniFi Switch Pro XG Aggregation USW-Pro-XG-Aggregation

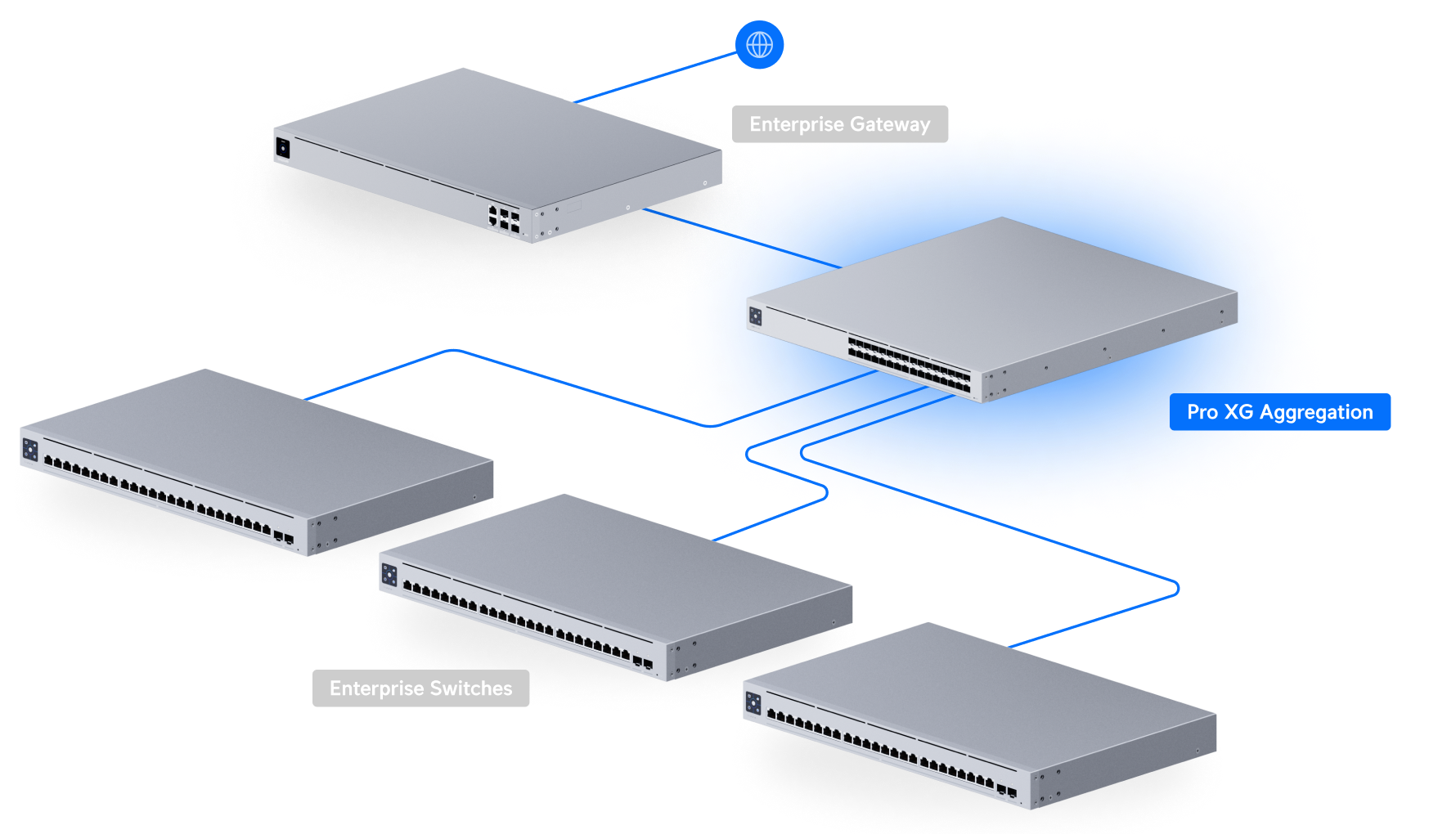

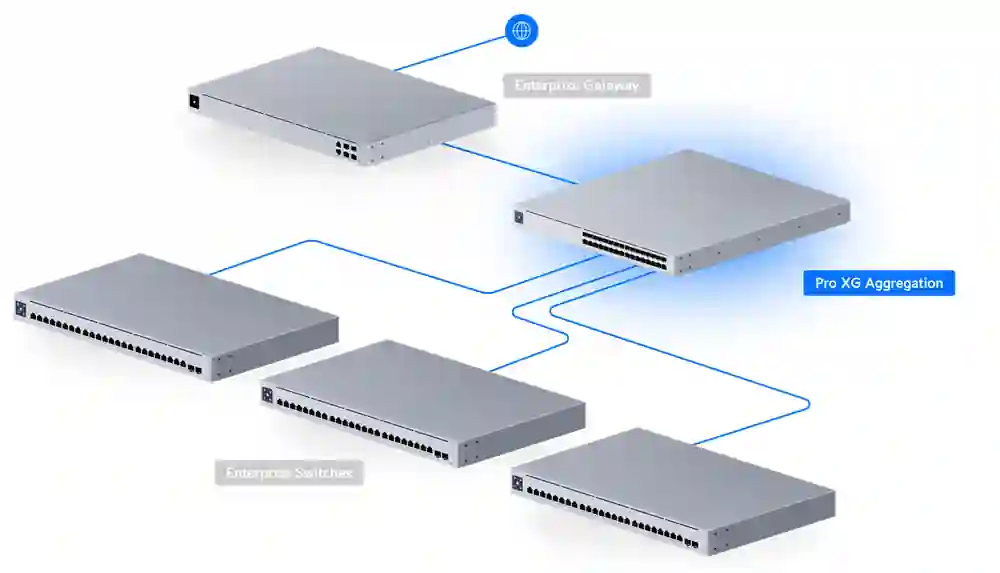

網絡拓撲

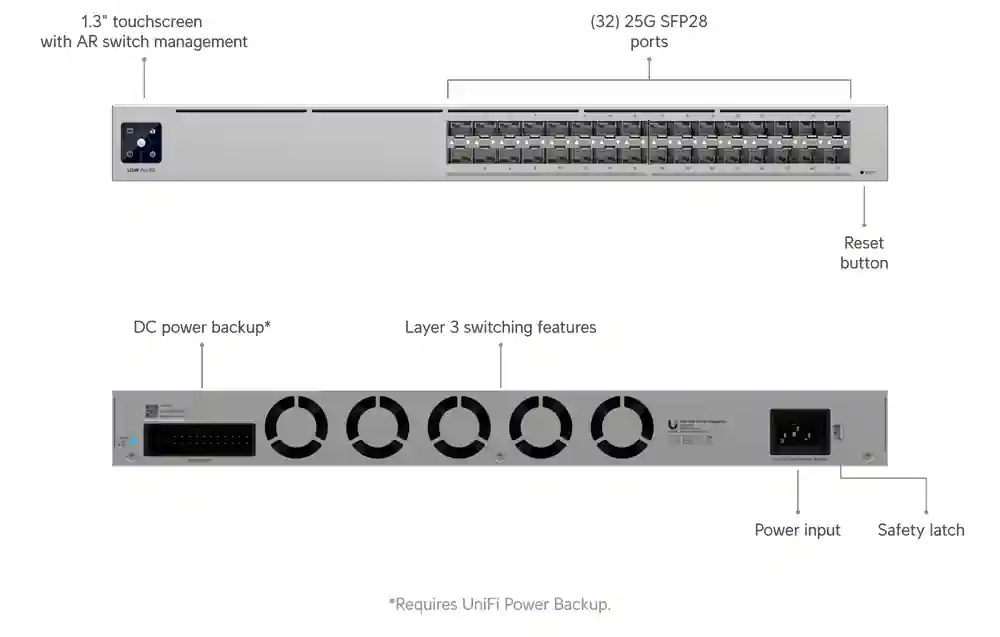

USW-Pro-XG-Aggregation 技術規格
總覽
| Dimensions |
442.4 x 43.7 x 480 mm (17.4 x 1.7 x 18.9″) |
| 25G SFP28 |
32 (25G/10G/1G) |
| Redundancy |
DC Power Backup |
| Layer 3 |
Yes |
| Form Factor |
Rack Mount (1U) |
| Etherlighting™ |
Yes |
效能
| Switching Capacity |
1.6 Tbps |
| Total Non-Blocking Throughput |
800 Gbps |
| Forwarding Rate |
1.2 Bpps |
| Supported VLANs |
1,000 |
| MAC Address Table Size |
32,000 |
| ARP Entries |
128,000 |
| IPv4 Routes |
256,000 |
| IPv4 Static Routes |
512 |
| Packet Buffer Size |
8 MB |
| IPv4 |
256 |
| MAC |
256 |
第三層功能
| DHCP Server (Local Networks) |
Yes |
| DHCP Relay |
Yes |
| Inter-VLAN Routing (Local Networks) |
Yes |
| Static Routing (Local Networks) |
Yes |
第二層功能
| LACP Port Aggregation |
Yes |
| STP & RSTP |
Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) |
Yes |
| IGMP Snooping |
Yes |
| 802.1X Control |
Yes |
| MAC-Based ACLs & Device Isolation |
Yes |
| DHCP Snooping & Guarding |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| MAC Address Blocking |
Yes |
| IP-Based ACLs & Network Isolation |
Yes |
| MAC-Based Port Restriction |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| LLDP-MED |
Yes |
| Voice VLAN |
Yes |
| Loop Protection |
Yes |
| Virtual Network Override |
Yes |
硬件規格
| Max. Power Consumption |
200W |
| Power Method |
(1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method |
AC input |
| Power Supply |
AC/DC, internal, 200W |
| Supported Voltage Range |
100–240V AC |
| Management |
Ethernet AR |
| Heat Dissipation |
457 BTU/hr |
| Weight |
Without mounting bracket: 7.1 kg (15.7 lbs) With mounting bracket:7.2 kg (15.9 lbs) |
| Enclosure Material |
SGCC steel |
| Mount Material |
SGCC steel |
| Supported Rack Depth |
482.6 mm (19″) four-post racks Posts depths ranging from 600 to 1,066 mm (23.6-42”) |
| LCM Display |
1.3″ touchscreen |
| ESD Protection |
Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature |
-5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| SFP28 |
Yes |
| RPS |
Yes |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 05977-25-08356 |

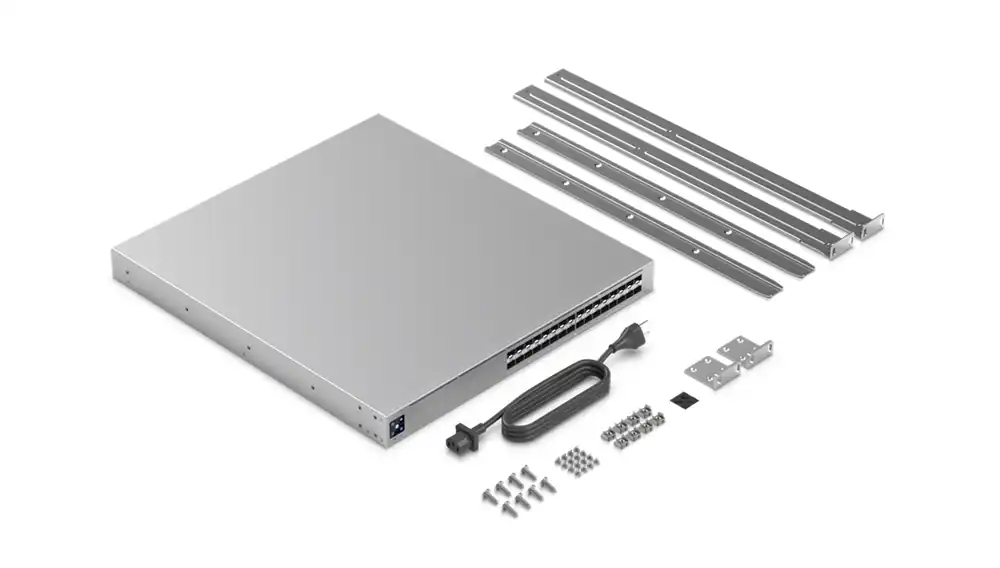

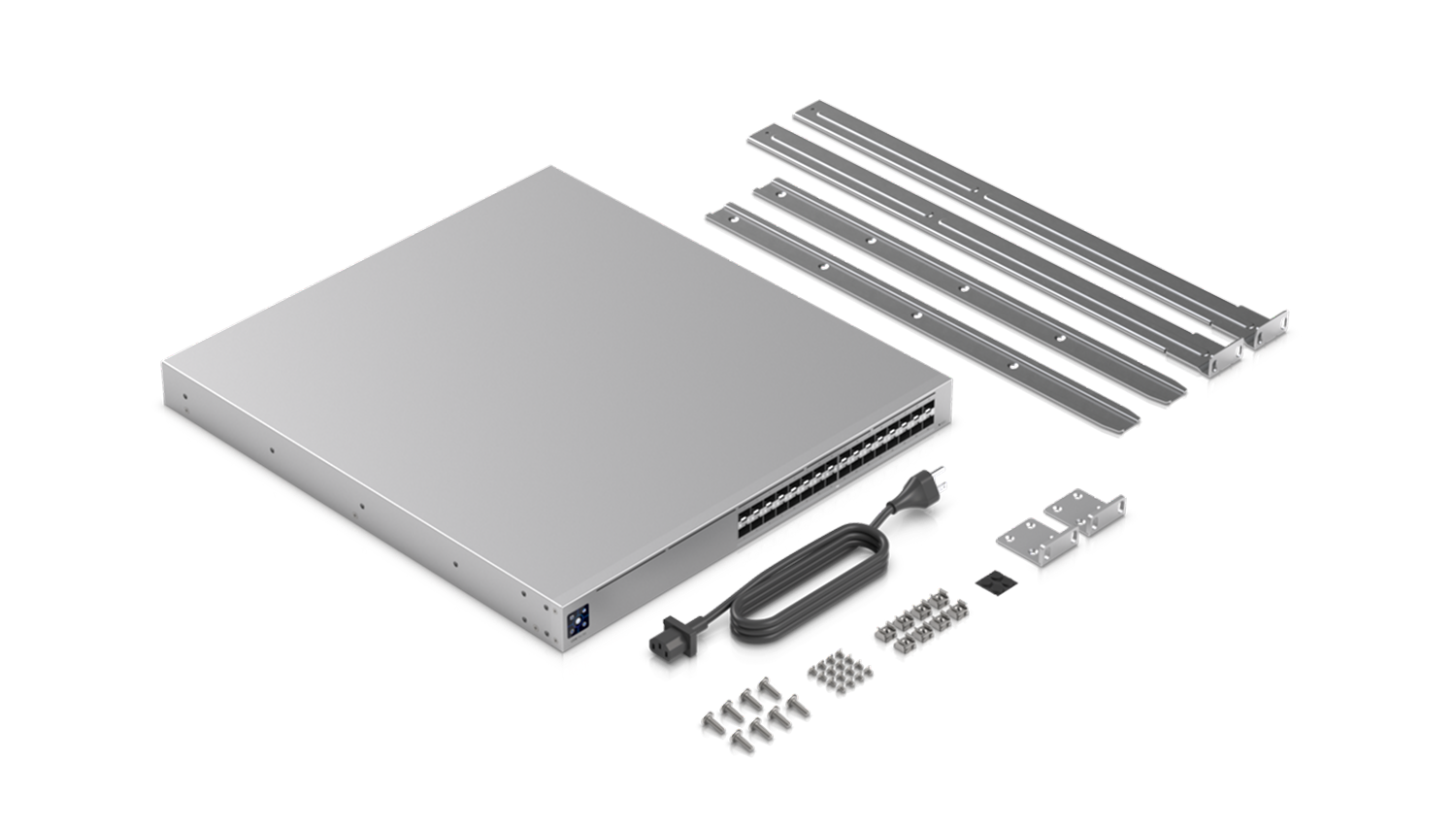

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
