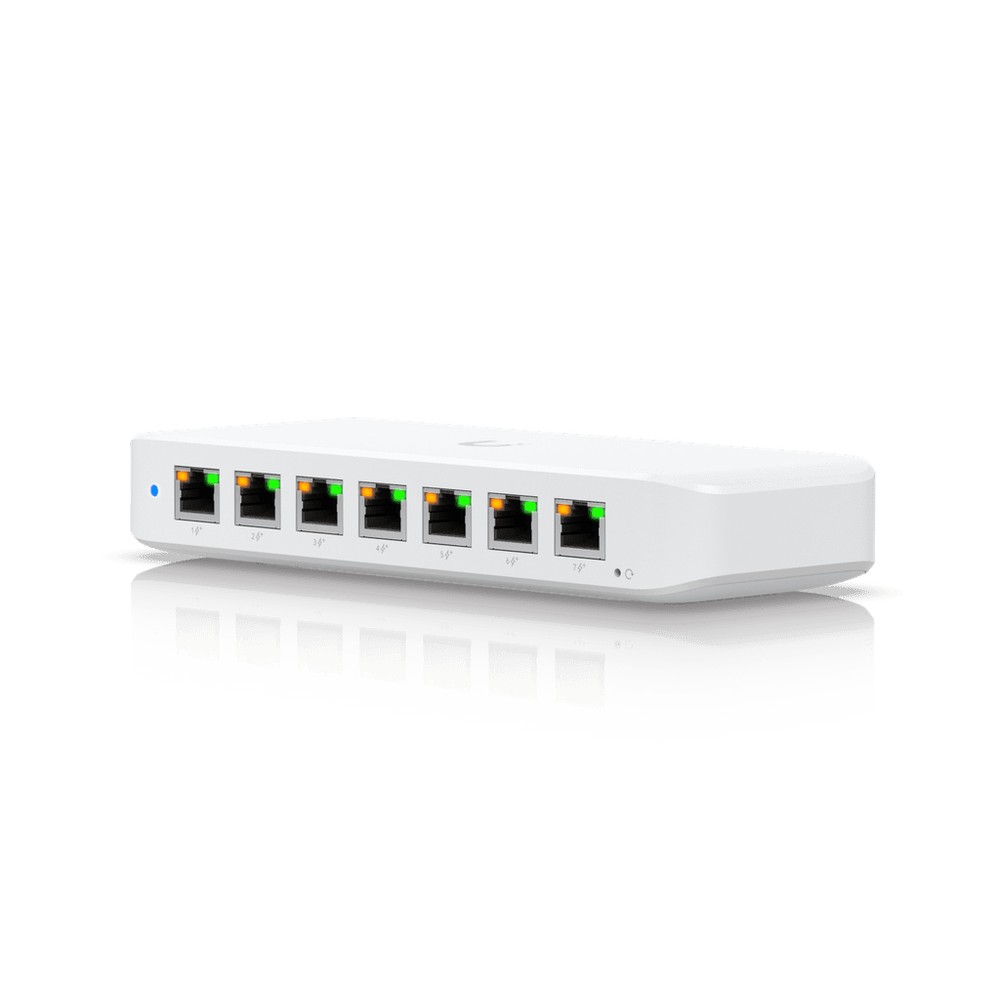

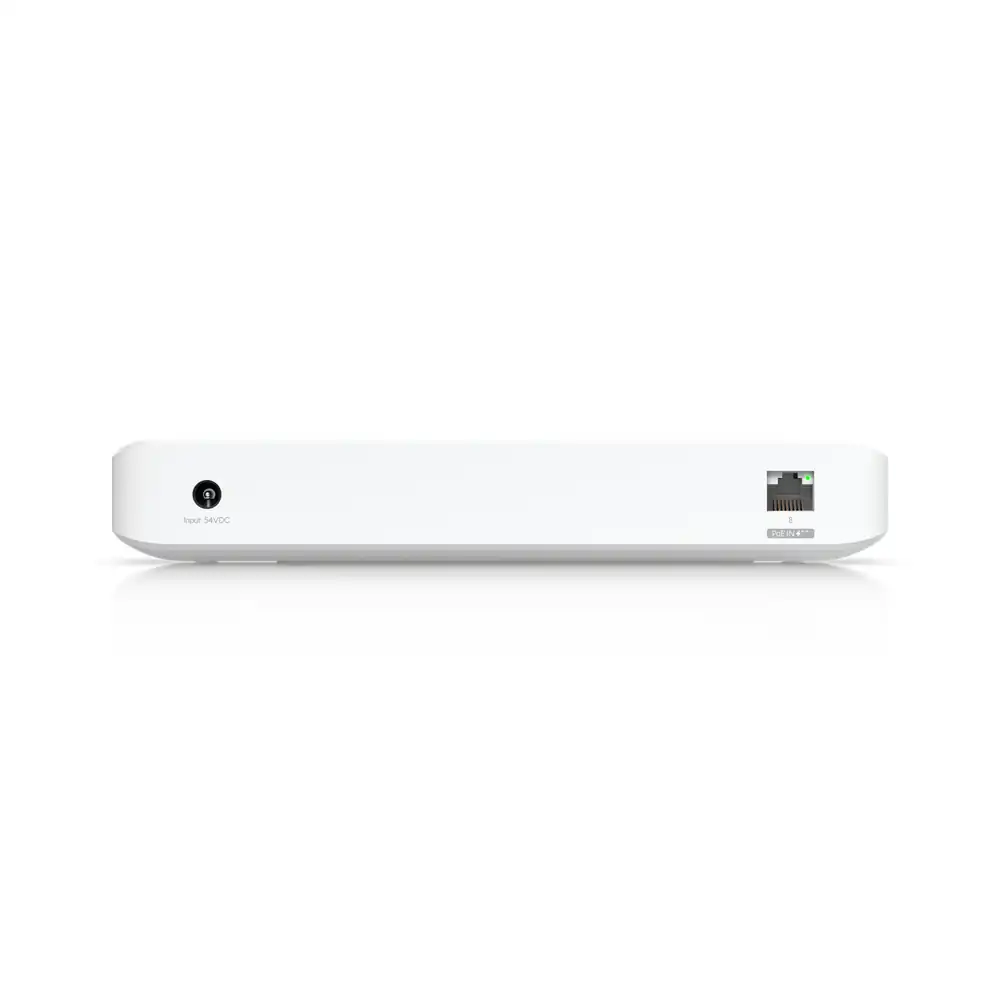

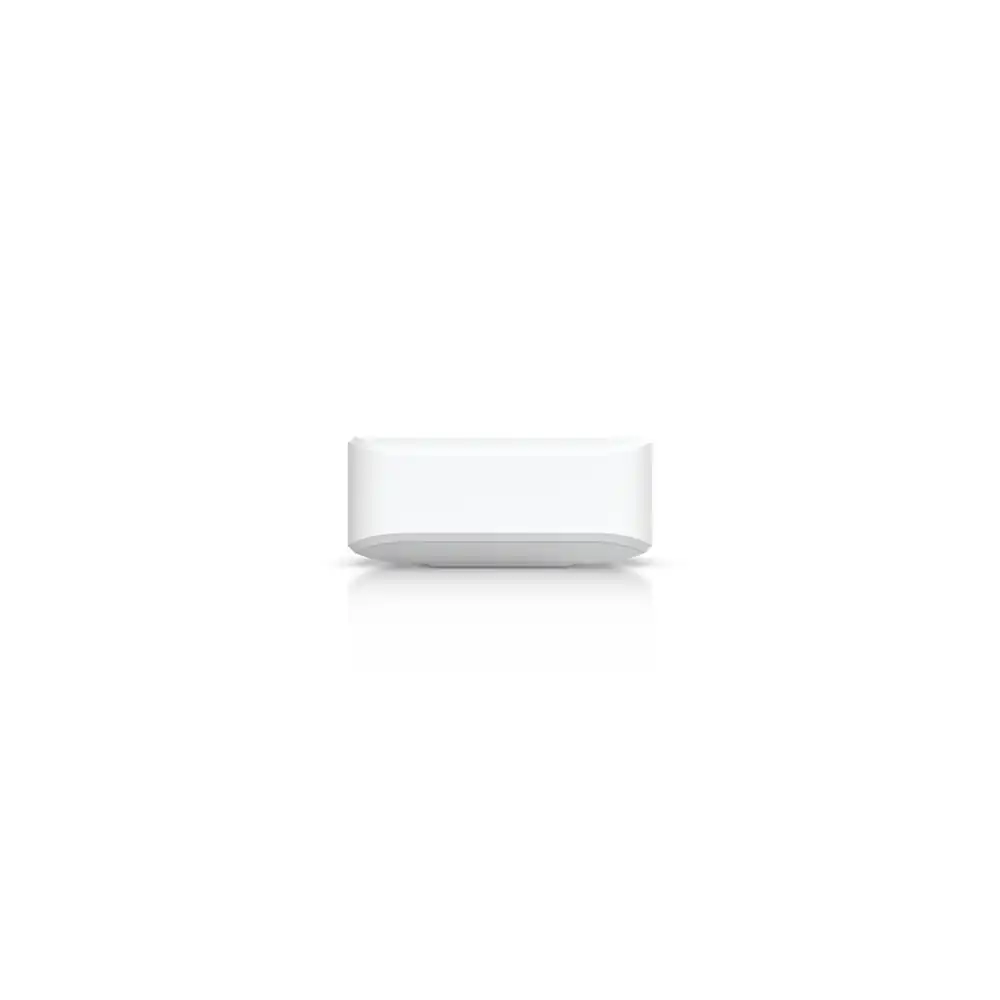

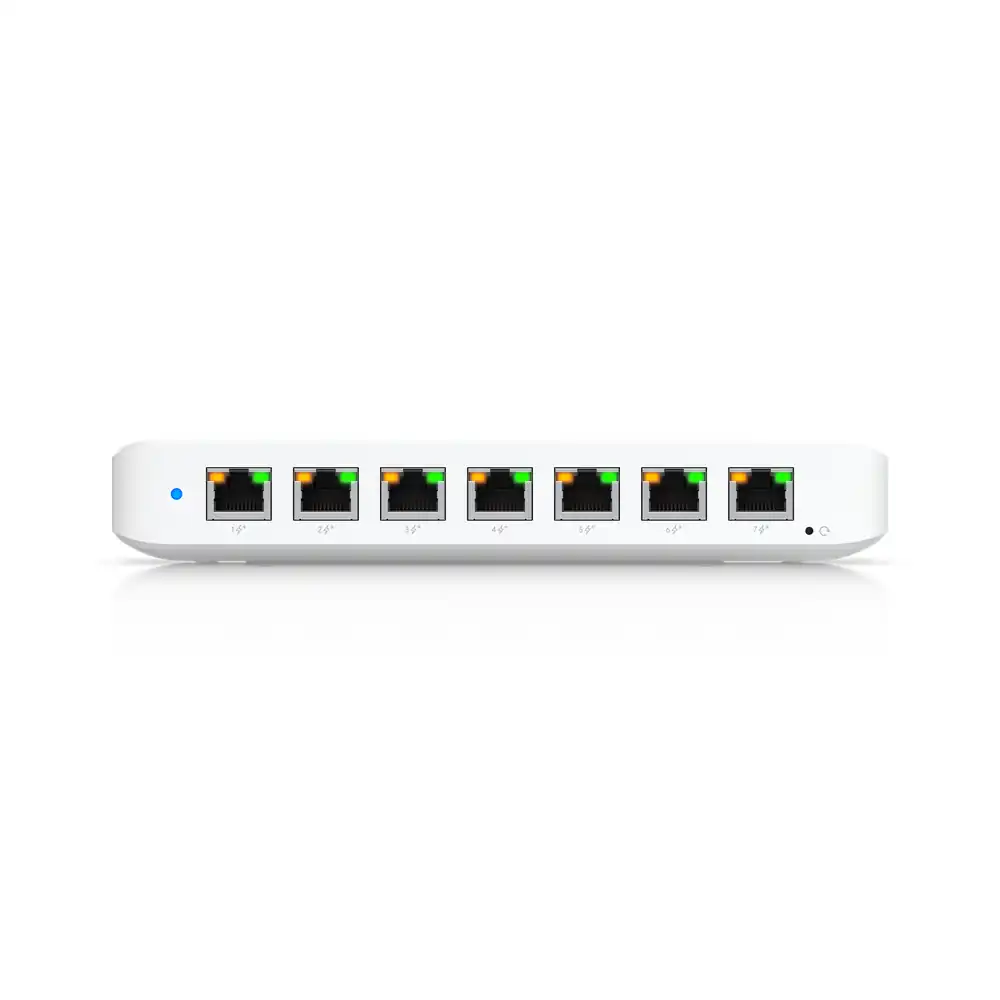

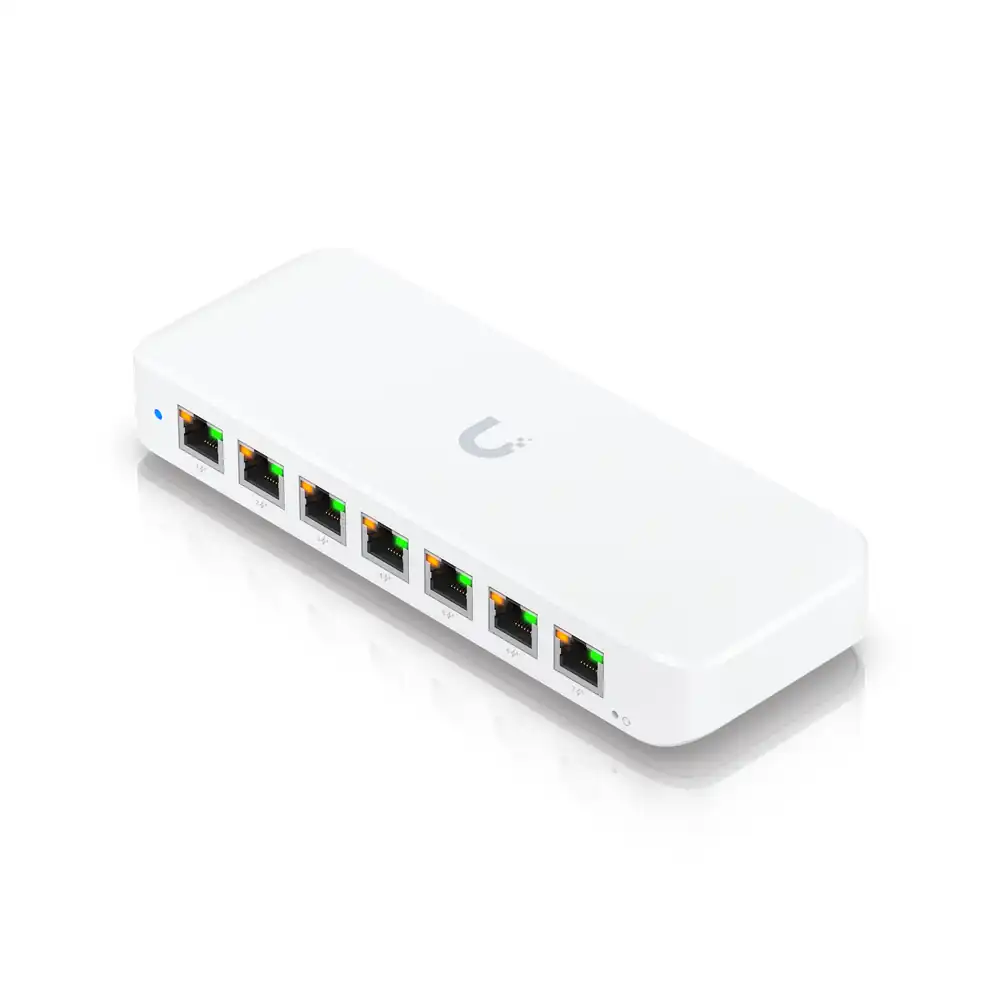

Ubiquiti UniFi Ultra 60W USW-Ultra-60W
網絡拓撲
USW-Ultra-60W 技術規格
總覽
| Dimensions |
203 x 76 x 33 mm (8 x 3 x 1.3″) |
| 1 GbE RJ45 |
8 (7 PoE+, 1 PoE++ input) (1G/100M/10M) |
| Max. PoE Output |
Up to PoE+ |
| Total PoE Availability |
PoE++ input: 42W PoE+ input: 16W 60W PoE adapter input: 42W 60W AC adapter input: 52W 210W AC adapter input: 202W |
| Form Factor |
Compact desktop, wall, magnetic |
效能
| Switching Capacity |
16 Gbps |
| Total Non-Blocking Throughput |
8 Gbps |
| Forwarding Rate |
12 Mpps |
| Supported VLANs |
256 |
| MAC Address Table Size |
4,000 |
第二層功能
| STP & RSTP |
Yes |
| Egress Rate Limit |
Yes |
| Flow Control |
Yes |
| Storm Control |
Yes |
| Multicast & Broadcast Rate Limiting |
Yes |
| Port Isolation |
Yes |
| Port Mirroring |
Yes |
| Jumbo Frames |
Yes |
| Loop Protection |
Yes |
硬件規格
| PoE+ |
7 |
| PoE++ |
1 |
| PoE+ |
30W |
| Max. Power Consumption |
9W (Excluding PoE Output) with PoE input 8W (Excluding PoE Output) with adapter input 210W (Including PoE Output) with 210W AC adapter input |
| Power Method |
(1) AC/DC adapter (Included) (1) PoE++ |
| Power Input Method |
DC Input PoE |
| Power Supply |
AC/DC, external, 210W |
| Supported Voltage Range |
50–57V DC/PoE |
| Management |
Ethernet |
| Heat Dissipation |
15 BTU/hr (Excluding PoE Output) |
| Weight |
Device: 320 g (11.3 oz) Wall mount: 45 g (1.6 oz) Adapter: 770 g (1.7 lb) |
| Enclosure Material |
Polycarbonate |
| Ambient Operating Temperature |
PoE++ input: -30 to 60° C (-22 to 140° F) 210W AC adapter input: -20 to 60° C (-4 to 140° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 06367-24-08356 |
軟件要求
| UniFi Network |
Version 8.0.7 and later |

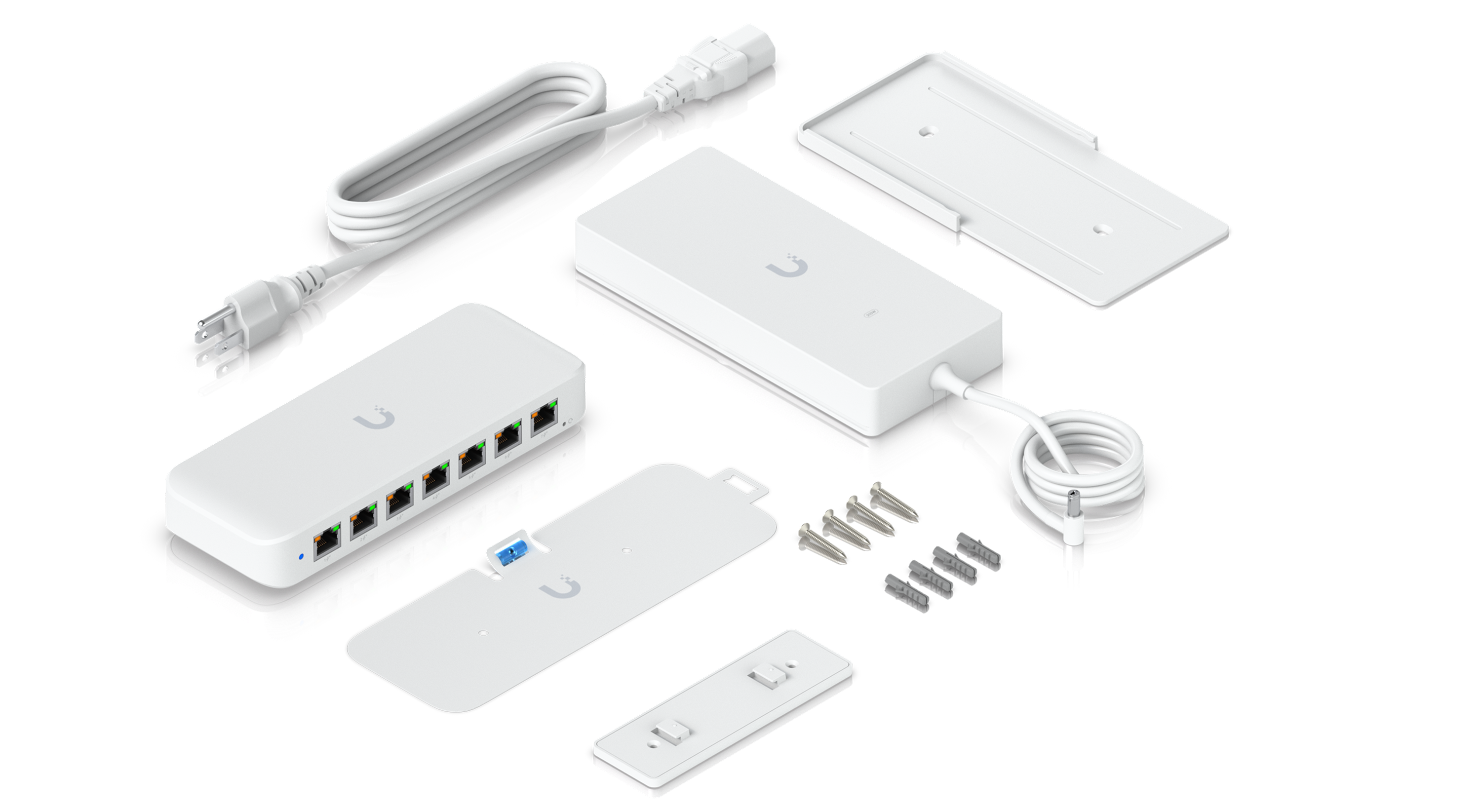

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
