Ubiquiti UniFi UniFi 5G Max U5G-Max-Outdoor
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi UniFi 5G Max U5G-Max-Outdoor

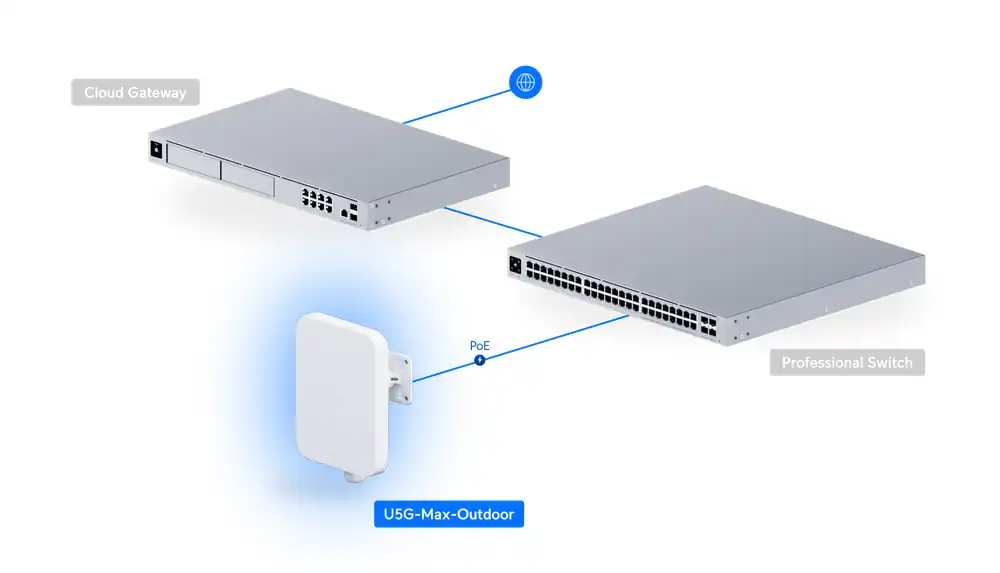

網絡拓撲
U5G-Max-Outdoor 技術規格
總覽

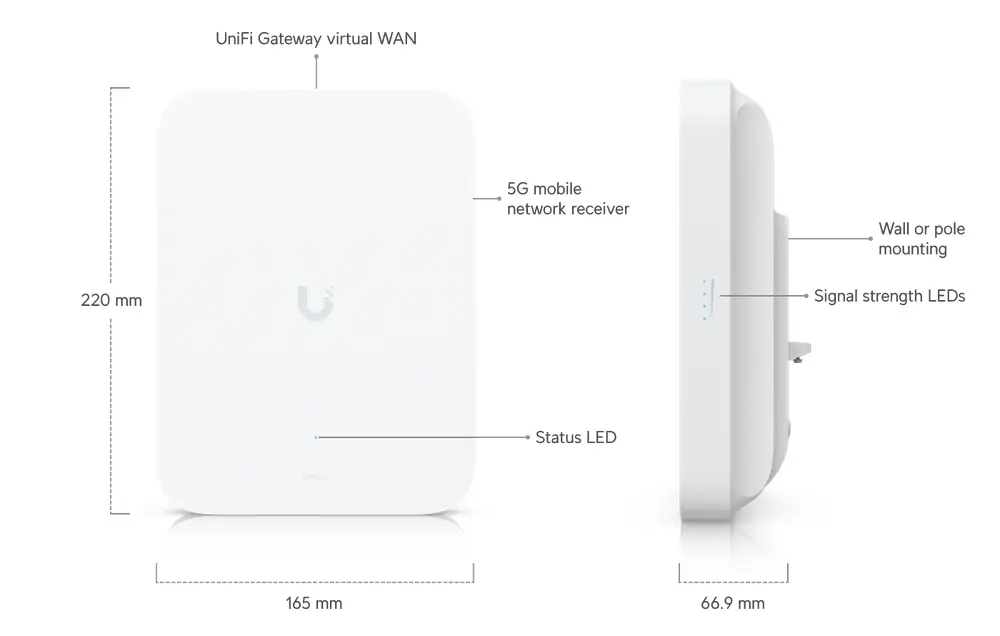

| Dimensions | Device: 220 x 165 x 66.9 mm (8.7 x 6.5 x 2.6″) With mount: 220 x 165 x 122 mm (8.7 x 6.5 x 4.8″) |
|---|---|

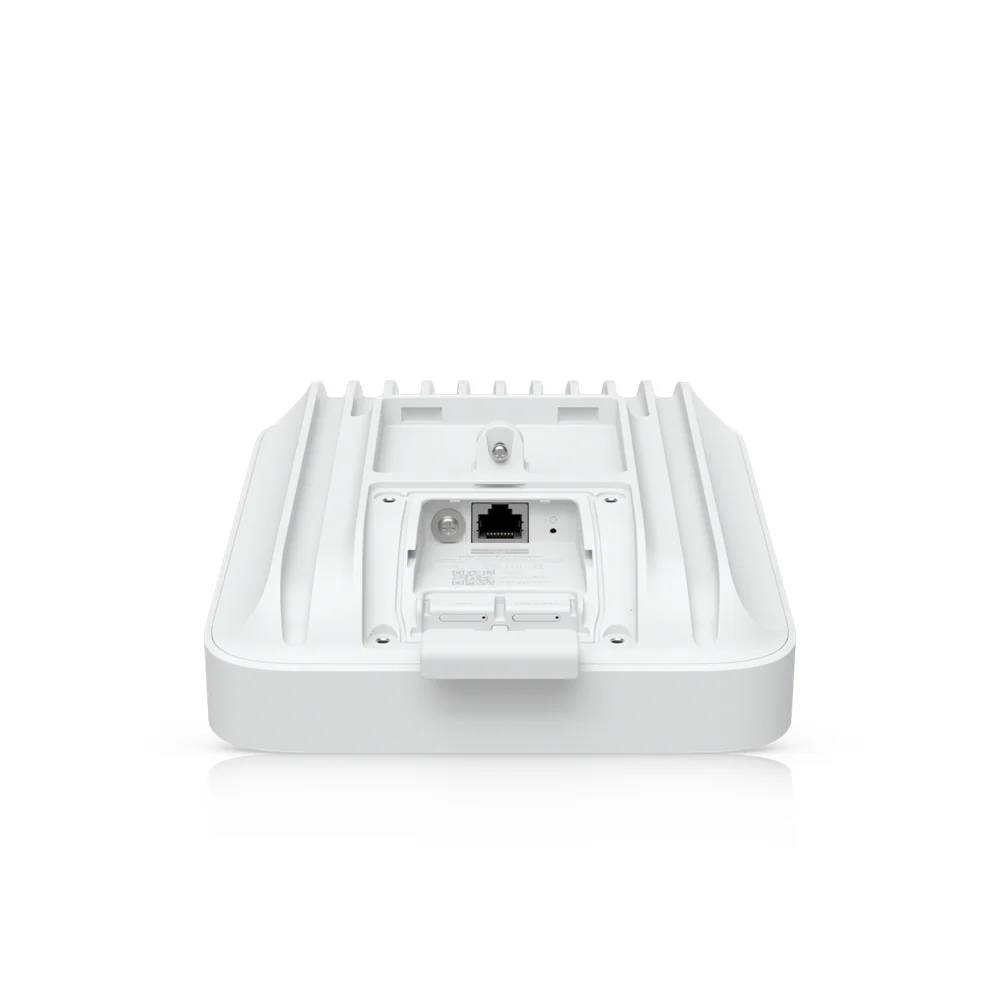

| Networking Interface | (1) 2.5 GbE RJ45 port 5G NR and LTE radio |
| SIM | (1) Nano SIM (1) Nano-SIM or eSIM |
| PoE Interface | (1) PoE input |

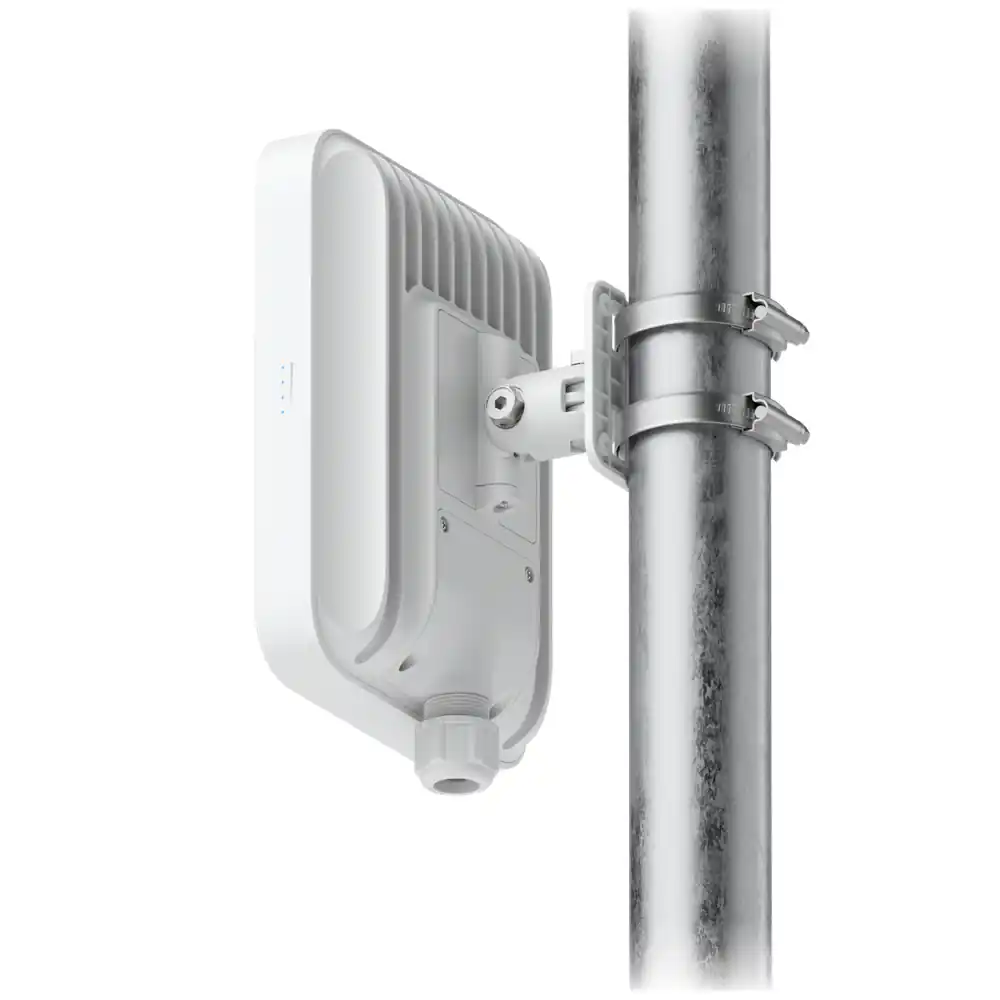

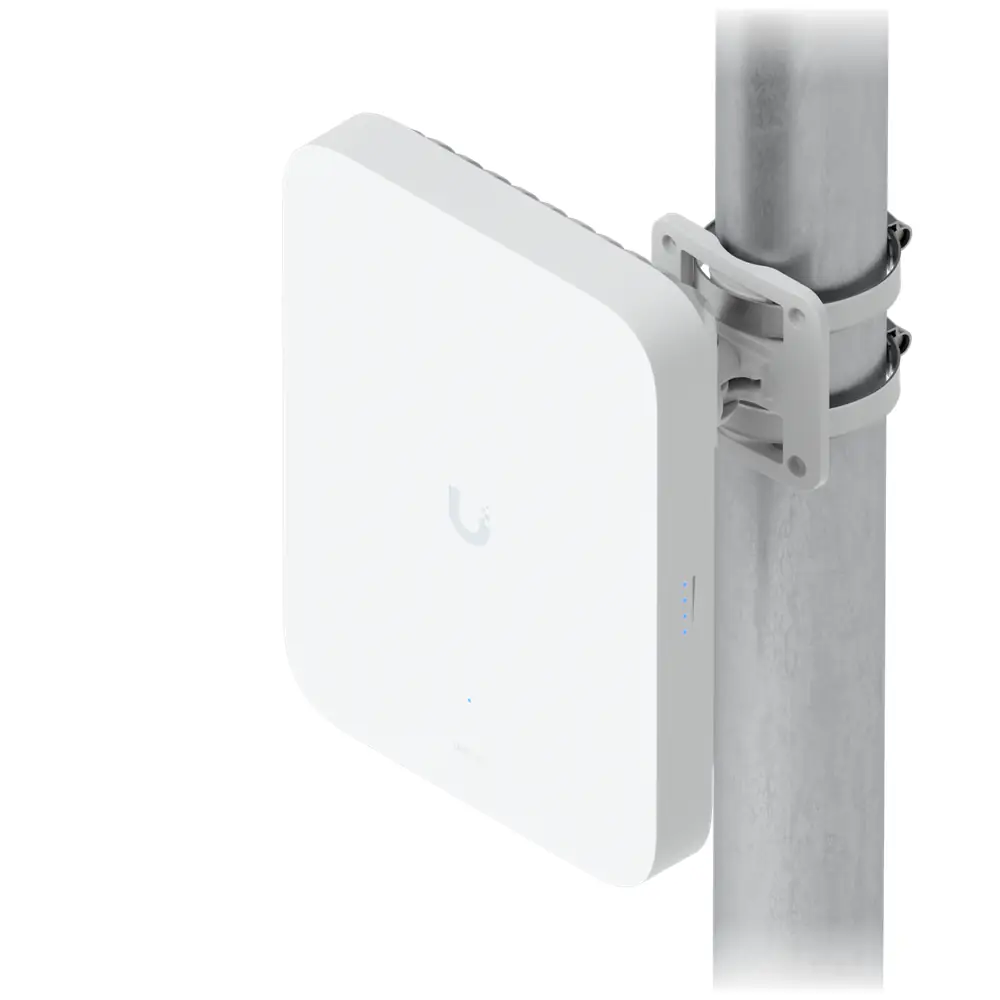

| Mounting | Pole mount, wall mount (Included) |
| Weatherproofing | IPX6 IP67 (With cable-gland door kit) |
Mechanical
| Weight | Device: 1.2 kg (2.6 lb) Mount: 130 g (4.6 oz) |
|---|---|
| Enclosure Material | Aluminum-alloy, UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate |
| Pole Mount Diameter | 1–2.5″ (25–63.5 mm) on pipe outer diameter |
| Wind Loading | 91N at 200 km/h (20.45 lbf at 125 mph) |
硬件規格
| Management | Ethernet |
|---|---|
| Category | 5G NR |
| Frequency Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 |
| Max. TX Power | HPUE power class 2: 26 dBm |
| Frequency Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| Max. TX Power | HPUE power class 2: 25 dBm |
| Frequency Bands | B1, B2, B4, B5, B8, B19 |
| 5G NSA | Downlink 3.4 Gbps Uplink 560 Mbps |
| 5G SA | Downlink 1.8 Gbps Uplink 650 Mbps |
| 4G LTE | Downlink 1.6 Gbps Uplink 210 Mbps |
| Type | (6) Embedded cellular antennas, including (2) high-gain for downlink: peak 9 dBi, 85°x85° |
| Max. Power Consumption | 14.5W |
| Power Method | PoE |
| Buttons | (1) Factory reset |
| LEDs | Yes |
| Ambient Operating Temperature | -40 to 65 °C (-40 to 149 °F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | FCC, IC, CE, PTCRB, GCF, AT&T, T-Mobile, Verizon |

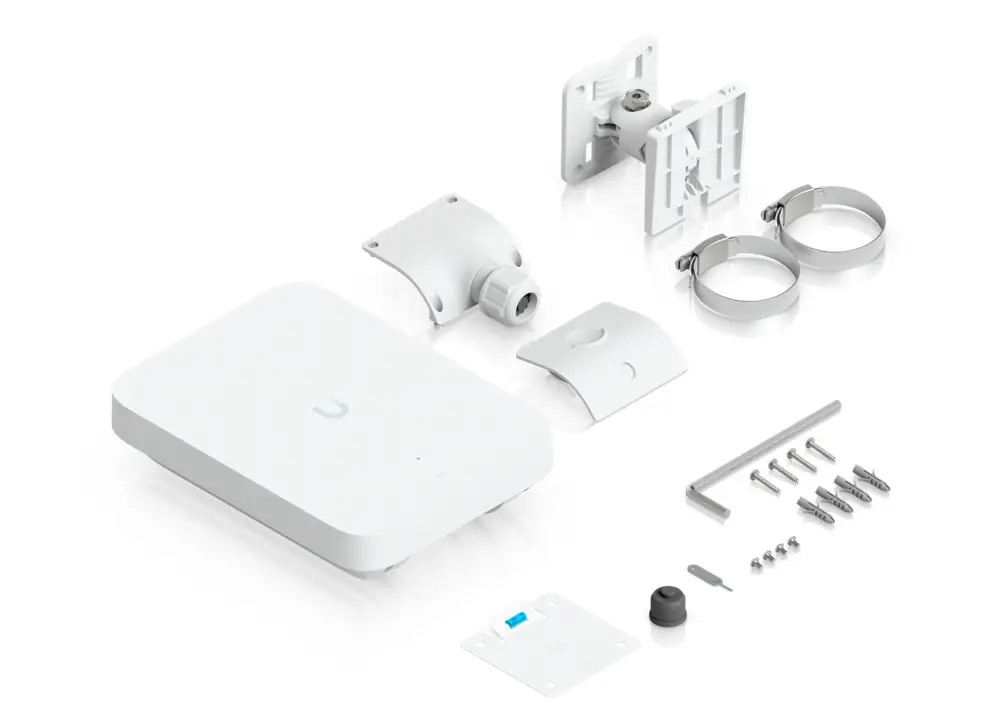

包裝內容
產品資源
| Brands | Ubiquiti |
|---|
