Ubiquiti UniFi UniFi PoE Adapter U-PoE+
Member優惠價：$0
🚚 配送方式：
- • 香港本地訂單：購物滿HK$2,000, 免費送貨!
- • 澳門地區訂單：順豐到付 (運費由買家承擔)
🎧 如有技術或貨存查詢
WhatsApp 查詢Ubiquiti UniFi UniFi PoE Adapter U-PoE+
U-PoE+ 技術規格
總覽
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4″) |
|---|---|
| Weight | 156 g (5.5 oz) |
| Output Voltage | 48V DC @ 0.65A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| 2-pair Powering | Pins 4, 5 (+) and 7, 8 (-) |

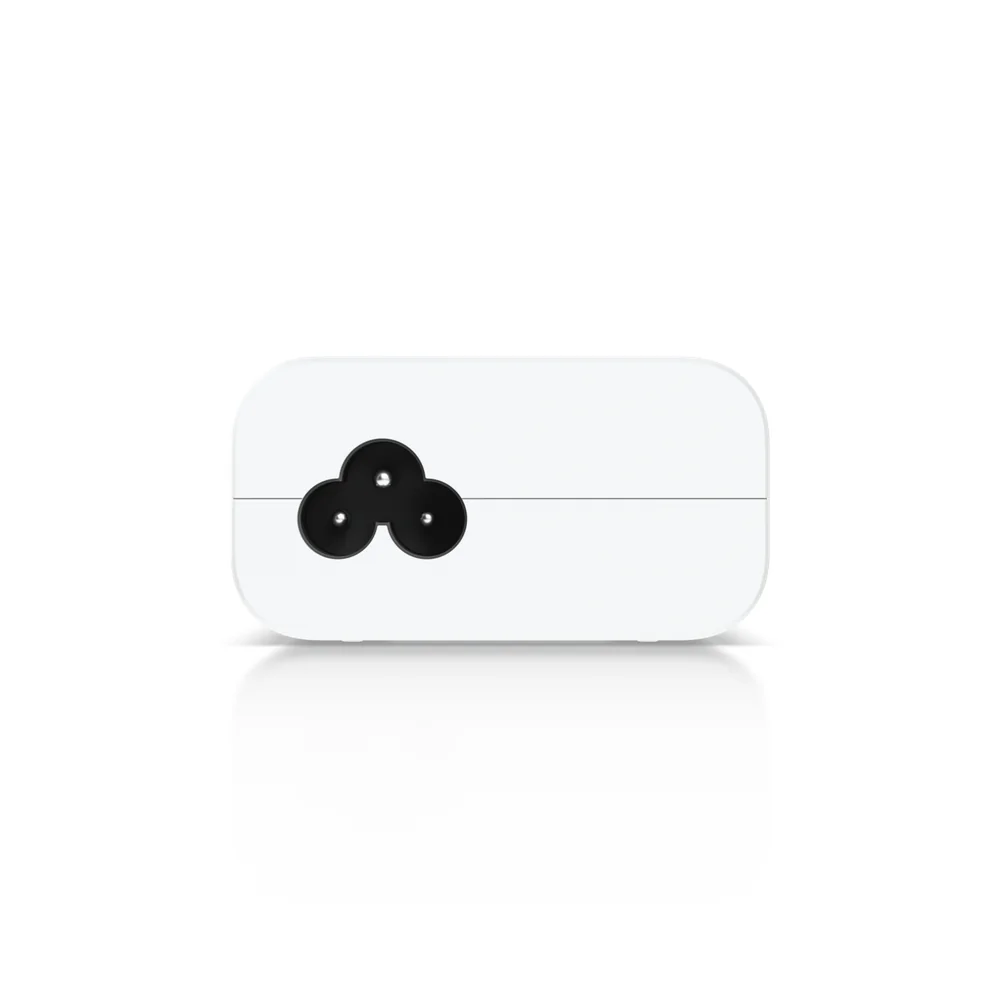

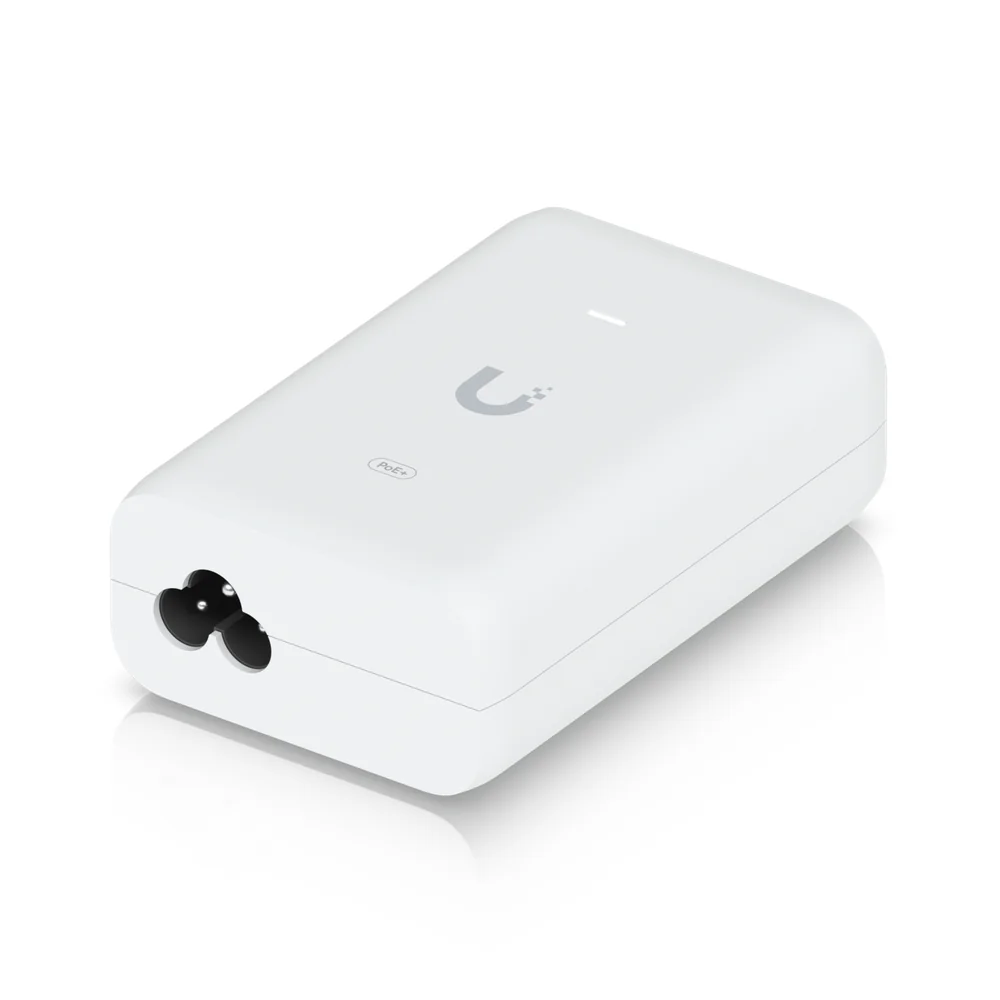

| AC Connector | IEC-320 C6 |
| Clamping Protection | 11V Data, 60V power |

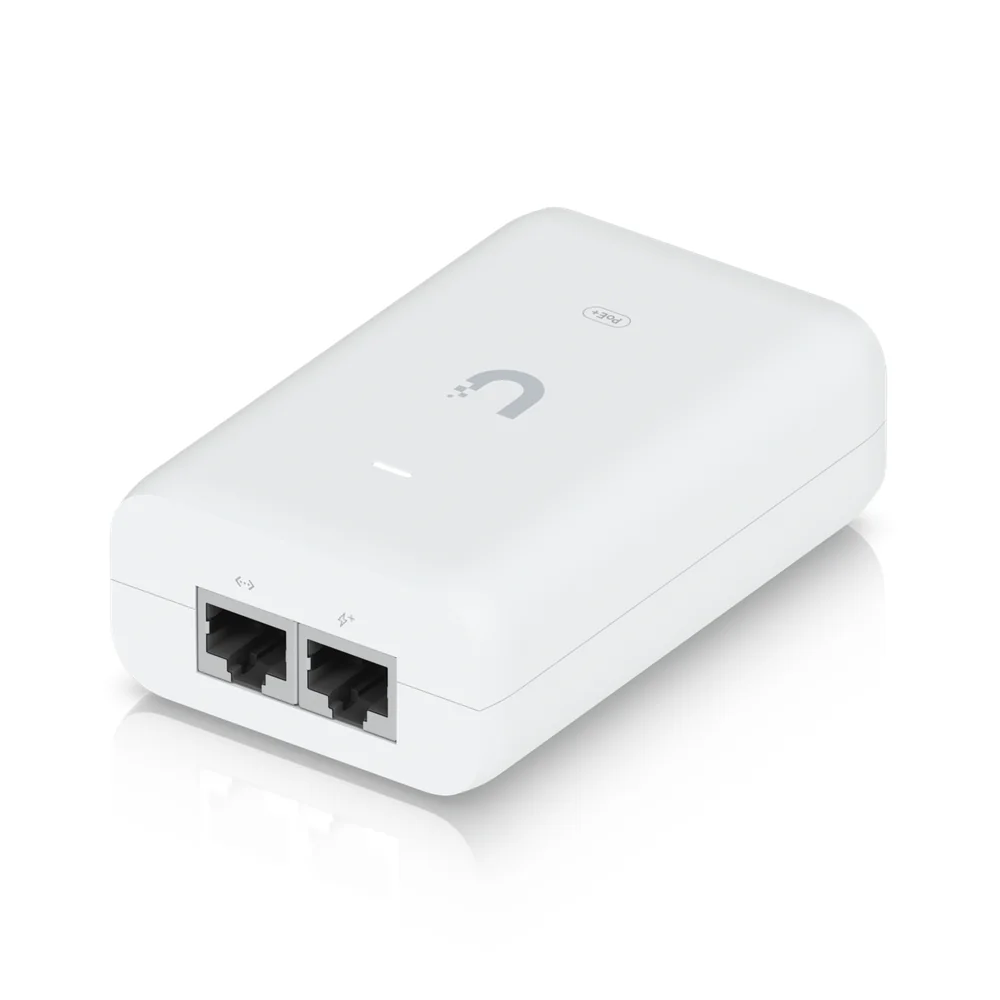

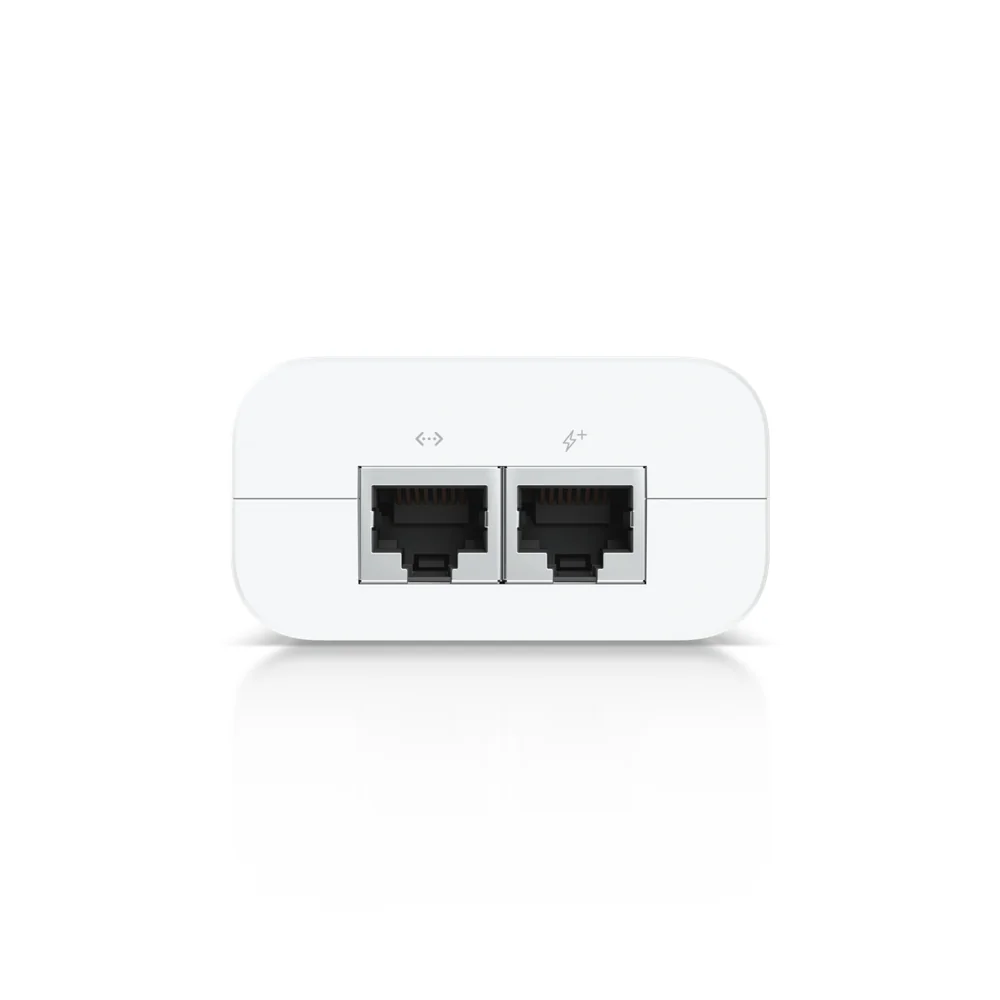

| Data In / PoE | RJ45 Shielded Socket |
| Input Current | 0.75A Max. |
| Inrush Current | <100A peak at 26°C |
| Efficiency | 87% |
| Switching Frequency | 70 kHz Max. |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 3% |
| Load Regulation | ≤ 5% |
| Max. Surge Discharge | 1500A (8/20 μs) power |
| Peak Pulse Current | 36A (10/1000 μs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF data |
| Surge Protection | Difference and common mode |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158° F) |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| NDAA Compliant | Yes |

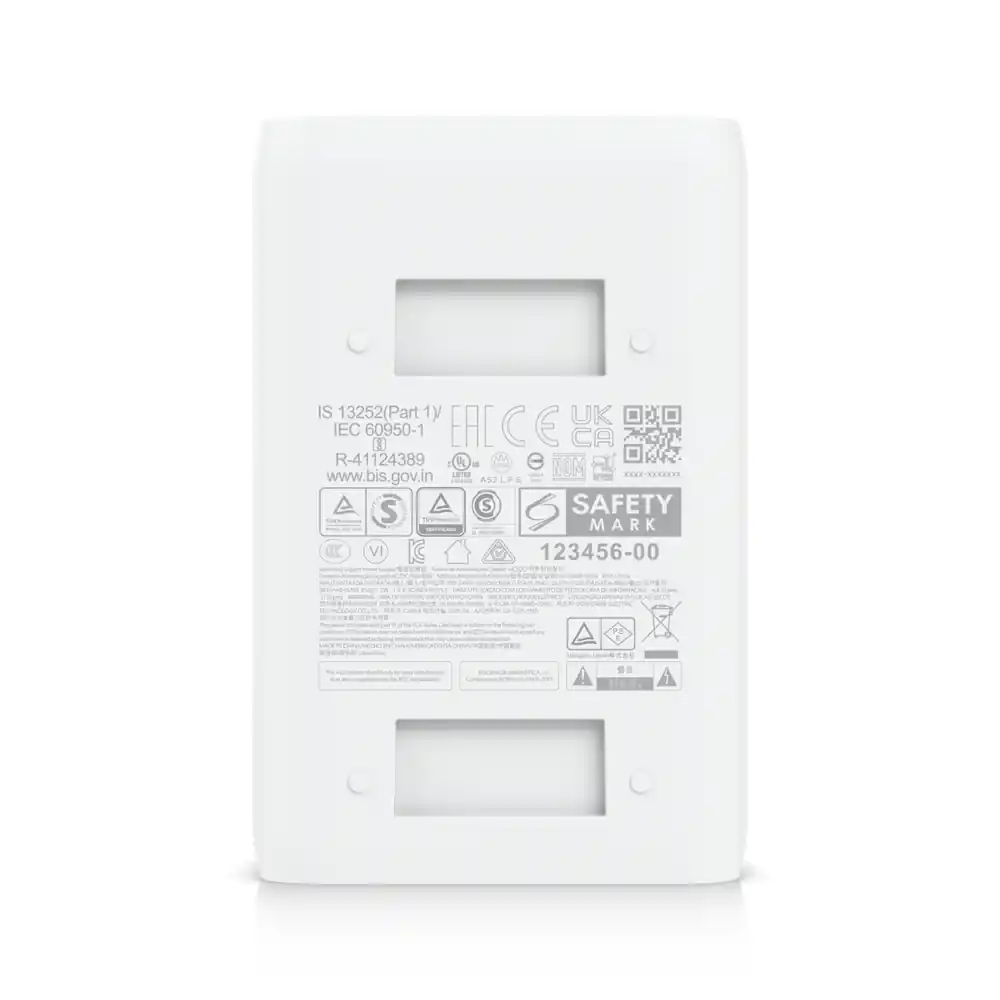

| Certifications | CE, FCC, IC, UL, CCC |
產品資源
| Brands | Ubiquiti |
|---|
