Ubiquiti UniFi UniFi Travel Router UTR

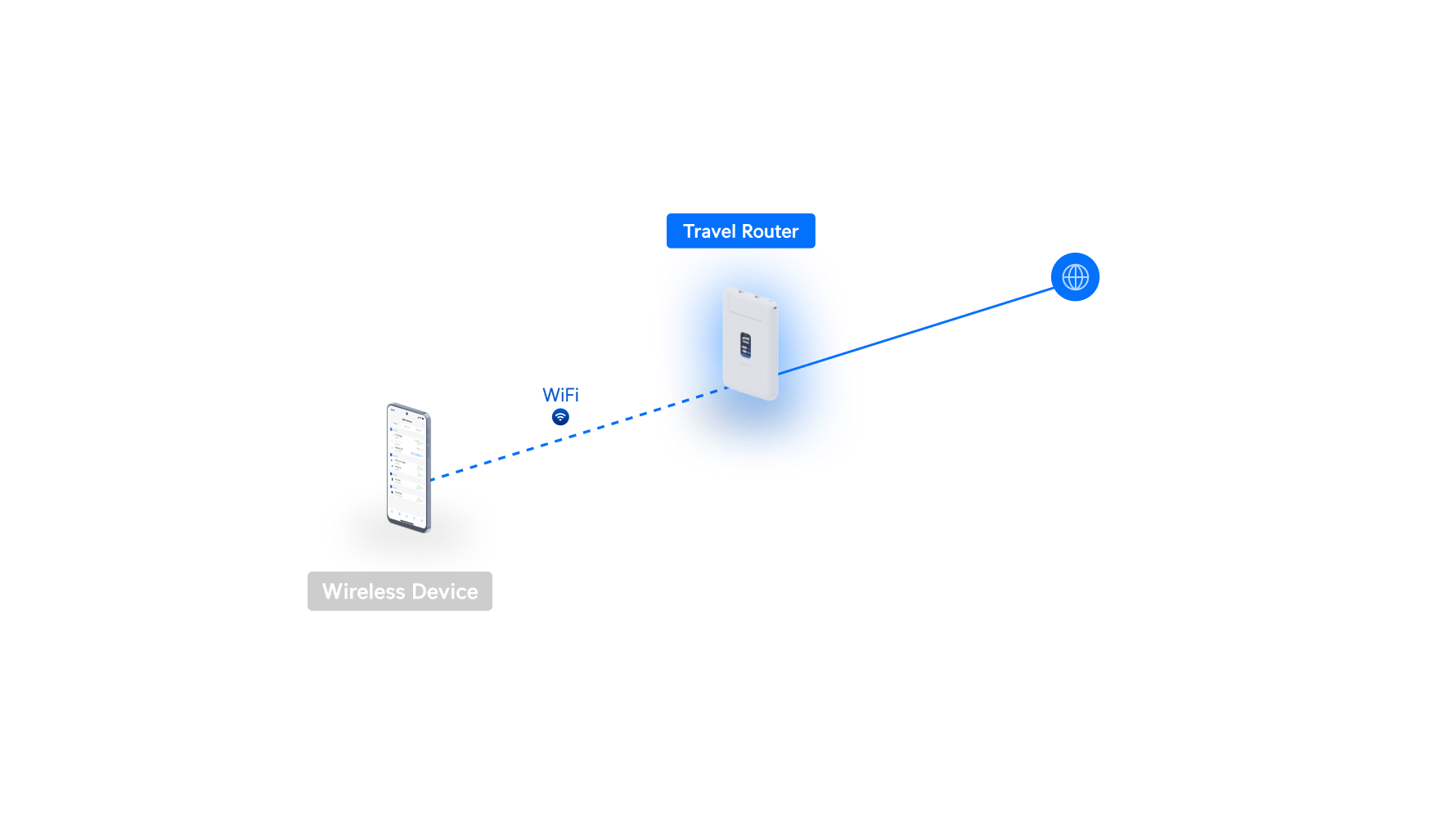

網絡拓撲
UTR 技術規格
總覽
| Dimensions |
95.95 x 65 x 12.5 mm (3.8 x 2.6 x 0.5″) |
| Uplink |
(2) GbE RJ45 ports WiFi |
| WiFi Standards |
WiFi 5 |
Mechanical
| Weight |
89 g (3.1 oz) |
| Enclosure Material |
Polycarbonate |
Features
| WiFi |
Yes |
| Ethernet |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
| Port Forwarding |
Yes |
| Firewall |
Yes |
Networking
| 802.11ac (WiFi 5) |
6.5 Mbps to 866.7 Mbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
硬件規格
| Management |
Ethernet Bluetooth |
| Type |
(2) Embedded WiFi antennas |
| Max. TX Power |
2.4G: 13 dBm 5G: 15 dBm |
| WiFi MIMO |
2 x 2 |
| Max. Power Consumption |
5W |
| Power Method |
USB-C |
| Power Supply |
USB-C, 5V/2A (Adapter not included) |
| Display |
1.14″ status display |
| Buttons |
(1) Factory reset |
| Ambient Operating Temperature |
-10 to 40 °C (-40 to 104 °F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC |
包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
