Ubiquiti UniFi Access Point U6 In-Wall U6-IW

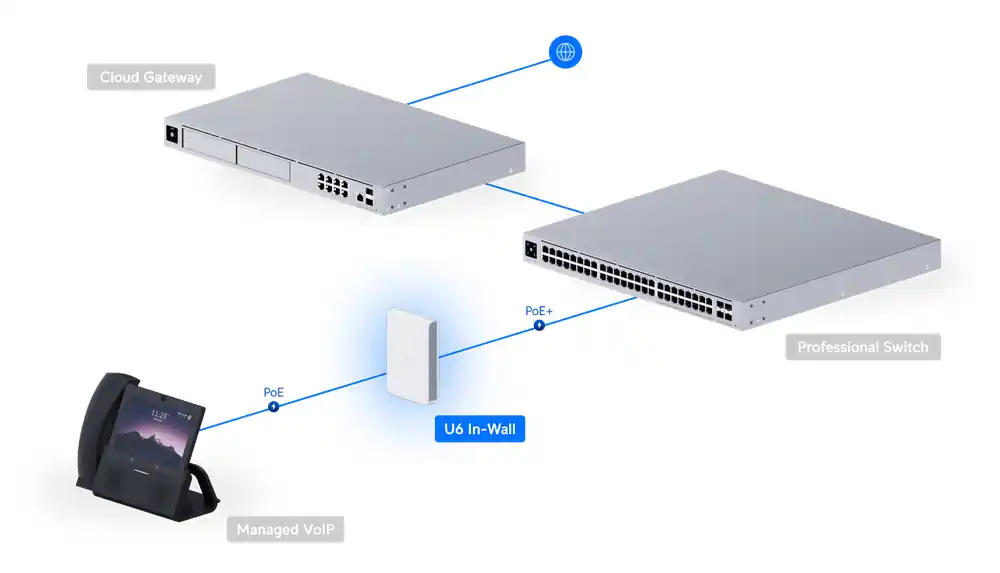

網絡拓撲

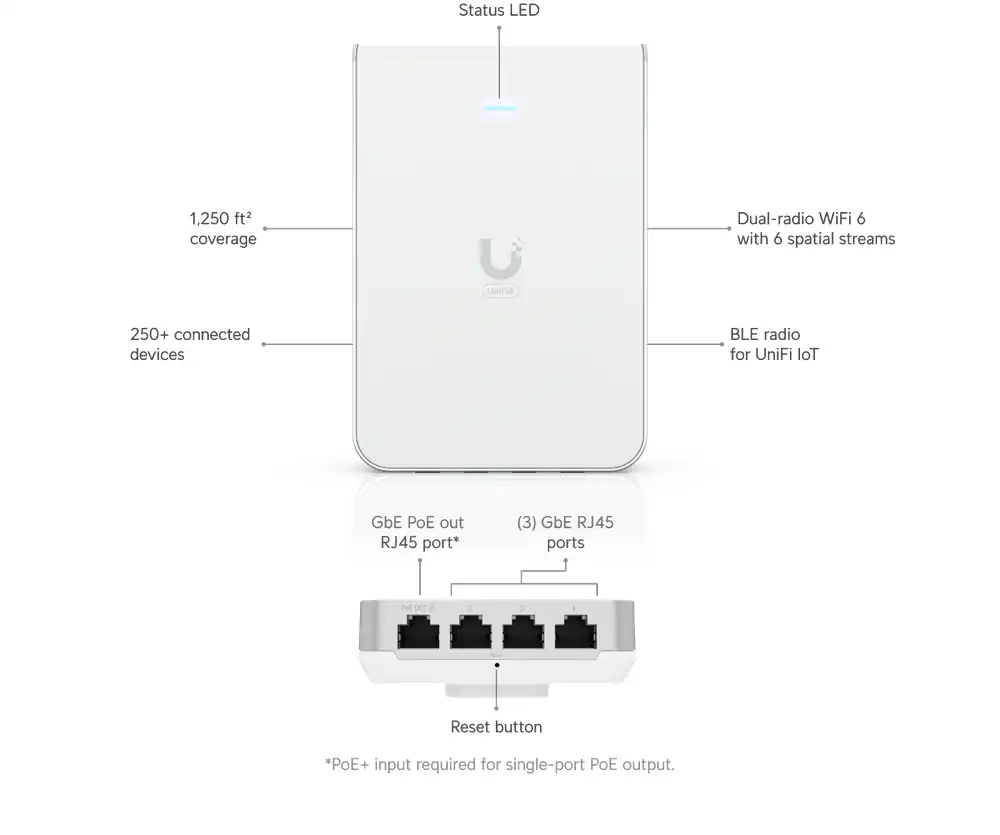

U6-IW 技術規格
Grid overview
| Max. Client Count |
250 |
| WiFi6 |
WiFi 6 |
| Uplink |
GbE |
總覽
| Dimensions |
139.7 x 96 x 31.2 mm (5.5 x 3.8 x 1.3″) |
| WiFi Standard |
WiFi 6 |
| Spatial Streams |
6 |
| Coverage Area |
115 m² (1,250 ft²) |
| Max. Client Count |
250+ |
| Uplink |
GbE |
| Mounting |
Wall (Mount Included) |
| Power Method |
PoE PoE+ (Required for PoE output) |
效能
| 5 GHz |
4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
4.8 Gbps (BW160) |
| 2.4 GHz |
573.5 Mbps (BW40) |
| 5 GHz |
5.9 dBi |
| 2.4 GHz |
5 dBi |
| 5 GHz |
26 dBm |
| 2.4 GHz |
22 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11ax (WiFi 6) |
7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
13W (Excluding PoE output) |
| Networking Interface |

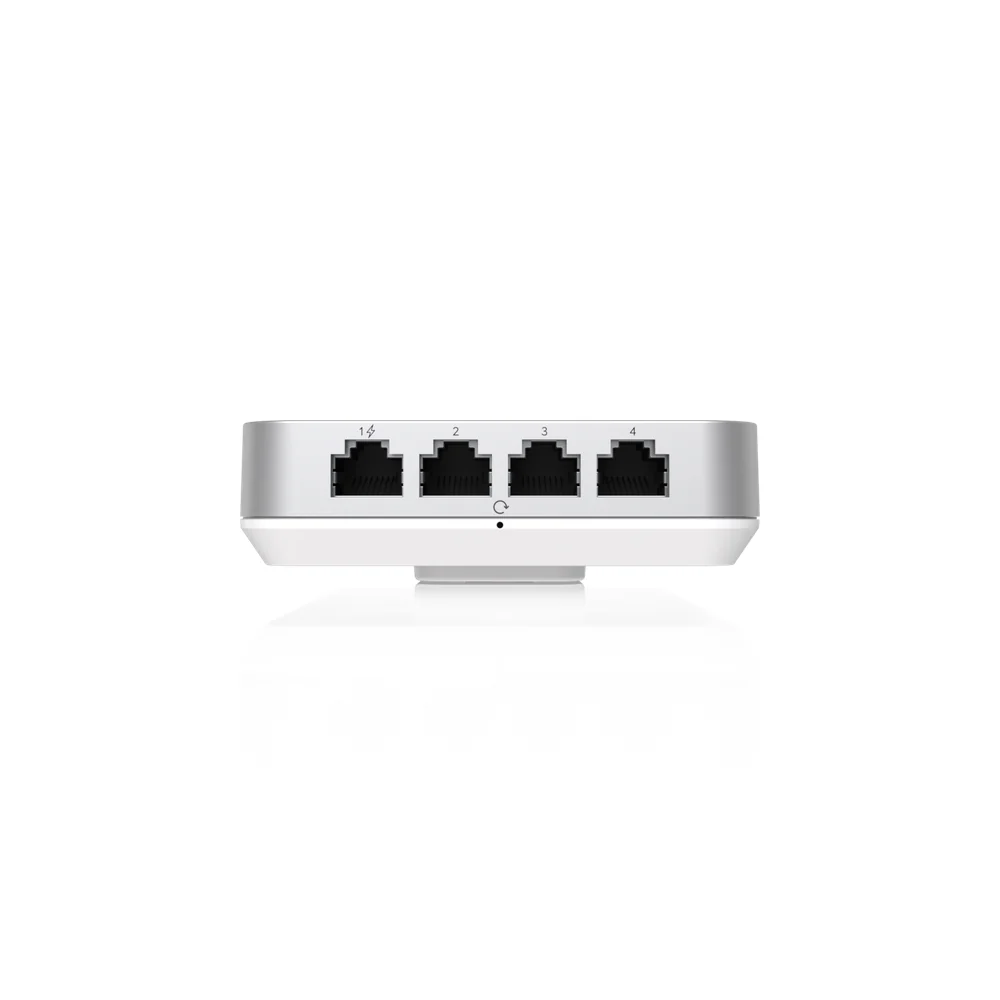

(1) Data-in: GbE RJ45 port (4) Data-out: GbE RJ45 ports |
| Weight |
460 g (1 lb) |
| Management |
Ethernet Bluetooth |
| Built-In Switch |
(4) GbE ports with (1) PoE output |
| Enclosure Material |
Plastic, aluminum |
| Mount Material |
Aluminum |
| System |
White/Blue |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, SRRC, Anatel: 11546-22-08356 |
| Operating Frequency |
US/CA: 2400 – 2472 MHz U-NII-1: 5150 – 5250 MHz U-NII-2A: 5250 – 5350 MHz U-NII-2C: 5470 – 5725 MHz U-NII-3: 5725 – 5850 MHz Worldwide: 2400 – 2483.5 MHz 5150 – 5850 MHz |
| Ambient Operating Temperature |
-30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 6.0.45 and later |

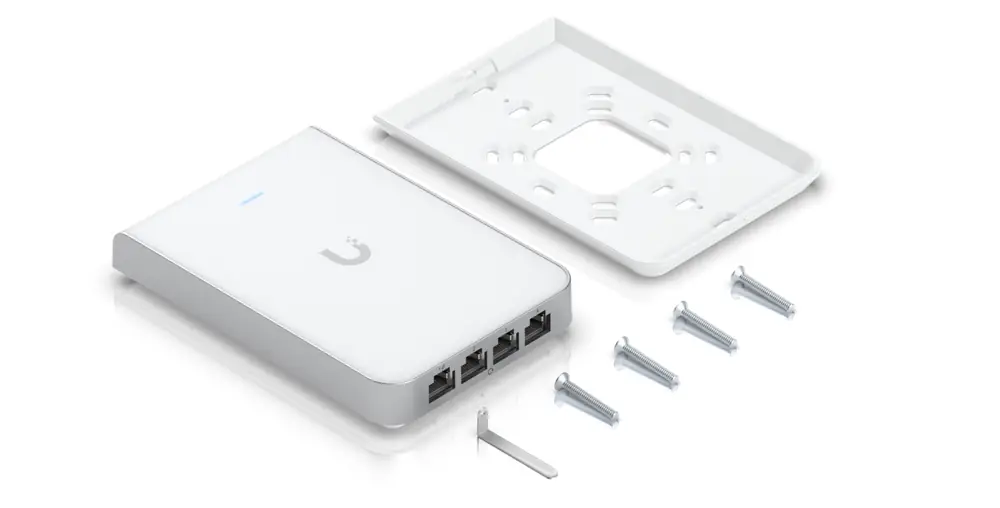

包裝內容
