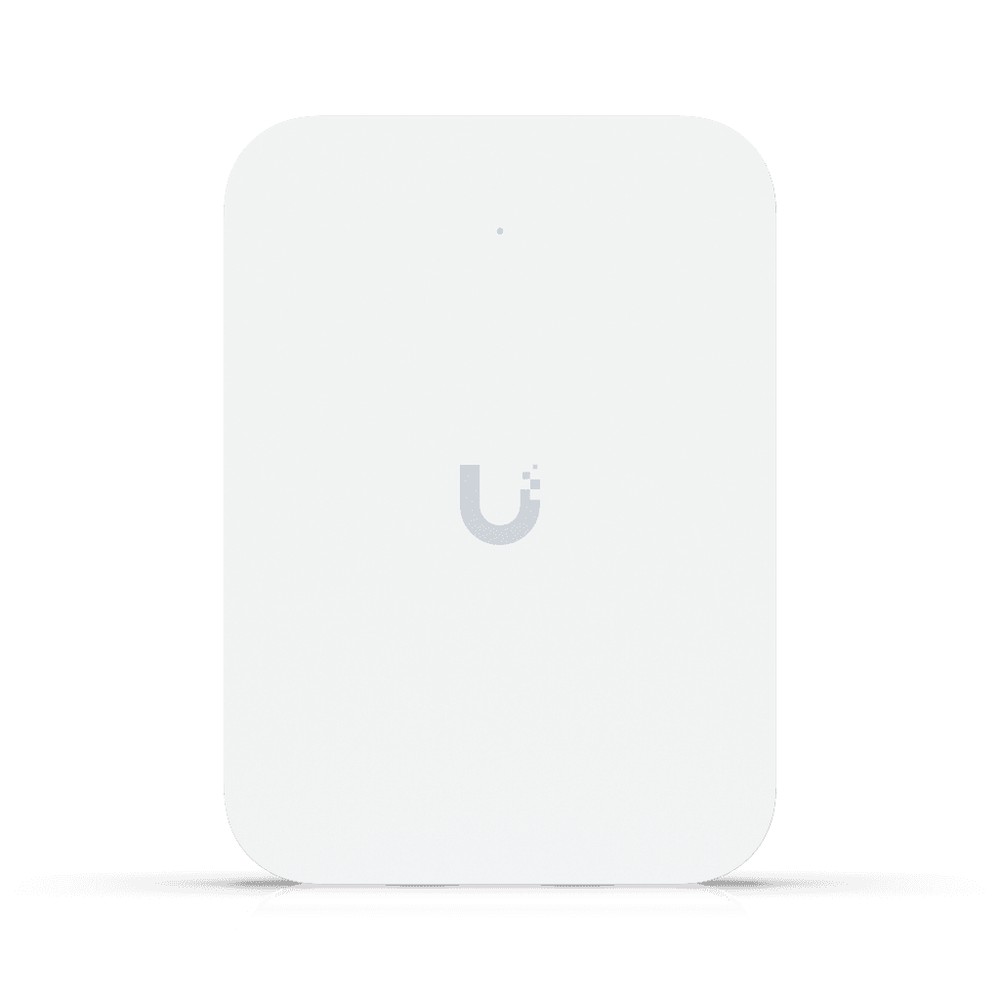

Ubiquiti UniFi Access Point U7 In-Wall U7-IW

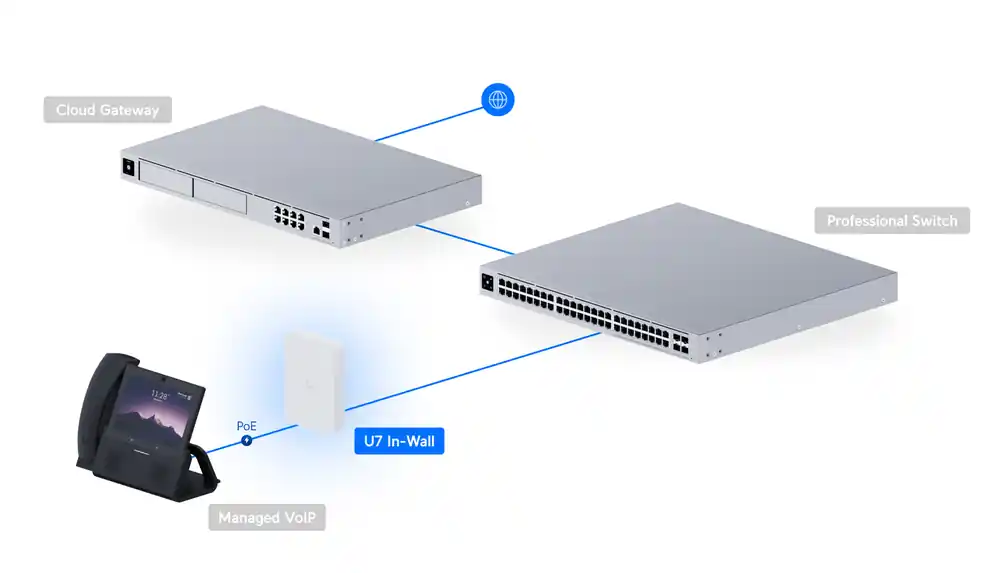

網絡拓撲

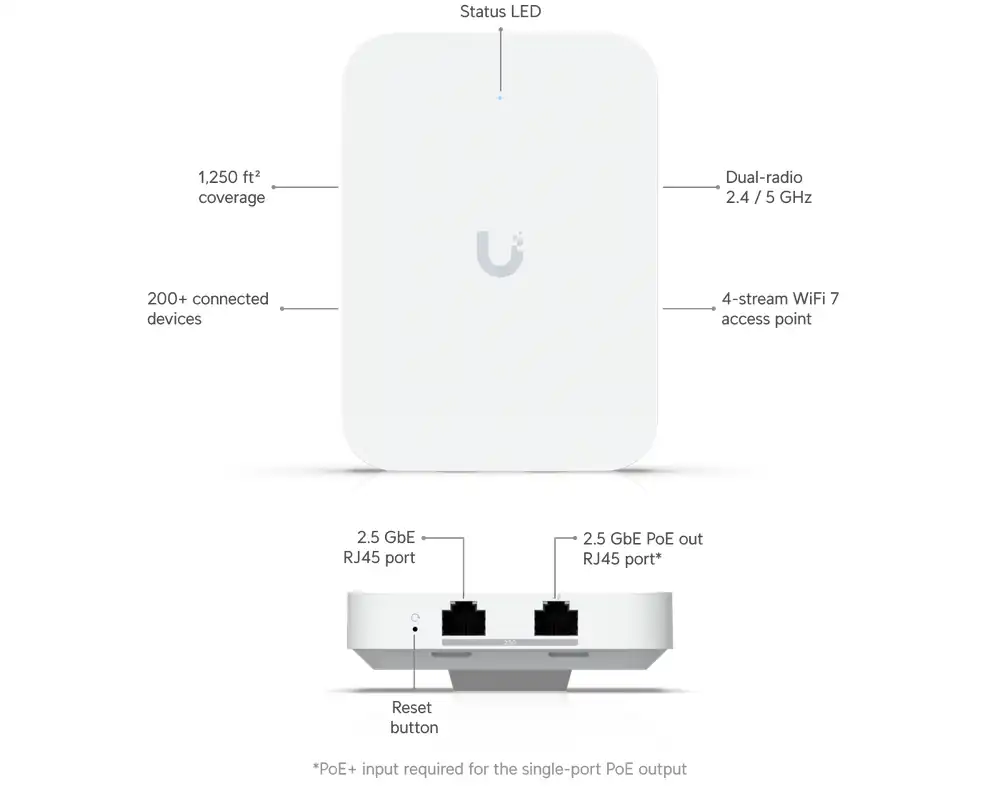

U7-IW 技術規格
Grid overview
| Max. Client Count |
200 |
| WiFi7 |
WiFi 7 |
總覽
| Dimensions |
137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2″) |
| WiFi Standard |
WiFi 7 |
| Spatial Streams |
4 |
| Coverage Area |
115 m² (1,250 ft²) |
| Max. Client Count |
200+ |
| Uplink |
2.5 GbE |
| Mounting |
Wall (Metal Wall Mount Included) |
| Power Method |
PoE PoE+ (Required for PoE output) |
效能
| 5 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
4.3 Gbps (BW240) |
| 2.4 GHz |
688 Mbps (BW40) |
| 5 GHz |
8 dBi |
| 2.4 GHz |
4 dBi |
| 5 GHz |
24 dBm |
| 2.4 GHz |
23 dBm |
| Max. BSSIDs |
8 per Radio |
| 802.11be (WiFi 7) |
7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
Features
| Wireless Meshing |
Yes |
| Band Steering |
Yes |
| 802.11v BSS Transition Management |
Yes |
| 802.11r Fast Roaming |
Yes |
| 802.11k Radio Resource Management (RRM) |
Yes |
| Advanced Radio Management |
Yes |
| Passpoint (Hotspot 2.0) |
Yes |
| Custom Branding Landing Page |
Yes |
| Voucher Authentication |
Yes |
| Payment-Based Authentication |
Yes |
| External Portal Server Support |
Yes |
| Password Authentication |
Yes |
| Guest Network Isolation |
Yes |
| Private Pre-Shared Key (PPSK) |
Yes |
| WiFi Speed Limiting |
Yes |
| Client Device Isolation |
Yes |
| WiFi Schedules |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Dynamic RADIUS-assigned VLAN |
Yes |
硬件規格
| Max. Power Consumption |
13W (Excluding PoE output) |
| Supported Voltage Range |
42.5–57V DC |
| Networking Interface |
(3) 2.5 GbE RJ45 ports |
| Weight |
400 g (14.1 oz) |
| Management |
Ethernet |
| Built-In Switch |
(1) PoE+ input and (1) PoE output |
| Enclosure Material |
Polycarbonate, aluminum alloy |
| Mount Material |
Aluminum alloy |
| System |
White/Blue |
| Channel Bandwidth |
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, SRRC, Anatel: 03909-25-08356 |
| Ambient Operating Temperature |
-30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
軟件要求
| UniFi Network |
Version 9.0.114 and later |
| Mobile App |
iOS™ version 10.20.2 and later Android™ version 10.21.7 and later |

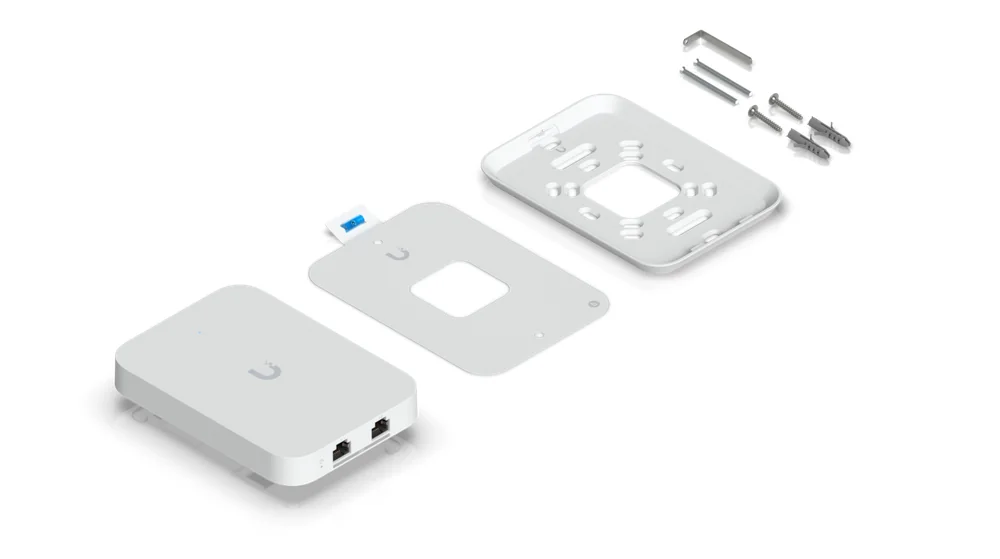

包裝內容
