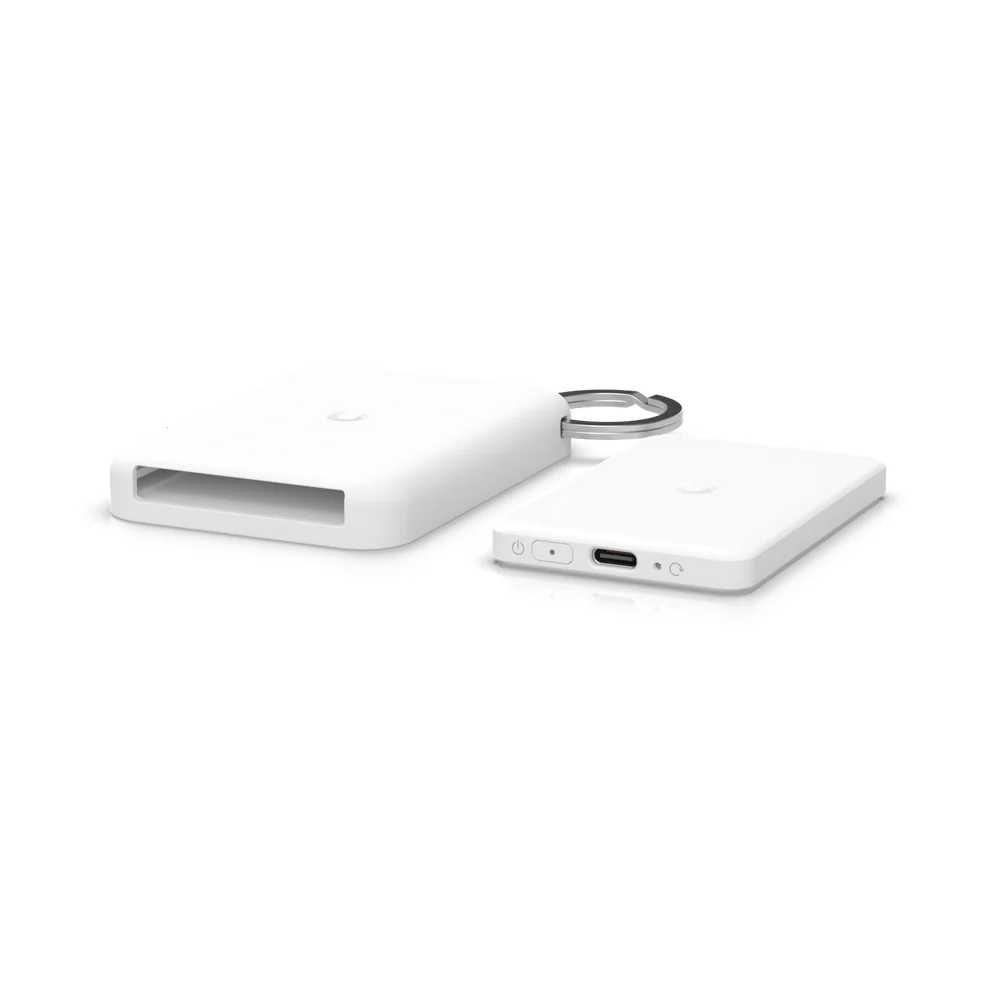

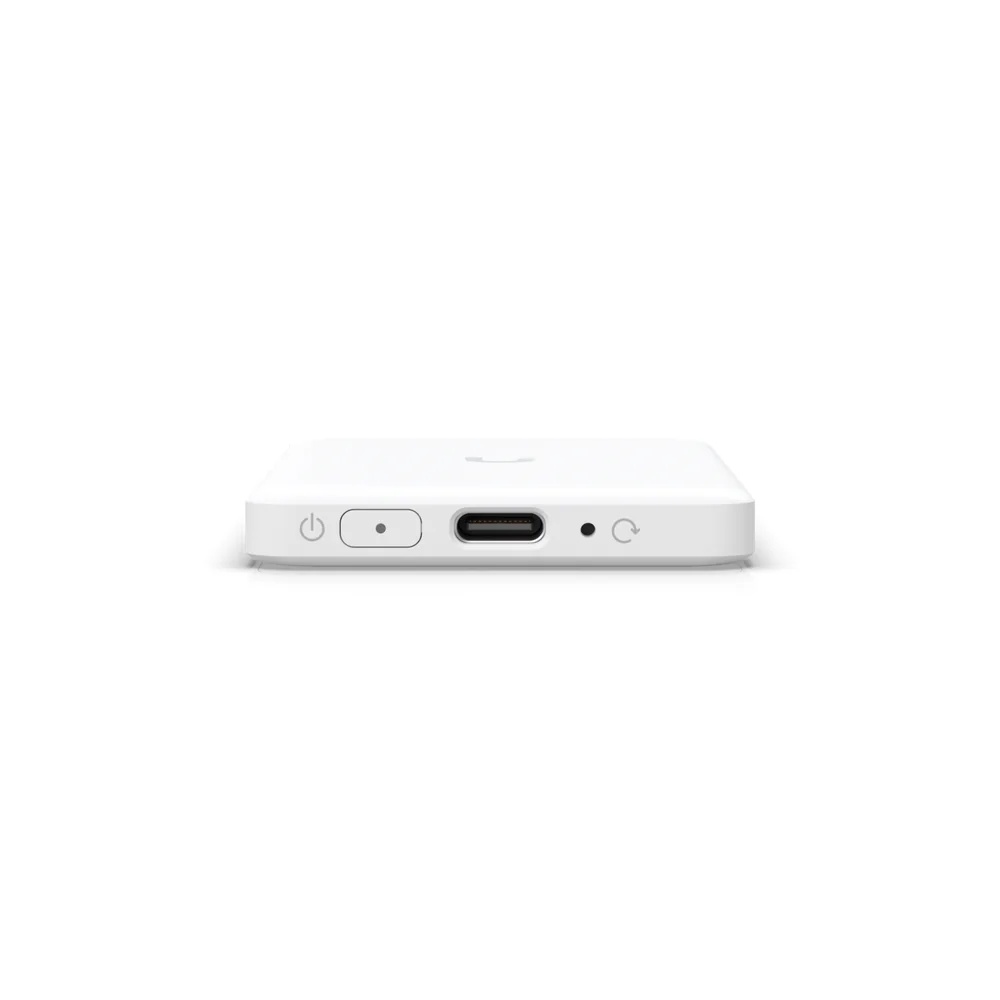

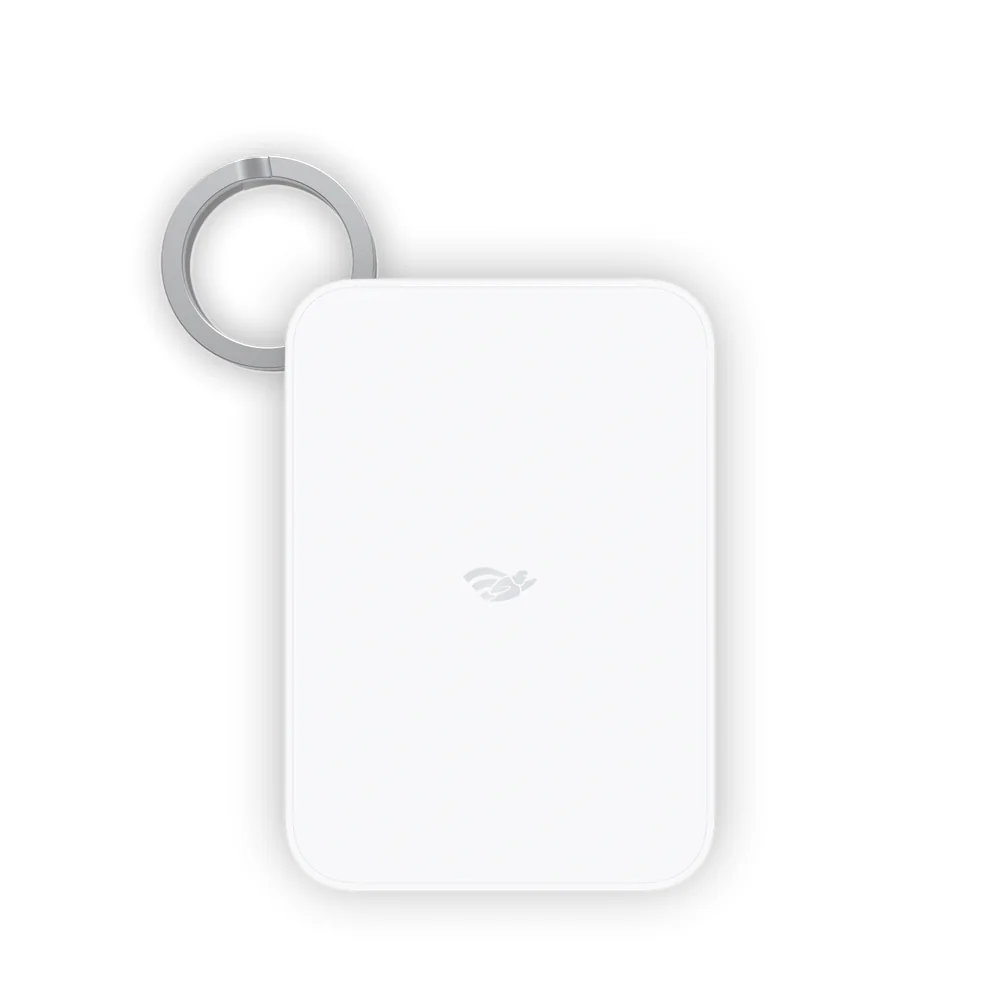

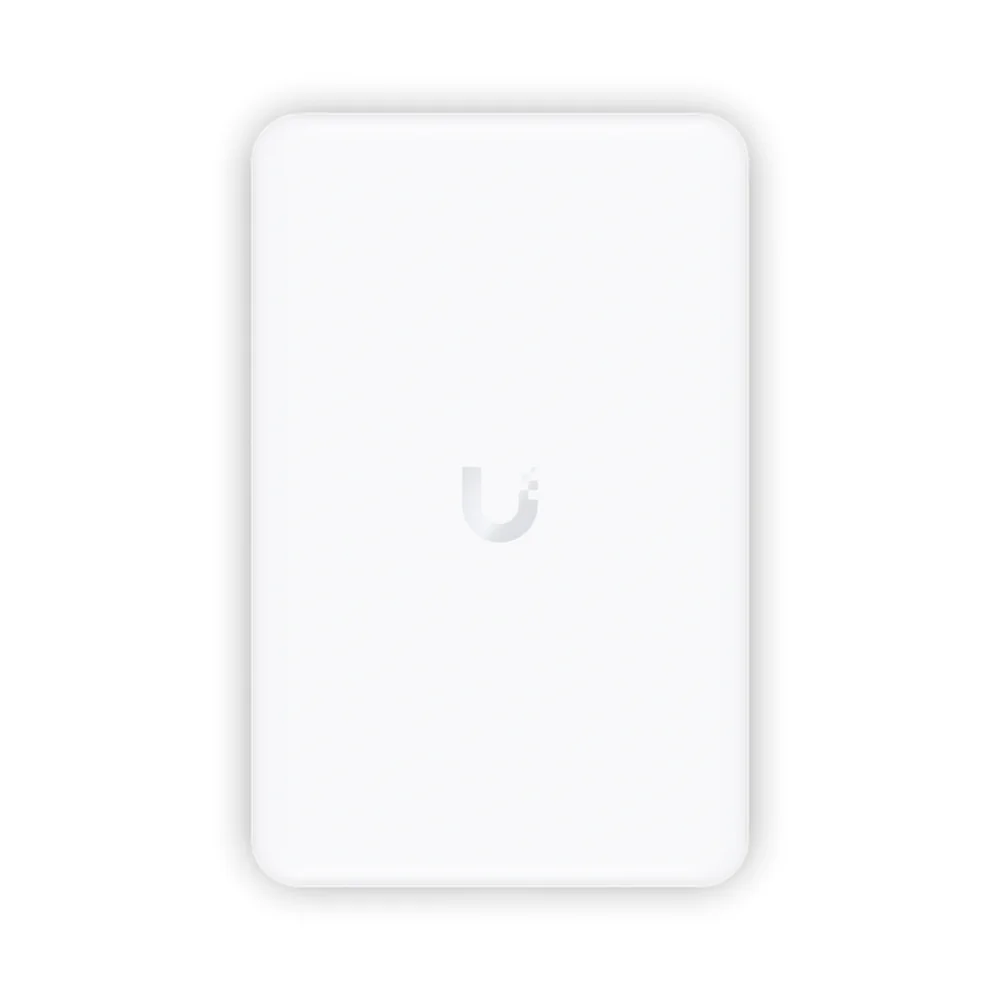

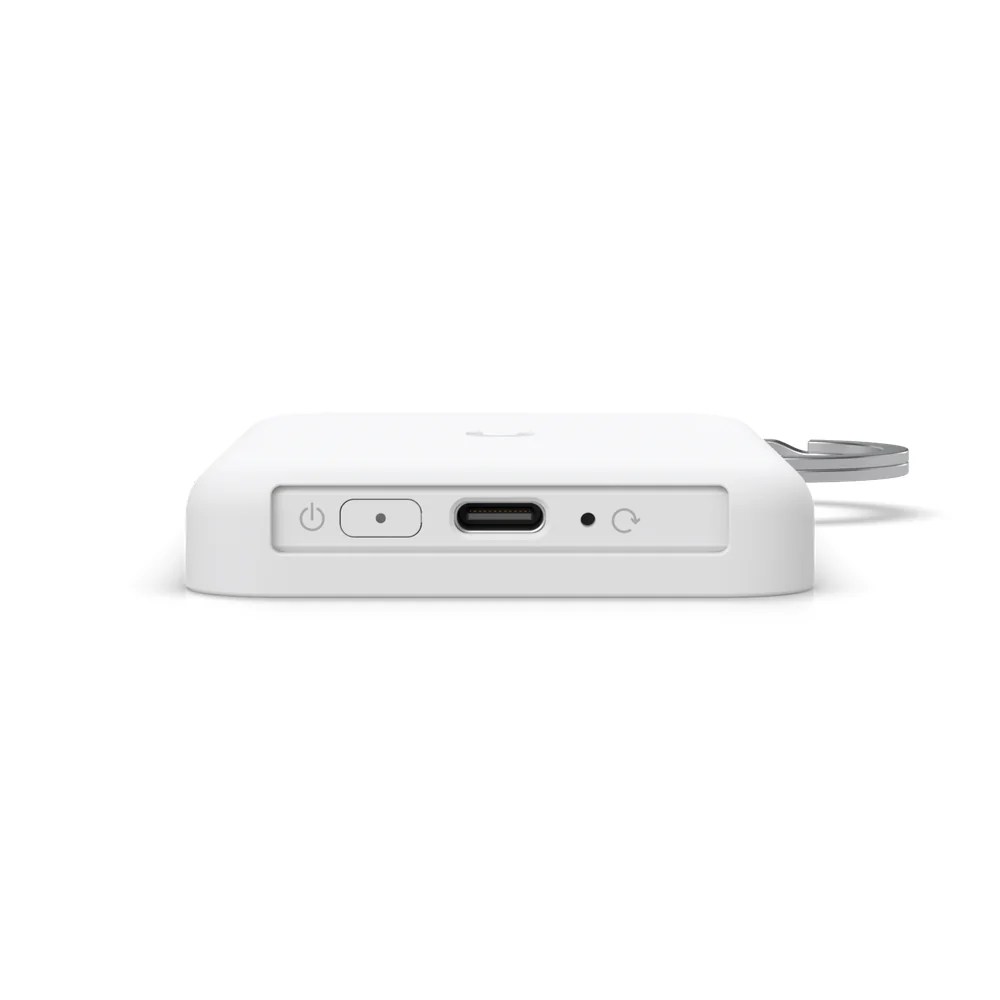

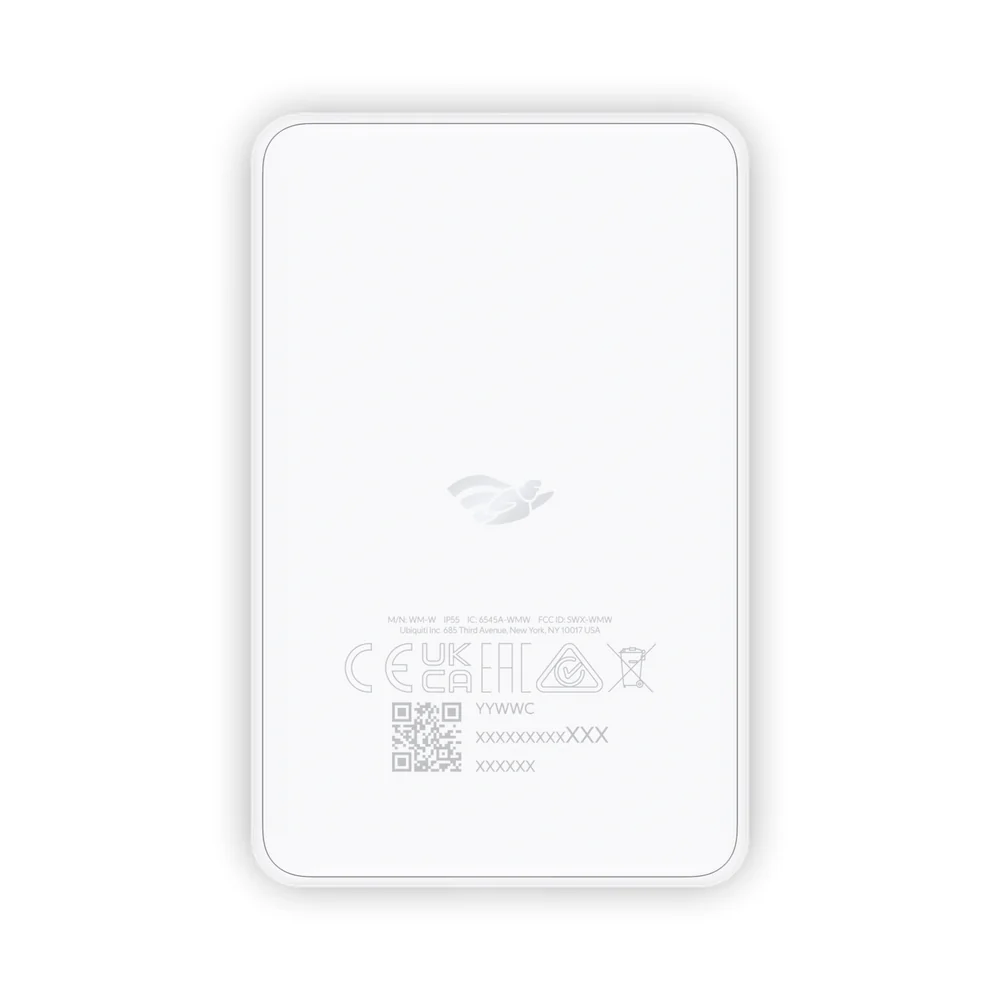

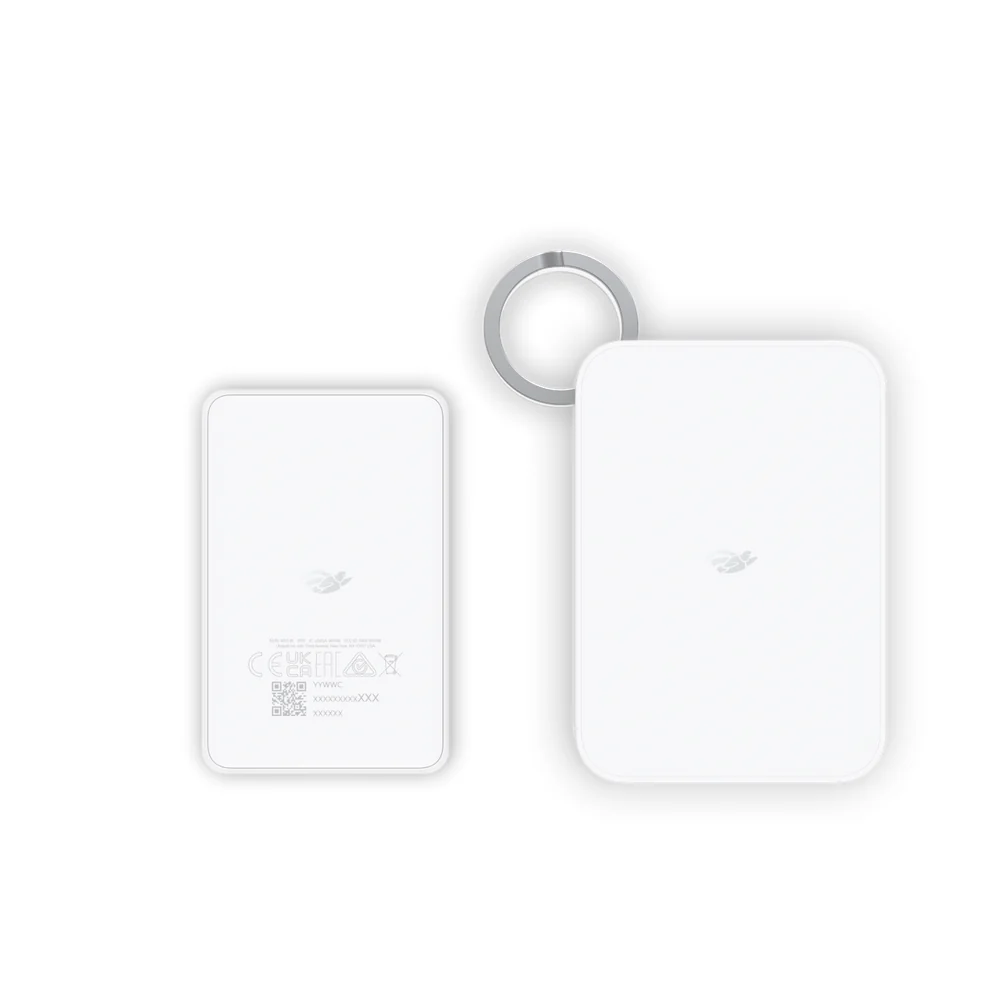

Ubiquiti UniFi WiFiMan Wizard WM-W
WM-W 技術規格
Mechanical
| Dimensions |
78.5 x 50.5 x 7.9 mm (3.1 x 2 x 0.3″) |
| Weight |
32 g (1.1 oz) |
| Enclosure Material |
Polycarbonate |
| Weatherproofing |
IP55 |
硬件規格
| Power Method |
Li-ion battery |
| Power Supply |
Rechargeable Li-ion battery, 3.7V DC, 300mAh |
| Supported Voltage Range |
USB-C: 5V DC/1A |
| Max. Power Consumption |
32.4mW |
| Frequency Range |
2.4 to 2.5 GHz 5.15 to 5.85 GHz |
| Amplitude Range |
-96 dBm to 0 dBm |
| Amplitude Resolution |
1 dBm |
| LEDs |
W/B/R |
| Buttons |
(1) Power (1) Factory reset |
| Ambient Operating Temperature |
0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity |
10 to 90% noncondensing |
| Certifications |
CE, FCC, IC, Anatel: 10051-23-08356 |
軟件要求
| Mobile App |
UniFi WiFiman iOS™: Version 0.18.0 and later UniFi WiFiman Android™: Version 1.15.0 and later |
