Ubiquiti UniFi Cloud Gateway Max UCG-Max

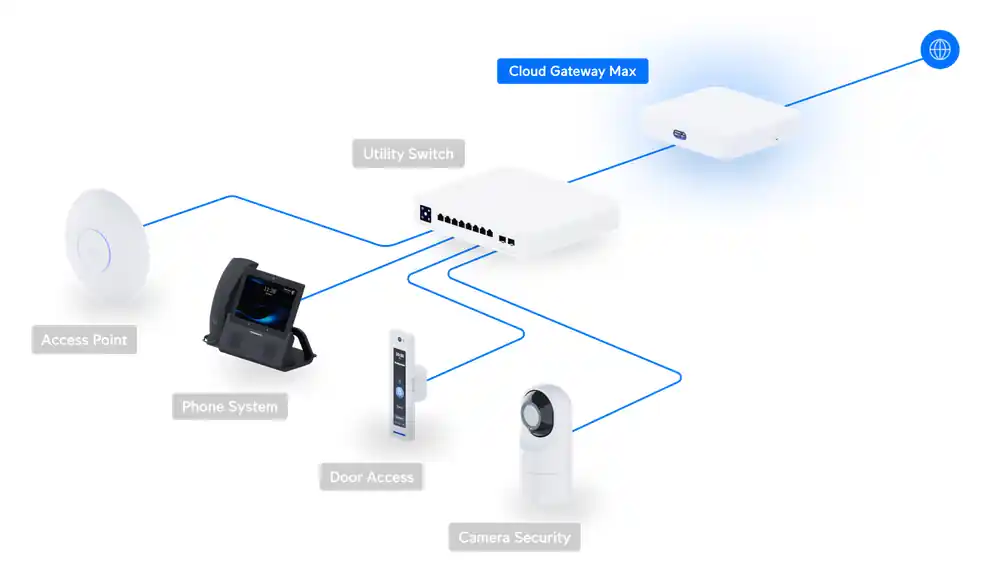

網絡拓撲

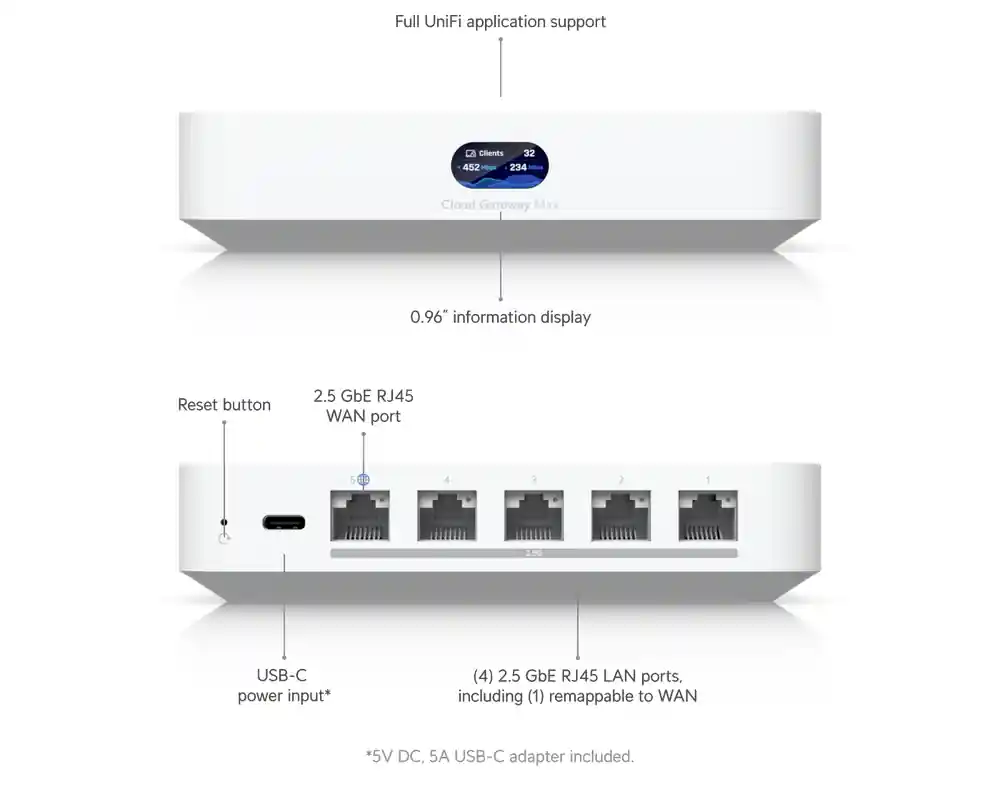

UCG-Max 技術規格
Grid overview
| IDS/IPS |
2.3 Gbps |
| Max. Client Count |
300 |
| RADIUS over TLS (RadSec) |
Yes |
| IDS/IPS Throughput |
2.3 Gbps |
總覽
| Dimensions |
141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2″) |
| Network |
Yes |
| Protect |
Yes |
| Access |
Yes |
| Talk |
Yes |
| Connect |
Yes |
| Managed UniFi Devices |
30+ |
| Managed Cameras |
(15) HD (8) 2K (5) 4K |
| Managed Access Hubs |
50 |
| Simultaneous Users Connected |
300+ |
| Max. WAN Port Count |
4 |
| Default WAN Ports |
(1) 2.5 GbE RJ45 |
| 2.5 GbE RJ45 |
5 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput |
2.3 Gbps |
| Form Factor |
Compact desktop |
安全功能
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
Yes |
| Content Filtering |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes |
| Ad Blocking |
Yes |
| IDS/IPS Signatures |
55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation |
Yes |
VPN & SD-WAN
| License-Free SD-WAN |
Yes |
| Site Magic |
Yes |
| IPsec |
Yes |
| OpenVPN |
Yes |
| Identity Endpoint One-Click VPN |
Yes |
| Teleport Zero-Configuration VPN |
Yes |
| WireGuard |
Yes |
| OpenVPN |
Yes |
| L2TP |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
Networking
| Multi-WAN Load Balancing |
Yes |
| OSPF |
Yes |
| Advanced QoS |
Yes |
| Multicast DNS (mDNS) |
Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
| Integrated RADIUS Server |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Additional Internet Failover with UniFi LTE Backup |
Yes |
| Internet Quality and Outage Reporting |
Yes |
| MAC Address Table Size |
2,000 |
| Policy-based WAN and VPN Routing |
Yes |
| Customizable DHCP Server |
Yes |
| IPv6 ISP Support |
Yes |
| IGMP Proxy |
Yes |
| Virtual Network Override |
Yes |
| All Traffic Flows |
Yes |
硬件規格
| NVR Storage |
Selectable NVMe SSD up to 2 TB |
| Max. Power Consumption |
16.1W |
| Power Method |
USB type C (5V DC/5A) |
| Power Supply |
USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range |
100–240V AC |
| Heat Dissipation |
55 BTU/hr |
| Processor |
Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory |
3 GB |
| Weight |
Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb) |
| Enclosure Material |
Polycarbonate |
| LCM Display |
0.96″ status display |
| Management |
Ethernet Bluetooth |
| Ethernet |
Yes |
| Button |
(1) Factory reset |
| ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 09004-24-08356, SRRC |
軟件要求
| Mobile App |
UniFi iOS™ and Android™: Version 10.17.2 and later |

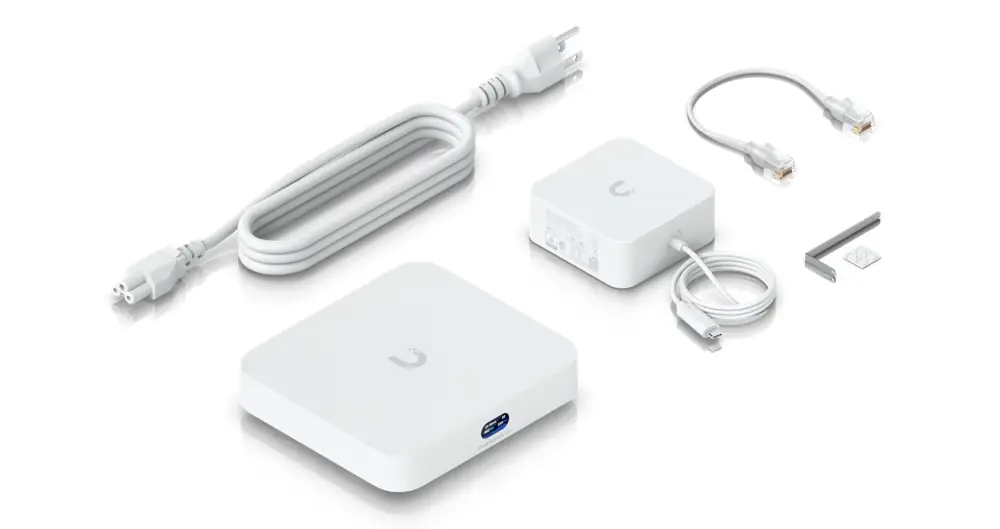

包裝內容
產品資源
Ubiquiti 官方產品頁面 | 快速安裝指南 (QIG)
