Ubiquiti UniFi Dream Wall UDW

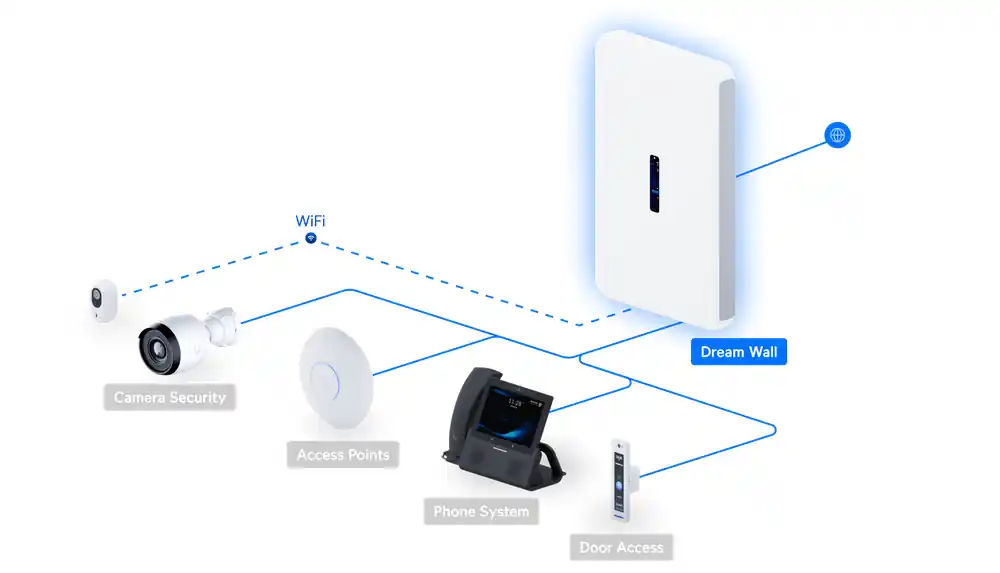

網絡拓撲
UDW 技術規格
Grid overview
| IDS/IPS |
3.5 Gbps |
| Max. Client Count |
300 |
| IDS/IPS Throughput |
3.5 Gbps |
總覽

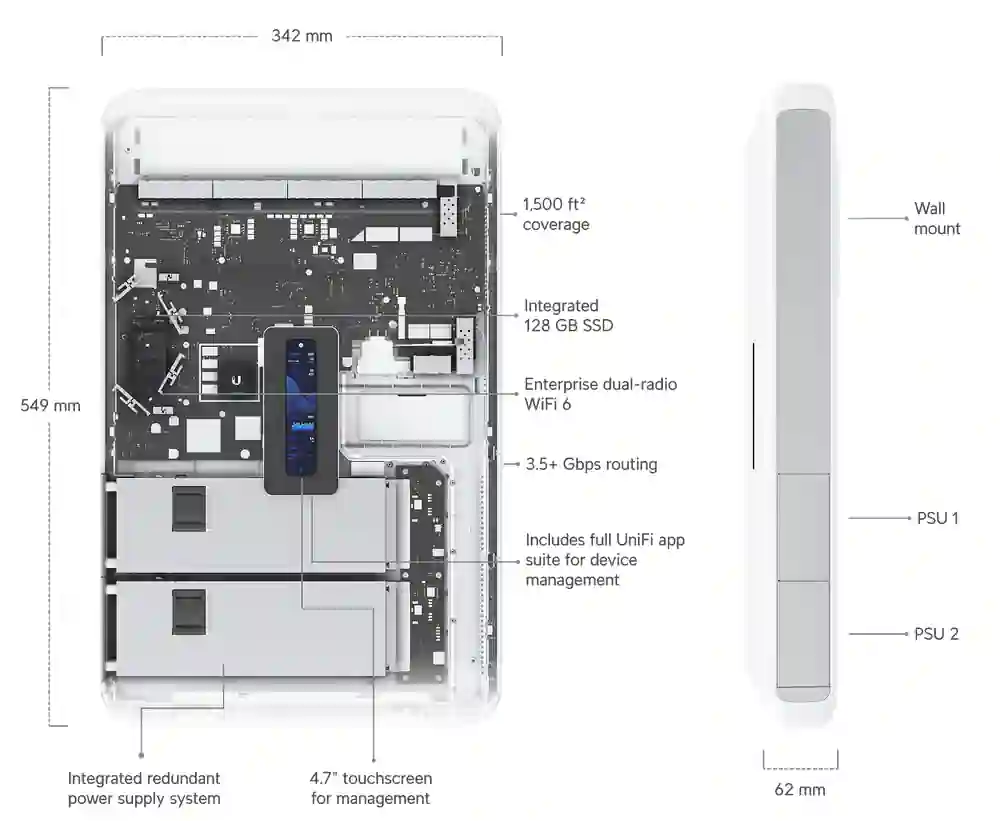

| Dimensions |
549 x 342 x 62 mm (21.6 x 13.5 x 2.4″) |
| Network |
Yes |
| Protect |
Yes |
| Access |
Yes |
| Talk |
Yes |
| Connect |
Yes |
| Managed UniFi Devices |
100+ |
| Managed Cameras |
(12) HD (7) 2K (4) 4K |
| Simultaneous Users Connected |
300+ |
| Max. WAN Port Count |
8 |
| Default WAN Ports |
(1) 2.5 GbE RJ45 (1) 10G SFP+ |

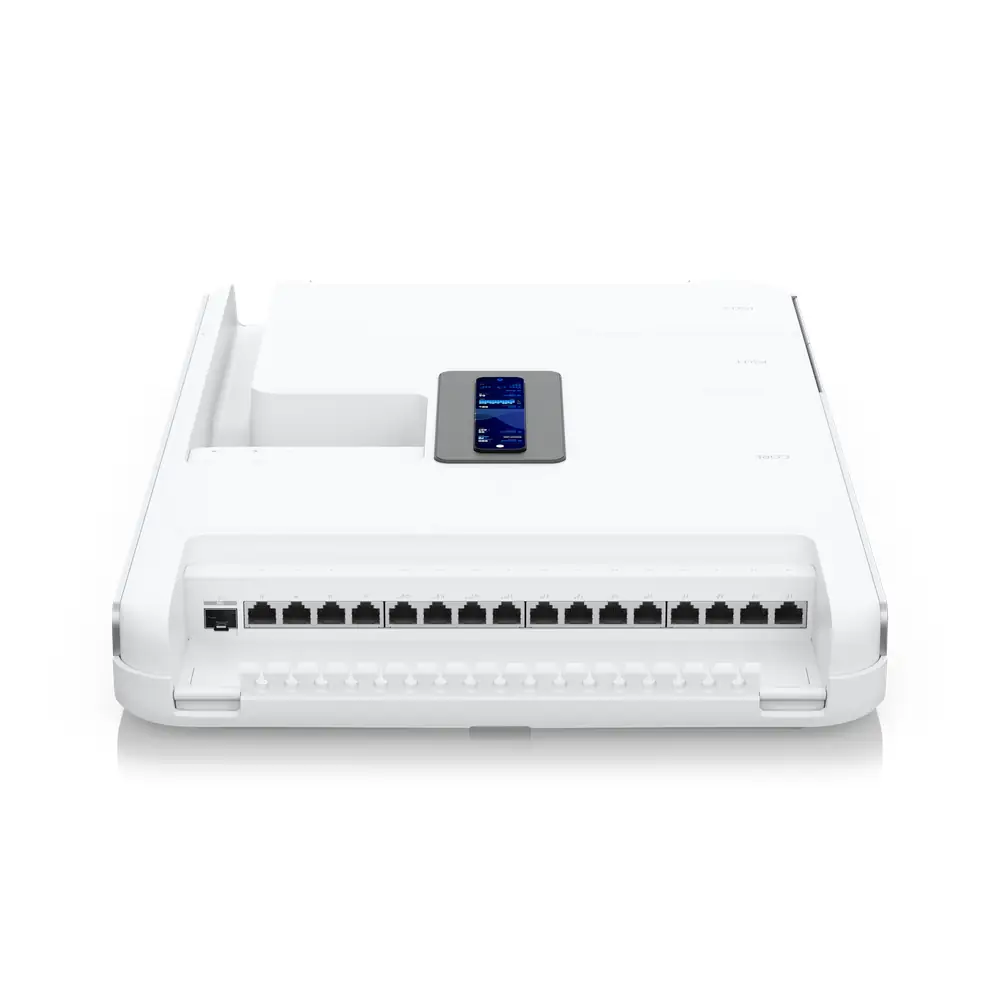

| 1 GbE RJ45 |
17 (4 PoE++, 4 PoE+, 4 PoE (1G/100M/10M) |
| 2.5 GbE RJ45 |
1 (2.5G/1G/100M) |
| 10G SFP+ |
2 (10G/1G) |
| IDS/IPS Throughput |
3.5 Gbps |
| Form Factor |
Wall-mounted |
| Redundancy |
(2) Hot-Swappable PSUs |
| Coverage Area |
140 m² (1,500 ft²) |
安全功能
| Stateful Firewall |
Yes |
| Application-Aware Layer 7 Firewall |
Yes |
| DPI & Traffic Identification |
Yes |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) |
Yes |
| Content Filtering |
Yes |
| Intrusion Prevention (IPS/IDS) |
Yes |
| Ad Blocking |
Yes |
| IDS/IPS Signatures |
55,000+ with CyberSecure |
| VLAN/Subnet-based Traffic Segmentation |
Yes |
VPN & SD-WAN
| License-Free SD-WAN |
Yes |
| Site Magic |
Yes |
| IPsec |
Yes |
| OpenVPN |
Yes |
| Identity Endpoint One-Click VPN |
Yes |
| Teleport Zero-Configuration VPN |
Yes |
| WireGuard |
Yes |
| OpenVPN |
Yes |
| L2TP |
Yes |
| OpenVPN |
Yes |
| WireGuard |
Yes |
Networking
| Multi-WAN Load Balancing |
Yes |
| OSPF |
Yes |
| BGP |
Yes |
| Advanced QoS |
Yes |
| Multicast DNS (mDNS) |
Yes |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) |
Yes |
| Integrated RADIUS Server |
Yes |
| RADIUS over TLS (RadSec) |
Yes |
| Additional Internet Failover with UniFi LTE Backup |
Yes |
| Internet Quality and Outage Reporting |
Yes |
| MAC Address Table Size |
8,000 |
| Policy-based WAN and VPN Routing |
Yes |
| Customizable DHCP Server |
Yes |
| IPv6 ISP Support |
Yes |
| IGMP Proxy |
Yes |
| Virtual Network Override |
Yes |
| All Traffic Flows |
Yes |
Integrated WiFi
| WiFi Standard |
802.11a/b/g/n/ac/ax (WiFi 6) |
| 5 GHz |
2.4 Gbps |
| 2.4 GHz |
300 Mbps |
| 5 GHz |
4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz |
2 x 2 (DL/UL MU-MIMO) |
| 5 GHz |
6 dBi |
| 2.4 GHz |
5.9 dBi |
| 5 GHz |
26 dBm |
| 2.4 GHz |
23 dBm |
| Wireless Security |
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs |
8 per Radio |
| 802.11ax (WiFi 6) |
7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) |
6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n |
6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40) |
| 802.11g |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b |
1, 2, 5.5, 11 Mbps |
| 802.11a |
6, 9, 12, 18, 24, 36, 48, 54 Mbps |
硬件規格
| NVR Storage |
Pre-installed 512 GB microSD for NVR Built-in 128 GB SSD for detection recordings |
| Expansion Slot |
MicroSD Card |
| PoE Budget |
420W |
| PoE |
15.4W |
| PoE+ |
30W |
| PoE++ |
60W |
| Voltage Range PoE Mode |
PoE: 44-57V PoE+/PoE++: 50-57V |
| Max. Power Consumption |
532W (Including PoE Output) |
| Power Method |
Universal AC input 100–240V AC, 7A Max., 50/60Hz |
| Power Supply |
(2) Hot-Swappable AC/DC 550W PSU (1) Pre-installed PSU |
| Supported Voltage Range |
100–240V AC |
| Heat Dissipation |
382 BTU/hr (Excluding PoE Output) |
| Processor |
Quad-core ARM® Cortex®-A57 at 1.7 GHz |
| System Memory |
4 GB |
| On-board Storage |
16 GB eMMC Integrated 128 GB SSD Pre-installed 512 GB microSD card |
| Weight |
8.6 kg (19 lb) |
| Enclosure Material |
Polycarbonate, galvanized steel, aluminum alloy |
| Mount Material |
Stainless steel |
| LCM Display |
4.7″ touchscreen |
| Management |
Ethernet Bluetooth |
| Ethernet |
Yes |
| SFP+ |
Yes |
| Button |
(1) Factory reset |
| ESD/EMP Protection |
Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature |
-10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity |
5 to 95% noncondensing |
| NDAA Compliant |
Yes |
| Certifications |
CE, FCC, IC, Anatel: 18314-23-08356 |
軟件要求
| VLAN |
802.1Q |
| Guest Traffic Isolation |
Yes |

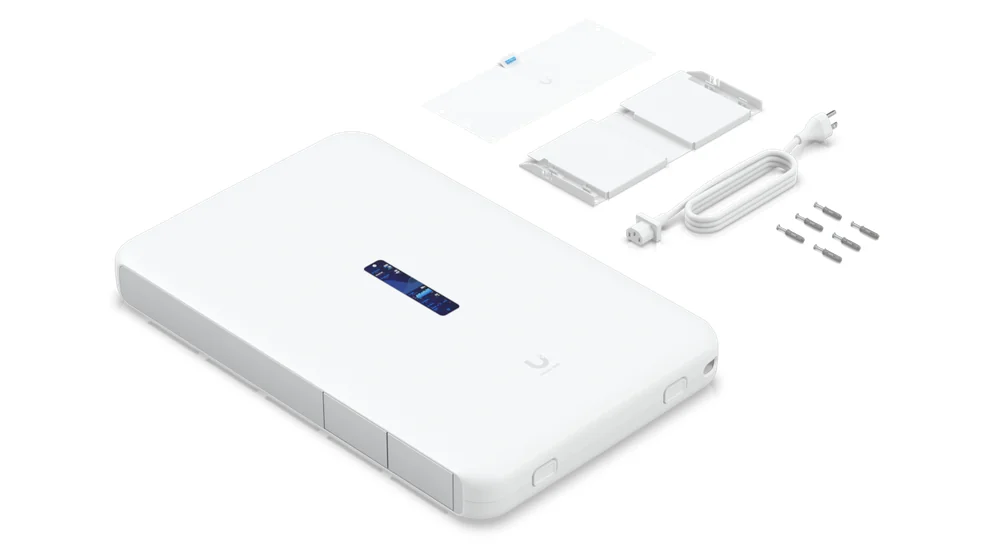

包裝內容
